BharatBenz Transit Mixer

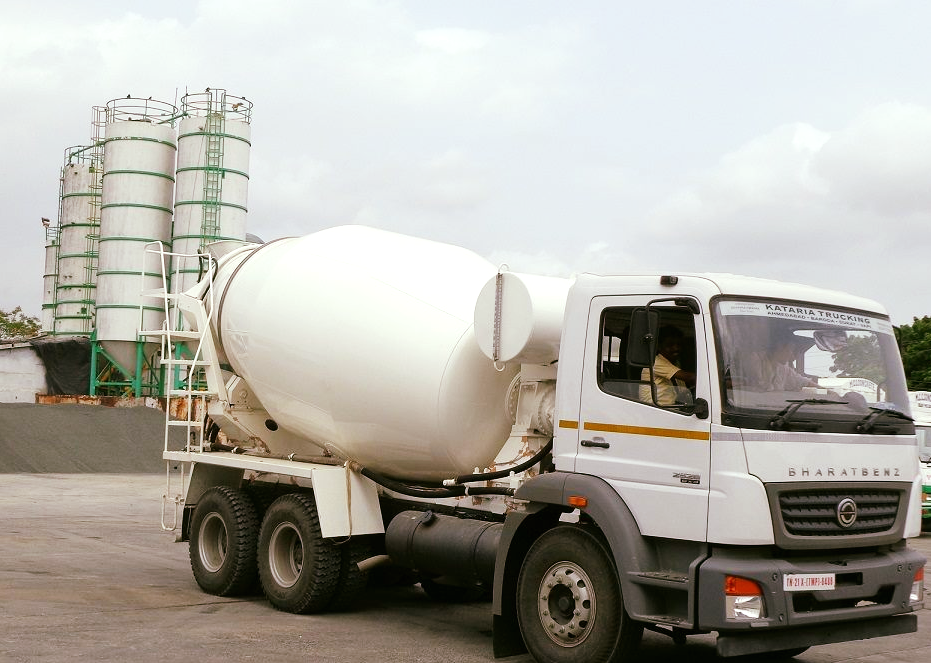

BharatBenz 2828C RMC

A heavy-duty RMC Transit Mixer featuring OM 926 BSVI OBD-II engine, designed for large-scale infrastructure and commercial construction projects.

Feature icon
EngineOM 926 280 HP
Concrete Mixer icon
Drum size8-9 m³
Torque icon
Max Torque1100 Nm
Speedometer icon
Max Speed60 km/h
Fuel Tank icon
Fuel Tank280L
Feature icon
Gross Vehicle Weight28000 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Car icon
Engine Make

OM 926 BSVI OBD-II

Engine Displacement icon
Engine Displacement

7200 cc

Pollution icon
Emission

BS-VI

Lighting icon
Battery

24V / 120Ah

Fuel Tank icon
Fuel Tank

280 L

Mountain icon
Gradeability

60%

Pedals icon
Clutch Dia

430 mm

Drum Drive icon
Drum Drive

Standard / Spline Type

Axle2 icon
Axle Configuration

6 x 4

Axle icon
No. of Tyres

10

Tyre icon
Tyres Size

295/90R20

Width Copy icon
Overall Length

9475 mm

All Wheel Drive icon
Wheel Base

4575 mm

Air Conditioner icon
AC Cabin

Yes

GPS Tracking icon
GPS

No

Specifications

Product specification of BharatBenz 2828C RMC

ENGINE

  • Model

    OM 926 BSVI OBD-II

  • Fuel Type

    Diesel

  • Max Power

    280 HP (210 kW) @ 2200 rpm

  • Max Torque

    1100 Nm @ 1200–1600 rpm

  • No. of Cylinders

    6 Cylinders

  • Engine Displacement

    7200 cc

  • Battery

    24V / 120Ah

TRANSMISSION & CLUTCH

  • Gear Box Model & Type

    G131, 9F + 1 R & Manual - Synchromesh

  • Clutch Type

    Single Dry Plate

  • Clutch Dia

    430 mm

  • Power Take Off (PTO)

    Standard, Spline Type

AXLE

  • Front Axle

    IF 7.0

  • Rear Axle

    IRT 390-11 Single Reduction with Diff Lock

  • Rear Axle Ratio

    5.375

CHASSIS FRAME & SUSPENSION

  • Chassis Frame (DxWxT)

    288 x 70 x 9 mm

  • Front Suspension

    Parabolic Type Leaf Spring with Shock Absorbers

  • Rear Suspension

    Bogie Suspension

  • Anti-roll Bar

    Front & Rear: Standard

BRAKES

  • Service

    Pneumatic Foot Operated, Dual Line with ABS

  • Parking

    Pneumatically Operated Hand Control Valve

  • Front Brake Size

    410 mm, Drum

  • Rear Brake Size

    410 mm, Drum

STEERING

  • Steering Type

    Hydraulic Power Assisted (Telescopic And Tilt Type)

SERVICE CAPACITIES

  • Fuel Tank

    280 L

  • DEF Tank

    60 L

PERFORMANCE

  • Gradeability

    60%

  • Max Speed

    60 km/h

  • TCD

    16.12 m

  • Mileage

    2.75-3.75 km/l

VEHICLE DIMENSIONS & WEIGHT

  • Gross Vehicle Weight

    28000 kg

  • Wheel Base

    4575 mm

  • Load Body

    8, 9 m³

  • Overall Length

    9475 mm

  • Overall Width

    2600 mm

  • Overall Height

    3830 mm

  • Ground Clearance

    290 mm

  • Front Overhang

    1485 mm

  • Rear Overhang

    2740 mm

  • Axle Configuration

    6 x 4

  • No. of Tyres

    10

  • Tyres Size

    295/90R20

COMFORT

  • Cabin

    Day Cabin

  • A/C

    Yes

  • Telematics

    No

  • Seat Type

    D+2

Popular Comparisons with BharatBenz 2828C RMC

Related Transit Mixers

Frequently Asked Questions

Everything you need to know about the BharatBenz 2828C RMC Transit Mixer

The Bharat Benz 2828C RMC Transit Mixer is priced at approximately ₹48 to 52 lakhs (ex-showroom). Prices may vary based on location, dealer, and configuration.

The fuel efficiency of the Bharat Benz 2828C Transit Mixer ranges between 2.75 to 3.75 km per litre, depending on the load, road conditions, and driving style. The truck's advanced engine helps optimize fuel consumption in real-time.

The Bharat Benz 2828C is equipped with a powerful OM 926 BS6 OBD-II diesel engine, delivering a maximum power of 280 HP @ 2200 rpm and a peak torque of 1100 Nm @ 1200-1600 rpm. This ensures smooth and efficient concrete transport even on tough terrain.

The Gross Vehicle Weight (GVW) of the Bharat Benz 2828C Transit Mixer is 28,000 kg. This high load capacity makes it suitable for heavy-duty construction applications involving large volumes of ready-mix concrete.

The Bharat Benz 2828C Transit Mixer is typically available with 8 m³ and 9 m³ transit mixer drums, designed for large-scale infrastructure and commercial construction projects.
