Ashok Leyland Transit Mixer

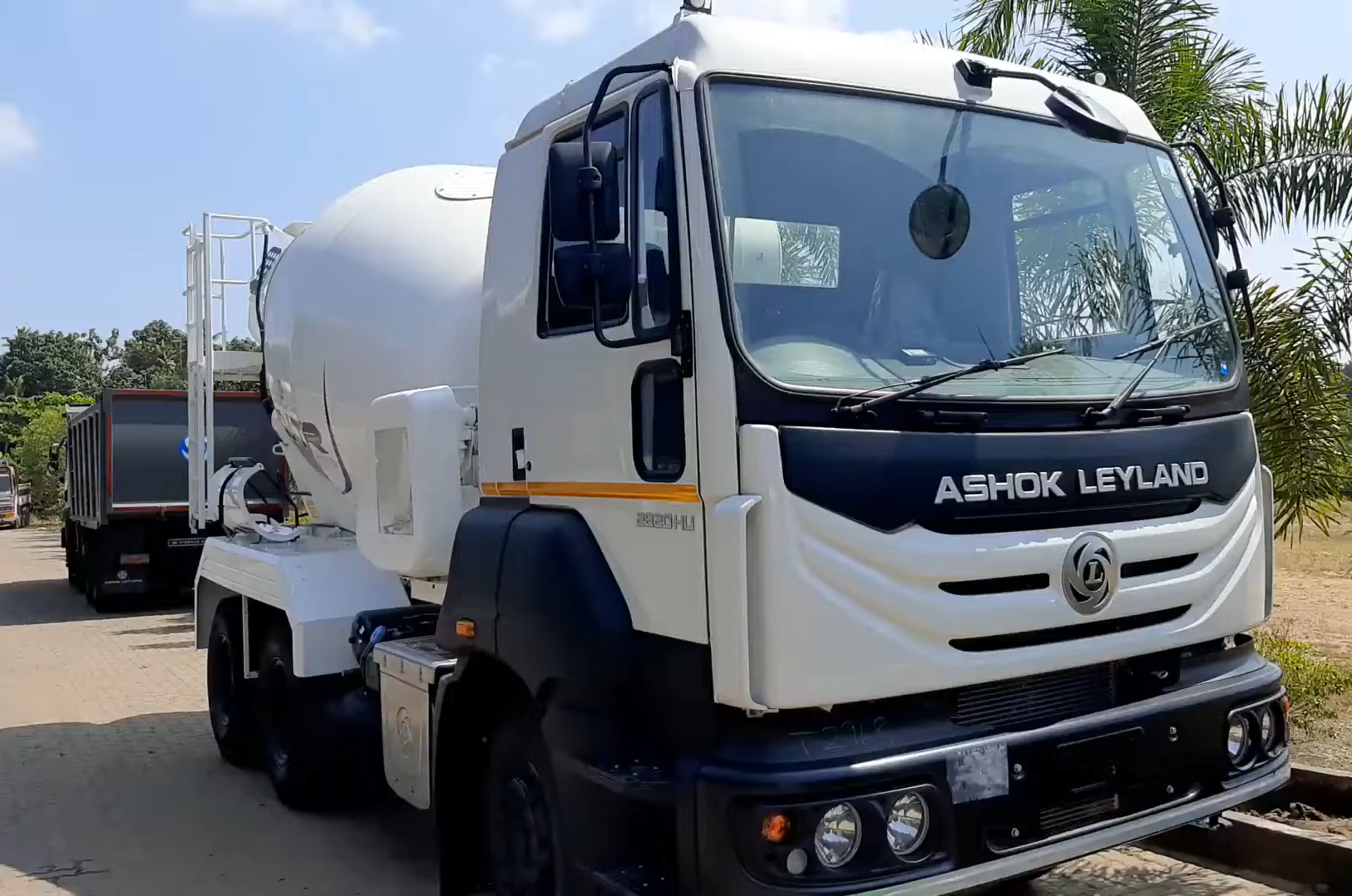

Ashok Leyland AVTR 2820 RMC

A heavy-duty RMC Transit Mixer featuring H Series i-Gen6 technology, designed for superior fuel efficiency and performance.

Engine specification icon
EngineH Series 197 HP
Drum capacity icon
Drum size6-8 m³
Torque rating icon
Max Torque700 Nm
Speed icon
Max Speed76 km/h
Fuel tank icon
Fuel Tank220L
Operating weight icon
Gross Vehicle Weight28000 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine make icon
Engine Make

H Series i-Gen6 technology

Engine displacement icon
Engine Displacement

5660 cc

Emission standard icon
Emission

BS-VI

Lighting configuration icon
Battery

2x12V / 110 Ah

Fuel tank capacity icon
Fuel Tank

220 L

Gradeability icon
Gradeability

25.60%

Clutch diameter icon
Clutch Dia

380 mm

Drum drive icon
Drum Drive

EDPTO

Axle configuration icon
Axle Configuration

6 x 4

Wheelbase configuration icon
No. of Tyres

10

Tyre size icon
Tyres Size

295/95D 20

Overall length icon
Overall Length

NA

Wheelbase icon
Wheel Base

3900 mm

Air conditioned cabin icon
AC Cabin

Optional

GPS availability icon
GPS

No

Specifications

Product specification of Ashok Leyland AVTR 2820 RMC

ENGINE

  • Model

    H Series i-Gen6 technology

  • Fuel Type

    Diesel

  • Max Power

    197 HP (147 kW) @ 2400 rpm

  • Max Torque

    700 Nm @ 1200 - 2000 rpm

  • No. of Cylinders

    6 Cylinders

  • Engine Displacement

    5660 cc

  • Battery

    2x12V / 110 Ah

TRANSMISSION & CLUTCH

  • Gear Box Model & Type

    6 Speed Syncromesh-FGR 9.01

  • Clutch Type

    Single plate dry type

  • Clutch Dia

    NA

  • Drum Drive

    EDPTO

AXLE

  • Front Axle

    FA 90 Forged I Section - Reverse Elliot type

  • Rear Axle

    Fully Floating single speed rear axle, Hypoid differential RAR

  • Rear Axle Ratio

    6.17:1

CHASSIS FRAME & SUSPENSION

  • Chassis Frame (DxWxT)

    275 x 75 x 8 mm

  • Front Suspension

    Semi Elliptic Multileaf and Parabolic springs

  • Rear Suspension

    Non Reactive Suspension

BRAKES

  • Service

    Full air Dual line brakes with ABS with ASA

  • Parking

    Parking brakes on rear wheels only

STEERING

  • Steering Type

    Hydraulic assisted power steering

SERVICE CAPACITIES

  • Fuel Tank

    220 L

  • DEF Tank

    24 L

PERFORMANCE

  • Gradeability

    25.6%

  • Max Speed

    76 km/h

  • TCD

    NA

  • Mileage

    6 km/l

VEHICLE DIMENSIONS & WEIGHT

  • Gross Vehicle Weight

    28000 kg

  • Wheel Base

    3900 mm

  • Load Body

    6, 7, 8 m³

  • Overall Length

    NA

  • Overall Width

    NA

  • Overall Height

    NA

  • Ground Clearance

    NA

  • Axle Configuration

    6 x 4

  • No. of Tyres

    10

  • Tyres Size

    295/95D 20, 11x20 Optional

COMFORT

  • Cabin

    M Day, U Day & N Day with AC Option

  • A/C

    Optional

  • Telematics

    D+1

  • Seat Type

    NA

Popular Comparisons with Ashok Leyland AVTR 2820 RMC

Related Transit Mixers

Frequently Asked Questions

Everything you need to know about the Ashok Leyland AVTR 2820 RMC

The Ashok Leyland AVTR 2820 6x4 RMC Transit Mixer is priced between ₹46.50 lakh to ₹49.50 lakh (ex-showroom). Prices may vary based on location, dealer, and configuration.

The fuel efficiency of the Ashok Leyland AVTR 2820 6x4 RMC Transit Mixer ranges between 3 to 6 km per litre, depending on the load, road conditions, and driving style. The truck's BS6 technology helps optimize fuel consumption in real-time.

The Ashok Leyland AVTR 2820 6x4 RMC Transit Mixer is equipped with an H-series CRS BS6 diesel engine, delivering 197 HP at 2400 rpm and a peak torque of 700 Nm at 1200-2000 rpm. This ensures smooth and efficient concrete transport even on tough terrain.

The Gross Vehicle Weight (GVW) of the Ashok Leyland AVTR 2820 Transit Mixer is 28,000 kg. This high load capacity makes it suitable for heavy-duty construction applications involving large volumes of ready-mix concrete.

The Ashok Leyland AVTR 2820 6x4 RMC Transit Mixer is typically available with 6 m³, 7 m³ & 8 m³ transit mixer drums, designed for large-scale infrastructure and commercial construction projects.
