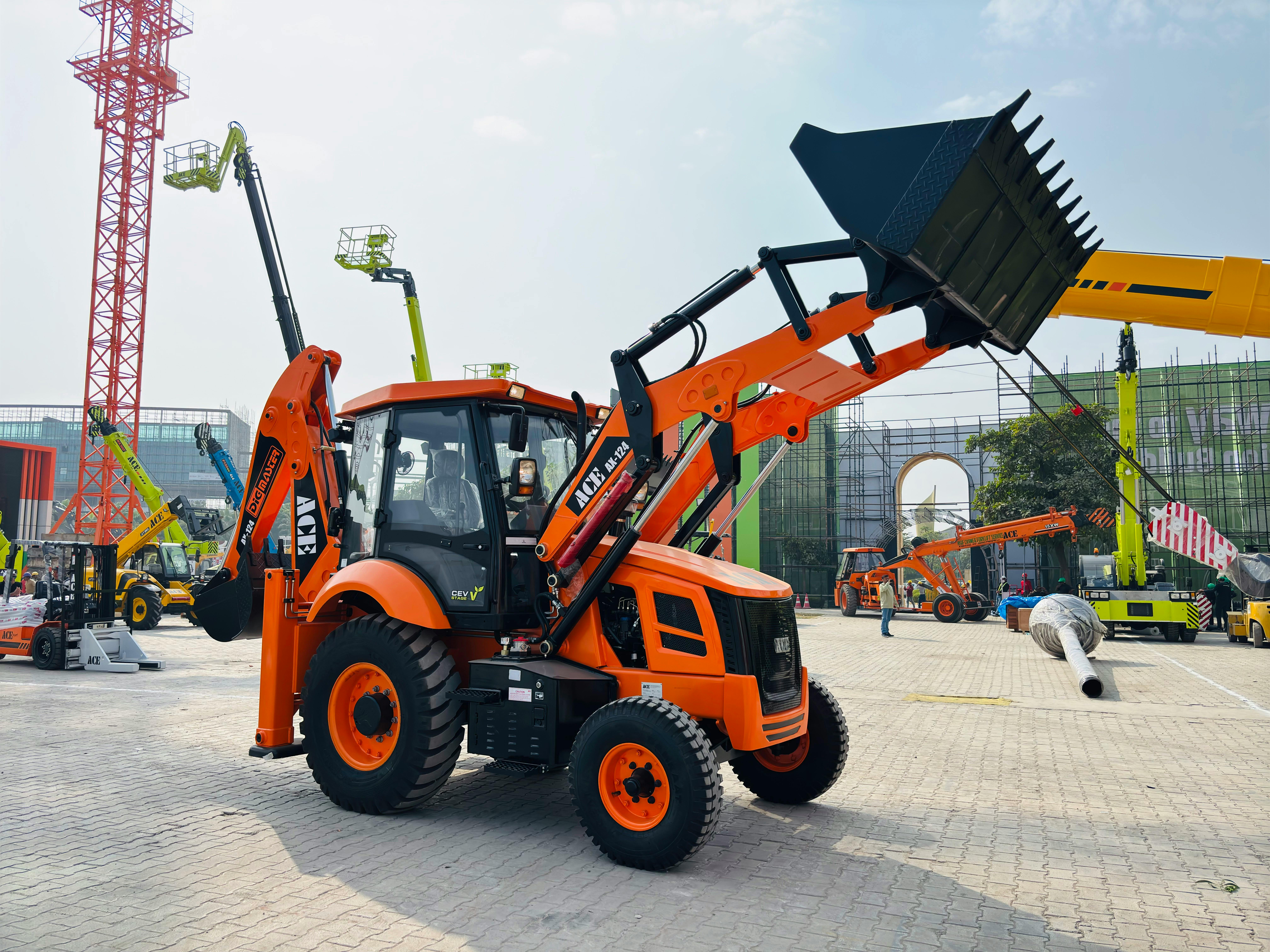

ACE Backhoe Loader

AXL-130

A modern, reliable backhoe loader suited for earthmoving, loading, trenching and material handling at construction and infrastructure sites.

Feature icon
Engine76 HP
Feature icon
Bucket0.24 cu.m
Shovel icon
Shovel1.00 cu.m
Digging depth icon
Digging Depth4250 mm
Dumping height icon
Dump Height2780 mm
Feature icon
Weight7500Kg
Download Brochure
Enter email to get the brochure

Key Highlights

Car icon
Engine Make

KIRLOSKAR 4R1040T (BS III)

Fuel Tank icon
Fuel Tank

160 L

Torque Icon
Max Torque

300 Nm @ 1500 rpm

Download Speed icon
Max Speed

28 km/hr

Hydraulics icon
Hydraulic System

102 L/min @ 210 bar

Maximum Working Height Icon
Max Working Height

5470 mm

Max Lift Capacity Icon
Excavator Max Lift Capacity

1900 kg

Load Over Height Icon
Loader Load Over Height

3340 mm

Width icon
Overall Length

6200 mm

All Wheel Drive icon
Wheel Base

2180 mm

Bucket Digging Force Icon
Bucket Digging Force

4000 kgf

Pressure icon
Shovel Breakout Force

4950 kgf

Feature icon
Warranty

1 Yr. / 2000 hr.

Air Conditioner icon
AC Cabin

Optional

GPS Tracking icon
GPS

Standard

Specifications

Product specification of ACE AX-130 Backhoe Loader

ENGINE

  • Model

    KIRLOSKAR 4R1040T (BS III)

  • Type

    4 cylinder, turbo charged, water cooled diesel engine

  • Gross Power

    76.0 HP @ 2200 rpm

  • Max Torque

    300 Nm @ 1500 rpm

  • Displacement

    4.97 L

  • Battery

    12 V, negative earth

  • Alternator

    12 V, suitable rating

TRANSMISSION

  • Type

    Synchro shuttle transmission with torque converter and synchronised gear box. Single switch forward-reverse function for efficient loading operations.

  • Max Speed

    28 km/h

  • Gear Selection

    4 Forward and 4 Reverse gears

STEERING

  • Type

    Hydrostatic steering for reliability and better control.

  • Turning Radius (Without Brake)

    4.4 m

  • Turning Radius (With Brake)

    3.5 m

STEERING TURNING CIRCLE

  • Turning Radius (Without Brake): 4,400 mm
  • Turning Radius (With Brake): 3,500 mm
  • Steering Type: Hydrostatic steering for reliability and better control

BRAKES

  • Service Brakes: Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control.
  • Parking Brake: Mechanically actuated disc brakes.

TYRES

  • Front (2WD): 9.00-16-16 PR
  • Front (4WD): 12.5/80-18 PR
  • Rear (Standard): 16.90-28-12 PR
  • Optional: Heavy Duty Tyres (14.00 x 25)

SPEED

  • Gear Configuration: 4 forward and 4 reverse speeds
  • Max Travel Speed: 28 km/h

HYDRAULICS

  • Main Pump Flow: 102 L/min
  • Relief Pressure: 210 bar
  • Hydraulic Tank Capacity: 135 L

AXLES

  • Front Axle: Drive (In case of 4 WD) & Steer Axle, centrally pivoted.
  • Rear Axle: Rigid axle with CARRARO planetary drive.

Popular Comparisons with ACE AX-130

Products

Related Backhoe Loader

Frequently Asked Questions

Everything you need to know about the ACE AX-130 Backhoe Loader

The ACE AX-130 is competitively priced for its rugged performance and advanced features like hydrostatic steering, wet disc brakes, and a powerful Kirloskar engine. Pricing varies based on configuration-2WD or 4WD-and optional accessories such as an AC cabin, fork lift attachment, rock breaker, 6-in-1 bucket, ripper tooth, or heavy-duty tyres. Contact an authorized ACE dealer for the latest ex-showroom quote.

ACE has an extensive pan-India sales and service network with outlets in all major cities including Delhi, Mumbai, Chennai, Kolkata, Hyderabad, Bangalore, Ahmedabad, Pune, Jaipur, Ranchi, Guwahati, Patna, Indore, Bhubaneswar, and more. The company operates through 100+ dealers and 21 regional offices nationwide. Visit www.ace-cranes.com or call the toll-free number 1800-180-0004 for dealer assistance.

Yes. ACE offers flexible financing options through partner banks and NBFCs with attractive EMI plans. While the brochure does not specify a warranty period, ACE typically offers standard warranties for its equipment. Optional upgrades include a cabin with FOPS, fork lift attachment, rock breaker, and multiple excavator bucket sizes (0.06-0.30 cu.m.).

The ACE AX-130 is powered by a Kirloskar 4R1040T engine, which is designed for high torque and low fuel consumption. While the brochure does not specify an exact fuel efficiency figure (e.g., km/l), it highlights "low fuel consumption" as a key characteristic of the engine. Actual fuel usage will vary based on operating conditions, terrain, workload, and operator skill.

The ACE AX-130 is equipped with a Kirloskar 4R1040T (BS III) engine:
  • Power: 76.0 HP @ 2200 rpm
  • Max Torque: 300 Nm @ 1500 rpm

Note: The brochure mentions this engine or a "suitable equivalent engine".

Key highlights of the ACE AX-130 backhoe loader include:
  • 100% Swadeshi - Designed and manufactured in India by ACE, India's No.1 Crane Brand
  • Available in 2WD and 4WD configurations
  • Engine: Kirloskar 4R1040T (BS III) - 76 HP @ 2200 RPM, 300 Nm torque @ 1500 RPM
  • Hydraulic System: 102 L/min flow at 210 bar
  • Loader bucket: 1.00 m³ | Excavator bucket: 0.24 m³ standard (options: 0.06, 0.09, 0.12, 0.18, 0.30 m³)
  • Max digging depth: 4.25 m | Dump height: 2.78 m | Load over height: 3.25 m
  • Rear axle: Rigid axle with CARRARO planetary drive
  • Hydrostatic steering + hydraulically actuated wet disc brakes for safety and control
  • Optional cabin with FOPS for enhanced operator safety
  • Optional attachments: fork lift attachment, rock breaker, 6-in-1 bucket, ripper tooth, heavy-duty tyres
  • Operating weight: 7500 kg
