A modern, reliable backhoe loader suited for earthmoving, loading, trenching and
material handling at construction and infrastructure sites.
EngineJCB 49 HP
Bucket0.26 m³
Shovel1.0 m³
Digging Depth4770 mm
Dump Height2740 mm
Weight7200 Kg
Key Highlights
Engine Make
JCB 430
Fuel Tank
128 L
Max Torque
270 Nm @ 1320 RPM
Max Speed
32.3 km/hr
Hydraulic System
114 L/min @ 2000 RPM
Max Working Height
5970 mm
Excavator Max Lift Capacity
1490 Kg
Loader Load Over Height
3320 mm
Overall Length
6000 mm
Wheel Base
2170 mm
Bucket Digging Force
5959 kgf
Shovel Break Out Force
5272 kgf
Warranty
1 Yr. / 2000 hr.
AC Cabin
Optional
GPS
Standard

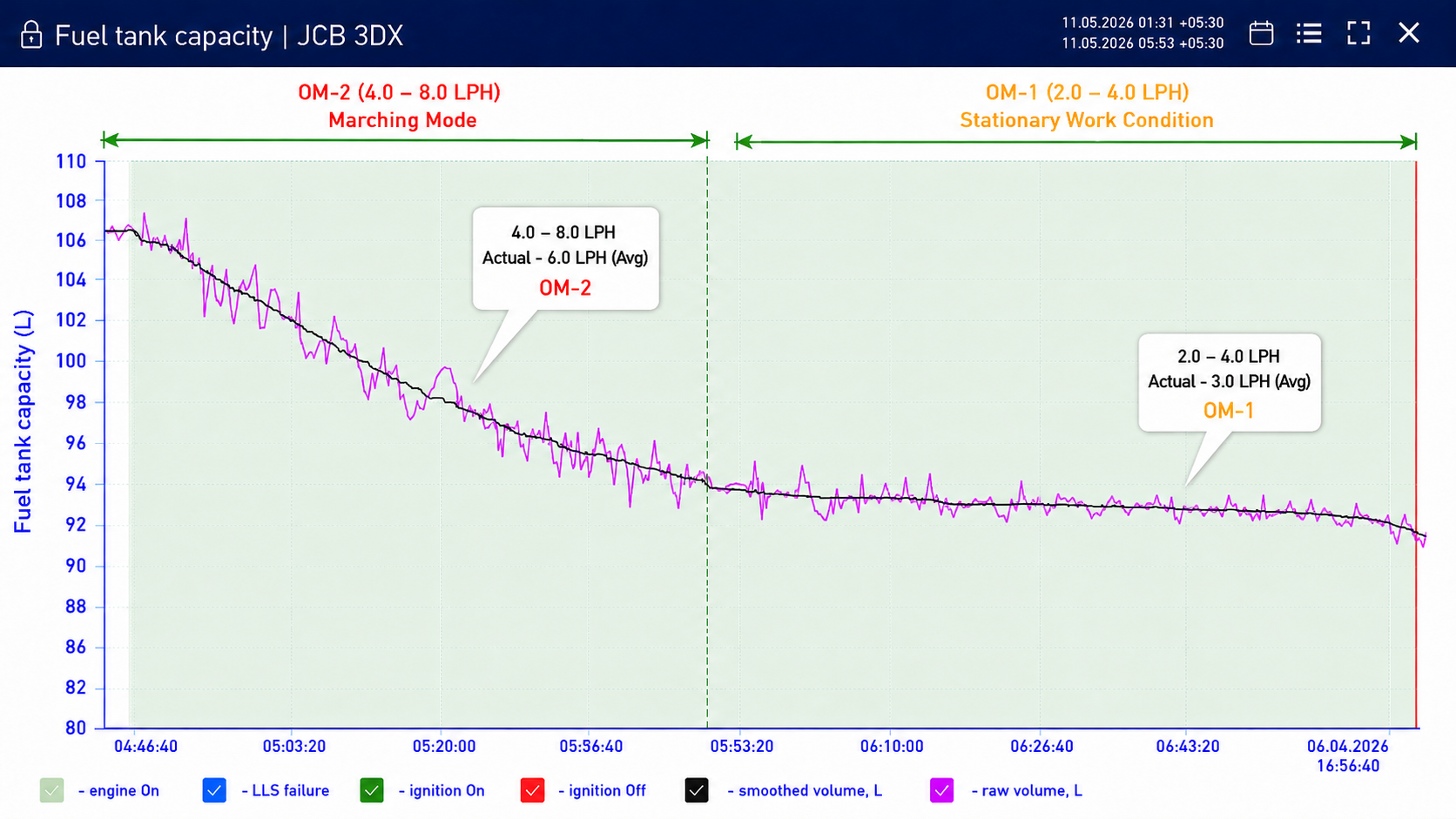

Fuel Norms — JCB 3DX
Real-world fuel consumption data captured from the Aether platform.
Two operating modes measured: OM-1 (Stationary Work) and OM-2 (Marching/Travel).
OM-2 — Marching Mode: When the JCB 3DX is travelling between work zones or moving on-site, fuel consumption rises sharply. Aether live data shows a range of 4.0 – 8.0 LPH with an actual average of 6.0 LPH. Extended travel without load management is one of the leading causes of excess fuel burn on construction sites.
OM-1 — Stationary Work: During digging, loading, or trenching operations with the machine stationary, the engine works at a steadier RPM. Fuel consumption typically falls between 2.0 – 4.0 LPH, averaging 3.0 LPH — roughly half the marching-mode rate. Keeping idle time low in this mode directly reduces per-hour fuel cost.
OM-1 — Stationary Work Condition: This mode captures fuel consumption during active ground engagement — digging, trenching, and loading — where the machine remains stationary and the engine operates at a consistent working RPM. Aether sensors recorded a consumption range of 2.0 – 4.0 LPH with an actual average of 3.0 LPH. Variations within this range are typically driven by soil hardness, bucket load cycles, and operator throttle habits. Monitoring OM-1 consumption helps identify inefficient digging patterns and unnecessary high-RPM operation during stationary tasks.

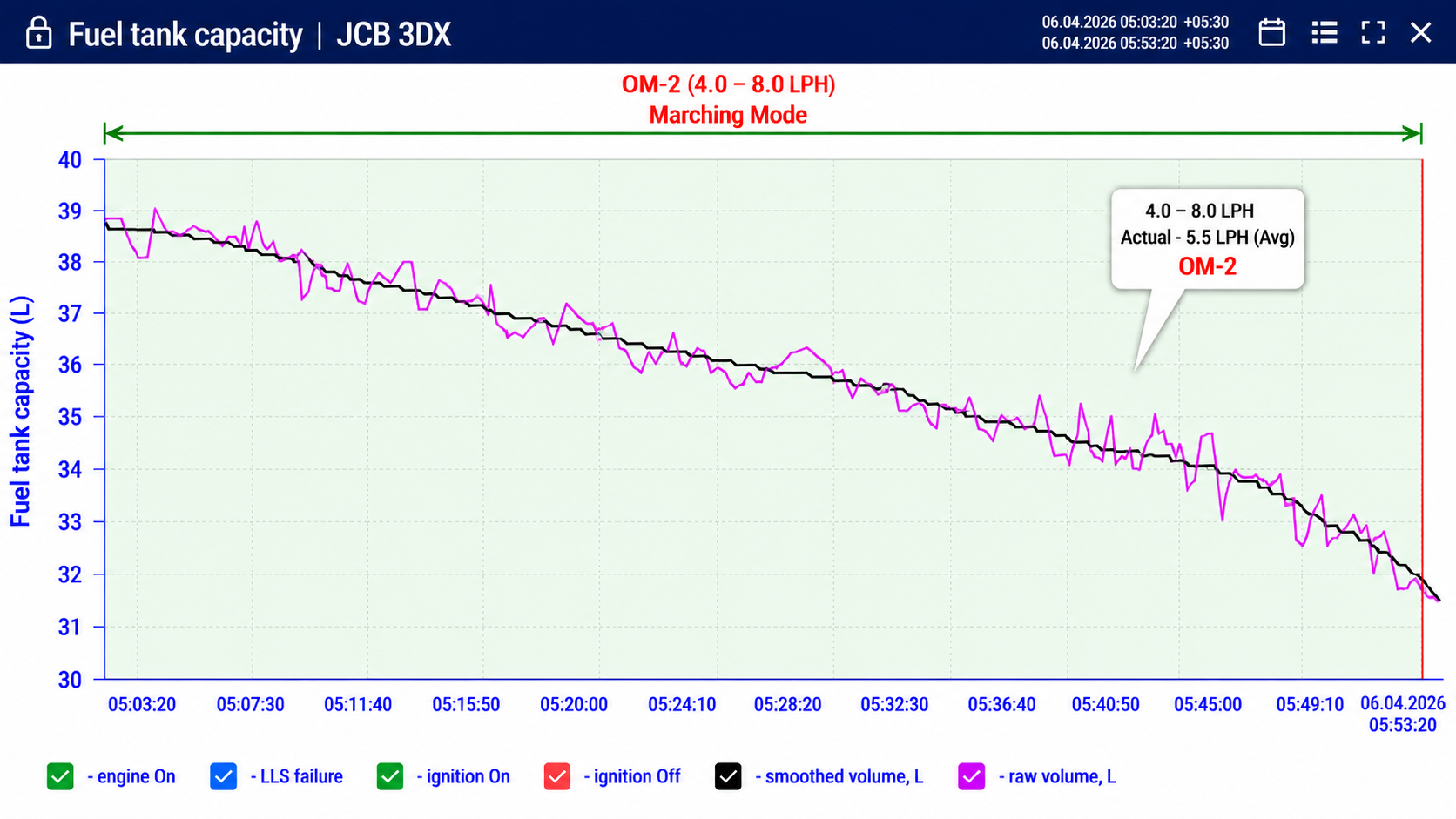

OM-2 — Marching Mode: Marching mode covers all movement of the JCB 3DX between work zones — travelling across the site, relocating between trenches, or road-travelling between locations. Engine load fluctuates significantly during movement, pushing fuel consumption to a range of 4.0 – 8.0 LPH with an actual average of 6.0 LPH. This is double the stationary work rate, making unplanned or excessive machine movement one of the biggest controllable fuel cost drivers on any project site. Aether's trip and movement tracking helps fleet managers quantify and reduce unnecessary marching time.
4 cylinder, water cooled, Turbocharged with EGR and
aftertreatment system DOC and DPF
Gross Power
49 HP (37 kW) @ 2050 RPM
Max Torque
270 Nm @ 1320 RPM
Displacement
3.0 L
Battery
12 V
Alternator
130 A
TRANSMISSION
Type
The JCB synchroshuttle transmission provides superb drive power in all conditions. It consists of a 4-speed, fully synchromesh, smooth shift gear box with integral torque convertor and electrically operated reversing shuttle.
STEERING
Type
Power track steering rod system provides equal turn steering & quick response with less operating force.
Working Pressure
160 bar
STEERING TURNING CIRCLE
Inner Wheels Braked - Outside Loader Bucket: 8640 mm
Inner Wheels Braked - Outside Wheels: 6200 mm
Inner Wheels not Braked - Outside Loader Bucket: 11600 mm
Inner Wheels not Braked - Outside Wheels: 8940 mm
BRAKES
Service: JCB 'Q' brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance.
Parking: Hand operated, disc brakes on rear axle input disc.
TYRES
Front: 9 x 16 - 16 PR
Rear: 16.9 x 28 - 12 PR (Industrial)
SPEED
Forward 1st gear: 5 km/hr
Reverse 1st gear: 5 km/hr
Forward 2nd gear: 8 km/hr
Reverse 2nd gear: 5 km/hr
Forward 3rd gear: 17 km/hr
Reverse 3rd gear: Not Recommended
Forward 4th gear: 32.3 km/hr
Reverse 4th gear: Not Recommended
HYDRAULICS
Type: Filtration through suction strainer and return line 'JCB Filtromatic Filter'
Maximum Pump Flow: 114 L/min @ 2000 RPM
System Pressure: 270 bar
AXLES
Rear axle: Drive axle rigidly mounted, incorporates JCB Max-Trac torque proportioning differential, driven by short prop shaft from gear box
Front axle: Steer axle, centrally pivoted, with oscillation angle of 16°
JCB 3DX Maintenance Checklist
Daily checks · Service intervals · Warning light actions — cross-verified against JCB technical guide
Daily Pre-Start Checklist
Complete all 11 checks before every shift. Stop and fix any failed safety or fluid check before operating.
Every 10 h
1
Engine oil level
Dipstick — wipe clean, reinsert, pull again for final reading.
Act if: below MIN, or white foam in oil — stop machine immediately (coolant mixing).
2
Engine coolant level
Check plastic reservoir tank on the engine side.
Act if: below MIN. Brown or dirty coolant — plan a flush.
3
Hydraulic oil level
Close all rams first, then check sight glass on the tank.
Act if: below visible range. Milky white — water contamination, serious problem.
4
Fuel level
Check fuel gauge on dashboard before the shift starts.
Act if: below quarter tank — refuel before shift. Never run dry.
5
Water in fuel separator
Inspect the glass bowl at the base of the fuel filter.
Act if: any water visible — drain separator completely before starting.
6
Tyre pressure & condition
Pressure gauge on all four tyres; inspect for cuts or bulges.
Target: front 3.0 bar, rear 1.6 bar. Cuts or bulges on sidewall — replace tyre.
7
Lights, horn & reverse alarm
Turn on all lights, press horn, confirm reverse alarm sounds.
Act if: any failure found. Do not operate without working reverse alarm.
8
Walk-around leak check
Walk full circle — check ground below machine, all hoses, cylinders, and joints.
Act if: any active oil drip or puddle — find source and repair before starting.
9
Bucket pins & teeth
Push and pull bucket by hand; inspect pins and teeth visually.
Act if: excessive movement in bucket — worn pin, replace. Cracked tooth — replace.
10
Seat belt
Pull belt out fully, latch it firmly before engine start.
Act if: belt is frayed or clasp is faulty — replace before operating.
11
Grease all pivot points
Grease gun on every nipple until old grease exits each joint.
Every 10 h — no exceptions. No old grease coming out means keep applying.
Service Schedule by Hourmeter
Select a service interval to see exactly what tasks are due. CHANGE = fluid/filter change CHECK = inspect or check.
Engine
Engine oil level
Dipstick check — top up if below MIN mark
CHECK
Engine coolant level
Check reservoir — between MIN and MAX lines
CHECK
Drive belt / fan belt
Visual check for cracks or fraying
INSPECT
Hydraulic System
Hydraulic oil level
Sight glass check — all rams fully retracted
CHECK
Hoses & cylinders
Walk-around leak check
INSPECT
Fuel & Air
Fuel level
Gauge check — refuel before reaching ¼ tank
CHECK
Water separator
Check glass bowl; drain any collected water
CHECK
Air filter pre-cleaner
Check / clean — especially on dusty sites
CLEAN
Air filter outer element
Check restriction indicator / visual
CHECK
Brakes & Electrical
Brake system
Test stopping function before first move
CHECK
Tyre pressure & damage
Front 3.0 bar · Rear 1.6 bar
CHECK
Alternator
Watch charging warning light on start-up
CHECK
Greasing
Full greasing — all pivot points
Grease gun on every nipple until fresh grease exits — every 10 h, no exceptions
Risk if ignored: gear slip, clutch damage, or complete gearbox failure.
AMBER
Low fuel
Fuel level near empty — approximately 10–12 litres remaining.
Immediate action: refuel as soon as possible. Do not run dry.
Risk if ignored: running dry pulls tank sediment into injectors — expensive repair.
Critical rule: if the RED engine oil pressure warning activates, stop the engine immediately — do not wait even 30 seconds. Any machine with a red oil pressure event must be fully inspected before it is restarted.
Everything you need to know about the JCB 3DX Backhoe Loader
The JCB 3DX backhoe loader price in India ranges between ₹34-36 lakhs. However, the exact price may vary
depending on the location, dealer, taxes, and additional features.
You can buy the JCB 3DX backhoe loader from your trusted platform for construction and
heavy equipment purchases. We connect you with authorized dealers based on your location to ensure you get
genuine products and the best deals.
Yes, the JCB 3DX backhoe loader comes with financing and insurance options.
The mileage of the JCB 3DX typically ranges between 4-6 km per liter under standard working conditions.
Actual fuel consumption depends on load, terrain, operator efficiency, and maintenance.
The JCB 3DX is powered by a JCB 430, CRDi Stage 5 diesel engine, delivering 49 HP (37 kW) @ 2050 RPM.
