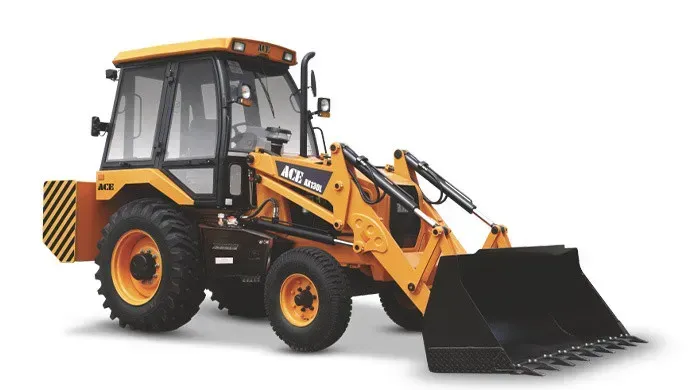

ACE Backhoe Loader

AXL-130L

A modern, reliable backhoe loader suited for earthmoving, loading, trenching and material handling at construction and infrastructure sites.

Engine74 HP
Bucket0.24 cu.m
Shovel1.00 cu.m
Digging Depth4250 mm
Dump Height2780 mm
Weight8050Kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine Make

Kirloskar 4R1190NA1 (BS-IV)

Fuel Tank

150 L

Max Torque

300 Nm @ 1400-1600 rpm

Max Speed

28 km/hr

Hydraulic System

102 L/min @ 210 bar

Max Working Height

5470 mm

Excavator Max Lift Capacity

1900 kg

Loader Load Over Height

3340 mm

Overall Length

6200 mm

Shovel Breakout Force

4950 kgf

Warranty

1 Yr. / 2000 hr.

AC Cabin

Optional

GPS

Standard

Specifications

Product specification of ACE AX-130L Backhoe Loader

ENGINE

  • Model

    KIRLOSKAR 4R1190NA1 (BS IV)

  • Type

    4 cylinder, inline, naturally aspirated, water-cooled diesel engine

  • Gross Power

    74 HP @ 2200 rpm

  • Max Torque

    300 Nm @ 1400-1600 rpm

  • Displacement

    4.75 L

  • Battery

    12 V, negative earth

  • Alternator

    12 V, suitable rating

TRANSMISSION

  • Type

    Synchro shuttle transmission with torque converter and synchronised gear box. Single switch forward-reverse function for efficient loading operations.

  • Max Speed

    28 km/h

  • Gear Selection

    4 Forward and 4 Reverse gears

STEERING

  • Type

    Hydrostatic steering for reliability and better control.

  • Turning Radius (Without Brake)

    4.4 m

  • Turning Radius (With Brake)

    3.5 m

STEERING TURNING CIRCLE

  • Turning Radius (Without Brake): 4,400 mm
  • Turning Radius (With Brake): 3,500 mm
  • Steering Type: Hydrostatic steering for reliability and better control

BRAKES

  • Service Brakes: Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control.
  • Parking Brake: Mechanically actuated disc brakes.

TYRES

  • Front (2WD): 9.00-16-16 PR
  • Front (4WD): 12.5/80-18 PR
  • Rear (Standard): 16.90-28-12 PR
  • Optional: Heavy Duty Tyres (14.00 x 25)

SPEED

  • Gear Configuration: 4 forward and 4 reverse speeds
  • Max Travel Speed: 28 km/h

HYDRAULICS

  • Main Pump Flow: 102 L/min
  • Relief Pressure: 210 bar
  • Hydraulic Tank Capacity: 80L

AXLES

  • Front Axle: Drive (In case of 4 WD) & Steer Axle, centrally pivoted.
  • Rear Axle: Rigid axle with CARRARO planetary drive.

Popular Comparisons with ACE AX-130-L

Products

Related Backhoe Loader

Frequently Asked Questions

Everything you need to know about the ACE AX-130 Backhoe Loader

The ACE AX-130-L is competitively priced for its rugged performance and advanced features like hydrostatic steering, wet disc brakes, and a powerful Kirloskar engine. Pricing varies based on configuration-2WD or 4WD-and optional accessories such as an AC cabin, fork lift attachment, rock breaker, 6-in-1 bucket, ripper tooth, or heavy-duty tyres. Contact an authorized ACE dealer for the latest ex-showroom quote.

ACE has an extensive pan-India sales and service network with outlets in all major cities including Delhi, Mumbai, Chennai, Kolkata, Hyderabad, Bangalore, Ahmedabad, Pune, Jaipur, Ranchi, Guwahati, Patna, Indore, Bhubaneswar, and more. The company operates through 100+ dealers and 21 regional offices nationwide. Visit www.ace-cranes.com or call the toll-free number 1800-180-0004 for dealer assistance.

Yes. ACE offers flexible financing options through partner banks and NBFCs with attractive EMI plans. While the brochure does not specify a warranty period, ACE typically offers standard warranties for its equipment. Optional upgrades include a cabin with FOPS, fork lift attachment, rock breaker, and multiple excavator bucket sizes (0.06-0.30 cu.m.).

The ACE AX-130 L is powered by a Kirloskar 4R1190NA1 (BS-IV), which is designed for high torque and low fuel consumption. Actual fuel usage will vary based on operating conditions, terrain, workload, and operator skill.

The ACE AX-130 is equipped with a Kirloskar 4R1190NA1 (BS-IV) engine:
  • Power: 74 HP @ 2200 rpm
  • Max Torque: 300 Nm @ 1400-1600 rpm

    • Note: The brochure mentions this engine or a "suitable equivalent engine".

Key highlights of the ACE AX-130 front end loader include:
  • 100% Swadeshi - Designed and manufactured in India by ACE, India's No.1 Crane Brand
  • Available in 2WD and 4WD configurations
  • Engine: Kirloskar 4R1190NA1 (BS-IV) - 74 HP @ 2200 rpm, 300 Nm torque @ 1400-1600 rpm
  • Hydraulic System: 102 L/min flow at 210 bar
  • Loader bucket capacity: 1.1 m³ (standard)
  • Dump height: 2.76 m | Load over height: 3.34 m | Max bucket pin height: 3.63 m
  • Digging depth below ground: 80 mm
  • Rear axle: Rigid axle with CARRARO planetary drive
  • Hydrostatic steering + hydraulically actuated wet disc brakes for precision and safety
  • Operating weight: 8050 kg
  • Optional equipment: AC cabin, FOPS/ROPS cabin, 6-in-1 loader bucket, fork lift attachment, heavy-duty tyres (14.00-25), fire extinguisher, telematics, rear cooling package
