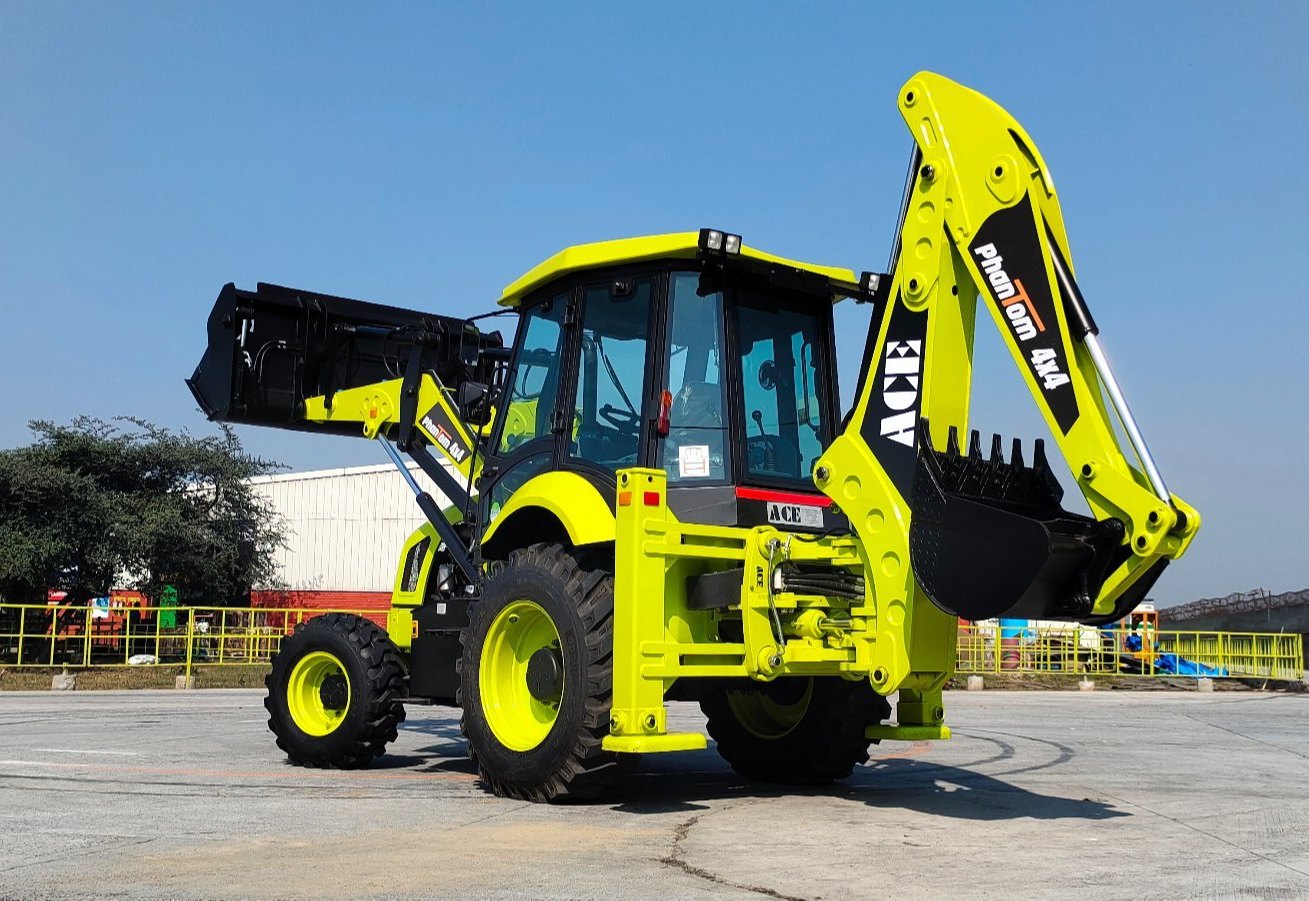

ACE Backhoe Loader

Phontom 4x4

A modern, reliable backhoe loader suited for earthmoving, loading, trenching and material handling at construction and infrastructure sites.

Feature icon
Engine96 HP
Feature icon
Bucket0.24 cu.m
Shovel icon
Shovel1.1 cu.m
Digging depth icon
Digging Depth4250 mm
Dumping height icon
Dump Height2760 mm
Feature icon
Weight8040 Kg
Download Brochure
Enter email to get the brochure

Key Highlights

Car icon
Engine Make

Kirloskar 4R1040TA (BS III)

Fuel Tank icon
Fuel Tank

150L

Torque Icon
Max Torque

377 Nm @ 1400 RPM

Download Speed icon
Max Speed

40 km/hr

Hydraulics icon
Hydraulic System

118 L/min @ 210 bar

Maximum Working Height Icon
Max Working Height

5470 mm

Max Lift Capacity Icon
Excavator Max Lift Capacity

1900 kg

Load Over Height Icon
Loader Load Over Height

3340 mm

Width icon
Overall Length

6200 mm

All Wheel Drive icon
Wheel Base

2180 mm

Bucket Digging Force Icon
Bucket Digging Force

4000 kgf

Pressure icon
Shovel Breakout Force

4950 kgf

Feature icon
Warranty

1 Yr. / 2000 hr.

Air Conditioner icon
AC Cabin

Optional

GPS Tracking icon
GPS

Standard

Specifications

Product specification of ACE phantom 4X4 Backhoe Loader

ENGINE

  • Model

    Kirloskar 4R1040TA (BS III)

  • Type

    4-cylinder, inline, water-cooled, turbocharged diesel

  • Gross Power

    96 HP @ 2200 RPM

  • Max Torque

    377 Nm @ 1400 RPM

  • Displacement

    4.0 L

  • Battery

    12 V, 130 Ah

  • Alternator

    12V

TRANSMISSION

  • Type

    Synchro shuttle transmission with torque converter and synchronised gear box. Single switch forward-reverse function for efficient loading operations.

  • Torque Converter

    Single-stage, three-element, 2.52:1 stall ratio

  • Gear Selection

    4 Forward and 4 Reverse gears

  • Clutch

    Single plate, dry type, foot-operated clutch

STEERING

  • Type

    Hydrostatic power-assisted steering with priority valve for smooth control and reduced operator fatigue.

  • Pump Type

    Dedicated steering pump

  • System Pressure

    160 bar

STEERING TURNING CIRCLE

  • Turning Radius (Without Brake): 4.4 metres
  • Turning Radius (With Brake): 3.5 metres

BRAKES

  • Service: Hydraulically actuated wet disc brakes at rear wheels with twin pedals in cabin for better control.
  • Parking: Mechanically actuated disc brakes for parking.

TYRES

  • Front (4WD): 12.5/80-18-12 PR
  • Rear (Standard): 16.90-28-12 PR
  • Optional: Heavy Duty Tyres (14.00 x 25)

SPEED

  • Transmission: Synchro shuttle transmission with torque converter & synchronised gear box. Single switch forward-reverse function.
  • Gear Configuration: 4 forward and 4 reverse speeds
  • Max Travel Speed: 40 kmph

HYDRAULICS

  • Main Pump Flow: 118 L/min
  • Relief Pressure: 210 bar

AXLES

  • Front Axle: Drive (In case of 4 WD) & Steer Axle, centrally pivoted.
  • Rear Axle: Rigid axle with CARRARO planetary drive.

Popular Comparisons with ACE Phantom

Products

Related Backhoe Loader

Frequently Asked Questions

Everything you need to know about the Tata Hitachi Shinrai Prime (CEV4) Backhoe Loader

The ACE Phantom 4x4 backhoe loader is competitively priced for its rugged performance and advanced features. Exact pricing depends on the configuration (76 HP or 96 HP), 2WD/4WD variant, and optional attachments like AC cabin, rock breaker, or 6-in-1 bucket. Contact an authorized ACE dealer for the latest ex-showroom quote.

ACE has an extensive pan-India sales and service network with outlets in all major cities including Delhi, Mumbai, Chennai, Kolkata, Hyderabad, Bangalore, Ahmedabad, Pune, Jaipur, Ranchi, Guwahati, and more. You can also find authorized dealers in tier-2 and tier-3 towns. Visit www.ace-cranes.com or call the toll-free number 1800-180-0004 for dealer assistance.

Yes. ACE offers flexible financing options through partner banks and NBFCs with attractive EMI plans. The ACE Phantom comes with a standard warranty of 1 year or 2000 hours (whichever is earlier). Optional features like AC cabin and telematics (GPS tracking) are also available.

The ACE Phantom 4x4 offers an excellent fuel efficiency of around 4-6 km/l under standard working conditions. Actual fuel consumption depends on the type of work, terrain, and operator skill.

  • Gross Power: 96 HP @ 2200 RPM
  • Max Torque: 377 Nm @ 1400 RPM

Key highlights of the ACE Phantom 4x4 include:
  • 100% Swadeshi: Designed and manufactured in India by ACE.
  • Engine: Powerful Kirloskar 4R1040TA (BS III) turbocharged diesel engine delivering 96 HP.
  • Hydraulic System: Main pump flow of 118 L/min at 210 bar relief pressure.
  • Performance: Max travel speed of 40 kmph.
  • Bucket Capacities: Loader bucket: 1.1 cu.m | Excavator bucket: 0.24 cu.m (standard).
  • Excavator Performance: Max digging depth of 4.25 m and max working height of 5.47 m.
  • Loader Performance: Dump height of 2.76 m and load-over height of 3.34 m.
  • Drivetrain: 4WD (4x4) with a Carraro planetary drive rear axle and a centrally pivoted front axle.
  • Steering & Brakes: Hydrostatic steering for reliability and hydraulically actuated wet disc brakes for safety and control.
  • Optional Features: AC cabin, Telematics, rock breaker, and 6-in-1 loader bucket.
  • Warranty: Standard warranty of 1 year or 2000 hours (whichever is earlier).
