10+ Year Battery Life
CR2450 600 mAh battery lasts over 10 years at default settings — attach it and forget it. No charging cables, no battery swaps for the life of most deployments.
Bluetooth Beacon

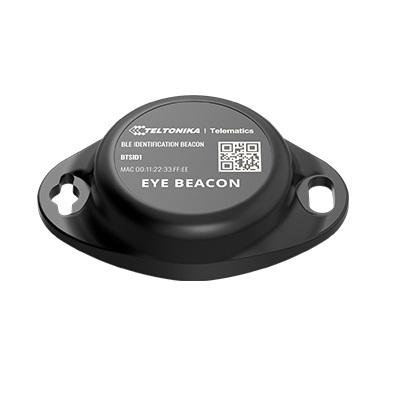

EYE Beacon Bluetooth ID Tag
A Teltonika Bluetooth 5.2 beacon designed to tag any asset — trailers, containers, tools, or equipment. Detected by nearby Teltonika GPS trackers to pinpoint asset location with 10+ year battery life and IP67 waterproofing.
IP67 Waterproof
80m Range
10+ Year Battery
iBeacon / Eddystone
Battery Life
10+ Years
Range
Up to 80 m
Battery Life
10+ years
BT Range
Up to 80 m
Device Size
56.6 × 38 × 13 mm
Protection
IP67 Waterproof
Why it is useful
Tag any asset — trailer, tool, or container — with no charging needed
EYE Beacon is useful when you need to know where an asset is without attaching a GPS tracker to it. Attach a beacon to any item and let nearby Teltonika GPS devices detect and report its location automatically.
IP67 Waterproof Casing
Fully waterproof and dust-tight casing allows deployment in harsh outdoor environments — construction sites, farms, ports, and container yards in all weather conditions.
80m Bluetooth Range
With up to 80 metres of range, a single nearby GPS tracker can detect and log multiple beacons across a yard, warehouse floor, or job site simultaneously.
Use Cases
Where EYE Beacon
Where EYE Beacon
fits well
Attach EYE Beacons to any movable asset that needs to be tracked — without the cost and complexity of a full GPS tracker on every item.
- Trailer and container tracking — identify which trailer is connected to which truck at yard departure and arrival.
- Construction tool and equipment inventory management — know where every drill, saw, and generator is on site.
- Indoor warehouse tracking — locate pallets, cages, and trolleys using Bluetooth-enabled gateway devices.
- Agriculture implement tracking — tag tractor attachments, harrows, and seeders for field audit and utilisation records.
- Hospital asset tracking — monitor medical equipment, wheelchairs, and infusion pumps across wards using ceiling-mounted readers.
Features and Specifications
Product Specifications
EYE Beacon broadcasts a unique Bluetooth ID for nearby Teltonika trackers to detect and report. The details below highlight specs most relevant for asset tagging deployments.
Bluetooth Connectivity
| Standard | Bluetooth 4.2 compliant, Bluetooth 5.2 certified |
| Frequency | 2.402 – 2.480 GHz |
| Range | Up to 80 metres |
| Tx power | Up to +8 dBm (8 configurable levels) |
| Sensitivity | -88 dBm |
| Antenna gain | 1.2 dBi (peak) |
Protocols & Features
| iBeacon | Yes |
| Eddystone | Yes |
| Teltonika protocol | Yes (battery level & magnetic field detection) |
| Functionalities | Beacon ID, LED indicator, Magnet detection*, Hibernate |
| Configuration | Teltonika mobile app (iOS & Android) |
| Microcontroller | ST Microelectronics BlueNRG-2 |
Battery
| Battery model | CR2450 (Lithium, Manganese Dioxide — Li/MnO2) |
| Capacity | 600 mAh |
| Replaceable | No (sealed unit) |
| Life @ 3s interval, Tx=2dBm | 4+ years |
| Life @ 5s interval (default) | 8+ years |
| Life @ 10s interval | 10+ years |
| Charging | None — sealed battery, no charging port |
Environment
| Operating temp | -20°C to +60°C |
| Storage temp | -20°C to +60°C (1 month), -5°C to +30°C (6 months) |
| Humidity | 0% to 100% (non-condensing) |
| Protection | IP67 — fully waterproof and dust-tight |
| Quartz crystals | 32.768 kHz, 16 MHz |
Physical
| Dimensions | 56.6 × 38 × 13 mm (L × W × H) |
| Weight | 18 g |
| Protection | IP67 waterproof casing |
| Mounting | 2 screw/leash holes + adhesive tape option |
| Customisation | Custom logo upon request |
Certifications
| Regional approvals | CE/RED (EU), FCC (USA), UKCA (UK), EAC, ANATEL |
| Global approvals | RoHS, REACH, E-mark, SIRIM QAS, SDPPI POSTEL, TELEC |
| IP rating | IP67 certified |
| Compatibility | All Teltonika trackers with Bluetooth LE |
Aether Integration
Connect beacon sightings to real asset visibility
Aether can connect EYE Beacon sighting events from paired Teltonika trackers into asset dashboards — showing when and where each tagged asset was last detected.
- Last-seen location of tagged assets reported when a nearby GPS-equipped vehicle or gateway detects the beacon.
- Asset presence reports — know which trailers arrived with which trucks and when they were uncoupled.
- Zone-based alerts when a tagged asset leaves or enters a designated area, detected via perimeter vehicles.
- Beacon provisioning, interval configuration, fleet-wide deployment, and pairing setup with GPS tracker whitelist management.
FAQ
Common questions about EYE Beacon
EYE Beacon does not contain GPS. Instead, it continuously broadcasts a unique Bluetooth ID. When a nearby Teltonika GPS tracker (FMC125, FMC920, FMB125 etc.) detects the beacon within range, it records the beacon ID and its own GPS coordinates — effectively reporting the beacon's location at that moment.
At the default 5-second broadcast interval with Tx=2dBm, the 600 mAh CR2450 battery lasts 8+ years. At a 10-second interval it lasts 10+ years. The battery is sealed and not replaceable, but the device is designed to outlast most deployment lifecycles without maintenance.
Any Teltonika GPS tracker with Bluetooth LE support can detect EYE Beacons — including FMC125, FMC920, FMB125, GH5200, and others. The tracker must be configured with the beacon's ID in its whitelist to report sightings to the Aether platform.
EYE Beacon supports iBeacon (Apple), Eddystone (Google), and the Teltonika protocol. The Teltonika protocol additionally reports battery level and magnetic field detection status (on new revision hardware).
Yes. With an 80-metre Bluetooth range, EYE Beacons work well for indoor warehouse, hospital, and industrial facility tracking when used with fixed Bluetooth gateway devices or mobile workers carrying Bluetooth-enabled Teltonika trackers.
