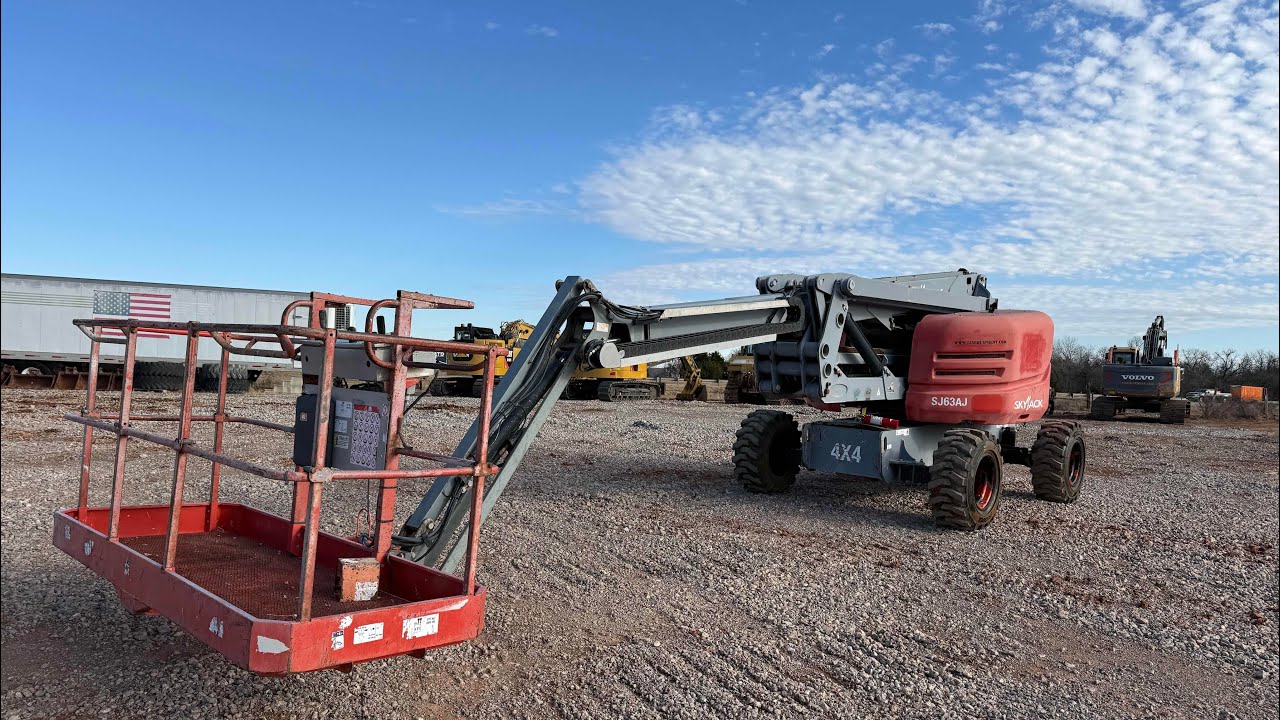

Skyjack SJ63 AJ Articulating Boom Lift

A zero-tailswing articulating boom lift with 19.38 m platform height, 12.19 m horizontal reach, 45% gradeability, and 4WD AXLDRIVE for unrestricted all-terrain access at full height.

Engine icon
EngineDeutz D2011L04i, 65 HP
Height icon
Platform Height19.38 m
Reach icon
Horiz. Outreach12.19 m
Speed icon
Drive Speed7.3 km/h
Fuel Tank icon
Fuel Tank115 L
Weight icon
Operating Weight9,934 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine icon
Engine

Deutz D2011L04i

Gradeability icon
Gradeability

45% 4WD

Capacity icon
Platform Capacity

227 kg

Turntable Rotation icon
Turntable Rotation

360° Continuous

Drive Speed icon
Drive Speed

7.3 km/h

Fuel Tank icon
Fuel Tank

115 L

Up and Over Height icon
Up & Over Height

8.38 m

Axle Oscillation icon
Axle Oscillation

10.16 cm

Machine Width icon
Machine Width (Stowed)

2.44 m

Wheelbase icon
Wheelbase

2.44 m

Tyres icon
Tyres

355/55D625 Foam-Filled

Ground Clearance icon
Ground Clearance

33 cm

Aux Power icon
Aux. Power

12V DC

Platform Rotation icon
Platform Rotation

170°

Tailswing icon
Tailswing

Zero

Specifications

Product specification of Skyjack SJ63 AJ Articulating Boom Lift

PERFORMANCE

  • Working Height

    21.38 m

  • Platform Height

    19.38 m

  • Horizontal Reach

    12.19 m

  • Up and Over Clearance

    8.38 m

  • Below Ground Reach

    3.05 m

  • Platform Capacity

    227 kg

  • Max. Persons on Platform

    2

  • Platform Rotation

    170°

  • Jib Length

    1.68 m

  • Jib Range

    +65° / -60°

  • Turntable Rotation

    360° Continuous

  • Drive Speed

    7.3 km/h

  • Gradeability

    45%

  • Axle Oscillation

    10.16 cm

  • Turning Radius (Inside / Outside)

    2.21 m / 5.31 m

ENGINE

  • Engine

    Deutz D2011L04i

  • Engine Type

    4-Cylinder Diesel

  • Power

    65 HP / 48 kW

  • Drive System

    4WD AXLDRIVE

  • Fuel Tank Capacity

    115 L

TYRES

  • Standard

    Foam-Filled Non-Marking, 355/55D625 Grip Lug

HYDRAULIC SYSTEM

  • Hydraulic Reservoir

    115 L

  • Auxiliary Power

    12V DC

  • Brakes

    Wet Disc SAHR

DIMENSIONS & WEIGHT

  • Operating Weight

    9,934 kg

  • Stowed Length

    9.14 m

  • Transport Length

    7.75 m

  • Stowed Width

    2.44 m

  • Stowed Height

    2.54 m

  • Transport Height

    2.79 m

  • Platform Size

    0.91 m × 2.44 m

  • Wheelbase

    2.44 m

  • Ground Clearance

    0.33 m

  • Tailswing

    Zero

Popular Comparisons with Skyjack SJ63 AJ

Related Boom Lifts

Frequently Asked Questions

Everything you need to know about the Skyjack SJ63 AJ Articulating Boom Lift

The Skyjack SJ63 AJ delivers a platform height of 19.38 m and a working height of 21.38 m, making it ideal for construction, industrial maintenance, and elevated access applications requiring extended reach.

The Skyjack SJ63 AJ provides a horizontal reach of 12.19 m, with 8.38 m up-and-over clearance and 3.05 m below-ground reach, enabling operators to access over and around obstacles with precision.

The Skyjack SJ63 AJ has a platform capacity of 227 kg for up to 2 persons. The platform features 170° hydraulic rotation, providing flexible positioning and unrestricted access at full height.

The Skyjack SJ63 AJ is powered by a Deutz D2011L04i 4-cylinder diesel engine producing 65 HP (48 kW). It has a 115 L fuel tank capacity, providing extended runtime for demanding job-site operations.

The Skyjack SJ63 AJ offers 45% gradeability with 4WD AXLDRIVE and a drive speed of 7.3 km/h. Its zero-tailswing design allows safe operation in confined spaces without risk of the rear swinging into obstacles.
