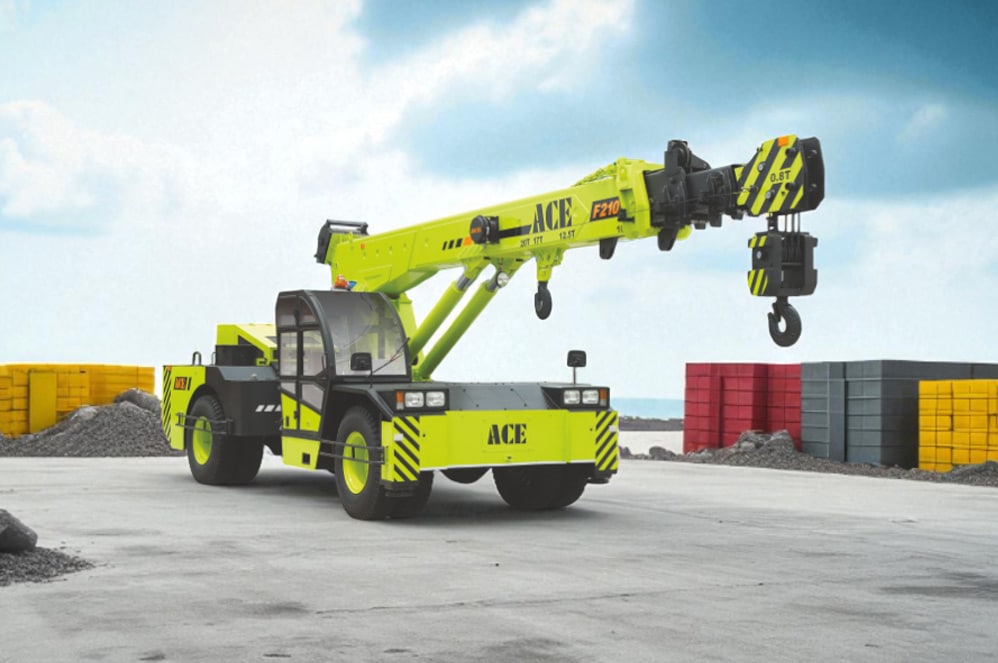

ENGINE
- Make / ModelTata Motors CEV Stage V Diesel Engine, Model 497
- Type4 cylinder, water cooled, turbo charged engine with Electronic Control Unit (ECU)
- Rated Power101 HP (74 kW) @ 2200 rpm
- Electrical System12 V, negative earth, 110 AH battery

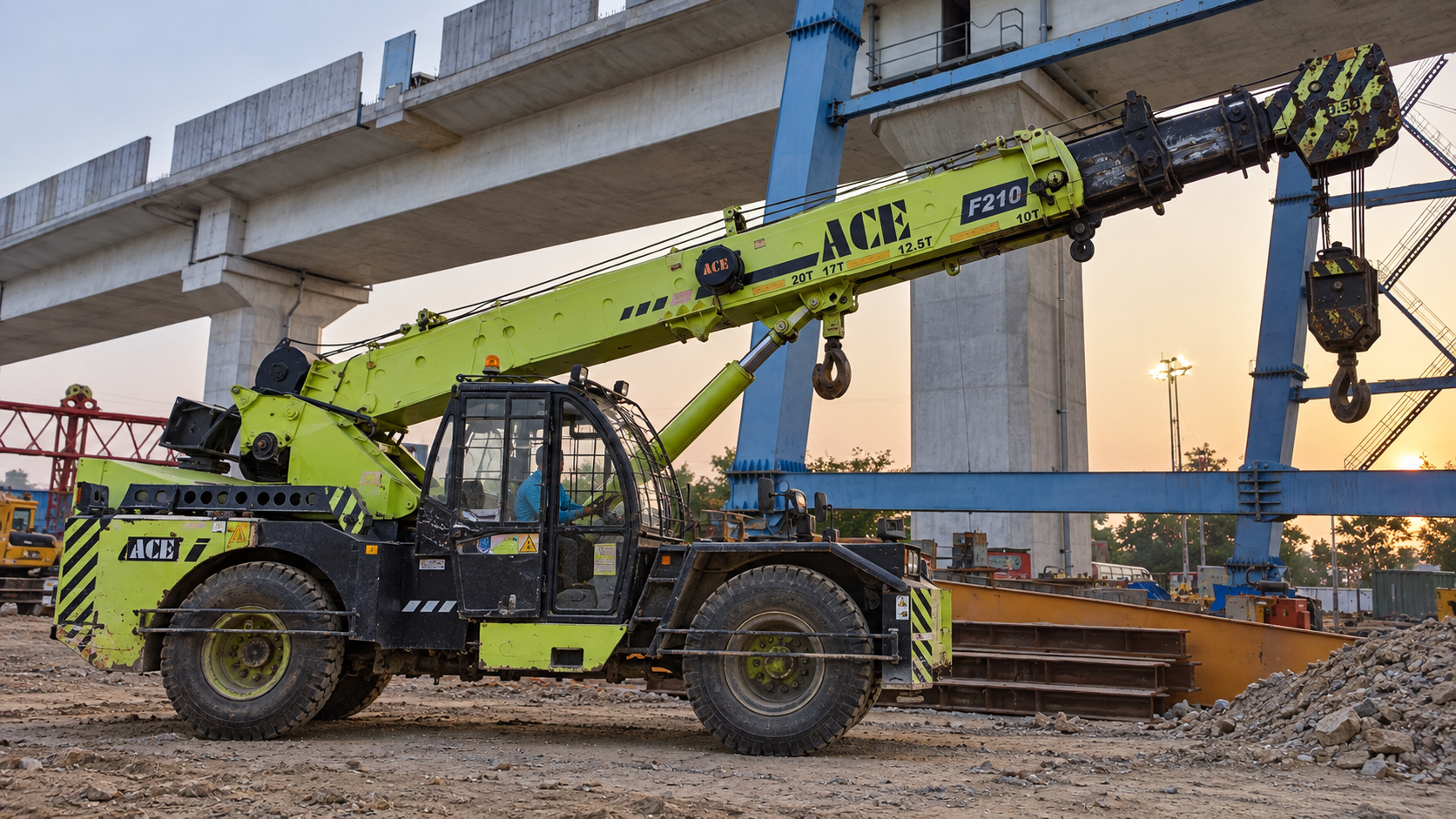

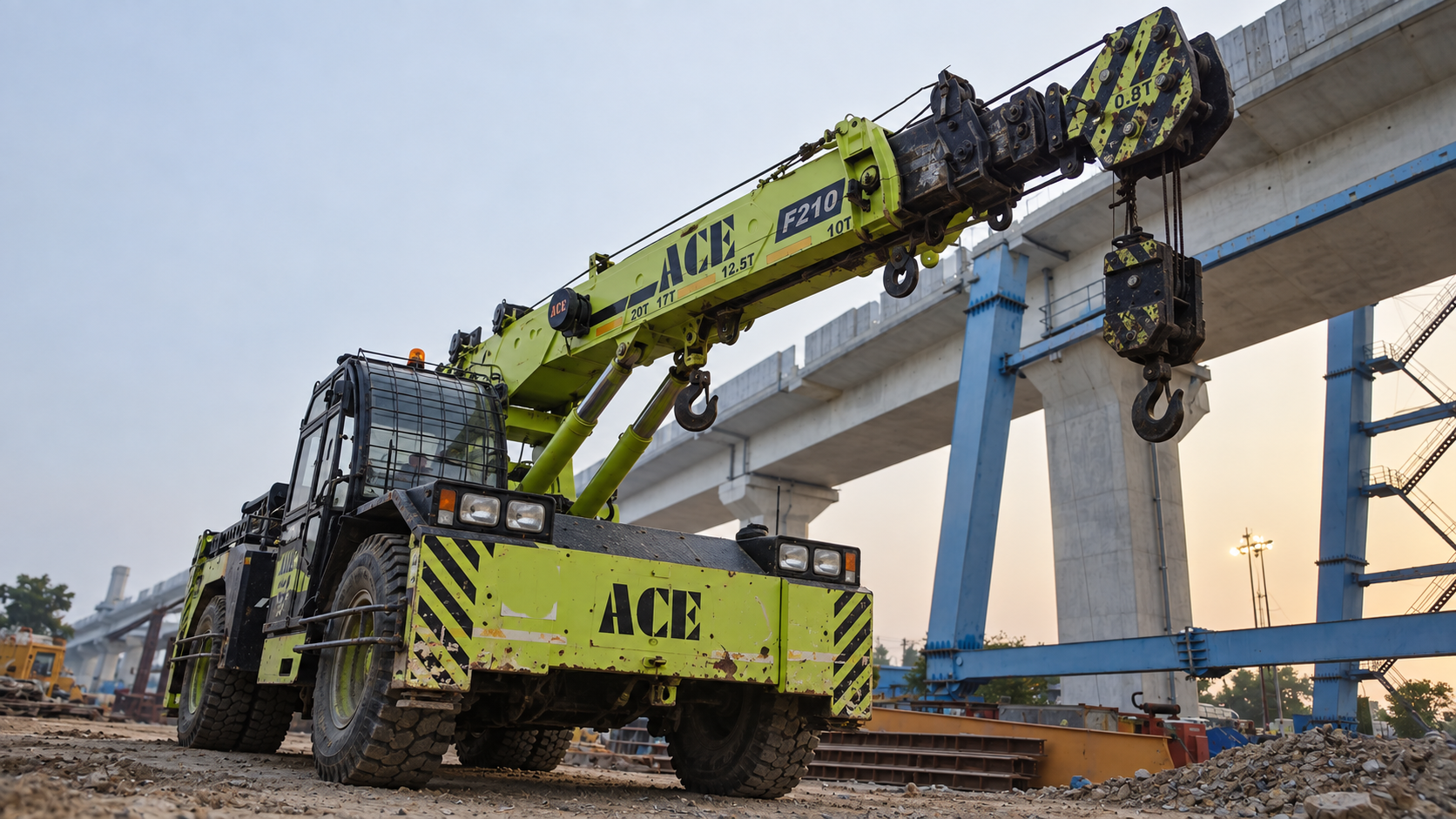

LIFTING & BOOM
- Lifting Capacity20 tonnes
- Telescopic Boom4-part slotted boom; 2 parts hydraulically operated & synchronized; 4th part power extended
- Boom Height19.5 m with 3-part slotted boom + 1 manual extension
- Boom Luffing Range-7° to +70°
- Fly Jib Capacity1.25 tonnes maximum capacity
- Manual Extension Capacity2.0 tonnes maximum capacity
TRANSMISSION & DRIVE
- TransmissionHeavy duty synchromesh with 10 forward and 2 reverse speeds
- Auxiliary Gear BoxHi/Low and 2WD/4WD selector
- Drive4 wheel drive
- ClutchHeavy duty, single, dry friction type hydraulic clutch
- Creep Speed1.3 km/h
- Top Speed38 km/h on even metalled road without load
- Gradeability40% unladen

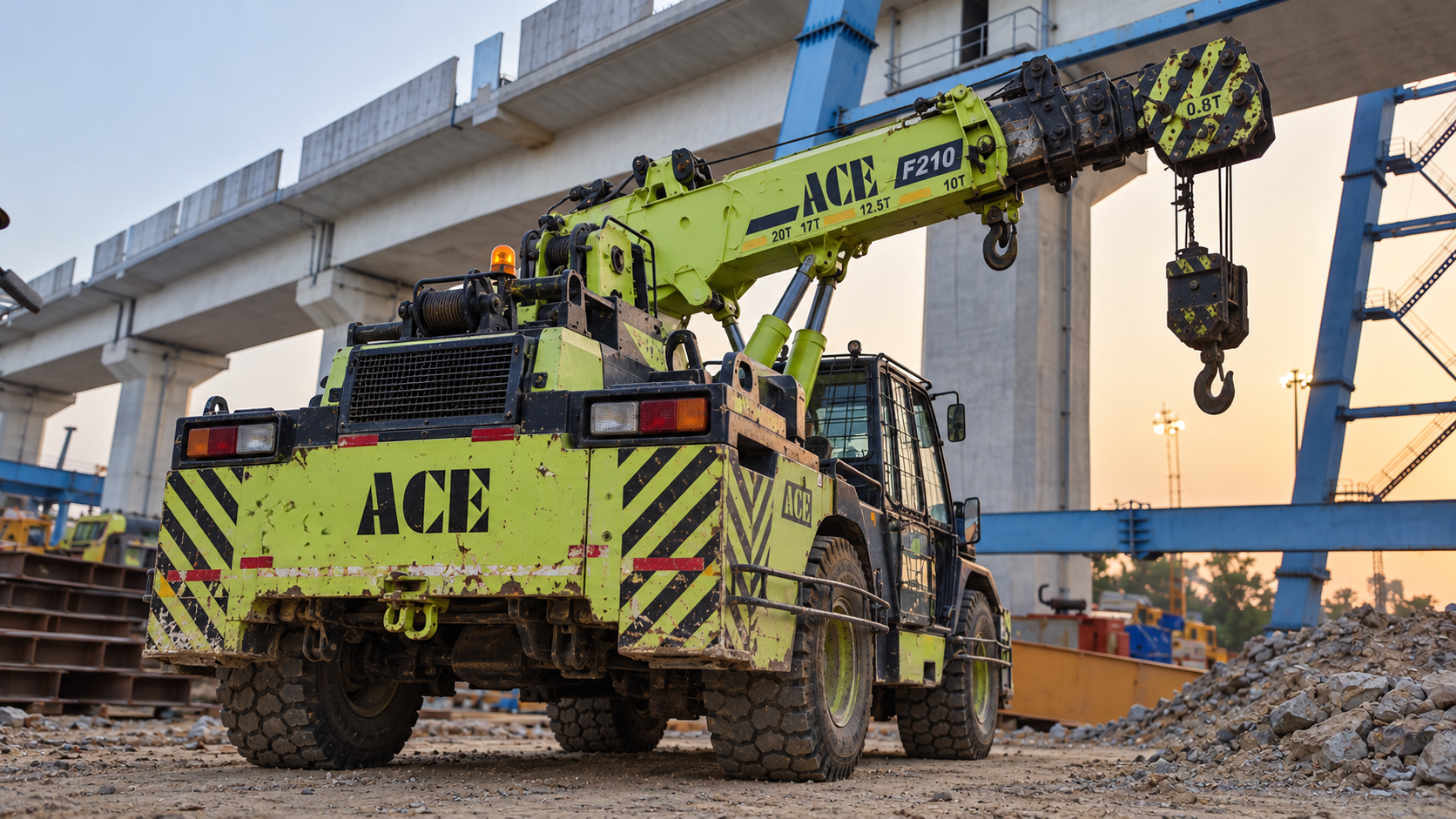

STEERING & AXLES
- Steering TypeFull power orbitrol with twin hydraulic double acting cylinders
- Articulation40° each side
- Turning Radius7.6 m on outer rear wheels
- Front AxleRigidly mounted on chassis
- Rear AxleMounted with 2 nos. leaf springs
HYDRAULIC SYSTEM
- Main PumpGear / intra-vane type main pump
- Control ValveFive spools control valve with built-in relief valve, heavy duty
- Filtration100 mesh suction-line strainer and return-line 25 micron filter
- Lift Cylinders2 double acting lift cylinders
- Steering / Extension Cylinders2 double acting steering cylinders and 1 double acting extension cylinder
HOIST MECHANISM
- Winch4 tonnes line pull winch driven by hydraulic motor with rope tensioner
- HoistingSelf-adjusting hook block employing 6 falls of 13 mm dia. rope
- Hoist Speed35 m/min line speed
BRAKES & SAFETY
- Service BrakesDual circuit brakes; fully pneumatic brakes on front and rear wheels
- Parking BrakePneumatically operated, fail-safe type
- Safety FeaturesHose failure protection, audio over-hoisting indication, safety brakes on hoist and self-adjusting hook block
- Wheel GuardsFront and rear wheel guards
DIMENSIONS & TYRES
- Operating Weight19,855 kg
- Wheelbase4,300 mm
- Wheel Track1,840 mm
- Front Tyres12.00 x 20 - 18 PR, 4 nos.
- Rear Tyres12.00 x 20 - 18 PR, 4 nos.
EQUIPMENT & ULTRA FEATURES
- Standard EquipmentFront work lights, reflectors, rear view mirror, tool kit, cabin fan, wiper motor, rear view camera, front outriggers, beacon rotating light and regeneration switch
- Digital Cluster IndicationsFuel level, low fuel, engine oil pressure, air pressure, low air pressure, parking brake, coolant temperature, engine RPM, engine hour recorder, speedometer, odometer, urea level, water in fuel, battery charging, neutral safe start, 2W/4WD drive, regeneration and fault detector codes
- Optional EquipmentAC cabin, SLI, fly jib, over-hoist hydraulic cutoff, fire extinguisher, cabin front glass protector, helper/slinger seat, drag winch, proximity sensors and man basket attachment
- ULTRA FeaturesALSS, SCOS and RAS features for safe crane operations
- Connected FeaturesACE Live telematics, IoT controlled SLI and IoT controlled AC
