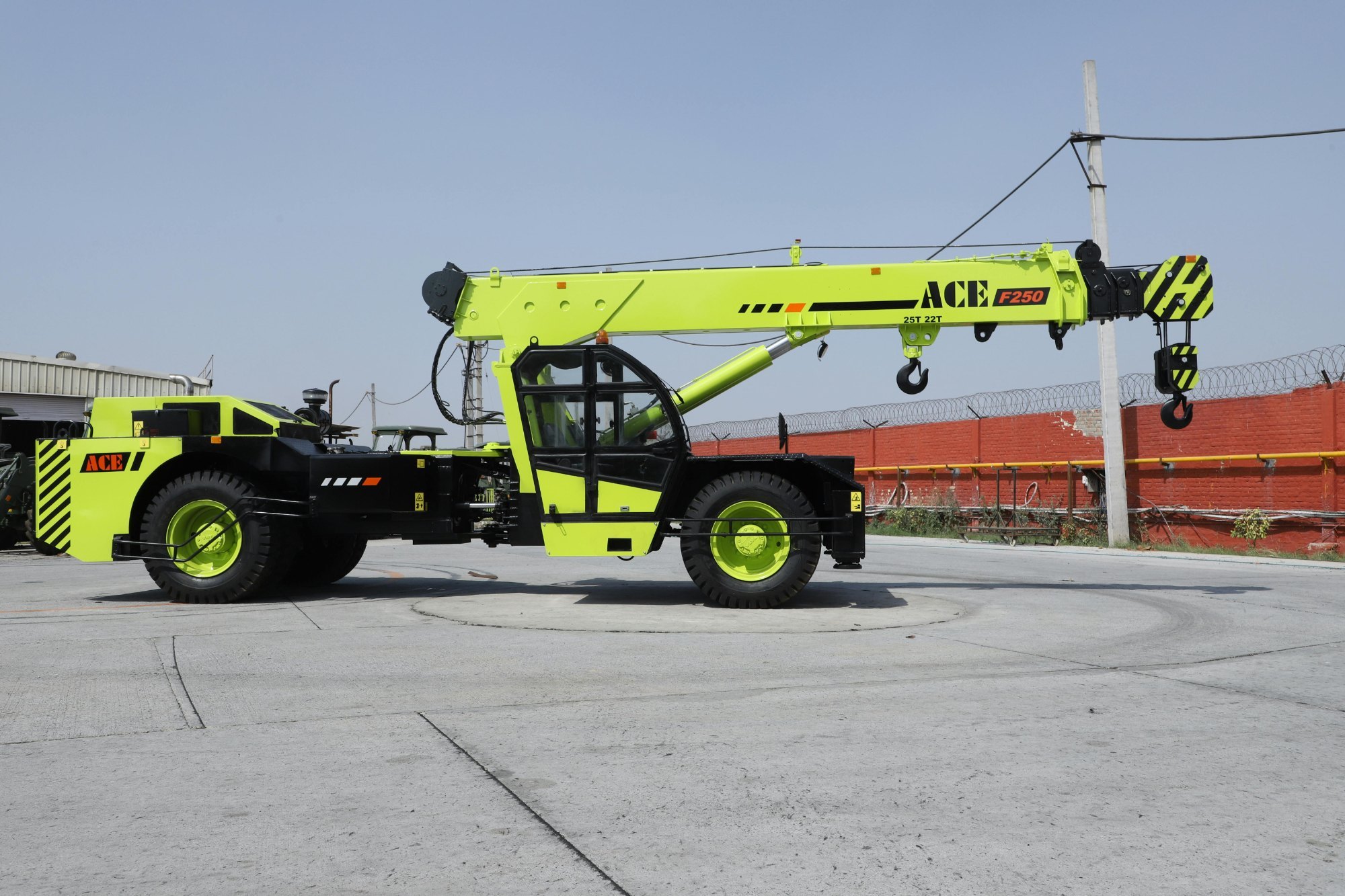

ACE F250 Nextgen Hydraulic Crane front view
ACE Pick & Carry Crane

ACE F250 Nextgen Hydraulic Crane

A 25-tonne rough-terrain 4x4 articulated pick-and-carry crane powered by a Tata CEV Stage V Model 497 engine. Built with 12F/2R transmission, 20.2 m boom height, ACE Live telematics, IoT controlled SLI, ALSS, SCOS and RAS safety systems.

Engine icon
EngineTata 101 HP
Capacity icon
Capacity25 Tonnes
Lift Height icon
Lift Height20.2 m
Max Speed icon
Max Speed38 km/h
Articulated icon
Articulated40°
Operating weight icon
Weight20800 Kg

Key Highlights

Engine Model icon
Engine Model

Tata 497 CEV Stage V

Rated Power icon
Rated Power

101 HP / 74 kW @ 2200 rpm

Lifting Capacity icon
Lifting Capacity

25 tonnes

Boom Height icon
Boom Height

20.2 m

Operating Weight icon
Operating Weight

20,800 kg

Wheelbase icon
Wheelbase

4,930 mm

Wheel Track icon
Wheel Track

1,880 mm

Top Speed icon
Top Speed

38 km/h

Creep Speed icon
Creep Speed

1.3 km/h

Gradeability icon
Gradeability

40% unladen

Hoist Speed icon
Hoist Speed

35 m/min

Tyres icon
Tyres

12.00 x 24 - 20 PR

Turning Radius icon
Turning Radius

8.20 m

Drive icon
Drive

4x4 with 2WD/4WD selector

Safety & Telematics icon
Safety & Telematics

ACE Live + SLI + ALSS

Specifications ACE F250 Crane

Detailed technical specifications for ACE F250 Nextgen Hydraulic Crane

ENGINE

  • Engine ModelTata (CEV V) Diesel Engine, Model 497
  • Engine Type4-cylinder, water-cooled, turbocharged engine with ECU
  • Rated Power101 HP (74 kW) @ 2200 rpm
  • Electrical System12 V, negative earth, 110 Ah battery

LIFTING & LOAD CHART

  • Maximum Lifting Capacity25 tonnes
  • Boom Configuration3-part slotted boom + 1 manual
  • Maximum Height20.2 m
  • Fly Jib Capacity1.25 tonnes
  • Manual Extension Capacity2.0 tonnes
  • Rated Load NoteSWL based on 85% stability and strength; full rated lifting capacity available in articulated / steered condition

TRANSMISSION

  • GearboxHeavy-duty synchromesh gearbox
  • Speeds12 forward / 2 reverse
  • Auxiliary Gearbox2WD / 4WD selector for high and low speeds
  • ClutchHeavy-duty single dry-friction pneumatic-assisted hydraulic clutch
  • Creep Speed1.3 km/h
  • Top Speed38 km/h on even metalled road without load
  • Gradeability40% unladen

STEERING & DRIVE

  • Drive4 wheel drive (4x4)
  • AxlesFront axle rigidly mounted on chassis; rear drive axle with 2 leaf springs
  • Steering TypeFull power orbitrol with twin hydraulic double-acting cylinders
  • Articulation40° either side
  • Turning Radius8.20 m on outer rear wheels

HYDRAULIC SYSTEM

  • Main PumpGear / intra-vane type main pump
  • Control ValveFive-spool control valve with built-in relief valve, heavy duty
  • Filtration100 mesh suction-line strainer and 25 micron return-line filter
  • CylindersTwo lift cylinders, two steering cylinders and one extension cylinder

HOIST MECHANISM

  • Winch Pull4 tonnes line pull
  • Winch DriveHydraulic motor driven with rope tensioner
  • Hoist Speed35 m/min line speed
  • Rope6 falls of 13 mm diameter rope
  • Hook BlockSelf-adjusting hook block

BRAKES

  • Service BrakesDual-circuit fully pneumatic brakes on front and rear wheels
  • Parking BrakePneumatically operated, fail-safe type

BOOM

  • Boom Type4-part slotted boom
  • Operation2 parts hydraulically operated and synchronized; 4th part power extended
  • Max Height20.2 m with 3-part + 1 manual configuration

DIMENSIONS & TYRES

  • Operating Weight20,800 kg
  • Wheelbase4,930 mm
  • Wheel Track1,880 mm
  • Front Tyres12.00 x 24 - 20 PR (4 nos.)
  • Rear Tyres12.00 x 24 - 20 PR (4 nos.)

SAFETY & EQUIPMENT

  • Safety SystemsHose failure protection, audio over-hoisting indication, safety brakes on hoist
  • Hook / GuardingSelf-adjusting hook block; front and rear wheel guards
  • Standard EquipmentFront work lights, reflectors, rear-view mirror, toolkit, cabin fan and wiper motor
  • Digital ClusterFuel, low fuel, oil pressure, air pressure, parking brake, coolant, RPM, hour recorder, speedometer, odometer, urea, water-in-fuel, battery, neutral safe start, 2W/4WD, regeneration and fault codes
  • Additional Standard ItemsRear-view camera, front outriggers, beacon rotating light and regeneration switch

TELEMATICS & OPTIONS

  • ACE Live TelematicsIoT device for monitoring, diagnosis and remote troubleshooting
  • IoT Controlled SLISafe load / operation monitoring and control
  • ULTRA Safety FeaturesALSS, SCOS and RAS
  • Optional EquipmentAC cabin, SLI, fly jib, over-hoist hydraulic cutoff, fire extinguisher, cabin front glass protector, helper / slinger seat, drag winch, front & side proximity sensors and man basket attachment
  • IoT Controlled ACAvailable for operator comfort

Frequently Asked Questions

Everything you need to know about the ACE F250 Nextgen Hydraulic Crane

The ACE F250 has a maximum lifting capacity of 25 tonnes.

It is powered by a Tata CEV Stage V Model 497 4-cylinder, water-cooled, turbocharged diesel engine with ECU, rated at 101 HP / 74 kW @ 2200 rpm.

The ACE F250 load-chart page shows 20.2 m height with a 3-part slotted boom plus 1 manual extension. The fly jib capacity is 1.25 tonnes, and manual extension capacity is 2.0 tonnes.

The ACE F250 uses a heavy-duty synchromesh gearbox with 12 forward and 2 reverse speeds, plus an auxiliary gearbox with 2WD / 4WD selector for high and low speeds.

Available features include ACE Live telematics, IoT Controlled SLI, ALSS, SCOS, RAS, hose failure protection, audio over-hoisting indication, safety brakes on hoist and self-adjusting hook block.
