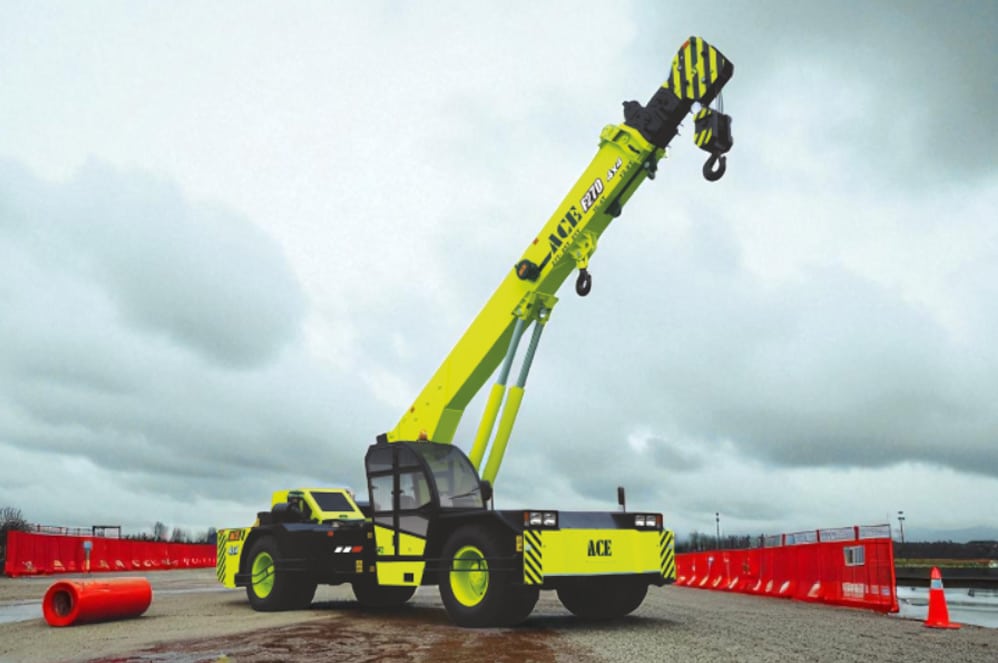

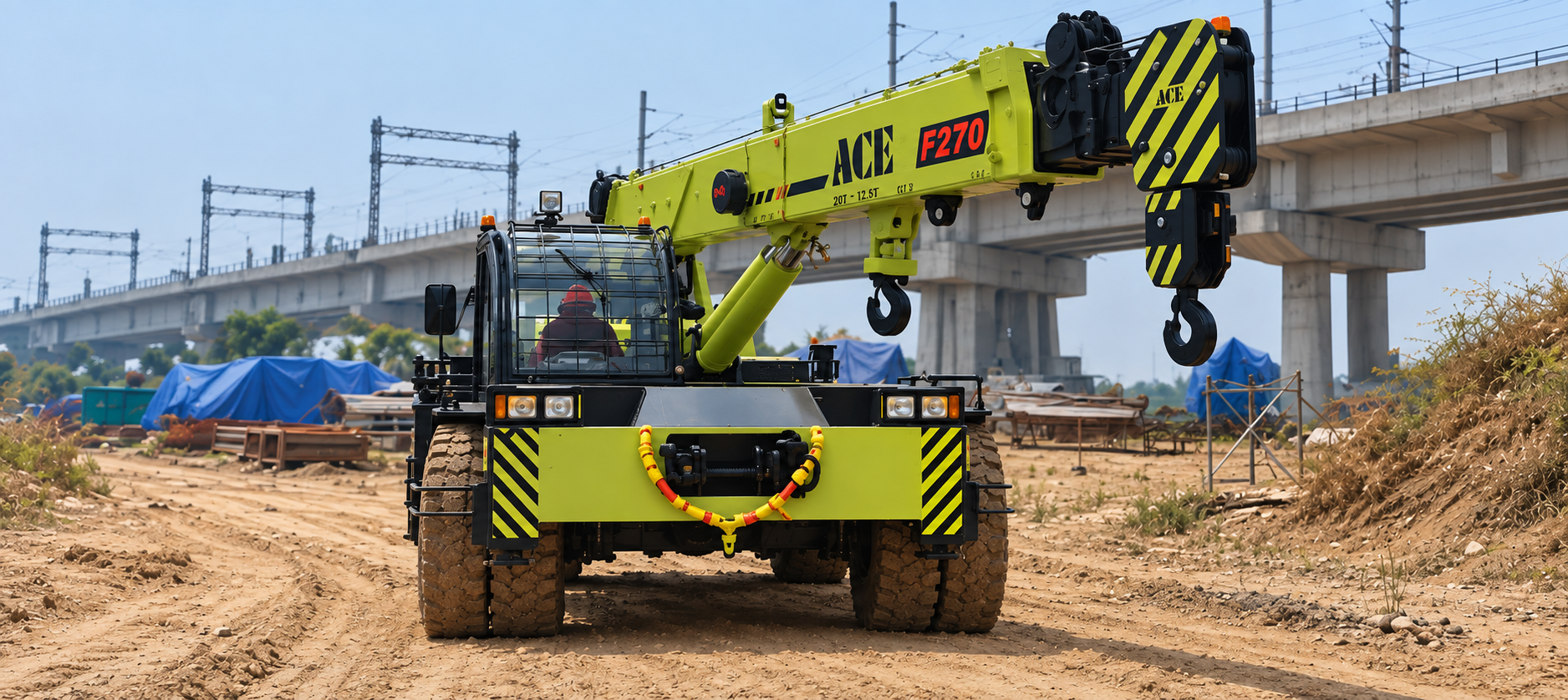

ACE F 270 Next Gen Crane front view
ACE Pick & Carry Crane

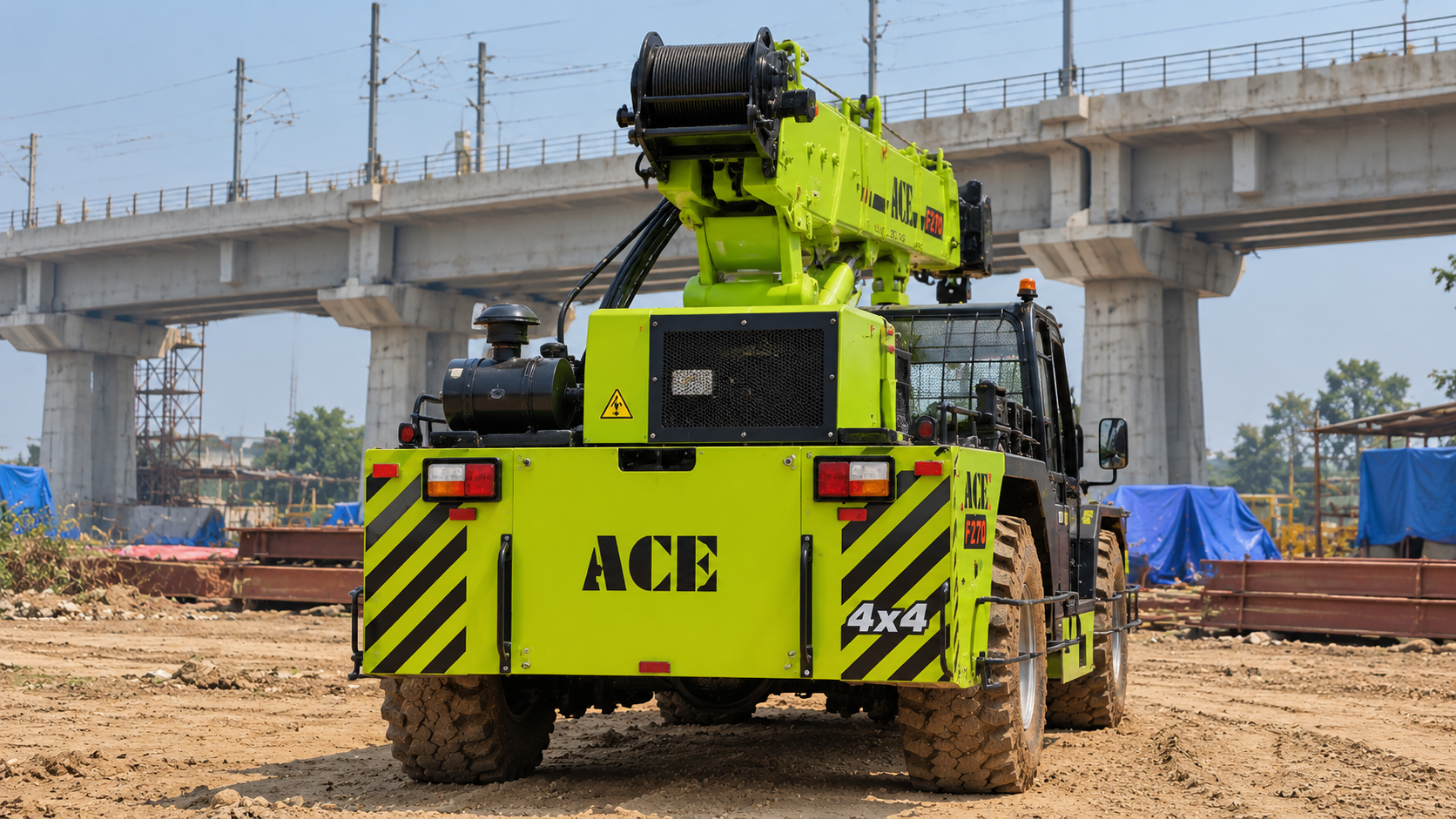

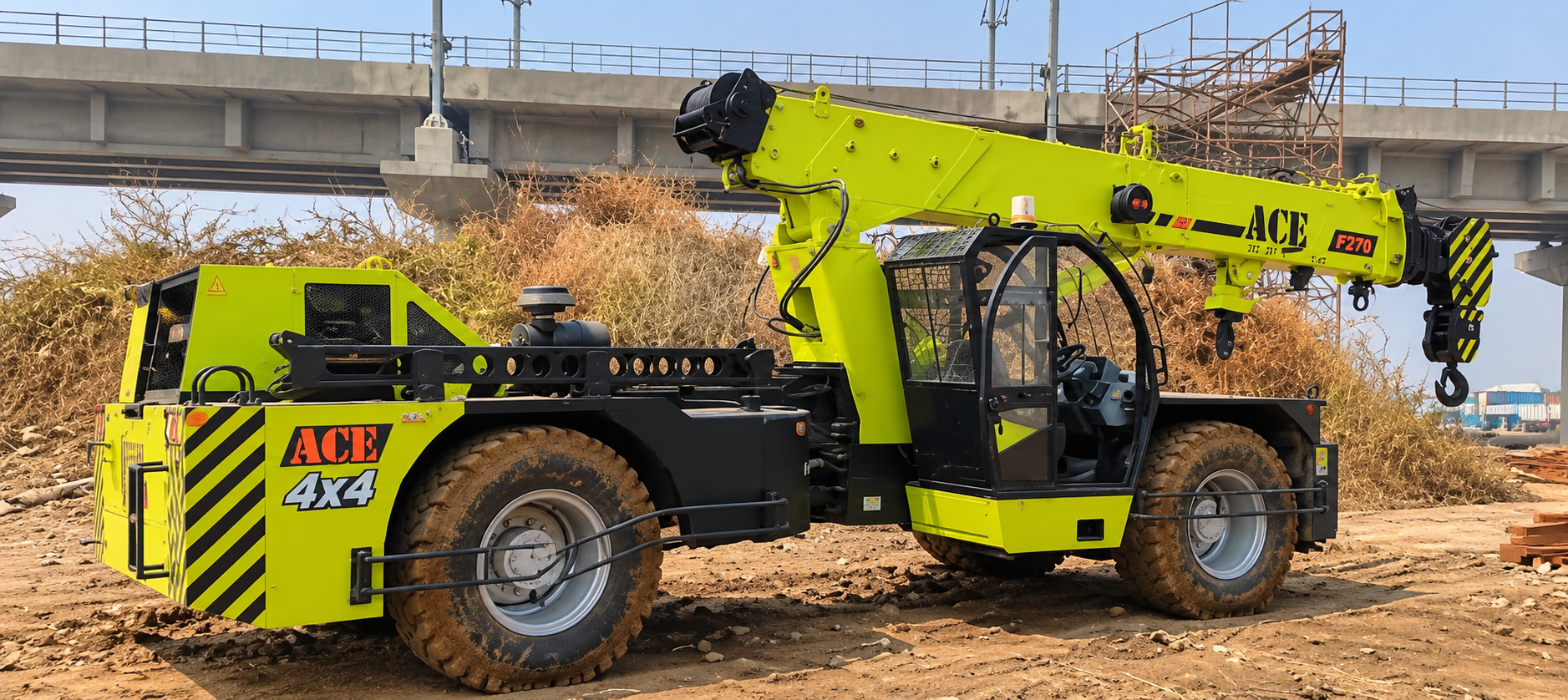

ACE F 270 Next Gen Crane

A 27-tonne Nextgen Hydraulic Crane with rough-terrain 4x4 capability, Ashok Leyland H4C413022 CEV BSIV engine, 12F/2R transmission, 19.3 m boom height and full rated lifting capacity available in articulated / steered condition.

Engine icon
EngineAshok Leyland 130 HP
Capacity icon
Capacity27 Tonnes
Lift Height icon
Lift Height19.3 m
Max Speed icon
Max Speed39 km/h
Articulated icon
Articulated40°
Operating weight icon
Weight22000 Kg

Key Highlights

Engine icon
Engine

Ashok Leyland H4C413022

Lifting Capacity icon
Lifting Capacity

27 Tonnes

Rated Power icon
Rated Power

130 HP (95 kW) @ 2200 rpm

Top Speed icon
Top Speed

39 km/h

Transmission icon
Transmission

12F / 2R Synchromesh

Drive & Articulation icon
Drive & Articulation

4x4 / 40°

Max Boom Height icon
Max Boom Height

19.3 m

Ground Clearance icon
Ground Clearance

350 mm

Wheelbase icon
Wheelbase

4,950 mm

Wheel Track icon
Wheel Track

1,980 mm

Tyres icon
Tyres

12.00 x 24 - 18 PR

Operating Weight icon
Operating Weight

22,000 kg

Creep Speed icon
Creep Speed

1.3 km/h

Turning Radius icon
Turning Radius

8.25 m

Hoist Speed icon
Hoist Speed

35 m/min

Specifications ACE F270 Crane

Detailed technical specifications for ACE F270 Nextgen Hydraulic Crane

ENGINE

  • Engine Make / ModelAshok Leyland H4C413022 with ECU
  • Emission NormCEV BSIV
  • Type4-cylinder, water-cooled diesel engine
  • Rated Power130 HP (95 kW) @ 2200 rpm
  • Electrical System12 V, negative earth, 100 Ah battery

PERFORMANCE

  • Lifting Capacity27 tonnes
  • Creep Speed1.3 km/h
  • Top Speed39 km/h on even metalled road without load
  • Gradeability40% unladen
  • Full Rated Capacity NoteAvailable in articulated / steered condition on firm and level surface

TRANSMISSION & DRIVE

  • TransmissionHeavy-duty synchromesh
  • Gear Speeds12 forward / 2 reverse
  • Auxiliary Gearbox2WD-High / 4WD-Low selector
  • Drive4 wheel drive
  • AxlesFront axle rigidly mounted on chassis; rear drive axle with 2 heavy-duty leaf springs
  • ClutchHeavy-duty, single, dry-friction hydraulic clutch

STEERING & BRAKES

  • SteeringFull power orbitrol with twin hydraulic double-acting cylinders
  • Articulation40° on either side
  • Turning Radius8.25 m on outer rear wheels
  • Service BrakesDual circuit; fully pneumatic brakes on front and rear wheels
  • Parking BrakePneumatically operated, fail-safe type

HYDRAULIC & HOIST

  • Hydraulic PumpGear / intra-vane type main pump
  • Control ValveFive spool control valve with built-in heavy-duty relief valve
  • Filtration100 mesh suction strainer; 25 micron return-line filter
  • Hydraulic Cylinders2 lift cylinders, 2 steering cylinders and 1 extension cylinder
  • Winch Line Pull3.9 tonnes line pull
  • Hoist Speed35 m/min line speed
  • Rope / Falls6 falls of 13 mm dia. rope
  • Hook BlockSelf-adjusting hook block

BOOM & ATTACHMENTS

  • Boom Type4-part slotted boom
  • Boom Operation2 parts hydraulically operated & synchronized; 4th part power extended
  • 3-Part Boom Height11.5 m
  • 3-Part + 1 Manual Boom Height19.3 m
  • Fly Jib Capacity1.25 tonnes max. capacity
  • Optional Manual / AttachmentsMan basket, fork attachment and ram attachment listed as optional

TYRES & DIMENSIONS

  • Operating Weight22,000 kg
  • Wheelbase4,950 mm
  • Wheel Track1,980 mm
  • Front Tyres12.00 x 24 - 18 PR (4 nos.)
  • Rear Tyres12.00 x 24 - 18 PR (4 nos.)
  • Ground Clearance350 mm

SAFETY & EQUIPMENT

  • Safety FeaturesHose failure protection, audio over-hoisting indication, safety brakes on hoist
  • Hook / GuardsSelf-adjusting hook block, front and rear wheel guards
  • CabinROPS fully enclosed wide-view cabin
  • Standard EquipmentFront work lights, reflectors, rear-view mirror, tool kit, cabin fan, wiper motor
  • Instrument ClusterFuel level, air pressure, oil pressure, coolant temperature, engine RPM, speedometer, odometer, hour recorder and fault codes
  • Site EquipmentRear-view camera, front outriggers and beacon rotating light
  • Optional EquipmentSafe load indicator/LMI, over-hoist hydraulic cut-off, fire extinguisher, cabin glass protector, helper/slinger seat, drag winch, spark arrestor and proximity sensor

Frequently Asked Questions

Everything you need to know about the ACE F270 Nextgen Hydraulic Crane

The ACE F270 has a maximum lifting capacity of 27 tonnes.

It is powered by an Ashok Leyland H4C413022 CEV BSIV 4-cylinder water-cooled diesel engine with ECU, rated at 130 HP (95 kW) @ 2200 rpm.

The F270 has an 11.5 m height with the 3-part slotted boom and 19.3 m height with the 3-part boom plus 1 manual extension.

Performance figures include 1.3 km/h creep speed, 39 km/h top speed on even metalled road without load and 40% unladen gradeability.

Safety features include hose failure protection, audio over-hoisting indication, safety brakes on hoist, self-adjusting hook block and front and rear wheel guards.

Optional equipment includes fly jib, safe load indicator/LMI, over-hoist hydraulic cut-off, fire extinguisher, cabin front glass protector, helper/slinger seat, drag winch, spark arrestor, front and side proximity sensor, 3-part slotted boom, man basket attachment, fork attachment and ram attachment.
