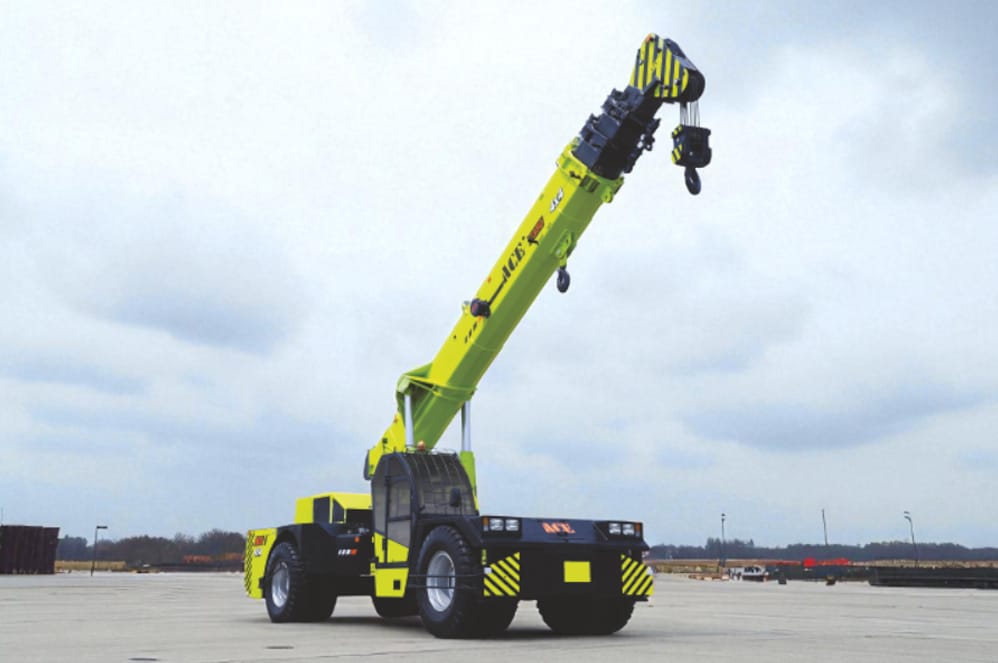

ACE F350 Nextgen Hydraulic Crane front view
ACE Pick & Carry Crane

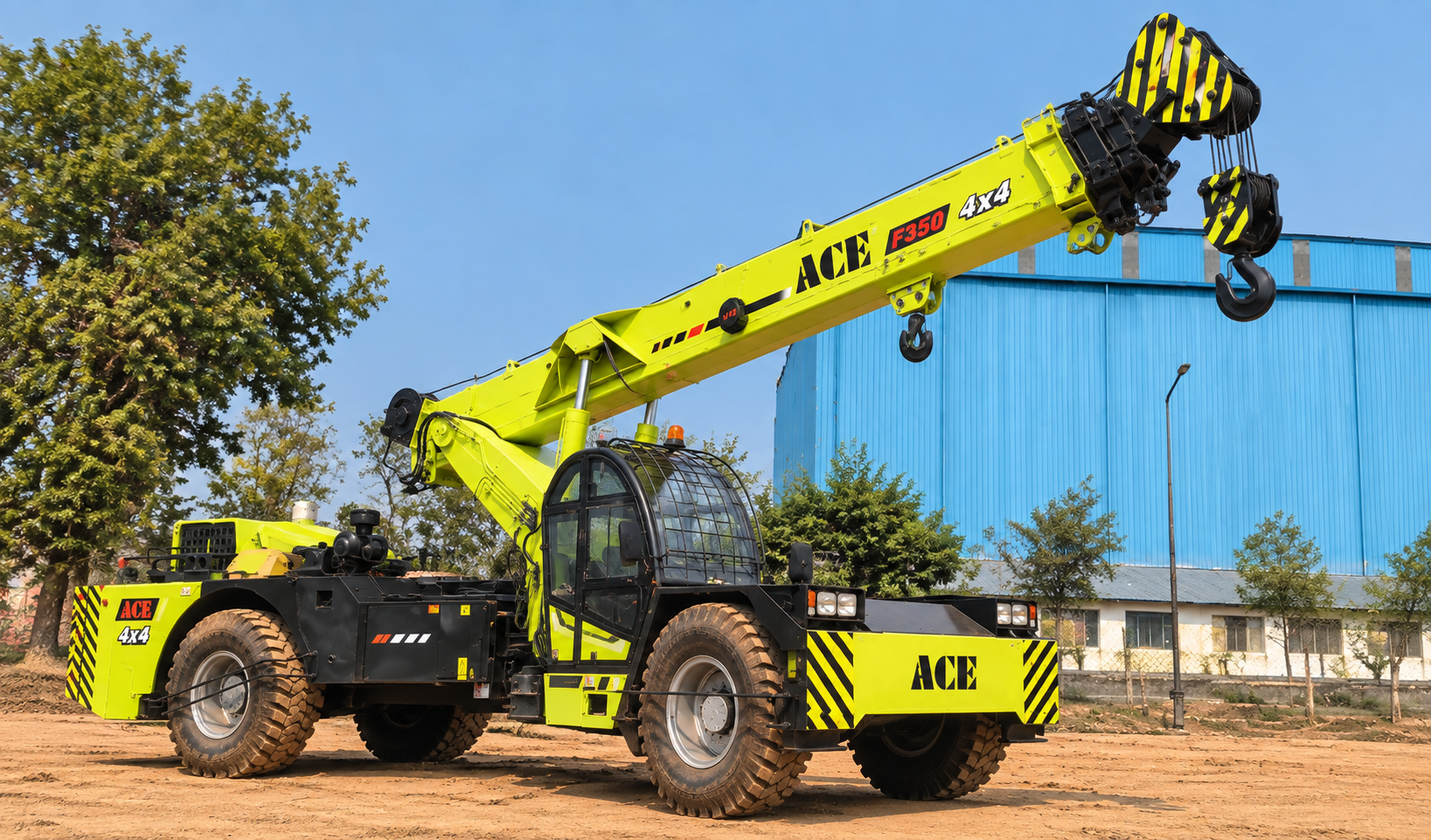

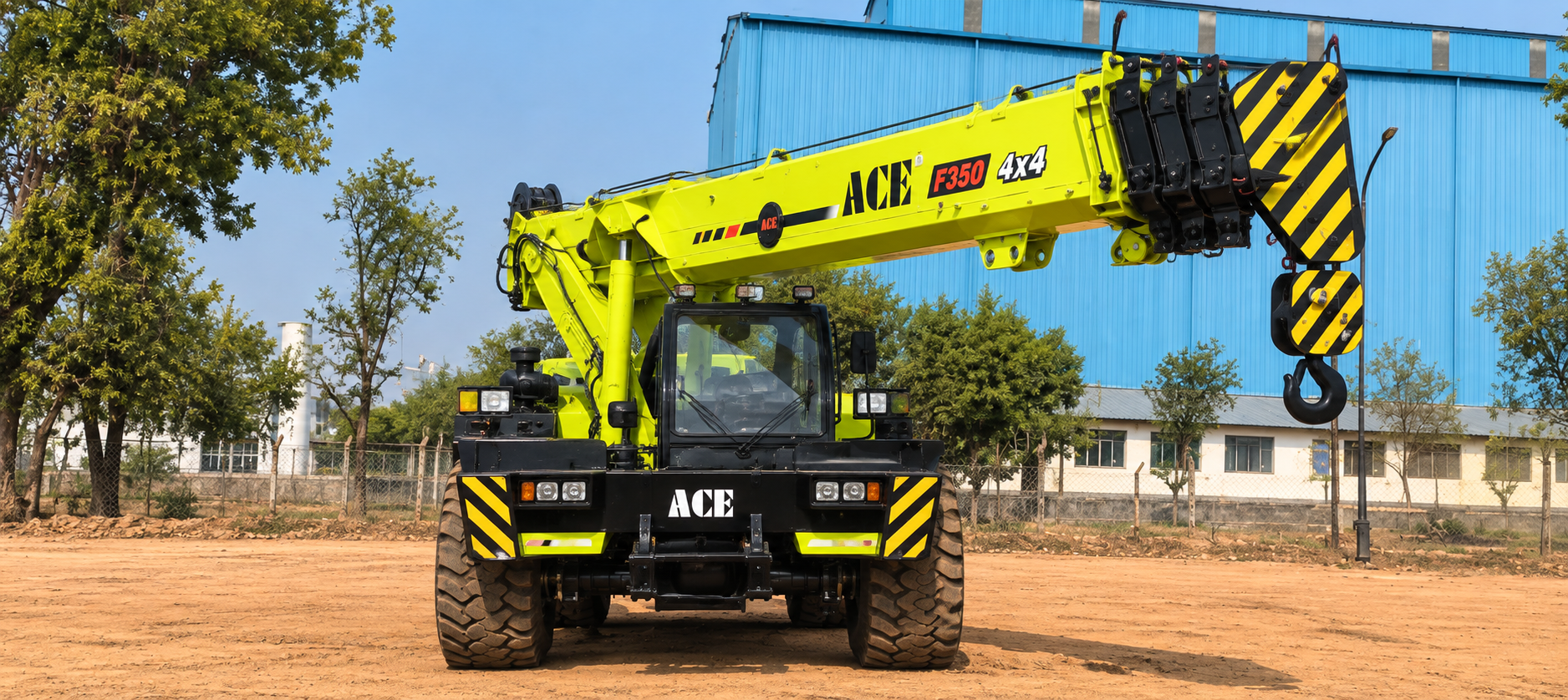

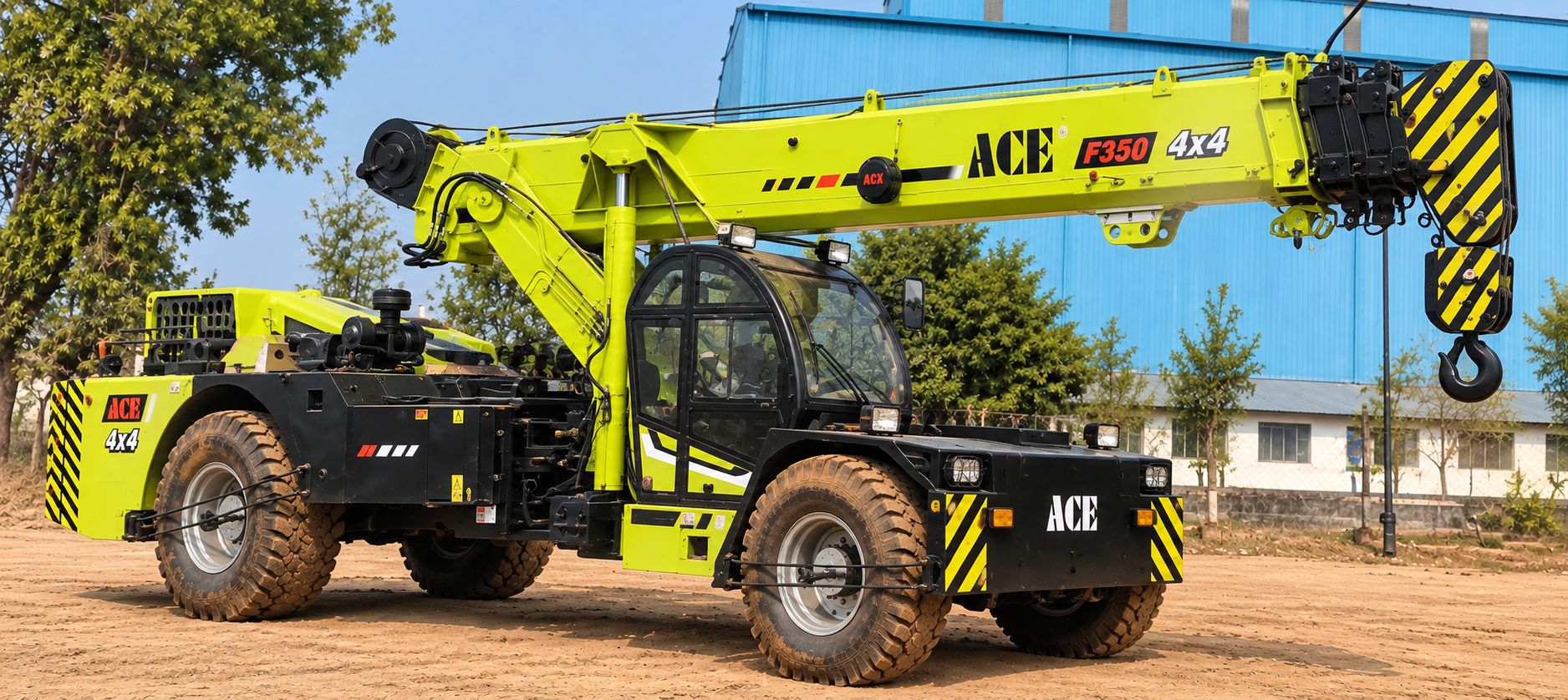

ACE F350 Nextgen Hydraulic Crane

A 35-tonne rough-terrain 4x4 articulated pick-and-carry crane powered by an Ashok Leyland H4C413022 CEV BSIV engine. Built with a 12F/2R transmission, 22.6 m fully hydraulic synchronized boom, 350 mm ground clearance and heavy-duty safety systems.

Engine icon
EngineAshok Leyland 130 HP
Capacity icon
Capacity35 Tonnes
Lift Height icon
Lift Height22.6 m
Max Speed icon
Max Speed39 km/h
Articulated icon
Articulated40°
Operating Weight icon
Weight27,450 kg

Key Highlights

Engine Model icon
Engine Model

Ashok Leyland H4C413022

Rated Power icon
Rated Power

130 HP / 95 kW @ 2200 rpm

Lifting Capacity icon
Lifting Capacity

35 tonnes

Boom Height icon
Boom Height

22.6 m

Operating Weight icon
Operating Weight

27,450 kg

Wheelbase icon
Wheelbase

5,300 mm

Wheel Track icon
Wheel Track

1,980 mm

Top Speed icon
Top Speed

39 km/h

Creep Speed icon
Creep Speed

1.6 km/h

Gradeability icon
Gradeability

40% unladen

Hoist Speed icon
Hoist Speed

50 m/min

Tyres icon
Tyres

14.00 x 25

Turning Radius icon
Turning Radius

9.0 m

Drive icon
Drive

4x4 with 2WD/4WD selector

Ground Clearance icon
Ground Clearance

350 mm

Specifications ACE F350 Crane

Detailed technical specifications for ACE F350 Nextgen Hydraulic Crane

ENGINE

  • Engine ModelAshok Leyland H4C413022 with ECU
  • Emission NormCEV BSIV
  • Engine Type4-cylinder, water-cooled diesel engine
  • Rated Power130 HP (95 kW) @ 2200 rpm
  • Electrical System12 V, negative earth, 100 Ah battery

LIFTING & LOAD CHART

  • Maximum Lifting Capacity35 tonnes
  • Boom Configuration4-part boom
  • Maximum Height22.6 m
  • Fly Jib Capacity1.25 tonnes
  • Optional 3-Part Boom11.5 m height
  • Rated Load NoteSWL based on 85% stability and strength

TRANSMISSION

  • GearboxHeavy-duty synchromesh gearbox
  • Speeds12 forward / 2 reverse
  • Auxiliary Gearbox2WD-High / 4WD-Low selector
  • ClutchHeavy-duty single dry-friction hydraulic clutch
  • Creep Speed1.6 km/h
  • Top Speed39 km/h on even metalled road without load
  • Gradeability40% unladen

STEERING & DRIVE

  • Drive4 wheel drive
  • AxlesFront and rear drive axles mounted on chassis
  • Steering TypeFull power orbitrol with twin hydraulic double-acting cylinders
  • Articulation40° either side
  • Turning Radius9.0 m on outer rear wheels

HYDRAULIC SYSTEM

  • Main PumpGear/type tandem pump
  • Control ValveFive-spool control valve with built-in relief valve, heavy duty
  • Filtration100 mesh suction-line strainer and 20 micron glass-fibre return-line filter
  • CylindersTwo lift cylinders, two steering cylinders and one extension cylinder

HOIST MECHANISM

  • Winch Pull4.6 tonnes line pull
  • Winch DriveHydraulic motor driven with rope tensioner
  • Hoist Speed50 m/min line speed
  • Rope6 falls of 13 mm diameter rope
  • Hook BlockSelf-adjusting hook block

BRAKES

  • Service BrakesDual-circuit fully pneumatic brakes on front and rear wheels
  • Parking BrakePneumatically operated, fail-safe type

BOOM

  • Boom Type4-part non-slotted boom
  • OperationFully hydraulically operated and synchronized
  • Max Height22.6 m

DIMENSIONS & TYRES

  • Operating Weight27,450 kg
  • Wheelbase5,300 mm
  • Wheel Track1,980 mm
  • Front Tyres14.00 x 25 - 28 PR (4 nos.)
  • Rear Tyres14.00 x 25 - 20 PR (4 nos.)
  • Ground Clearance350 mm

SAFETY & EQUIPMENT

  • Safety SystemsHose failure protection, audio over-hoisting indication, safety brakes on hoist
  • Hook / GuardingSelf-adjusting hook block; front and rear wheel guards
  • CabinROPS fully enclosed wide-view cabin
  • Standard EquipmentFront work lights, reflectors, rear-view mirror, toolkit, cabin fan and wiper motor
  • Instrument ClusterFuel level, air pressure, oil pressure, coolant temperature, engine RPM, speedometer, odometer, engine hour recorder and fault codes
  • Additional Standard ItemsRear-view camera, front outriggers and beacon rotating light

OPTIONS & FEATURES

  • Optional Lifting EquipmentFly jib 1.25 tonnes max, drag winch, 3-part boom 11.5 m, man basket, fork attachment and ram attachment
  • Optional Safety EquipmentSafe load indicator / LMI, over-hoist hydraulic cutoff, fire extinguisher, front & side proximity sensor
  • Cabin OptionsCabin front glass protector and helper / slinger seat
  • Design FeaturesOptimized kinematics, low centre of gravity and heavy-duty lift cylinders

Frequently Asked Questions

Everything you need to know about the ACE F350 Nextgen Hydraulic Crane

The ACE F350 has a maximum lifting capacity of 35 tonnes.

It is powered by an Ashok Leyland H4C413022 CEV BSIV 4-cylinder, water-cooled diesel engine with ECU, rated at 130 HP / 95 kW @ 2200 rpm.

The ACE F350 uses a 4-part non-slotted boom, fully hydraulically operated and synchronized, with 22.6 m maximum height.

The ACE F350 uses a heavy-duty synchromesh gearbox with 12 forward and 2 reverse speeds, plus an auxiliary gearbox with 2WD-High / 4WD-Low selector.

Available features include hose failure protection, audio over-hoisting indication, safety brakes on hoist, self-adjusting hook block, front/rear wheel guards, ROPS cabin, rear-view camera, front outriggers and beacon rotating light.
