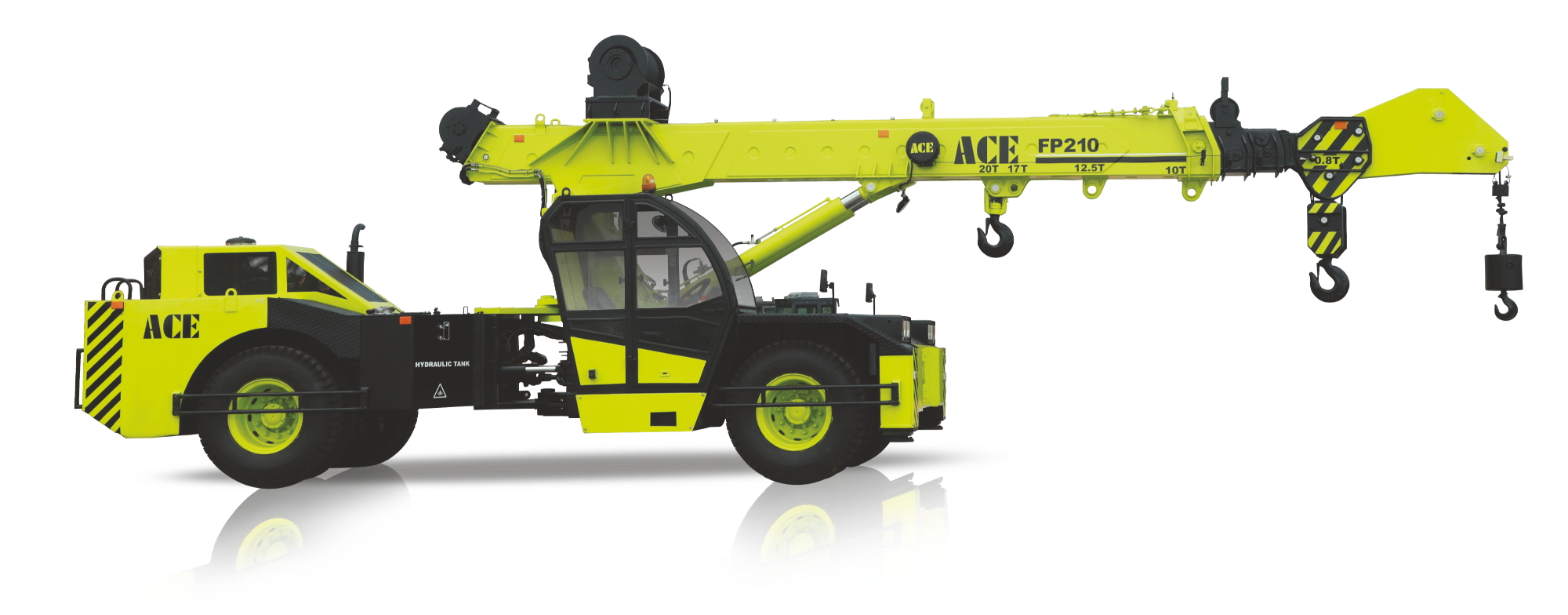

ACE FP210 Piling Crane front view

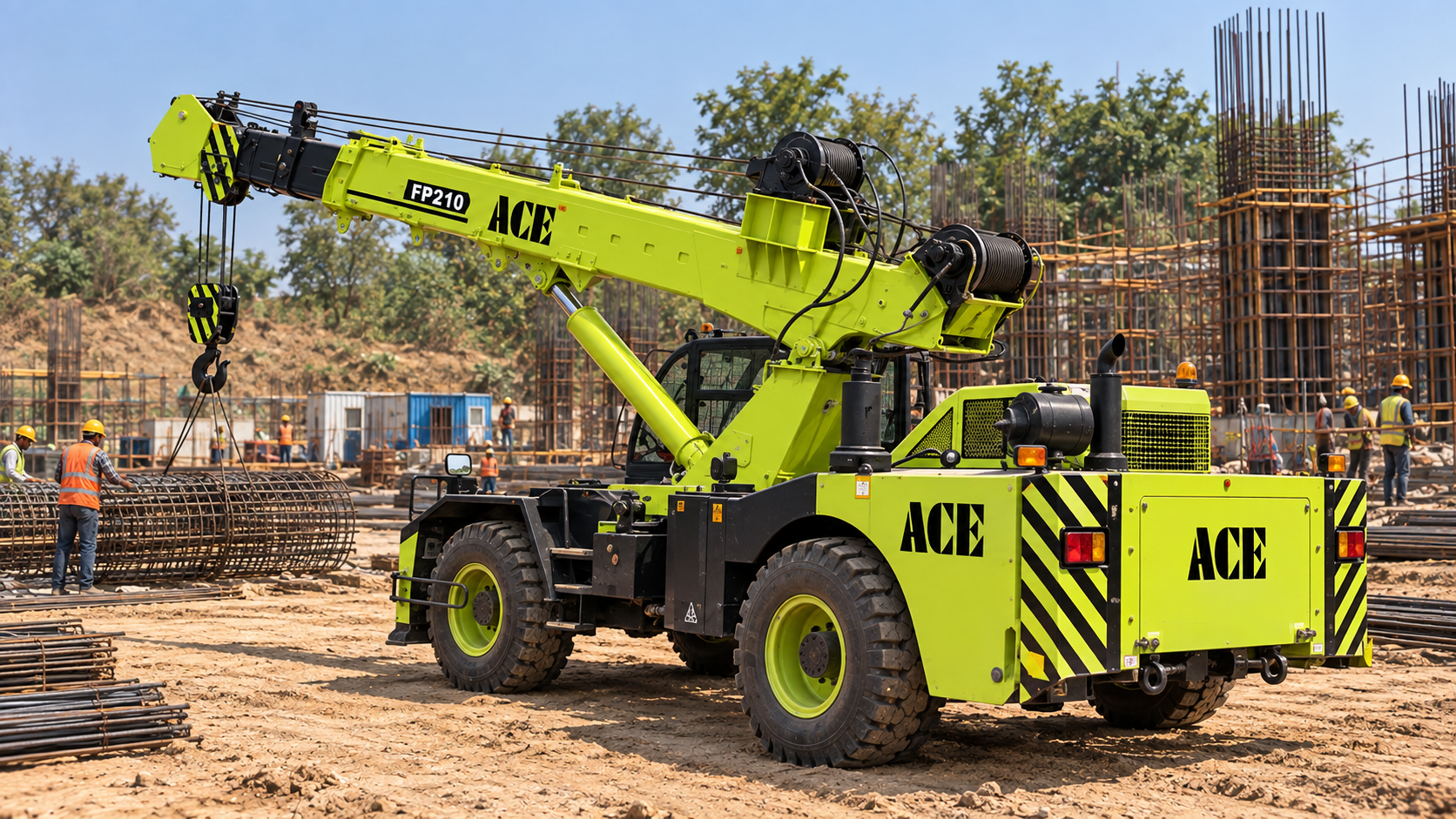

ACE Piling Crane

ACE FP210 NextGen Multi Activity Piling Crane

A 20-tonne rough-terrain 4x4 NextGen multi-activity crane for piling applications. Built with Tata CEV Stage V 101 HP engine, 21.0 m boom height, auxiliary winch, front outriggers, ball hook and full rated lifting capacity in articulated / steered condition.

Engine icon
EngineTata 101 HP
Capacity icon
Capacity20 Tonnes
Lift Height icon
Lift Height21.0 m
Max Speed icon
Max Speed36 km/h
Articulated icon
Articulated40°
Operating Weight icon
Weight20,055 kg

Key Highlights

Lifting Capacity icon
Lifting Capacity

20 tonnes

Engine icon
Engine Model

Tata 497 CEV BS V

Rated Power icon
Rated Power

101 HP / 74 kW @ 2200 rpm

Boom Height icon
Boom Height

21.0 m

Operating Weight icon
Operating Weight

20,055 kg

Wheelbase icon
Wheelbase

4,300 mm

Top Speed icon
Top Speed

36 km/h

Gradeability icon
Gradeability

40% unladen

Turning Radius icon
Turning Radius

7.6 m

Ground Clearance icon
Ground Clearance

300 mm

Auxiliary Winch icon
Auxiliary Winch

16 mm rope + ball hook

Drive icon
Drive

4x4 with hi-low selector

Tyres icon
Tyres

12.00 x 20 - 18 PR

Boom Luffing icon
Boom Luffing

-5° to +70°

Safety Equipment icon
Safety Equipment

SLI + over-hoist cutoff

Specifications ACE FP210 Piling Crane

Detailed technical specifications for ACE FP210 NextGen Multi Activity Crane

ENGINE

  • Engine ModelTata Motors CEV BS V Diesel Engine, Model 497
  • Engine Type4-cylinder, water-cooled, turbocharged diesel engine with Electronic Control Unit (ECU)
  • Rated Power101 HP (74 kW) @ 2200 rpm
  • Electrical System12 V, negative earth, 110 Ah battery

LIFTING & LOAD CHART

  • Maximum Lifting Capacity20 tonnes
  • Load Chart Height21.0 m with 3P + 1 manual configuration
  • Rated Load NoteRated loads are based on firm and level surface; full rated lifting capacity available in articulated / steered condition

TRANSMISSION

  • GearboxHeavy-duty synchromesh gearbox
  • Speeds10 forward / 2 reverse
  • Drive SelectorHi-low drive selector for creep speed
  • AxlesFront axle rigidly mounted on chassis; rear drive axle with 2 leaf springs
  • ClutchHeavy-duty single dry-friction hydraulic clutch
  • Top Speed36 km/h on even metalled road without load
  • Gradeability40% unladen

STEERING & DRIVE

  • Drive4 wheel drive (4x4)
  • Steering TypeFull power orbital with twin hydraulic double-acting cylinders
  • Articulation40° either side
  • Turning Radius7.6 m on outer rear wheels

HYDRAULIC SYSTEM

  • Main PumpGear / intra-vane type main pump
  • Control ValveSix-spool control valve with built-in relief valve, heavy duty
  • Filtration100 mesh suction-line strainer and 25 micron full-flow return-line filter
  • CylindersTwo lift cylinders, two steering cylinders and one extension cylinder

HOIST & AUXILIARY WINCH

  • Main Winch4 tonnes line pull, hydraulic motor driven with rope tensioner
  • Main Rope6 falls of 13 mm diameter rope with ball hook
  • Auxiliary WinchHigh-speed auxiliary single-line winch
  • Auxiliary Rope16 mm diameter rope and ball hook

BRAKES

  • Service BrakesDual-circuit fully pneumatic brakes on front and rear wheels
  • Parking BrakePneumatically operated, fail-safe type

BOOM

  • Boom Type4-part boom
  • Boom Operation2 parts hydraulically operated and synchronized; 4th part power extended
  • Boom Luffing Range-5° to +70°
  • Maximum Height21.0 m with 3P + 1 manual configuration

DIMENSIONS & TYRES

  • Operating Weight20,055 kg
  • Wheelbase4,300 mm
  • Wheel Track1,840 mm
  • Front Tyres12.00 x 20 - 18 PR (4 nos.)
  • Rear Tyres12.00 x 20 - 18 PR (4 nos.)
  • Ground Clearance300 mm

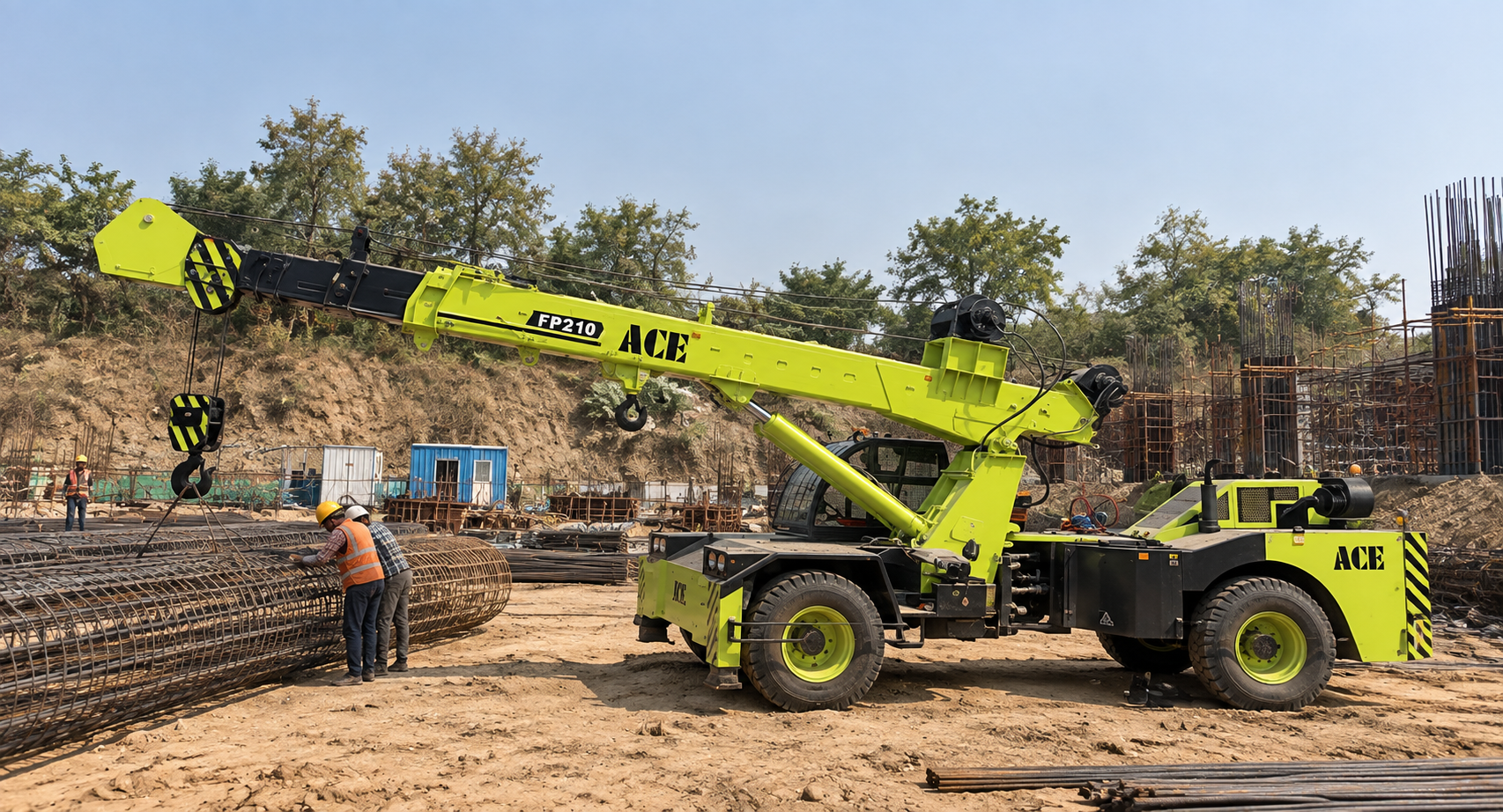

PILING APPLICATIONS

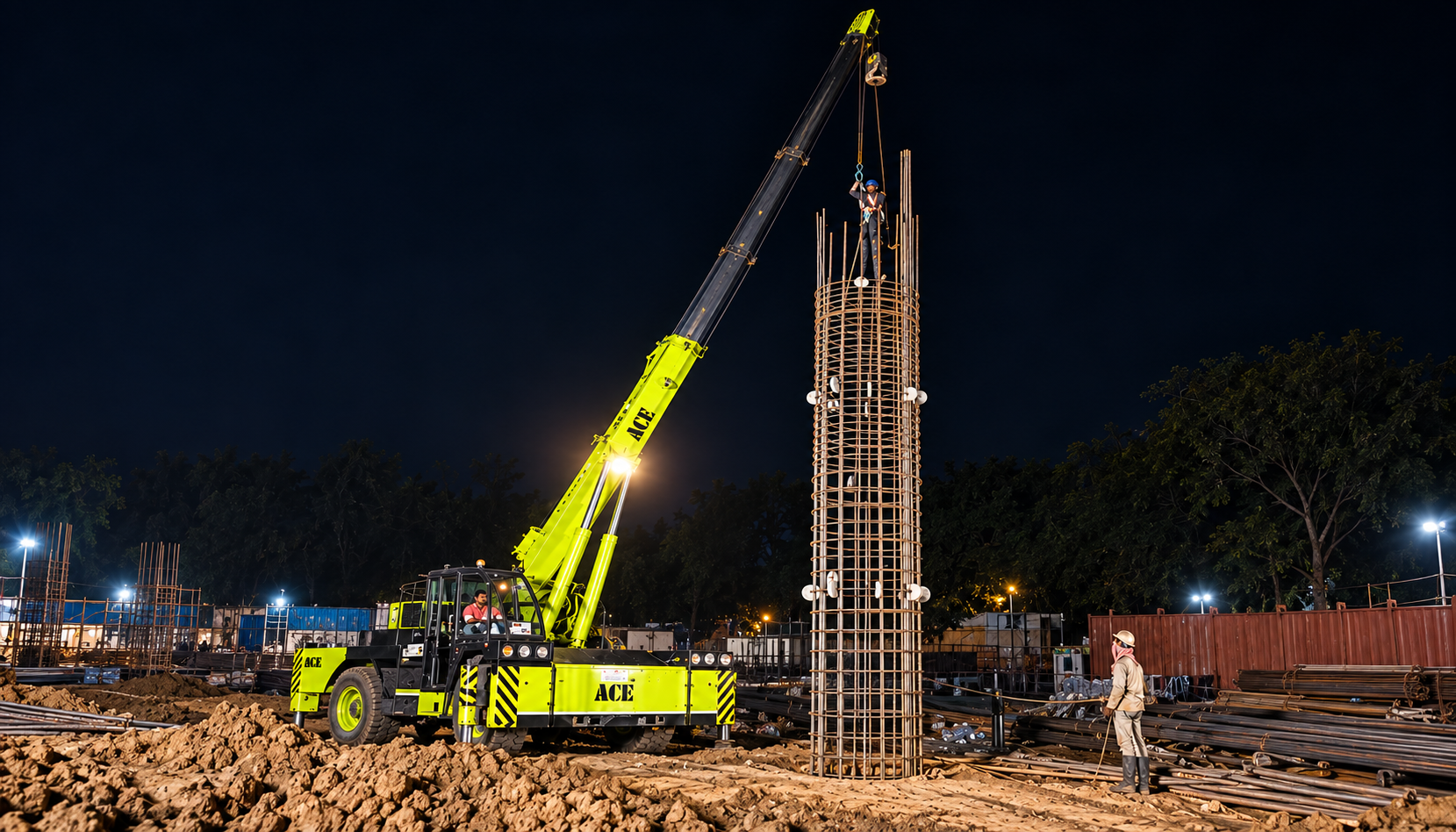

  • Piling UsesCage handling, concreting and casing removal
  • Auxiliary Winch UseHeavy-duty high-speed auxiliary winch for concreting application
  • Ball HookRunner provided with heavy-duty ball hook for efficient single-line high-speed operation
  • Front OutriggersAdded safety during high-lift operations

SAFETY & EQUIPMENT

  • Safety FeaturesHose failure protection, audio over-hoisting indication, safety brakes on hoist
  • Hook / GuardingSelf-adjusting hook block; front and rear wheel guards
  • Standard EquipmentRunner for ball hook, front outriggers, ROPS enclosed wide-view cabin, rear-view camera, front work lights, reflectors and rear-view mirrors
  • Cabin / InstrumentsCabin fan, wiper motor, beacon rotating light, gauges, safe load indicator and over-hoist hydraulic cutoff
  • Optional EquipmentFly jib 1.25 tonnes max capacity, fire extinguisher, front and side proximity sensors, cabin front glass protector and helper / slinger seat

Frequently Asked Questions

Everything you need to know about the ACE FP210 NextGen Multi Activity Piling Crane

The ACE FP210 has a maximum lifting capacity of 20 tonnes.

It is powered by a Tata Motors CEV BS V Model 497 4-cylinder, water-cooled, turbocharged diesel engine with ECU, rated at 101 HP / 74 kW @ 2200 rpm.

The load chart shows 21.0 m height with the 3P + 1 manual configuration. The boom luffing range is -5° to +70°.

The ACE FP210 is suited for cage handling, concreting and casing removal, with an auxiliary high-speed single-line winch and ball hook for piling work.

Safety equipment includes hose failure protection, audio over-hoisting indication, safety brakes on hoist, self-adjusting hook block, front and rear wheel guards, safe load indicator and over-hoist hydraulic cutoff.
