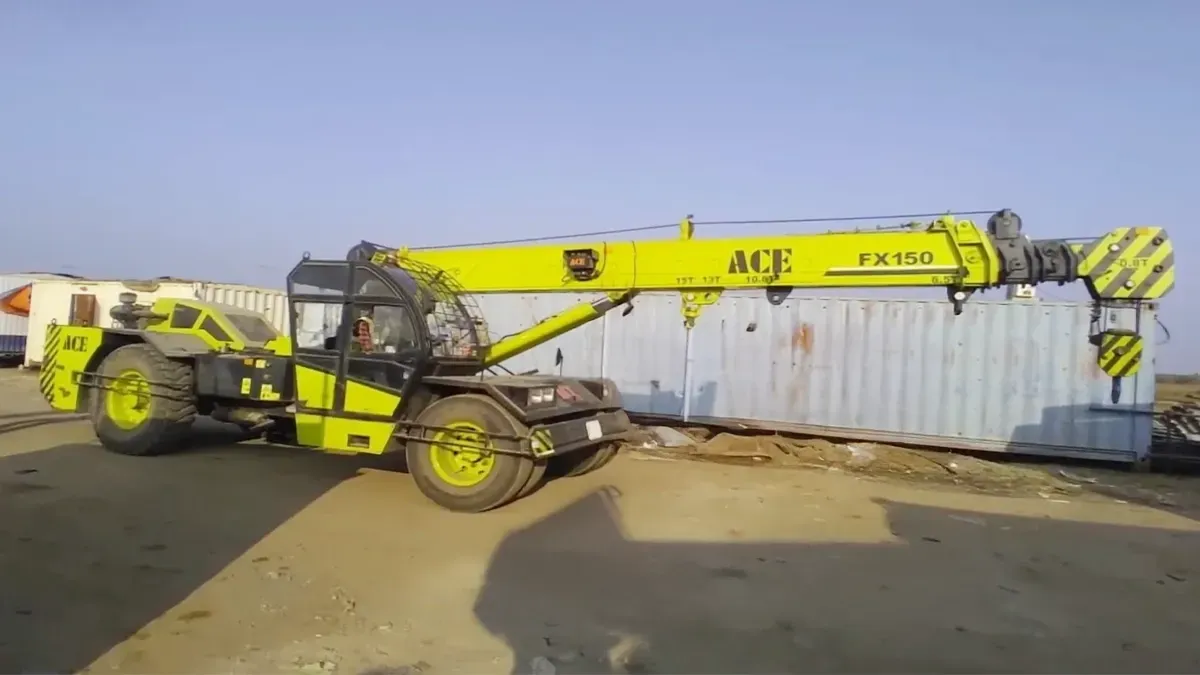

ACE FX 150 Next Gen Crane front view
ACE Pick & Carry Crane

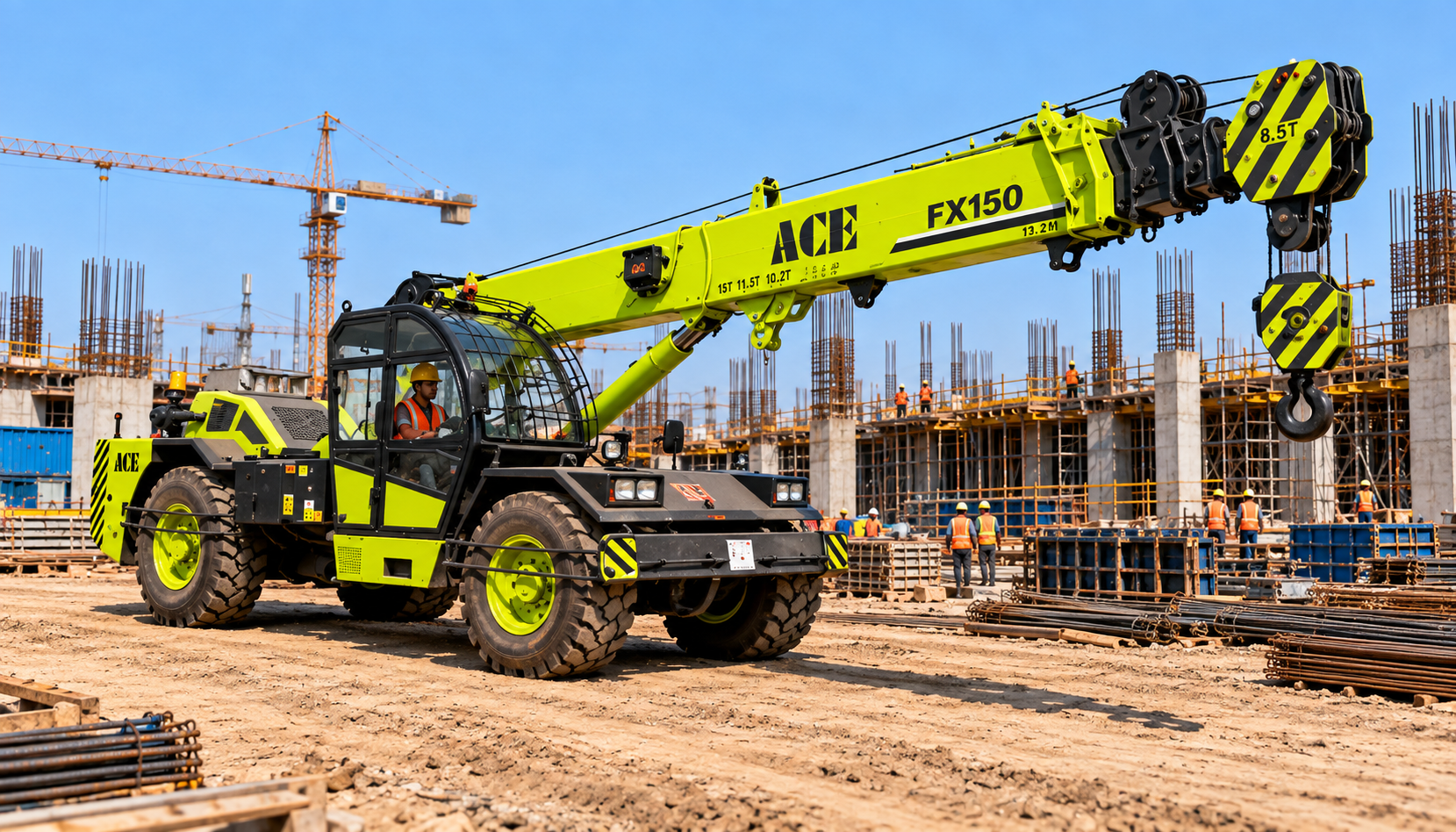

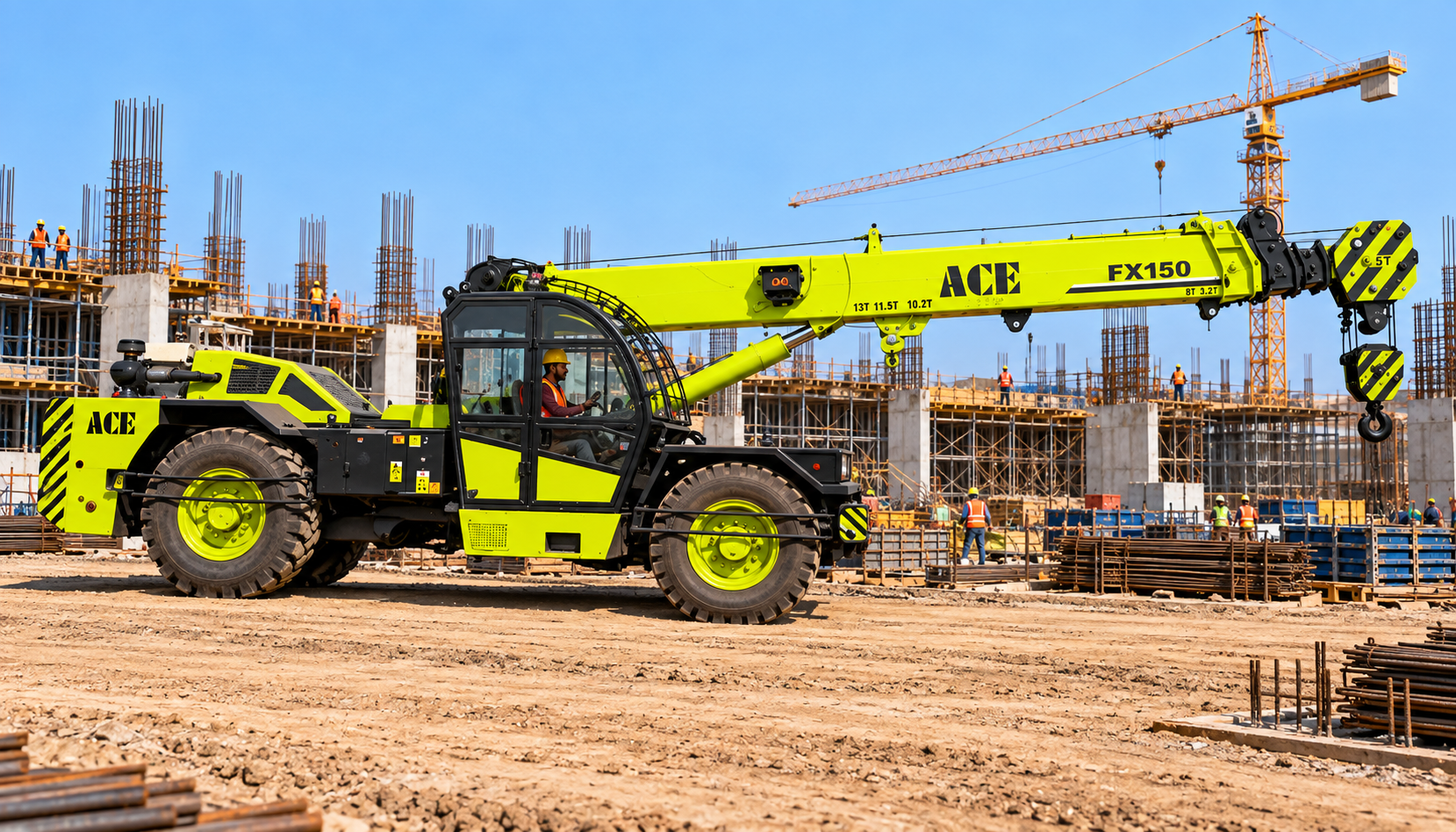

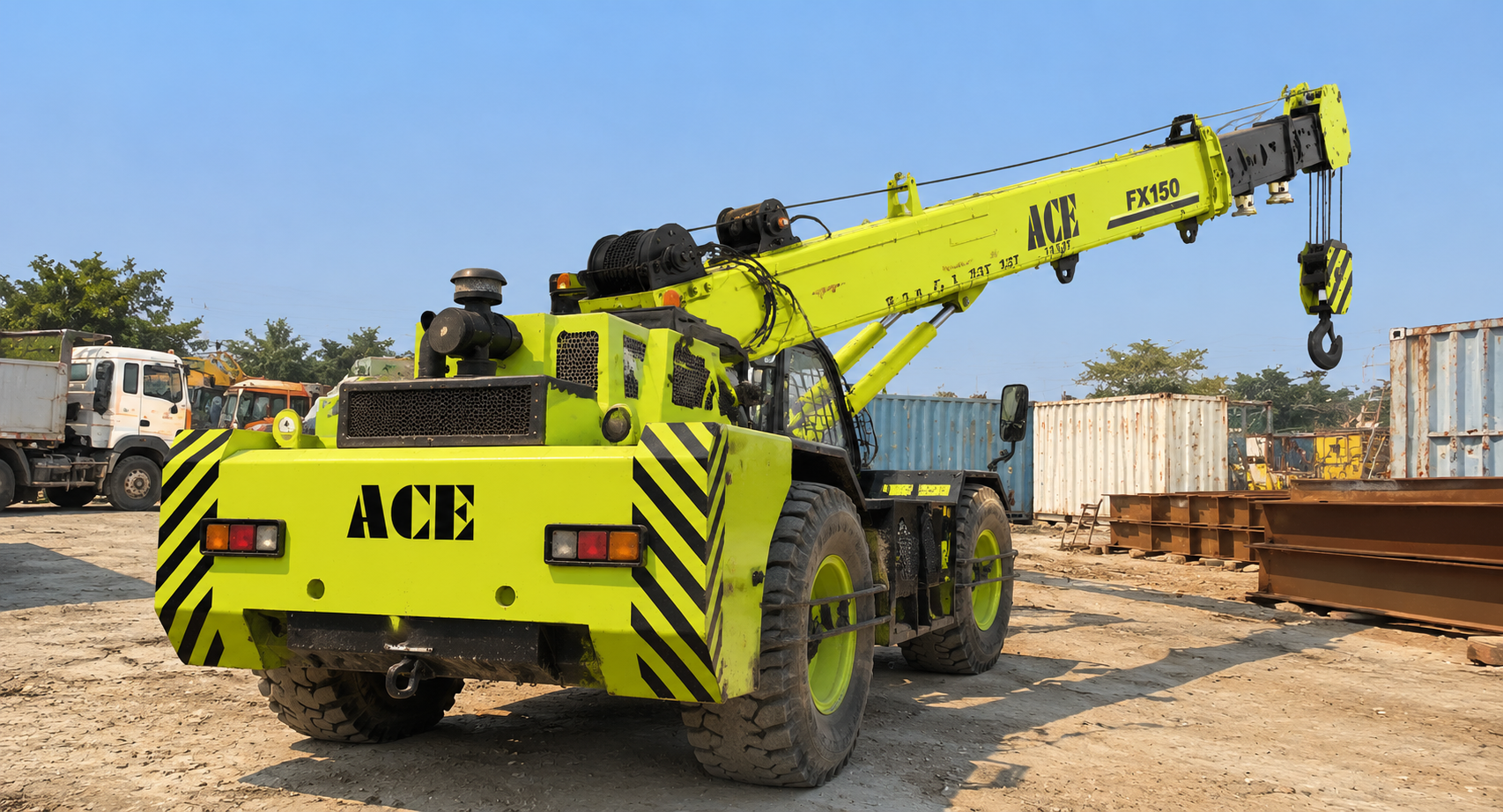

ACE FX 150 Next Gen Crane

A 15-tonne Nextgen Hydraulic Crane with rough terrain, articulated 4×4 design. Features a Tata 4-cylinder diesel engine, 3-part slotted boom, front-mounted ergonomic cabin, and best-in-class stability.

Engine icon
Engine49 HP
Capacity icon
Capacity15 Tonnes
Lift Height icon
Lift Height16.3 m
Max Speed icon
Max Speed32 km/h
Articulated icon
Articulated40°
Weight icon
Weight15220 Kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine Displacement icon
Engine Make

Tata 4-Cyl Water Cooled Diesel

Fuel Tank icon
Fuel Tank

100 L

Torque icon
Rated Power

49 HP (36 kW) @ 2000 RPM

Speedometer icon
Max Speed

32 km/hr

Hydraulics icon
Hydraulic System

Intra-vane Type

Boom height icon
Max Boom Height

16.3 m

Lifting capacity icon
Lifting Capacity

15000 Kg

Width icon
Wheel Base

4150 mm

Axle2 icon
Articulation

40°

Warranty icon
Warranty

1 Year

Specifications

Detailed technical specifications for ACE FX 150 Next Gen Crane

ENGINE

  • ModelTata 4 Cylinder, Water Cooled Diesel Engine (or Equivalent)
  • Rated Power49 HP (36 kW) @ 2000 RPM
  • Electrical12V, Negative Earth (35 Amp Alternator, 75 Amp.hr. Battery)

LIFTING CAPACITY

  • Max. Lifting Capacity15 Tonnes

  • Optimized for high-performance lifting with advanced stability controls.

TRANSMISSION

  • TypeHeavy Duty TATA Synchromesh Transmission
  • Gears8 Forward / 2 Reverse
  • Drive SelectorHi-Low Drive Selector for Creep Speed
  • AxlesFront axle rigidly welded on chassis; Rear drive axle mounted with leaf springs
  • ClutchHeavy Duty Hydraulic Clutch
  • Top Speed32 KMPH (on even metalled road without load)
  • Gradeability40% (unladen)

STEERING

  • TypeFull Power Orbitrol with Twin Hydraulic Double Acting Cylinders
  • Articulation40° on either side
  • Turning Radius7.0 Mtrs. (approx) on outer rear wheels

HOIST MECHANISM

  • DriveHydraulic Motor Driven with Rope Tensioner
  • Rope4 Falls of 13mm dia. Rope
  • Hook BlockSelf Adjusting Hook Block
  • Hoist Speed50 Mtrs./Min (Line Speed)

BRAKES

  • TypeDual Circuit Brakes
  • Rear WheelsFully Air Actuated Brakes
  • Front WheelsPneumatically Assisted Hydraulic Brakes
  • ParkingPneumatically Operated, Fail Safe Type

BOOM

  • Type (Standard)3 Part Slotted Boom (Hydraulically Operated Synchronized Extensions)
  • Standard Boom Height (3-Part)11.2 m
  • Optional Boom Height (4-Part)16.3 m
  • Optional Boom Height (4-Part + Flyjib)~18.9 m
  • Boom Luffing Range-3° to +75°

DIMENSIONS

  • Operating Weight15220 Kg
  • Wheel Base4150 mm
  • Wheel Track (Front)1900 mm
  • Wheel Track (Rear)1800 mm
  • Tyres (Front)11.00×20 (4 Nos.)
  • Tyres (Rear)14.00×25 (2 Nos.)

Popular Comparisons with ACE FX 150

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the ACE FX 150 Next Gen Crane

The ACE FX 150 has a maximum lifting capacity of 15 Tonnes, optimized for heavy-duty pick and carry operations.

It is powered by a Tata 4-cylinder water-cooled diesel engine (or equivalent), delivering 49 HP (36 kW) @ 2000 RPM. An optional variant with Tata 74 HP BSIV engine is also available.

The standard ACE FX 150 comes with a 3-part slotted boom (11.2 m height). Optional 4-part slotted boom configurations are available: 16.3 m height, or ~18.9 m height with Fly jib (1.25 T capacity). Manual extension max capacity is 2.0 Tonnes. Boom luffing range is -3° to +75°.

Optional equipment includes: Fly jib (2.7 Mtrs., 1.25 T capacity), 4-part slotted boom (16.3 m or 18.9 m), Tata 74 HP BSIV engine variant, Spark arrestor, Safe load indicator/LMI, Over Hoist hydraulic cutoff, Fire extinguisher, Front outriggers, Front & Side Proximity Sensors, Cabin front glass protector, and Helper/Slinger seat.

Yes, the ACE FX 150 comes with a standard 1-year warranty or as specified by the manufacturer at the time of purchase.
