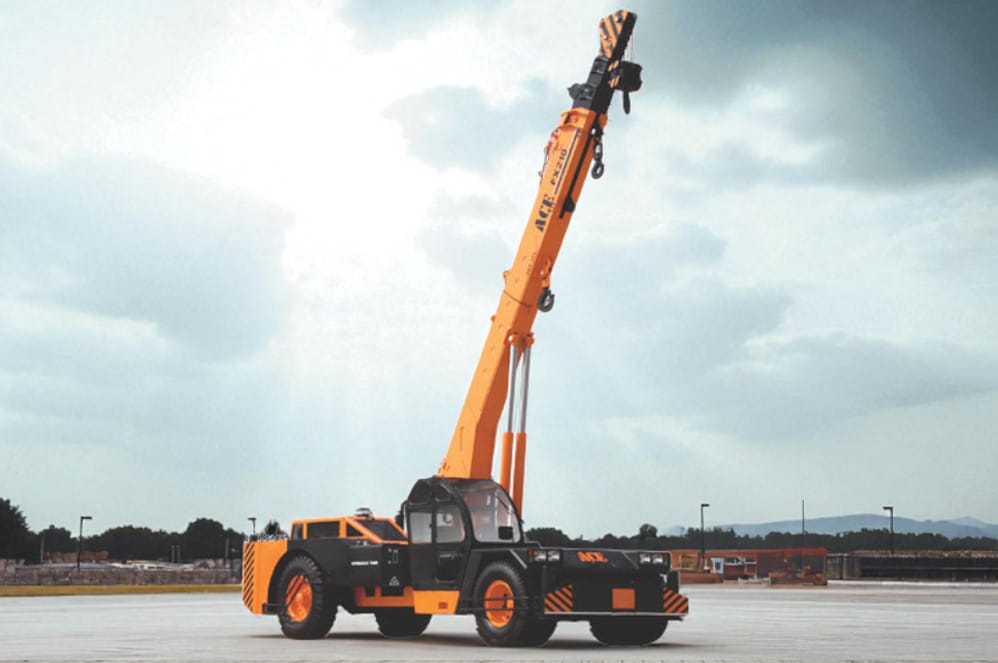

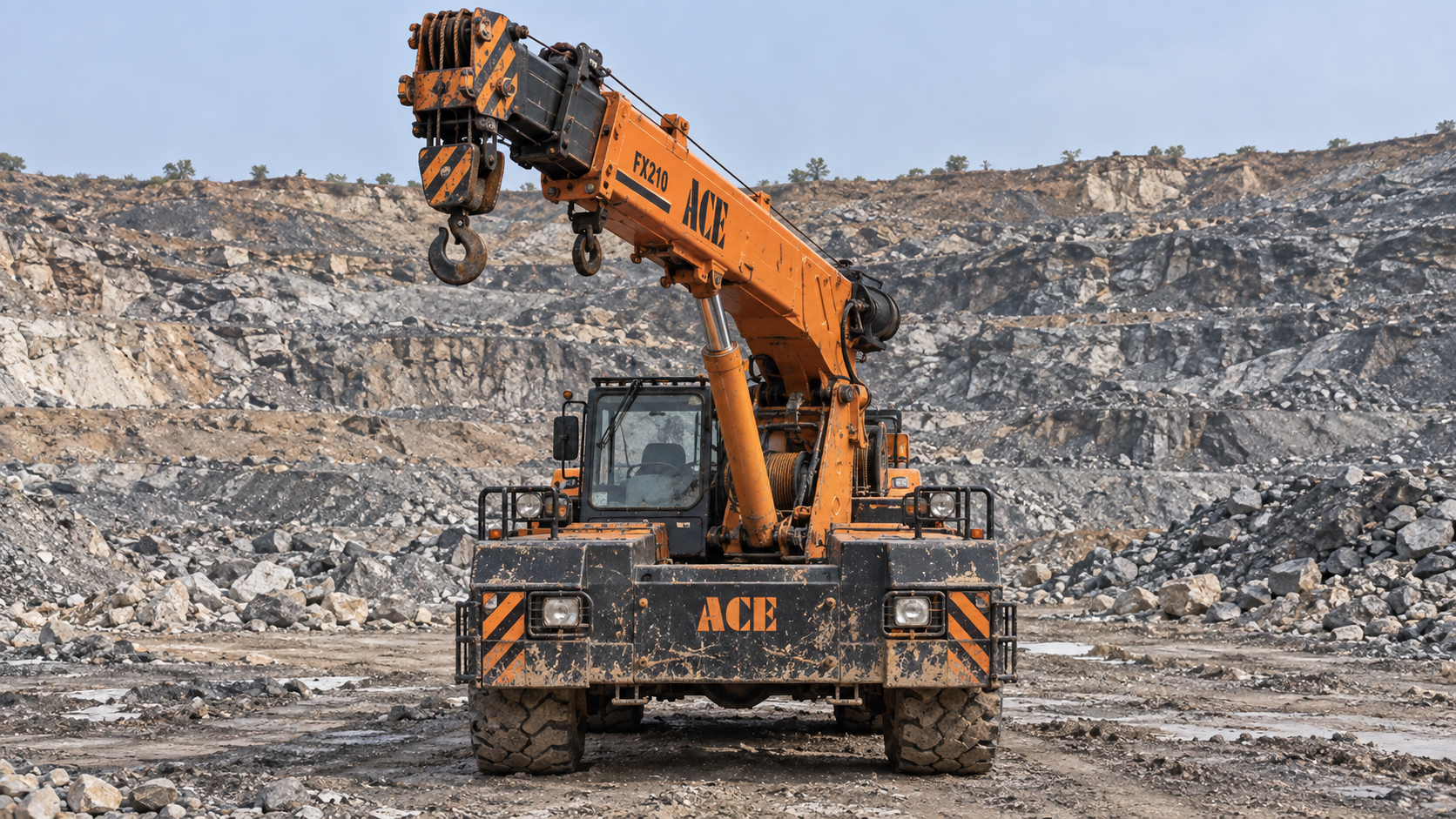

ACE FX 210 Next Gen Truck Crane front view

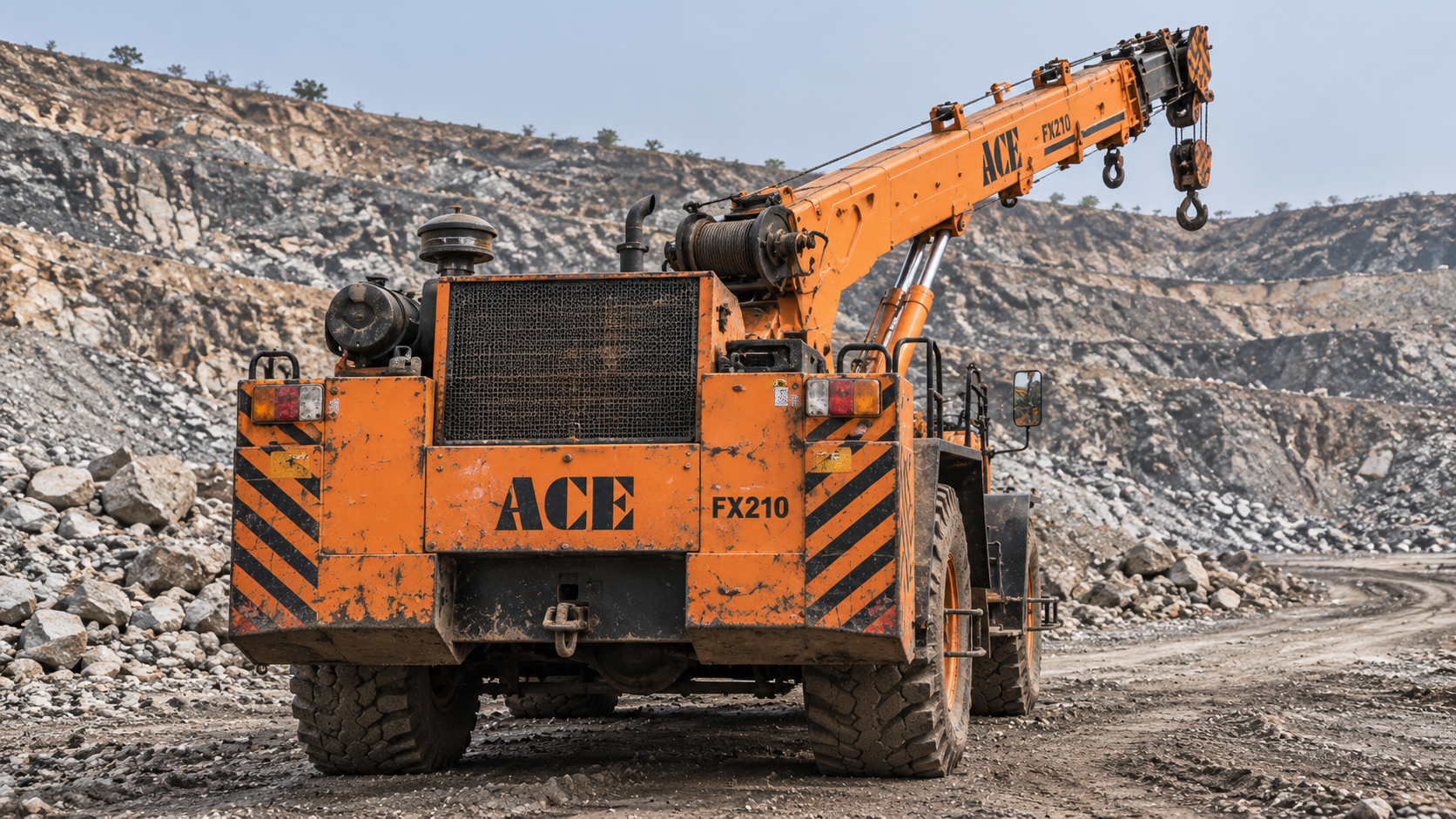

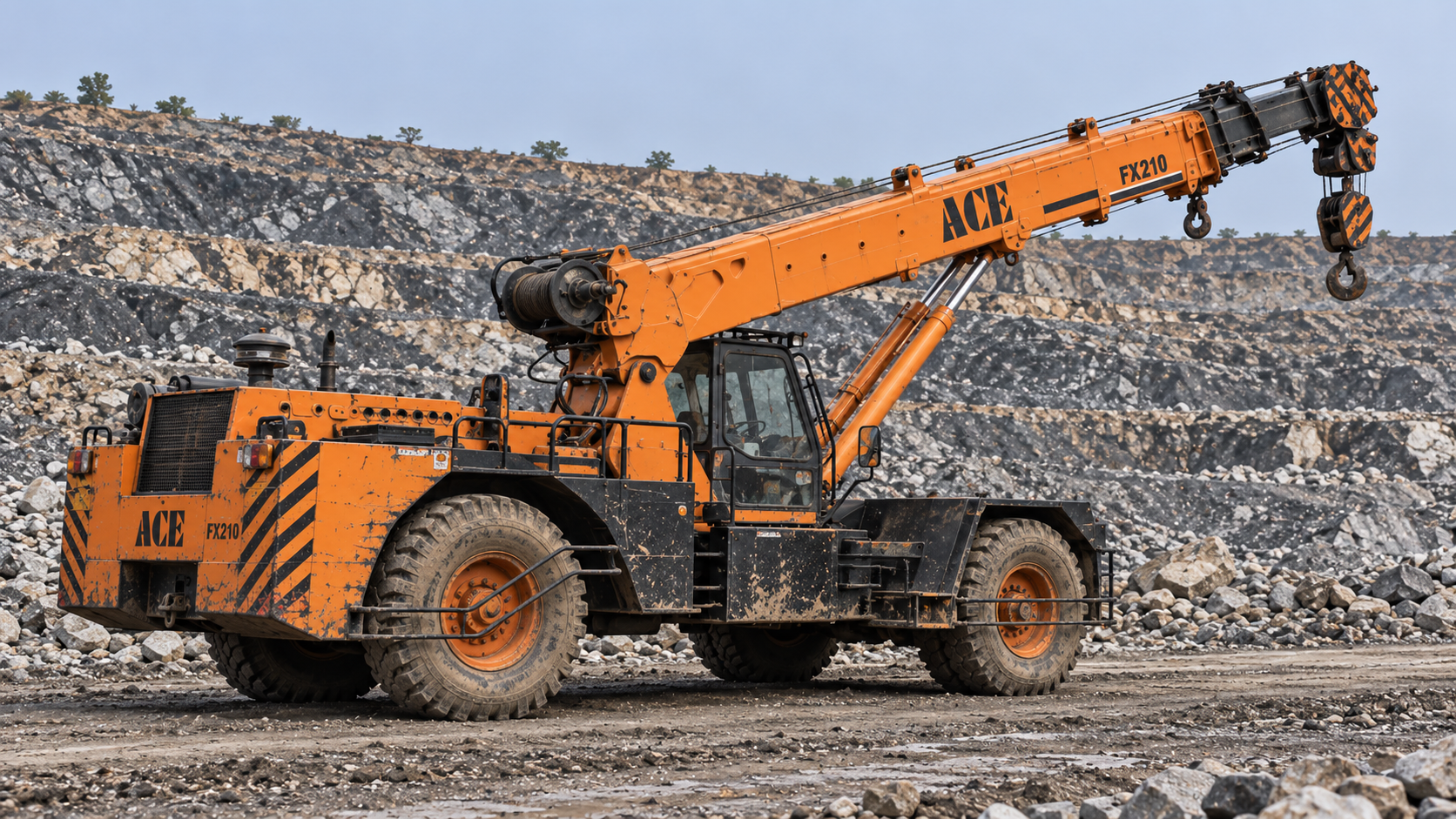

ACE Nextgen Hydraulic Truck Crane

ACE FX210 Nextgen Hydraulic Truck Crane

A 20-tonne Nextgen Hydraulic Truck Crane with rough-terrain articulated design, heavy-duty truck driveline, front outriggers, front-mounted cabin, slotted boom and self-adjusting hook block.

Engine icon
Engine101 HP
Capacity icon
Capacity20 Tonnes
Lift Height icon
Lift Height18.3 m
Max Speed icon
Max Speed35 km/h
Articulated icon
Articulated40°
Operating Weight icon
Weight17300 Kg

Key Highlights

Engine icon
Engine

Ashok Leyland / TATA 4-Cyl

Ground Clearance icon
Ground Clearance

300 mm

Rated Power icon
Rated Power

101 HP @ 2200 rpm

Max Speed icon
Max Speed

35 km/h

Hydraulic System icon
Hydraulic System

Gear / Intra Vane Pump

Max Boom Height icon
Max Boom Height

18.3 m

Lifting Capacity icon
Lifting Capacity

20 Tonnes

Wheelbase icon
Wheel Base

5100 mm

Articulation icon
Articulation

40°

Operating Weight icon
Operating Weight

17,300 kg

Turning Radius icon
Turning Radius

8.2 m approx.

Hoist Speed icon
Hoist Speed

50 m/min

Boom Luffing icon
Boom Luffing

-3° to +62°

Tyres icon
Tyres

12.00x20 / 14.00x25

Transmission icon
Transmission

8F / 2R Synchromesh

Specifications

Detailed technical specifications for ACE FX210 Nextgen Hydraulic Truck Crane

ENGINE

  • ModelAshok Leyland 4-cylinder, water-cooled diesel engine or equivalent TATA engine
  • Rated Power101 HP @ 2200 rpm
  • Electrical System24 V negative earth

LIFTING CAPACITY

  • Max. Lifting Capacity20 Tonnes
  • ApplicationFree-on-wheels lifting in articulated / steered condition

TRANSMISSION

  • TypeHeavy-duty synchromesh transmission
  • Gears8 forward / 2 reverse
  • Drive SelectorHi-low drive selector for creep speed
  • AxlesFront axle rigidly mounted on chassis; rear drive axle mounted with 2 nos. leaf springs
  • ClutchHeavy-duty hydraulic clutch
  • Top Speed35 km/h on even metalled road without load
  • Gradeability40% unladen

STEERING

  • TypeFull power orbitrol with twin hydraulic double-acting cylinders
  • Articulation40° on either side
  • Turning Radius8.2 m approx.

HYDRAULIC SYSTEM

  • Main PumpGear / Intra Vane type main pump
  • Control ValveFive-spool control valve with built-in relief valve, heavy-duty
  • Filtration100 mesh suction-line strainer and 25 micron return-line filter
  • CylindersTwo double-acting lift cylinders, two double-acting steering cylinders and one double-acting extension cylinder

HOIST MECHANISM

  • DriveHydraulic motor driven winch with rope tensioner
  • Rope6 falls of 13 mm dia. rope
  • Hook BlockSelf-adjusting hook block
  • Hoist Speed50 m/min line speed

BRAKES

  • Service BrakesDual-circuit brakes; fully air-actuated brakes on front and rear wheels
  • Parking BrakePneumatically operated, fail-safe type

BOOM

  • Standard Boom3-part slotted boom with hydraulically operated synchronized extensions
  • Standard Boom Height11.6 m
  • Optional Boom4-part slotted boom; 3 parts hydraulically operated and 4th part power extended
  • Optional Boom Height18.3 m
  • Boom Luffing Range-3° to +62°

SAFETY & EQUIPMENT

  • Safety FeaturesHose failure protection, audio over-hoisting indication, safety brakes on hoist, self-adjusting hook block, front and rear tyre guards
  • Standard EquipmentFront outriggers, front-mounted fully enclosed wide-view cabin, rear-view camera, front and rear work lights, reflectors and rear-view mirrors, tool kit, cabin fan, wiper motor, speedometer and beacon rotating light
  • GaugesWater temperature, engine oil pressure, fuel gauge, RPM meter cum hour recorder, air pressure gauge and speedometer
  • Optional EquipmentFly jib with max 1.25 tonnes capacity, spark arrestor, safe load indicator / LMI, over-hoist hydraulic cutoff, fire extinguisher, drag winch, front and side proximity sensors and cabin front glass protector

DIMENSIONS & WEIGHTS

  • Wheel Base5100 mm
  • Wheel TrackFront 1880 mm / Rear 1850 mm
  • TyresFront 12.00 x 20 - 18 PR (4 nos.); Rear 14.00 x 25 - 20 PR (2 nos.)
  • Ground Clearance300 mm
  • Front Axle Weight7200 kg
  • Rear Axle Weight10100 kg
  • Total Operating Weight17,300 kg

Frequently Asked Questions

Everything you need to know about the ACE FX210 Nextgen Hydraulic Truck Crane

The ACE FX210 has a lifting capacity of 20 tonnes for free-on-wheels operation.

It is powered by an Ashok Leyland 4-cylinder water-cooled diesel engine or equivalent TATA engine rated at 101 HP @ 2200 rpm.

The standard 3-part slotted boom height is 11.6 m. The optional 4-part slotted boom reaches 18.3 m.

The hoist line speed is 50 m/min with a hydraulic motor driven winch, rope tensioner and 6 falls of 13 mm diameter rope.

Optional equipment includes fly jib, spark arrestor, safe load indicator / LMI, over-hoist hydraulic cutoff, fire extinguisher, drag winch, front and side proximity sensors, cabin front glass protector and 4-part slotted boom.
