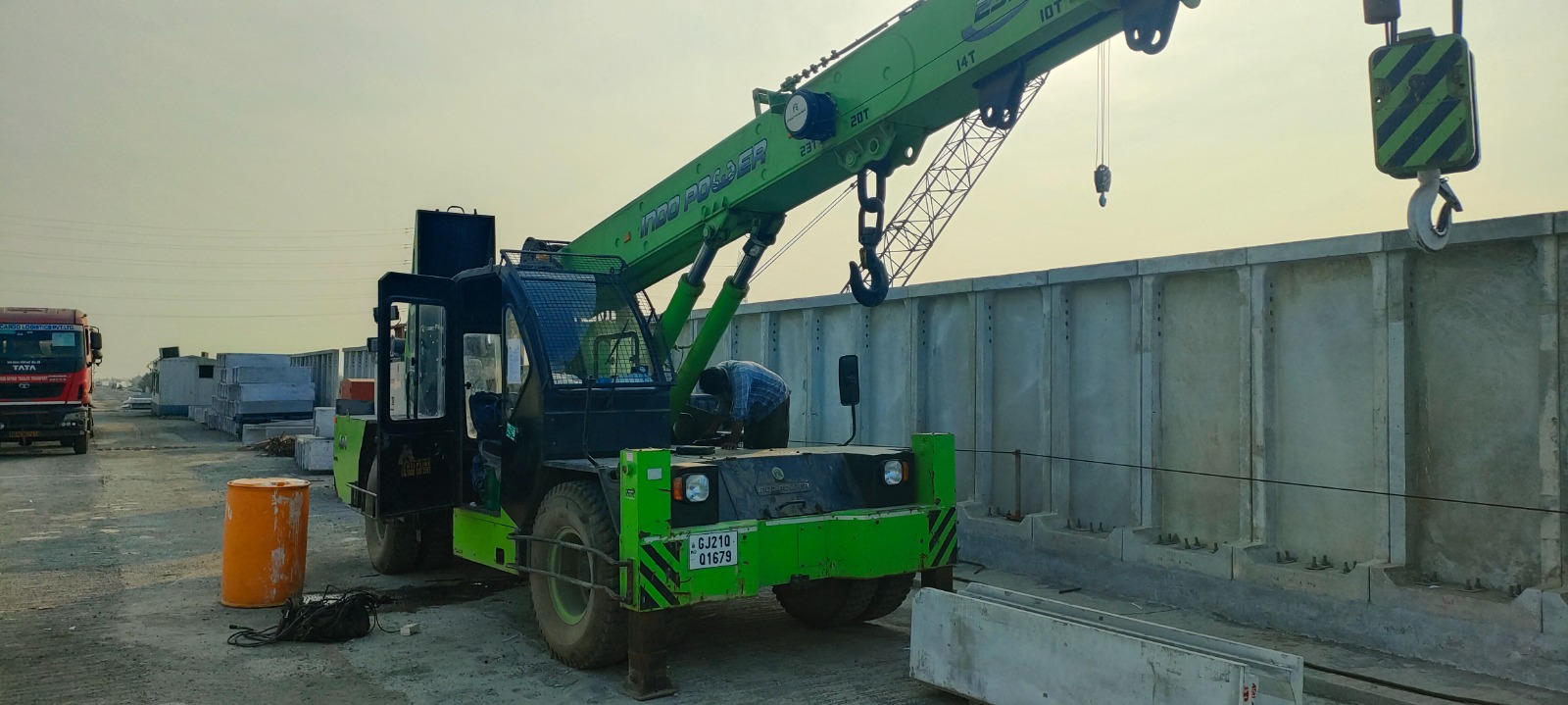

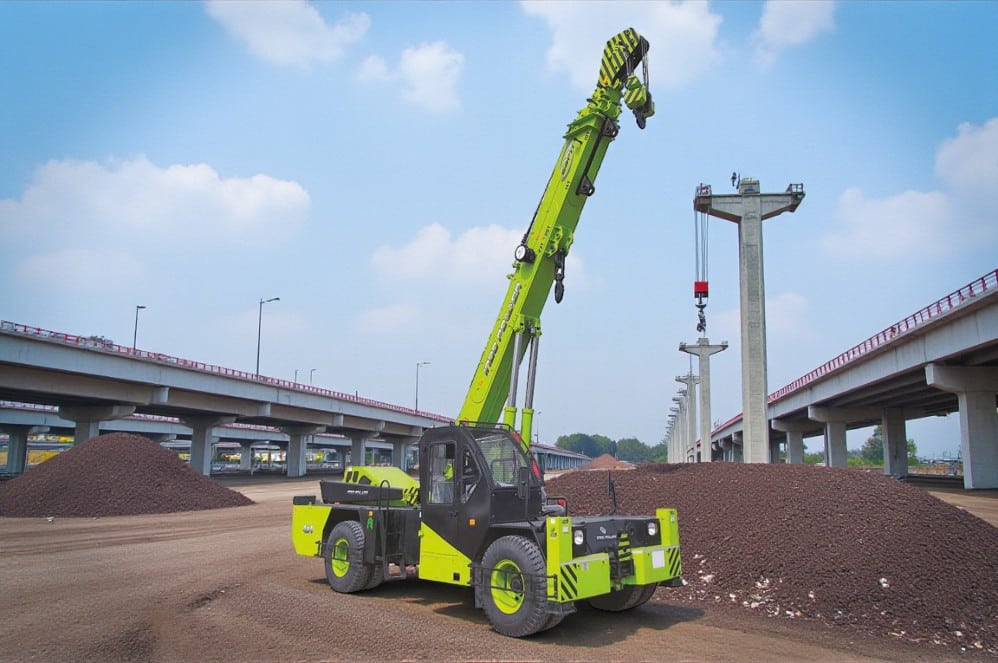

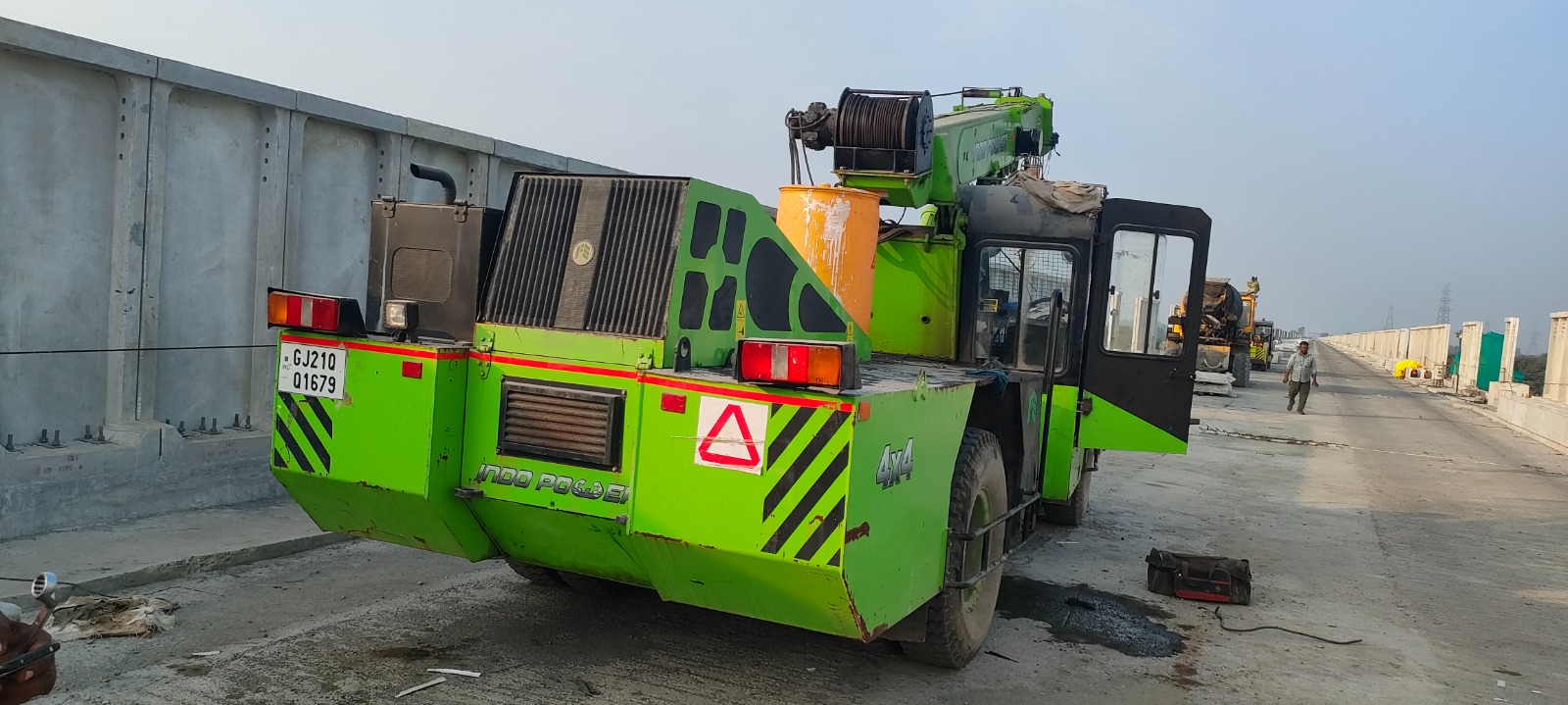

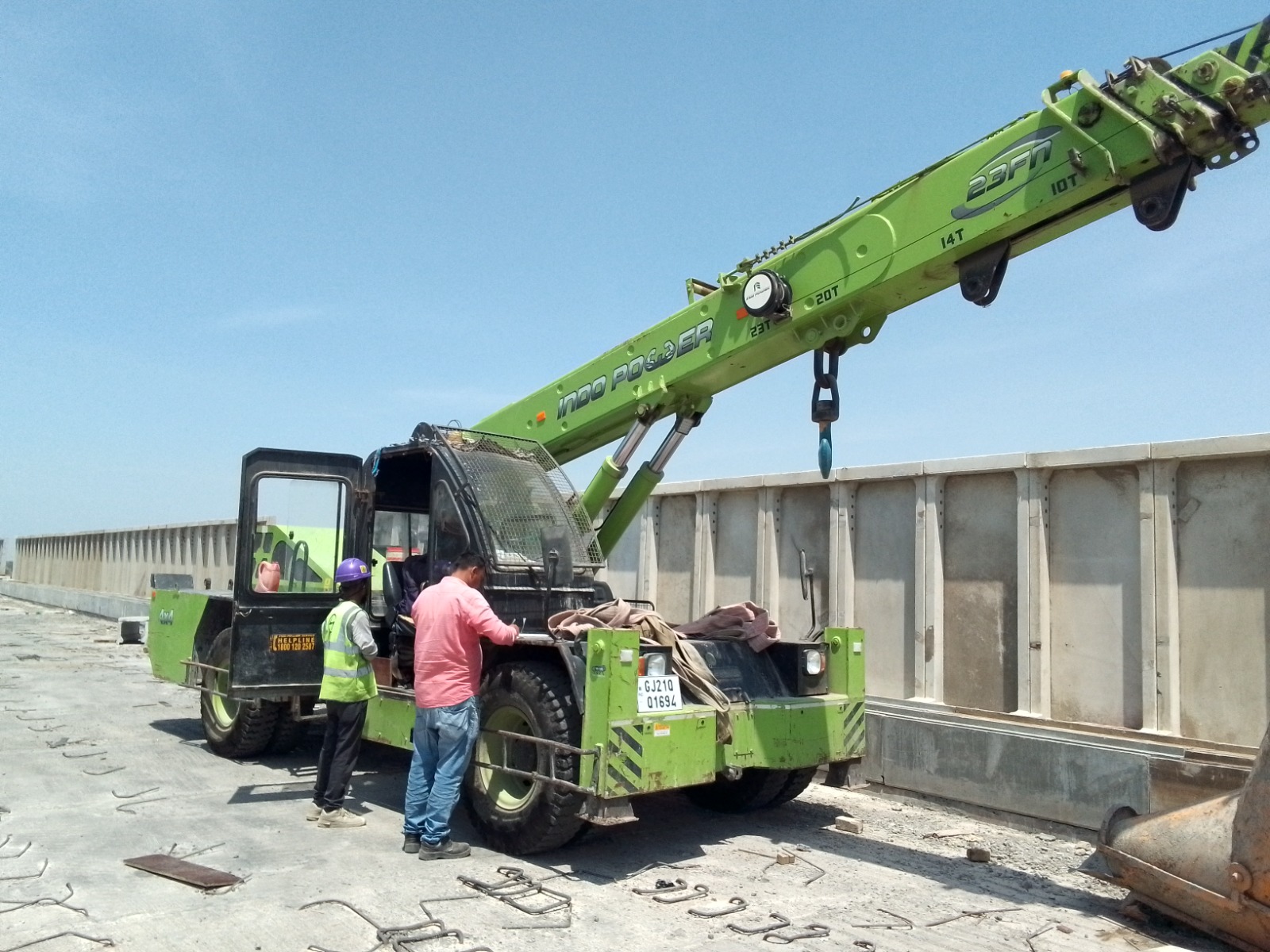

A 23-tonne pick & carry hydraulic mobile crane with a 4-part telescopic boom reaching 19.59 m (22.58 m with the 3 m fly jib) and a 17.0 m horizontal working reach. Powered by a Volvo-Eicher (VECV) CEV BS IV common-rail diesel engine rated 74 kW / 101 hp, with a six-falls hoist and fail-safe brake, articulated 4WD chassis, and fully air-operated S-cam brakes for demanding on-site lifting and material handling.
Engine Power74 kW / 101 hp
Capacity23 Tonnes
Max Boom Ht19.59 m
Max Height (Jib)22.58 m
Max Reach17.0 m
Fuel Tank198 L
Key Highlights
Lifting Capacity
23,000 kg (23 T)
Max Reach
17.0 m
Boom Height
19.59 m
Max Height (Jib)
22.58 m
Engine Model
Volvo-Eicher CEV BS IV
Engine Power
74 kW / 101 hp
Operating Weight
20,010 kg
Drive
4WD (4 Wheel Drive)
Emission Norm
CEV BS IV
Top Speed
48 kmph
Turning Radius
7.0 m
Rope Falls
6 Falls
Fly Jib
3 m
Gradeability
40% (Unladen)
Fuel Tank
198 L
Specifications
Detailed technical specifications for Indo Power 23FN Pick & Carry Crane
Digital ClusterMonochrome Digital Cluster (Standard)
Rear View CameraStandard Accessory
System Voltage12V DC
DIMENSIONS & WEIGHT
Overall Length10,300 mm
Overall Width2,490 mm
Overall Height (transport)3,010 mm
Operating Weight20,010 kg
Wheelbase4,000 mm (4 m)
Wheel Track (Front & Rear)1,830 mm
Tyres12.00×20 – 18 PR (8 Nos.)
Fuel Tank198 L
DEF / Ad-Blue Tank27.0 L
Hydraulic Oil Tank170 L
Engine Oil12.5 L
Auxiliary Gearbox (AGB) Oil8.0 L
Axle Oil (each axle)14.0 L
Transmission Oil6.25 L
Indo Power 23FN Maintenance Checklist
Daily pre-start checks · Service schedule by operating hours · Warning alert actions — Indo Power 23FN 23T pick & carry crane, Volvo-Eicher CEV BS IV 74 kW HPCR diesel, six-falls hoist with fail-safe brake, and fully air-operated S-cam brakes. Covers carrier (travel) and crane (lifting) maintenance.
Daily Pre-Start Checklist
Complete before every shift. Estimated time: 10–15 minutes. Do not operate if any check fails.
Every Shift
1
Engine Oil Level
Dipstick check with engine cold, on level ground. Level must be between MIN and MAX marks. Top up with API CH-4/CI-4 SAE 15W-40 [verify with OEM] if below MIN.
Act if: oil below MIN — top up before starting. Black or milky oil — stop and investigate.
2
Engine Coolant
Check overflow reservoir — level between MIN and MAX. Open radiator cap only when cold. Top up with Eicher Genuine Coolant (50:50 mix) [verify with OEM].
Act if: level below MIN. Milky coolant = possible head gasket leak — do NOT operate.
3
DEF / Ad-Blue Level
Check the Ad-Blue gauge/indicator on the dash (27 L tank). Maintain minimum 5 L before operation to avoid a BS IV SCR engine derate.
Act if: level below 5 L or warning lamp ON — refill immediately. Engine will derate.
4
Fuel Level
Check the fuel gauge (198 L tank). Fill with clean High Speed Diesel. Drain any water from the fuel pre-filter bowl drain cock.
Act if: fuel below ¼ tank. Water in bowl — drain fully before starting.
5
Hydraulic Oil
Check the sight glass on the hydraulic tank (170 L) — level between marks. Top up with same grade ISO VG 46/68 [verify with OEM] if below lower mark.
Act if: level below lower mark — top up. Foam or discolouration = contamination.
6
Hoist Rope Condition
Visual inspection of the 6-fall rope for kinks, bird-caging, broken wires, or flat spots along its full length.
Act if: any broken wires, kinking, or diameter reduction > 6% — rope must be replaced before use.
7
Hook Block & Latch
Check that the latch snap-closes fully and the swivel rotates freely. Confirm the self-adjusting mechanism operates. No cracks on the block.
Act if: latch not closing — do NOT lift. Cracks or deformation — quarantine for repair.
8
Outrigger Pads & Pins
Extend outriggers fully. Check pads for cracks. Verify all locking pins are inserted before lifting.
Act if: any pin missing or pad cracked — do NOT lift until repaired.
9
Tyres (all 8 nos.)
Visual check of all 8 tyres (12.00×20 – 18 PR) for cuts, bulges, sidewall damage, or abnormal pressure drop. Check that valve caps are fitted.
Act if: visible cut, bulge, or soft tyre — change before travelling or lifting.
10
Air Cleaner Indicator
Check the choke indicator lamp or restriction gauge on the air cleaner before starting the engine.
Act if: indicator lamp ON / in red zone — clean the primary air filter before starting the engine.
11
Lights & Signals
Test the reverse lamp, indicators, horn, and beacon (if fitted). Check mirrors before moving.
Act if: any lamp failed — repair before moving the crane on a public road or busy site.
12
Leak Check (walk-round)
Inspect under the crane and along all hose runs for oil, fuel, coolant, or hydraulic leaks.
Act if: any active drip or puddle — identify the source; do NOT operate until the leak is fixed.
13
Cabin & Controls
Confirm all levers/pedals move freely. Test the parking brake. Check the cabin structure for cracks or damage.
Act if: parking brake not holding on a slope — do NOT operate.
14
Boom & Fly Jib Pins
If the 3 m fly jib is fitted: verify all 4th-section pins are engaged and the retaining clips are locked before lifting.
Act if: any pin not fully home or a clip missing — lower and re-pin before lifting.
Note: the Indo Power 23FN is both a self-propelled vehicle and a lifting machine — complete the carrier checks (tyres, air brakes, fuel, engine, DEF) and the crane checks (hoist rope, hook, outriggers, fly-jib pins) before the first lift. The 4th boom section is power-extended but must be manually pinned — always verify pin engagement before lifting.
Service Schedule by Hourmeter
Use the hourmeter reading — do not delay when a service is due. Read cumulatively. CHANGE / REPLACE / INSPECT / GREASE / CHECK.
Daily — every shift. Carried forward into every higher service interval.
Engine & Fuel
Engine oil & coolant levels
Dipstick (cold) + coolant overflow reservoir between MIN and MAX
CHECK
Fuel level + water separator
Top up with High Speed Diesel; drain water from fuel pre-filter bowl
CHECK
DEF / Ad-Blue level
27 L tank — keep above 5 L to avoid BS IV SCR derate
CHECK
Air cleaner choke indicator
Clean primary element if the indicator is alarmed before start
CHECK
Hydraulics & Hoist
Hydraulic oil level
Sight glass on 170 L reservoir; inspect hose runs for leaks
Risk if ignored: overheating, warping, and head-gasket failure.
AMBER
Air Cleaner Restriction Alarm
Primary air-filter element clogged; choke indicator active.
Immediate action: stop operations and clean the primary air-filter element before restarting.
Risk if ignored: reduced engine power and turbocharger damage from restricted intake airflow.
AMBER
Hydraulic Oil Overtemperature
Excessive hydraulic cycling, low oil level, or contaminated oil.
Immediate action: stop crane operations. Check hydraulic oil level and allow system to cool before resuming.
Risk if ignored: hydraulic-seal failure, system contamination, costly repair.
AMBER
DEF / Ad-Blue Low Level
Ad-Blue below 10% of the 27 L tank (about 2.7 L).
Immediate action: refill Ad-Blue at the earliest opportunity. Do not allow the tank to run empty.
Risk if ignored: engine derate and eventual shutdown for BS IV SCR compliance.
AMBER
Hoist Rope Abnormality
Kinks, bird-caging, broken wires, or flat spots visible on hoist rope.
Immediate action: stop all lifts immediately. Quarantine crane. Arrange rope inspection and replacement.
Risk if ignored: rope failure under load and fatality risk.
AMBER
Boom Synchronisation Fault
One or more boom sections are not extending/retracting in sequence.
Immediate action: lower boom fully retracted. Do not use crane until synchronisation is adjusted/repaired.
Risk if ignored: section overextension, boom structural damage, or collapse under load.
AMBER
Abnormal Tyre Condition
Visible bulge, sidewall cut, or rapid air loss on any tyre.
Immediate action: stop travel. Change affected tyre(s) before moving or lifting.
Risk if ignored: tyre blowout, rollover risk, instability during pick-and-carry lifts.
AMBER
Steering Response Abnormal
Heavy steering, wandering, or play in the articulation joint.
Immediate action: stop travel. Inspect steering rams and articulation pivot. Do not use on public road.
Risk if ignored: loss of steering control, collision, or rollover risk.
Critical operating rule: any RED alert requires immediate crane shutdown and load lowering before any other action. Never diagnose or repair while a load is suspended. AMBER alerts must be resolved before the next shift unless the site manager authorises written risk controls.
150T Zoomlion all-terrain crane — telescopic boom 72 m, load moment 4,704 kN·m, max lift height 87 m with jib.
Engine
—
Capacity
150T
Boom
72 m
Load Moment
4,704 kN·m
Max Lift Ht
87 m
Oper. Weight
60,000 kg
Frequently Asked Questions
Everything you need to know about the Indo Power 23FN Pick & Carry Crane
The Indo Power 23FN has a maximum rated lifting capacity of 23,000 kg (23 T). The Safe Working Load (SWL) is 85% of the tipping load and the hoist uses a six-falls rope configuration.
The crane has a 19.59 m standard boom height and 22.58 m maximum lifting height with the 3 m fly jib. Horizontal reach is 17.0 m without fly jib and 20.15 m with fly jib.
It uses a 4-part telescopic boom. Three sections are hydraulically powered and fully synchronised; the 4th section is power-extended but must be manually pinned for safe operation. The luffing range is -4° to +66°.
The 23FN uses a Volvo-Eicher (VECV) CEV BS IV diesel engine rated at 74 kW / 101 hp @ 2,200 rpm. It has a heavy-duty synchromesh transmission with auxiliary gearbox, 10 forward + 2 reverse gears, and 4 Wheel Drive (4WD).
Key listed systems include a fail-safe hoist brake, counterbalance valve, self-adjusting hook block, fully air-operated S-cam dual-circuit service brakes, fail-safe parking brakes, ECU engine management, 5/6 spool control valve, monochrome digital cluster, and rear-view camera.
