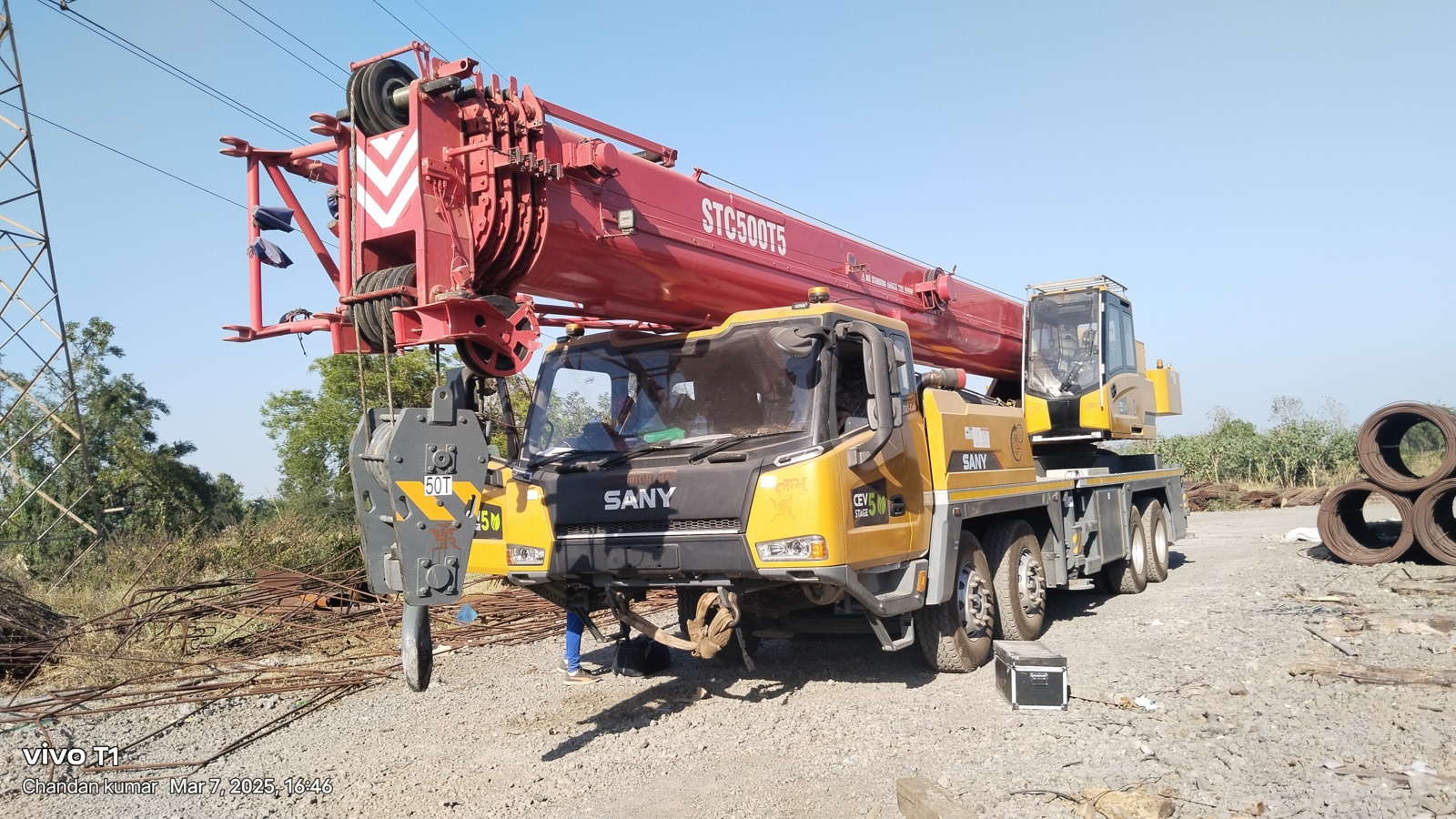

SANY STC500T5 Truck Crane front view
SANY Truck Crane

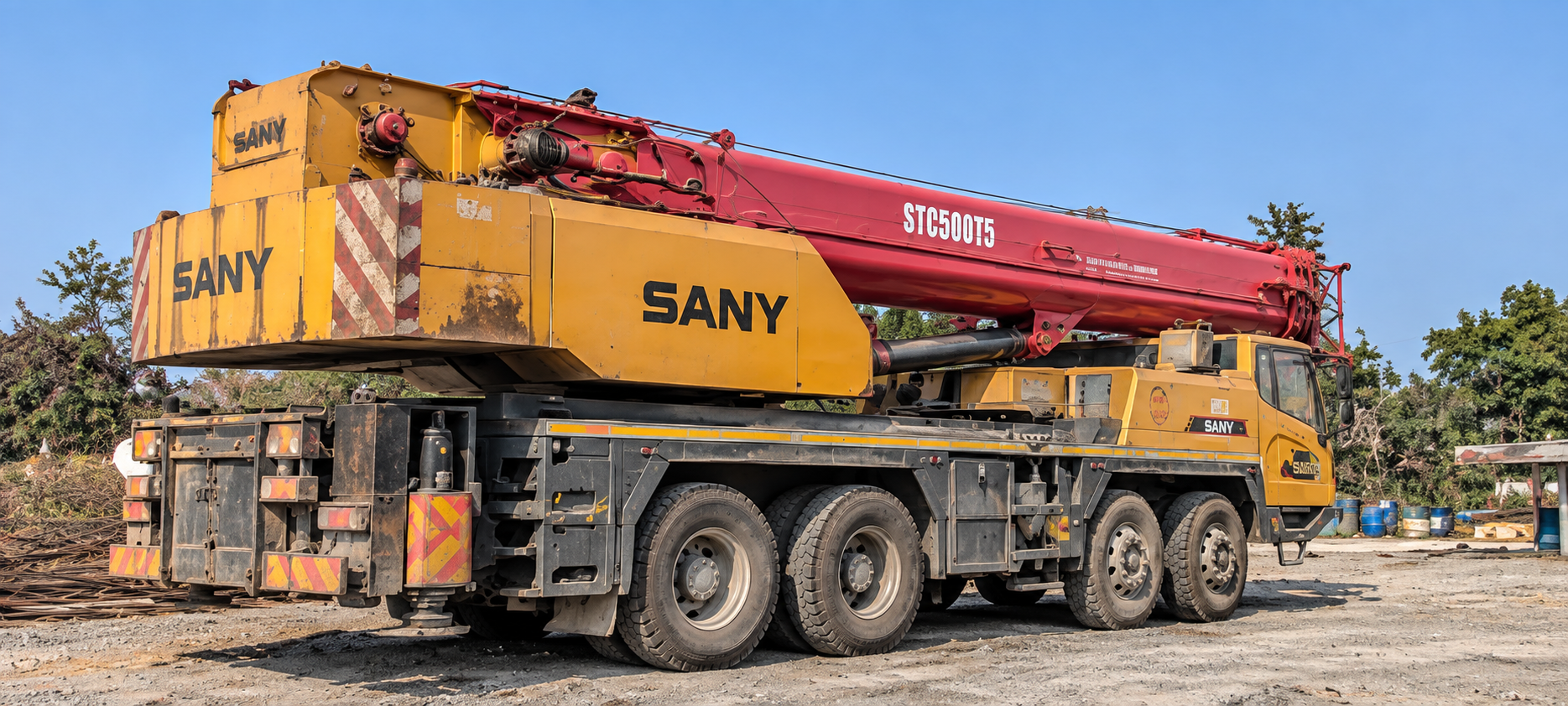

SANY STC500T5 Truck Crane

A 50-tonne SANY truck crane with five-section U-shape boom, 2,058 kN.m maximum lifting moment, 44.5 m full-extension boom and 60.5 m boom + jib reach. It uses a DF CUMMINS ISLe34030 Euro III diesel engine, 9-speed manual transmission, H-type hydraulic outriggers, fixed 4.8 t counterweight and all-round LMI safety protection.

Capacity icon
Capacity50T
Max Boom icon
Max Boom44.5m
Load Moment icon
Load Moment2058 kN·m
Engine icon
Engine250 kW
Max Speed icon
Max Speed85 km/h
Outrigger icon
OutriggerH-form

Key Highlights

Lifting Capacity icon
Capacity

50 t

Lifting Moment icon
Max. Lifting Moment

2,058 kN.m

Full Boom icon
Full Boom

44.5 m

Boom and Jib icon
Boom + Jib

60.5 m

Engine Power icon
Engine Power

250 kW @ 2,100 rpm

Torque icon
Engine Torque

1,425 N.m

Max Speed icon
Max Speed

85 km/h

Outrigger Span icon
Outrigger Span

6.05 m x 7.4 m

Fuel Tank icon
Fuel Tank

350 L

Counterweight icon
Counterweight

4.8 t fixed

Gross Weight icon
Gross Weight

42,000 kg

Ground Clearance icon
Ground Clearance

240 mm

Gradeability icon
Gradeability

45%

Steering Radius icon
Steering Radius

12 m

Tire icon
Tires

315/80R22.5

Specifications

Detailed technical specifications for SANY STC500T5 Truck Crane

ENGINE

  • Engine ModelDF CUMMINS ISLe34030
  • Engine TypeInline 6-cylinder, water-cooled, intercooled diesel
  • Emission StandardEuro III
  • Max. Engine Power250 kW @ 2,100 rpm
  • Max. Engine Torque1,425 N.m @ 1,100-1,400 rpm
  • Fuel Tank Capacity350 L
  • Fuel Consumption≤ 40 L / 100 km
  • Electrical System2 x 12 V maintenance-free battery

LIFTING CAPACITY

  • Max. Lifting Capacity50 t
  • Max. Lifting Moment - Basic Boom2,058 kN.m
  • Max. Lifting Moment - Full Boom1,097.6 kN.m
  • Max. Lifting Moment - Full Boom + Jib428 kN.m
  • Max. Lifting Height - Basic Boom12 m
  • Max. Lifting Height - Full Boom45 m
  • Max. Lifting Height - Full Boom + Jib61 m
  • Min. Rated Lifting Radius3 m
  • Tail Slewing Radius3.95 m

BOOM & JIB

  • Boom Sections5
  • Boom ShapeU-shape
  • Basic Boom Length11.55 m
  • Full-Extension Boom Length44.5 m
  • Full-Extension Boom + Jib60.5 m
  • Jib Length9.2 m / 16 m
  • Jib Offset Angles0°, 15°, 30°
  • Boom Luffing Range-2° to +80°
  • Counterweight4.8 t fixed

OPERATIONS

  • Main Hook55 t, 6 sheaves, rope rate 12, hook weight 550 kg
  • Auxiliary Hook6 t, rope rate 1, hook weight 120 kg
  • Main Winch135 m/min, Ø18 mm x 215 m rope, 5 t line pull
  • Auxiliary Winch125 m/min, Ø18 mm x 135 m rope, 5 t line pull
  • Slewing Speed0-2 r/min
  • Full Luffing Up / Down70 s / 90 s
  • Full Extension / Retraction90 s / 100 s
  • Outrigger Jack Extension / Retraction35 s / 35 s
  • Outrigger Beam Extension / Retraction25 s / 25 s

CHASSIS

  • Wheel Formula8 x 4
  • Transmission9-speed manual transmission with synchronizer
  • AxlesAxles 1 & 2 steered; axles 3 & 4 drive
  • SuspensionFront leaf spring, rear rubber suspension
  • Tires315/80R22.5 radial
  • Max. Travel Speed85 km/h
  • Min. Steering Radius12 m
  • Min. Steering Radius of Boom Tip14.8 m
  • Max. Gradeability45%
  • Brake SystemAir servo, dual-circuit braking on all wheels

DIMENSIONS & WEIGHT

  • Gross Weight42,000 kg
  • Axle Load8 t / 8 t / 13 t / 13 t
  • Overall Length13,900 mm
  • Overall Width2,800 mm
  • Overall Height3,800 mm
  • Min. Ground Clearance240 mm
  • Approach / Departure Angle≥19° / ≥14°
  • Outrigger Span6.05 m x 7.4 m
  • Working Temperature-20°C to +45°C

SAFETY & FEATURES

  • Load Moment IndicatorSelf-developed LMI with overload warning
  • Hydraulic ProtectionBalance valve, relief valve and two-way pilot-controlled valve
  • Winch ProtectionThree-circle protector on main and auxiliary winches
  • Height Limit SwitchBoom head and fixed jib over-hoist protection
  • SensorsLength, angle and pressure sensors with real-time monitoring
  • Operator Cab0-20° tiltable cab with panoramic skylight, adjustable seat and 3D airflow AC
  • Control SystemCAN bus network with BCM fault diagnosis
  • TelematicsT-box cloud fleet management for movement and load-condition monitoring
  • Optional EquipmentFire extinguisher bracket, anti-spark device, navigation light, slewing buzzer, outrigger pad and customized painting

Frequently Asked Questions

Everything you need to know about the SANY STC500T5 Truck Crane

The SANY STC500T5 has a maximum lifting capacity of 50 t and a maximum lifting moment of 2,058 kN.m on the basic boom.

The STC500T5 has a five-section U-shape boom with 44.5 m full-extension boom length. With jib, the total boom + jib length is 60.5 m.

The STC500T5 is powered by a DF CUMMINS ISLe34030 inline six-cylinder water-cooled diesel engine rated at 250 kW @ 2,100 rpm with 1,425 N.m torque @ 1,100-1,400 rpm. It meets Euro III emission standard.

The STC500T5 reaches a maximum travel speed of 85 km/h, with 12 m minimum steering radius, 240 mm minimum ground clearance and 45% maximum gradeability.

The STC500T5 uses H-type four-point fully hydraulic outriggers with 6.05 m x 7.4 m span and a fixed 4.8 t counterweight.
