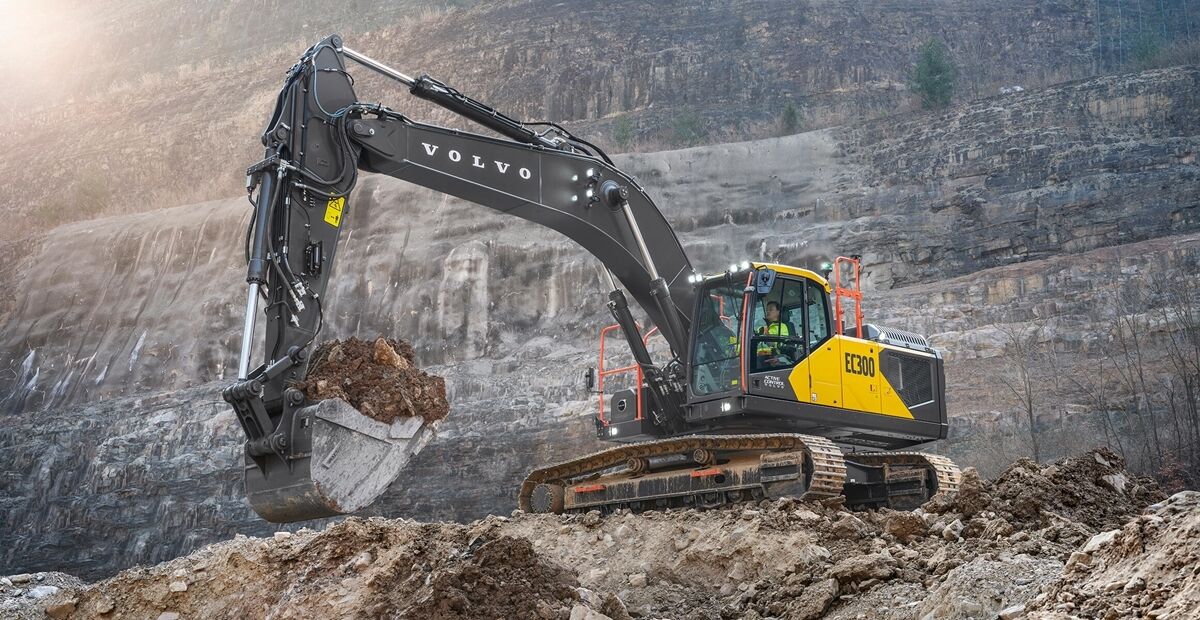

Volvo EC300 Excavator

A versatile 30-tonne crawler excavator powered by the Volvo D8L T3 engine with 243 HP net output. Its electro-hydraulic system and enhanced Main Control Valve improve fuel efficiency by up to 10%, while Volvo Co-Pilot, Dig Assist and Volvo Smart View are available as optional performance aids.

Engine icon
Net Engine Power243 HP @ 1,720 RPM
Bucket icon
Bucket Capacity0.55 - 2.06 m³
Weight icon
Operating Weight30,730 Kg
Digging depth icon
Max Digging Depth7,350 mm
Dumping height icon
Max Dumping Height7,040 mm
Reach icon
Max Reach (Ground)10,520 mm

Key Highlights

Engine model icon
Engine Model

Volvo D8L

Fuel tank icon
Fuel Tank

450 L

Torque icon
Swing Torque

114.8 kNm

Travel speed icon
Travel Speed

High: 5.4 km/h / Low: 3.6 km/h

Hydraulics icon
Hydraulic System

EH system — 2 variable displacement pumps + MCV

Cutting height icon
Max Cutting Height

9,990 mm

Traction force icon
Max Drawbar Pull

248 kN

Dumping height icon
Max Dumping Height

7,040 mm

Overall length icon
Overall Length

10,500 mm (3.05 m arm)

Track shoe icon
Track Shoe Width

600 mm triple grouser (standard)

Bucket digging force icon
Bucket Breakout Force

207 kN (ISO, Power Boost)

Arm tearout force icon
Arm Tearout Force

148 kN (ISO, Power Boost)

Display icon
Volvo Co-Pilot

12.8" Full HD Second Display - Optional

AC cabin icon
Cab Safety

ROPS-certified cab - Standard

GPS icon
Dig Assist

Machine guidance — Optional

Specifications

Product specification of Volvo EC300 Excavator

ENGINE

  • Model

    Volvo D8L

  • Type

    Water-cooled, 4-stroke, direct-injection turbocharged diesel with charged-air cooler

  • Emission Standard

    T3

  • Gross Power (SAE J1995)

    245 HP (180 kW) @ 1,720 RPM

  • Net Power (ISO 9249 / SAE J1349)

    243 HP (179 kW) @ 1,720 RPM

  • Max Torque

    1,250 N-m @ 1,300 RPM

  • No. of Cylinders

    6

  • Bore x Stroke

    110 mm x 135 mm (4.33" x 5.31")

  • Displacement

    7.7 L (470 cu. in.)

  • Battery

    2 x 12 V / 180 Ah each

  • Alternator

    28 V / 120 A

TRAVEL & SWING

  • Swing Speed: 10.8 RPM
  • Swing Torque: 114.8 kNm
  • Travel Speed High: 5.4 km/h
  • Travel Speed Low: 3.6 km/h (2.2 mph)
  • Max Drawbar Pull: 248 kN
  • Gradeability: 35°
  • Travel Drive: Automatic two-speed travel motor on each track
  • Travel Brake: Multi-disc, spring-applied, hydraulically released
  • Swing Holding Brake: Automatic holding brake with anti-rebound valve

UNDERCARRIAGE

  • Upper Rollers (carrier): 2 per side
  • Lower Rollers (track): 9 per side
  • Track Shoes: 50 per side
  • Link Pitch: 203 mm (8.0")
  • Shoe Width (standard): 600 mm triple grouser
  • Ground Pressure (600mm shoe): 59.3 kPa - Operating weight 30,730 kg
  • Shoe Width (optional): 700 mm / 800 mm / 900 mm triple grouser
  • Ground Pressure (800mm shoe): 46.4 kPa - Operating weight 32,050 kg
  • Track Chains: Greased and sealed - Standard

RELIEF VALVE

  • Implement Circuit (standard): 33.3 MPa (4,830 psi)
  • Implement Circuit (power boost): 37.8 MPa
  • Travel Circuit: 36.3 MPa (5,265 psi)
  • Slew / Swing Circuit: 28.9 MPa (4,190 psi)
  • Pilot Circuit: 3.9 MPa (566 psi)

HYDRAULIC SYSTEM

  • System: Electro-hydraulic system with enhanced Main Control Valve - up to 10% improved fuel efficiency
  • Main Pump Type: 2 variable displacement axial piston pumps
  • Max Oil Flow per Pump: 276 L/min (72.9 gal/min) each
  • Pilot Pump: 1 gear pump
  • Max Pilot Oil Flow: 20 L/min
  • Main Control Valve: Electronic proportional control for all functions
  • Swing Motor: Axial piston motor driving a planetary gearbox
  • Working Modes: Optimized work modes with ECO mode
  • Power Boost: Enhances implement digging force

WORKING RANGES

  • Boom: 6.2 m  |  Arm: 3.05 m (10')
  • Max Digging Reach: 10,720 mm
  • Max Digging Reach (Ground Level): 10,520 mm (34' 6")
  • Max Digging Depth: 7,350 mm
  • Max Digging Depth (8' / 2.44m Level): 7,160 mm (23' 6")
  • Max Cutting Height: 9,990 mm (32' 9")
  • Max Dumping Height: 7,040 mm
  • Min Front Swing Radius: 4,180 mm
  • Max Vertical Wall Digging Depth: 6,080 mm

DIGGING FORCES

  • 3.05 m arm — at Power Boost (ISO 6015)
  • Bucket Breakout Force (ISO): 207 kN
  • Arm Tearout Force (ISO): 148 kN

WEIGHTS

  • EC300F L - 6.2 m HD boom, 3.05 m HD arm, 1,387 kg bucket mass and 6,200 kg counterweight
  • Operating Weight (600mm shoe): 30,730 kg
  • Ground Pressure (600mm): 59.3 kPa
  • Operating Weight (800mm shoe): 32,050 kg
  • Ground Pressure (800mm): 46.4 kPa

DIMENSIONS

  • 3.05 m arm, 600 mm shoe
  • Overall Length (with arm): 10,500 mm
  • Overall Width: 3,190 mm (10' 6")
  • Overall Height (cab top): 3,110 mm (10' 2")
  • Overall Track Length: 4,865 mm
  • Tumbler Length: 4,015 mm
  • Track Gauge: 2,590 mm (8' 6")
  • Min Ground Clearance: 475 mm (1' 7")
  • Tail Swing Radius: 3,120 mm
  • Overall Width of Upper Structure: 2,890 mm
  • Overall Height of Handrail: 3,200 mm
  • Overall Height of Engine Hood: 2,740 mm
  • Counterweight Clearance: 1,105 mm
  • Overall Height of Boom: 3,335 mm

SERVICE CAPACITIES

  • Fuel Tank: 450 L
  • Engine Coolant: 44 L (11.6 gal)
  • Engine Oil: 30 L (7.9 gal)
  • Hydraulic Oil Tank: 210 L
  • Hydraulic System (total): 400 L
  • Slew Device: 6 L (1.6 gal)
  • Travel Device (each side): 6 L (1.6 gal)

Frequently Asked Questions

Everything you need to know about the Volvo EC300 Excavator

The Volvo EC300 excavator price varies by dealer, region, machine configuration, bucket and optional equipment. Contact an authorised Volvo Construction Equipment dealer for current pricing.

The EC300F L with a 6.2 m HD boom, 3.05 m HD arm, 1,387 kg bucket, 6,200 kg counterweight and 600 mm triple grouser shoes has an operating weight of 30,730 kg and ground pressure of 59.3 kPa. With 800 mm shoes, the corresponding values are 32,050 kg and 46.4 kPa.

The EC300 is powered by the Volvo D8L, a 6-cylinder, 7.7 L, water-cooled, direct-injection turbocharged diesel engine with a charged-air cooler. Net power is 179 kW (243 HP) and gross power is 180 kW (245 HP) at 1,720 RPM. Maximum torque is 1,250 N-m at 1,300 RPM, and the engine meets T3 requirements.

With the 6.2 m boom and 3.05 m arm, the Volvo EC300 achieves a maximum digging depth of 7,350 mm, maximum ground-level reach of 10,520 mm and maximum cutting height of 9,990 mm.

The Volvo EC300 uses an electro-hydraulic system with an enhanced Main Control Valve. Electronic sensors interpret operator inputs and regulate engine speed and hydraulic flow according to demand. Two variable-displacement axial-piston pumps provide 276 L/min each, contributing to up to 10% improved fuel efficiency.

An 8-inch HD display is standard. The 12.8-inch Full HD Volvo Co-Pilot second display is optional, as are Dig Assist functions including 2D, 3D machine control, In-Field Design and On-Board Weighing. Volvo Smart View is also optional.
