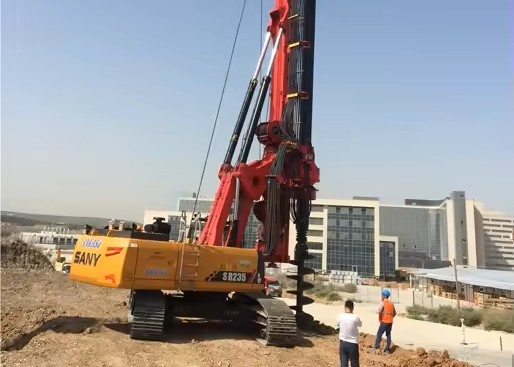

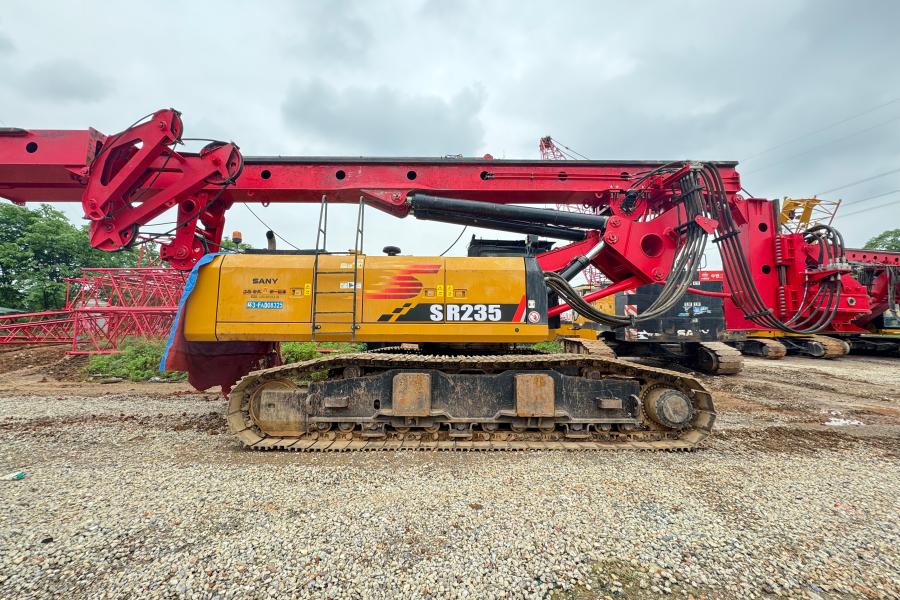

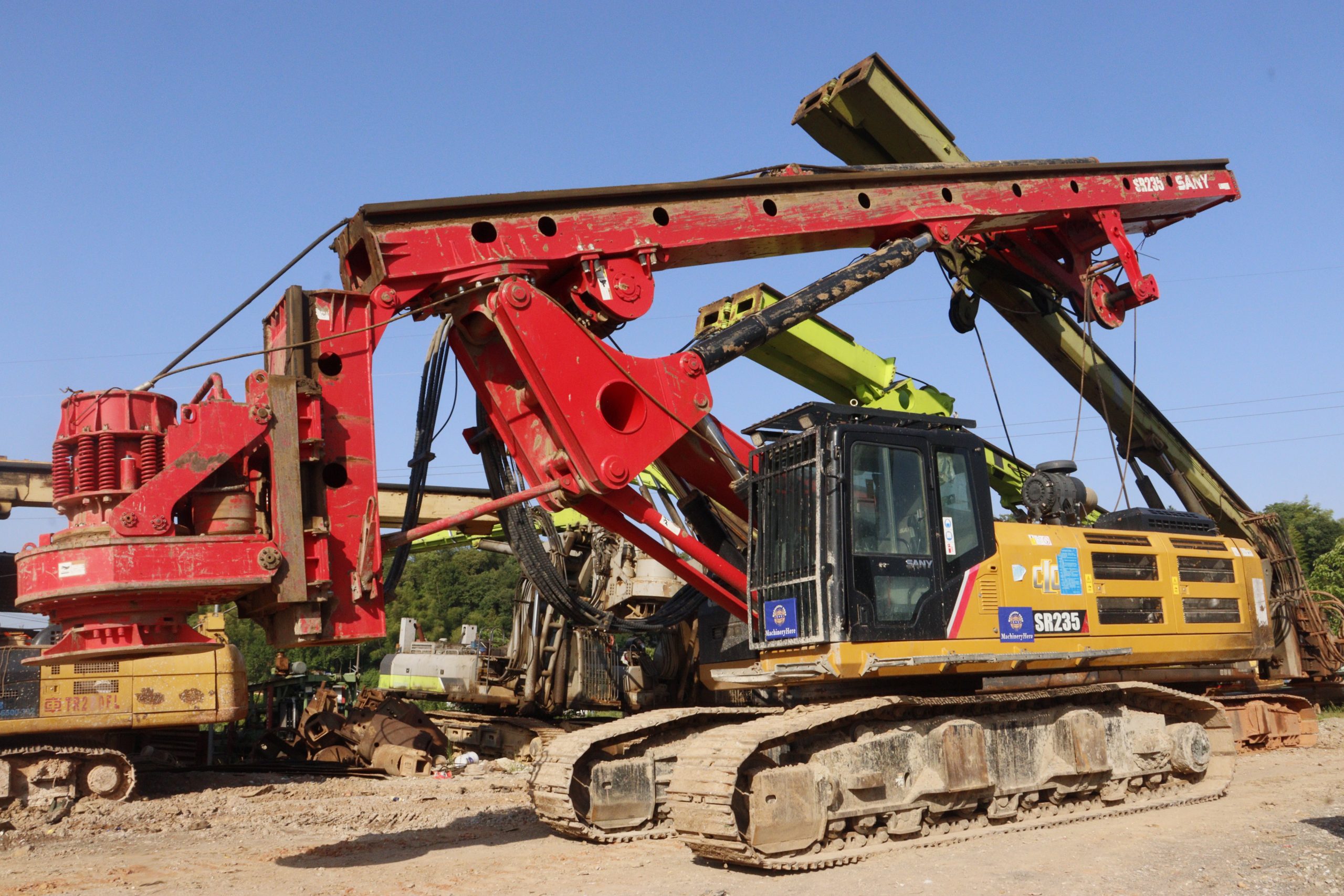

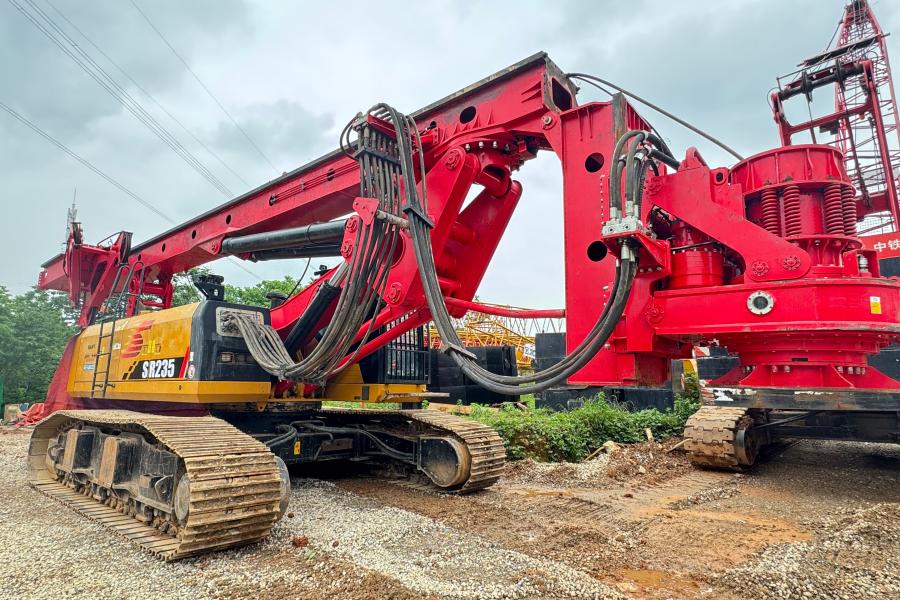

SANY SR235-S Rotary Drilling Rig
The SANY SR235-S is a rotary drilling rig built for bored pile foundation work in infrastructure, commercial, industrial, and civil construction projects. It supports a maximum drilling diameter of 2,000 mm, drilling depth up to 68 m with friction Kelly or 52 m with interlocking Kelly, 235 kN·m rotary drive torque, 210 kN crowd force, 270 kN crowd line pull, and an ISUZU 6UZ1 diesel engine rated at 257 kW @ 2,000 rpm.
Engine Power257 kW
Rotary Torque235 kN·m
Max Depth68 / 52 m
Max Diameter2,000 mm
Operating Weight81 t
Track Shoe800 mm
Key Highlights
Max Drilling Diameter
2,000 mm
Max Drilling Depth
68 m / 52 m
Rotary Torque
235 kN·m
Rotation Speed
5–32 rpm
Engine Model
ISUZU 6UZ1
Engine Power
257 kW @ 2,000 rpm
Operating Weight
81,000 kg
Track Width
3,200–4,500 mm
Emission Standard
China Stage III
Crowd Force
210 kN
Crowd Line Pull
270 kN
Main Winch Speed
70 m/min
Overall Height
22,870 mm
Swing Radius
4,360 mm
Track Shoe Width
800 mm
Specifications
Detailed technical specifications for SANY SR235-S Rotary Drilling Rig
DRILLING PERFORMANCE
- Maximum Drilling Diameter2,000 mm
- Maximum Drilling Depth68 m / 52 m
- Friction Kelly Depth68 m
- Interlocking Kelly Depth52 m
ROTARY DRIVE & CROWD SYSTEM
- Rated Output Torque235 kN·m
- Rotation Speed5–32 rpm
- Crowd Force210 kN
- Crowd Line Pull270 kN
- Crowd Stroke5,000 mm
WINCH SYSTEM
- Main Winch Lifting Capacity235 kN
- Main Winch Rope DiameterØ32 mm
- Main Winch Max Line Speed70 m/min
- Auxiliary Winch Lifting Capacity80 kN
- Auxiliary Winch Rope / SpeedØ20 mm / 70 m/min
ENGINE
- Base EngineISUZU 6UZ1
- Engine Power257 kW @ 2,000 rpm
- Emission StandardChina Stage III
- Engine Displacement9.84 L
- Fuel TypeDiesel
UNDERCARRIAGE
- Width Retracted / Extended3,200–4,500 mm
- Track Shoe Width800 mm
- Swing Radius4,360 mm
- Operating Weight81 t
KELLY BAR OPTIONS
- Interlocking Kelly Φ445×4×1344 m / 9,900 kg
- Interlocking Kelly Φ445×4×1448 m / 10,000 kg
- Interlocking Kelly Φ445×4×1552 m / 10,600 kg — Standard
- Friction Kelly Φ445×5×1463 m / 10,200 kg
- Friction Kelly Φ445×5×1568 m / 10,900 kg
DIMENSIONS
- Overall Height22,870 mm
- Transport Length16,385 mm
- Transport Width3,540 mm
- Transport Height3,660 mm
- Mast InclinationForward/Backward 5°/90°, Lateral ±3°
FEATURES
- ApplicationMunicipal and civil infrastructure construction
- Construction EfficiencyFast dumping, high power utilization, smooth compound action
- Control10-inch HD touch screen and EVI smartphone app
- MaintenanceExternal rotary-drive key and masthead lubrication hoses
SANY SR235-S Maintenance Checklist
Daily pre-start checks · service schedule by operating hours · warning alert actions for the SANY SR235-S hydraulic rotary drilling rig — ISUZU 6UZ1 257 kW engine, 235 kN·m rotary torque, 68 m max depth. Verify all intervals, fluid grades and rope limits with the SANY SR235-S O&M manual before implementation.
Daily / Every Shift Checklist
Complete before every shift. Total time ≈ 15–20 minutes. Do not operate if any check fails.
1
Engine Oil Level
Dipstick check (cold engine, level ground). Level between MIN and MAX marks.
Act if: Oil below MIN — top up before starting. Black/milky oil = stop, investigate.
2
Engine Coolant Level
Check coolant expansion tank — level between MIN and MAX. Check for leaks at hoses.
Act if: Level below MIN — top up. Milky coolant = possible combustion gas ingress — stop.
3
Fuel Level
Check fuel gauge. Drain water/sediment from fuel pre-filter bowl drain cock daily.
Act if: Fuel below 1/4 tank. Active water in bowl — drain fully before starting.
4
Hydraulic Oil Level
Check sight glass on hydraulic tank. Level must be within marked range.
Act if: Level below lower mark — top up with correct grade. Foam = contamination — investigate.
5
Air Filter Indicator
Check air filter restriction indicator or lamp. Clear = OK, red/alarm = restricted.
Act if: Indicator in red/alarm — clean primary element before starting. Do not run restricted.
6
Battery
Check terminal clamp tightness and electrolyte level. No corrosion on terminals.
Act if: Corroded terminal or low electrolyte — clean/top up. Engine may not start reliably.
7
Central Lubrication
Check grease reservoir level in central lubrication system. Top up if below half.
Act if: Grease empty — top up immediately. Dry lubrication causes rapid wear on kelly guide.
8
Main Winch Rope
Inspect Ø32mm rope for kinks, bird-caging, broken wires, crushing, or wear.
Act if: Any kinking, bird-caging, or broken wires — no operation. Replace before next shift.
9
Auxiliary Winch Rope
Inspect Ø20mm rope for same defects as main winch. Check drum for proper spooling.
Act if: Any defect — quarantine rope. Replace before using auxiliary winch.
10
Kelly Bar
Inspect all sections for deformation, key/slot wear, and securing pin condition.
Act if: Visible bending, cracked keys, or worn slots — stop drilling. Inspect/replace kelly bar.
11
Mast & Crowd System
Visually check mast rails, crowd cylinder, and kelly guide for cracks, leaks, damage.
Act if: Crack in mast rail or crowd cylinder leaking — stop operations, tag out for repair.
12
Crawler Tracks
Check track tension on both sides. Check track shoe bolts for looseness.
Act if: Track too loose (sags >25mm at centre) or bolts loose — adjust/tighten before travel.
13
Cabin & Controls
Test all joystick functions at no-load. Check horn, emergency stop, and lights.
Act if: Emergency stop not functioning — do not operate. Joystick not centering = hydraulic fault.
14
Visual Leak Check
Walk around: check below machine and along hose runs for oil, fuel, coolant leaks.
Act if: Any active drip or pooling — identify source. Do not operate with active hydraulic leak.
Note: the SR235-S is a rotary drilling rig — complete the carrier checks (tracks, engine, hydraulics) and the drilling checks (wire ropes, Kelly bar, mast & crowd) before every shift. Verify all intervals, fluid grades and rope limits with the SANY SR235-S O&M manual.
Service Schedule by Hourmeter
Use hourmeter readings; all daily checks apply at every interval. CHANGE / REPLACE / INSPECT / GREASE / CHECK. Verify grades/quantities with the SANY SR235-S O&M manual.
Daily — every shift; carried into every higher interval.
Engine — ISUZU 6UZ1
Check engine oil level (dipstick)
Check air filter indicator — clean primary element if alarmed
Check coolant level — top up with correct coolant mix
Hydraulic System
Check hydraulic oil level (sight glass on tank)
INSPECT all hydraulic hose runs for chafing, leaks, or damage
Winch System
INSPECT main winch rope — kinks, broken wires, diameter loss
VERIFY dia — SANY SR235 O&M Manual
INSPECT auxiliary winch rope — same criteria as main winch
VERIFY dia — SANY SR235 O&M Manual
Structure & Undercarriage
CHECK track tension and track shoe bolt torque
Electrical
Check battery terminal tightness and electrolyte level
50h — first break-in service (plus all daily checks).
Engine — ISUZU 6UZ1
CHANGE engine oil
VERIFY grade/qty — ISUZU 6UZ1 manual
REPLACE engine oil filter
REPLACE fuel pre-filter (water/oil separator element)
CHECK V-belt / drive belt tension — adjust if required
Hydraulic System
INSPECT all hydraulic hose runs for chafing, leaks, or damage
Rotary Drive System
CHECK rotary drive gear oil level — top up if required
INSPECT rotary drive sliding strip — replace if worn
Kelly Bar & Mast
INSPECT kelly guide swing bearing — replace when worn
INSPECT kelly bar impact ring — check, replace if worn
INSPECT kelly bar spring — check, replace if worn
Travel & Swing Reducers
CHECK crawler tensioning cylinder grease level
Structure & Undercarriage
GREASE all pivot pins, kelly guide bearings, and slewing ring
CHECK track tension and track shoe bolt torque
RETIGHTEN all critical structural bolts — mast, slewing, undercarriage
250h — routine service (plus daily + 50h items).
Engine — ISUZU 6UZ1
CHANGE engine oil
VERIFY grade/qty — ISUZU 6UZ1 manual
REPLACE engine oil filter
REPLACE fuel pre-filter (water/oil separator element)
CHECK V-belt / drive belt tension — adjust if required
Hydraulic System
INSPECT all hydraulic hose runs for chafing, leaks, or damage
INSPECT crowd cylinder, mast luffing cylinders for seal leaks
Rotary Drive System
CHECK rotary drive gear oil level — top up if required
INSPECT shock absorber of rotary drive — replace if worn
Kelly Bar & Mast
CHECK wire rope sheaves — inspect for wear and free rotation
CHECK kelly guide sliding strip — inspect wear, replace if needed
Travel & Swing Reducers
CHANGE travel reducer oil × 2
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE swing reducer gear oil
VERIFY grade/qty — SANY SR235 O&M Manual
CHECK crawler tensioning cylinder grease level
Structure & Undercarriage
GREASE all pivot pins, kelly guide bearings, and slewing ring
CHECK and retighten slewing ring mounting bolts — OEM torque
CHECK track tension and track shoe bolt torque
500h — extended service (plus 250h items).
Engine — ISUZU 6UZ1
CHANGE engine oil
VERIFY grade/qty — ISUZU 6UZ1 manual
REPLACE engine oil filter
REPLACE fuel pre-filter (water/oil separator element)
REPLACE fuel main filter element
CLEAN engine crankcase breather element
CHECK V-belt / drive belt tension — adjust if required
Hydraulic System
CLEAN hydraulic oil suction filter
REPLACE hydraulic pilot filter element
REPLACE hydraulic return filter element
INSPECT all hydraulic hose runs for chafing, leaks, or damage
INSPECT crowd cylinder, mast luffing cylinders for seal leaks
Rotary Drive System
CHECK rotary drive gear oil level — top up if required
INSPECT shock absorber of rotary drive — replace if worn
Kelly Bar & Mast
CHECK wire rope sheaves — inspect for wear and free rotation
CHECK kelly guide sliding strip — inspect wear, replace if needed
Winch System
CHANGE main winch reducer oil
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE auxiliary winch reducer oil
VERIFY grade — SANY SR235 O&M Manual
Travel & Swing Reducers
CHANGE travel reducer oil × 2
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE swing reducer gear oil
VERIFY grade/qty — SANY SR235 O&M Manual
INSPECT slewing ring teeth, bearing — check backlash, lubricate
CHECK crawler tensioning cylinder grease level
Structure & Undercarriage
GREASE all pivot pins, kelly guide bearings, and slewing ring
CHECK and retighten slewing ring mounting bolts — OEM torque
CHECK track tension and track shoe bolt torque
RETIGHTEN all critical structural bolts — mast, slewing, undercarriage
1,000h — major service (plus 500h items). SANY/ISUZU-authorised technician recommended.
Engine — ISUZU 6UZ1
CHANGE engine oil
VERIFY grade/qty — ISUZU 6UZ1 manual
REPLACE engine oil filter
REPLACE fuel pre-filter (water/oil separator element)
REPLACE fuel main filter element
REPLACE engine air filter element (air recirculation filter)
CLEAN engine crankcase breather element
CHECK V-belt / drive belt tension — adjust if required
REPLACE all rubber hoses (engine coolant, intercooler, fuel lines)
CHANGE engine coolant
VERIFY grade/mixture — ISUZU 6UZ1 manual
Hydraulic System
CLEAN hydraulic oil suction filter
REPLACE hydraulic pilot filter element
REPLACE hydraulic return filter element
INSPECT all hydraulic hose runs for chafing, leaks, or damage
INSPECT crowd cylinder, mast luffing cylinders for seal leaks
Rotary Drive System
CHECK rotary drive gear oil level — top up if required
CHANGE rotary drive box oil
VERIFY grade/qty — SANY SR235 O&M Manual
INSPECT shock absorber of rotary drive — replace if worn
Kelly Bar & Mast
CHECK wire rope sheaves — inspect for wear and free rotation
CHECK kelly guide sliding strip — inspect wear, replace if needed
Winch System
CHANGE main winch reducer oil
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE auxiliary winch reducer oil
VERIFY grade — SANY SR235 O&M Manual
REPLACE main winch rope if broken wires exceed OEM limit
Travel & Swing Reducers
CHANGE travel reducer oil × 2
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE swing reducer gear oil
VERIFY grade/qty — SANY SR235 O&M Manual
INSPECT slewing ring teeth, bearing — check backlash, lubricate
CHECK crawler tensioning cylinder grease level
Structure & Undercarriage
GREASE all pivot pins, kelly guide bearings, and slewing ring
CHECK and retighten slewing ring mounting bolts — OEM torque
CHECK track tension and track shoe bolt torque
FULL structural inspection: mast, chassis, undercarriage, welds
RETIGHTEN all critical structural bolts — mast, slewing, undercarriage
Electrical
INSPECT battery condition — test CCA if drop >30% suspected
INSPECT alternator charging output
VERIFY rated output with OEM
2,000h — overhaul-level service (plus 1,000h items). Verify all limits with SANY/ISUZU authorised service.
Engine — ISUZU 6UZ1
CHANGE engine oil
VERIFY grade/qty — ISUZU 6UZ1 manual
REPLACE engine oil filter
REPLACE fuel pre-filter (water/oil separator element)
REPLACE fuel main filter element
REPLACE engine air filter element (air recirculation filter)
CLEAN engine crankcase breather element
CHECK V-belt / drive belt tension — adjust if required
REPLACE all rubber hoses (engine coolant, intercooler, fuel lines)
CHANGE engine coolant
VERIFY grade/mixture — ISUZU 6UZ1 manual
Hydraulic System
CLEAN hydraulic oil suction filter
REPLACE hydraulic pilot filter element
REPLACE hydraulic return filter element
CHANGE hydraulic oil
VERIFY grade/qty — SANY SR235-S O&M Manual
INSPECT all hydraulic hose runs for chafing, leaks, or damage
INSPECT crowd cylinder, mast luffing cylinders for seal leaks
Rotary Drive System
CHECK rotary drive gear oil level — top up if required
CHANGE rotary drive box oil
VERIFY grade/qty — SANY SR235 O&M Manual
INSPECT shock absorber of rotary drive — replace if worn
Kelly Bar & Mast
CHECK wire rope sheaves — inspect for wear and free rotation
CHECK kelly guide sliding strip — inspect wear, replace if needed
Winch System
CHANGE main winch reducer oil
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE auxiliary winch reducer oil
VERIFY grade — SANY SR235 O&M Manual
REPLACE main winch rope if broken wires exceed OEM limit
Travel & Swing Reducers
CHANGE travel reducer oil × 2
VERIFY grade/qty — SANY SR235 O&M Manual
CHANGE swing reducer gear oil
VERIFY grade/qty — SANY SR235 O&M Manual
INSPECT slewing ring teeth, bearing — check backlash, lubricate
CHECK crawler tensioning cylinder grease level
Structure & Undercarriage
GREASE all pivot pins, kelly guide bearings, and slewing ring
CHECK and retighten slewing ring mounting bolts — OEM torque
CHECK track tension and track shoe bolt torque
FULL structural inspection: mast, chassis, undercarriage, welds
RETIGHTEN all critical structural bolts — mast, slewing, undercarriage
Electrical
INSPECT battery condition — test CCA if drop >30% suspected
INSPECT alternator charging output
VERIFY rated output with OEM
Warning Alerts & Immediate Actions
RED = stop engine/drilling immediately. AMBER = action required before continuing. Confirm thresholds with the SANY SR235-S O&M manual.
RED
Engine Low Oil Pressure
Engine oil critically low or oil pump failure
Immediate action: Stop engine immediately. Do not restart. Check oil level and lines.
Risk if ignored: Seized crankshaft — catastrophic engine failure. Entire powerhead replacement needed.
RED
Engine High Coolant Temperature
Coolant level low, blocked radiator, or thermostat failed
Immediate action: Stop drilling. Idle briefly. Allow to cool. Check coolant level and radiator.
Risk if ignored: Blown head gasket, warped cylinder head — major ISUZU 6UZ1 engine repair.
RED
Hydraulic System Overpressure
Pressure relief valve sticking or circuit overload
Immediate action: Retract all functions. Stop engine. Do not re-attempt until fault cleared.
Risk if ignored: Hose burst, cylinder seal failure — hydraulic system contamination.
RED
Hydraulic Oil Overtemperature
Hydraulic oil above safe limit — cooler blocked or oil level low
Immediate action: Stop all hydraulic functions. Idle engine. Check oil level and cooler.
Risk if ignored: Hydraulic seal failure, pump damage — complete system contamination.
RED
Main Winch Fail-Safe Brake Active
Loss of hydraulic pressure to main winch circuit
Immediate action: Lower drill string to ground. Stop engine. Inspect winch hydraulic circuit.
Risk if ignored: Uncontrolled drill string drop — FATALITY RISK.
RED
Mast Luffing Cylinder Drift
Hydraulic seal failure or counterbalance valve fault on luffing circuit
Immediate action: Stop all operations. Lower mast to transport position. Tag out for service.
Risk if ignored: Uncontrolled mast fall — FATALITY RISK.
RED
Crowd Cylinder Drift
Crowd cylinder seal failure — rotary drive drifting down under load
Immediate action: Immediately stop crowd function. Extract kelly bar. Stop work. Tag out.
Risk if ignored: Drill string and kelly bar uncontrolled downward movement — borehole/tool damage.
AMBER
Hydraulic Return Filter Clogged
Return filter element blocked — filter bypass may be activated
Immediate action: Stop drilling. Replace return filter element. Do not continue with bypass active.
Risk if ignored: Contaminated hydraulic oil — pump and control valve wear, seal failure.
AMBER
Air Filter Restriction
Air filter element clogged — engine running with restricted intake
Immediate action: Stop operations. Clean primary filter element. Replace if cleaning fails.
Risk if ignored: Reduced power, black smoke, turbocharger damage.
AMBER
Kelly Bar Near-End Warning
Kelly bar approaching maximum extension for current kelly configuration
Immediate action: Stop crowd down. Extract kelly bar. Do not force beyond rated depth.
Risk if ignored: Kelly bar overextension — key/slot failure, kelly bar loss in borehole.
AMBER
Wire Rope Abnormal
Kinks, bird-caging, or visible broken wires on winch rope
Immediate action: Stop all lifts. Quarantine rig for rope inspection and replacement.
Risk if ignored: Rope failure under load — FATALITY RISK.
AMBER
Central Lubrication Low
Grease reservoir in automatic lubrication system below minimum
Immediate action: Top up grease reservoir at next available stop. Do not run empty.
Risk if ignored: Dry operation on kelly guide and mast bearings — accelerated wear, premature failure.
AMBER
Battery Voltage Low
Charging system fault or battery failing
Immediate action: Check alternator belt and connections. Test battery. Charge or replace.
Risk if ignored: Machine will not start — loss of control system power.
AMBER
Track Tension Lost
One or both crawler tracks excessively loose — sagging at midpoint
Immediate action: Park machine. Adjust track tension before continuing travel.
Risk if ignored: Track derailment — machine immobilised, possible damage to undercarriage.
Frequently Asked Questions
Everything you need to know about the SANY SR235-S Rotary Drilling Rig
The SR235-S has a maximum drilling diameter of 2,000 mm.
Maximum drilling depth is 68 m with friction Kelly and 52 m with interlocking Kelly. The standard interlocking Kelly bar is Φ445×4×15 with 52 m depth.
The rotary drive provides 235 kN·m rated output torque with 5–32 rpm rotation speed.
The rig uses an ISUZU 6UZ1 diesel engine rated at 257 kW @ 2,000 rpm, with 9.84 L displacement and China Stage III emission standard.
The operating weight is 81 t. Transport dimensions are 16,385 mm length, 3,540 mm width and 3,660 mm height.
