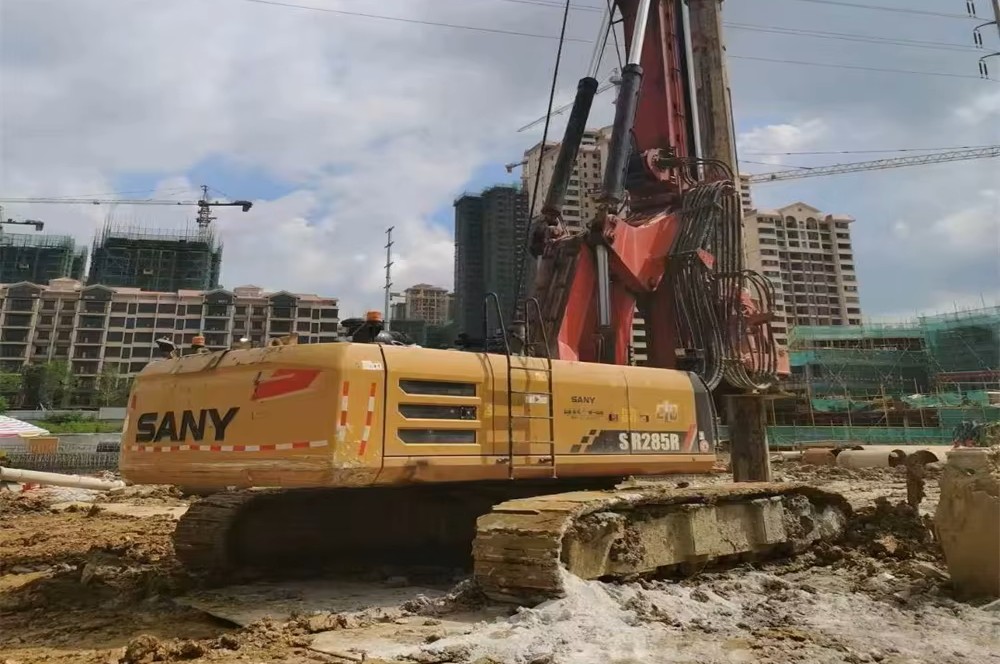

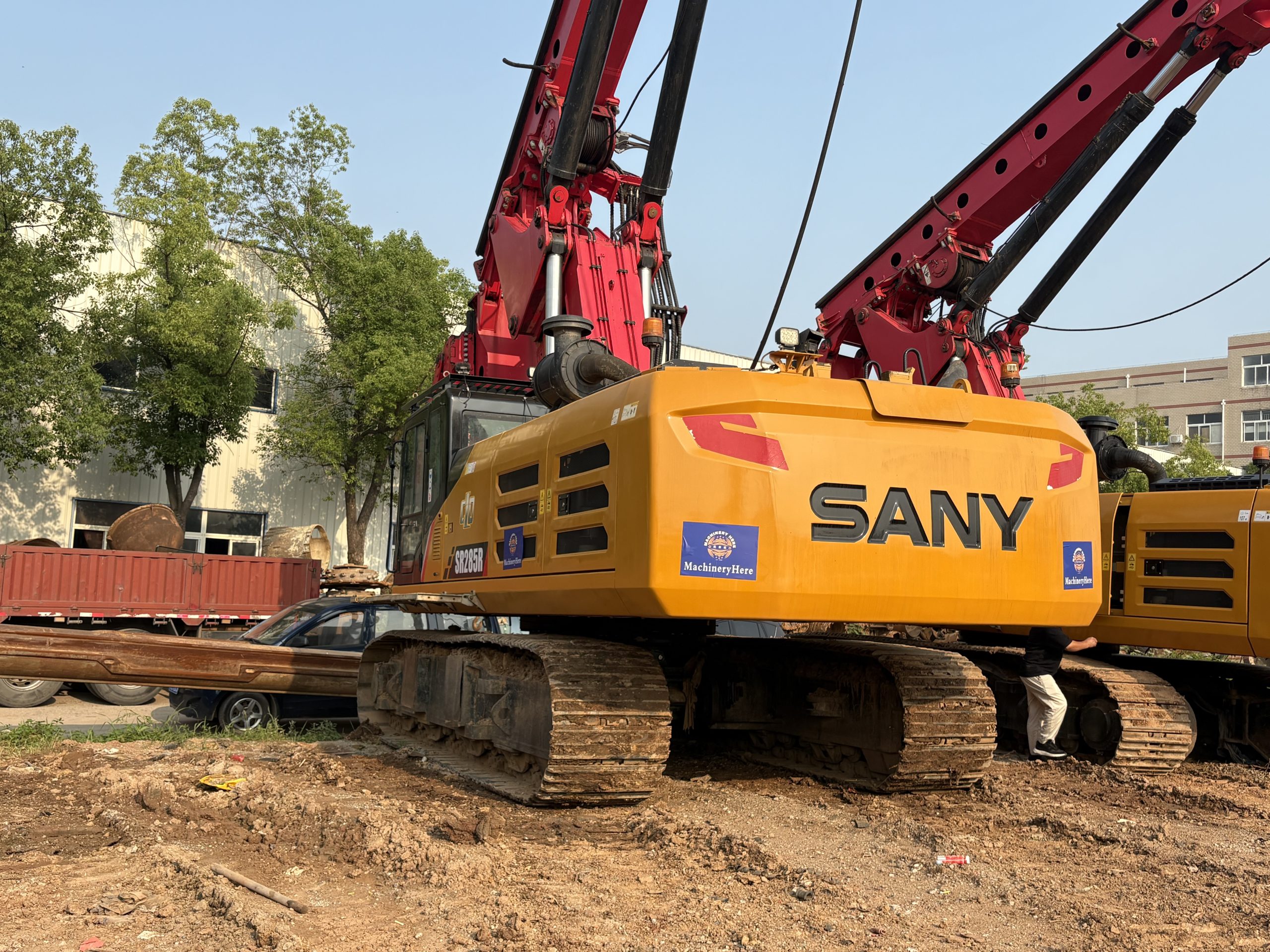

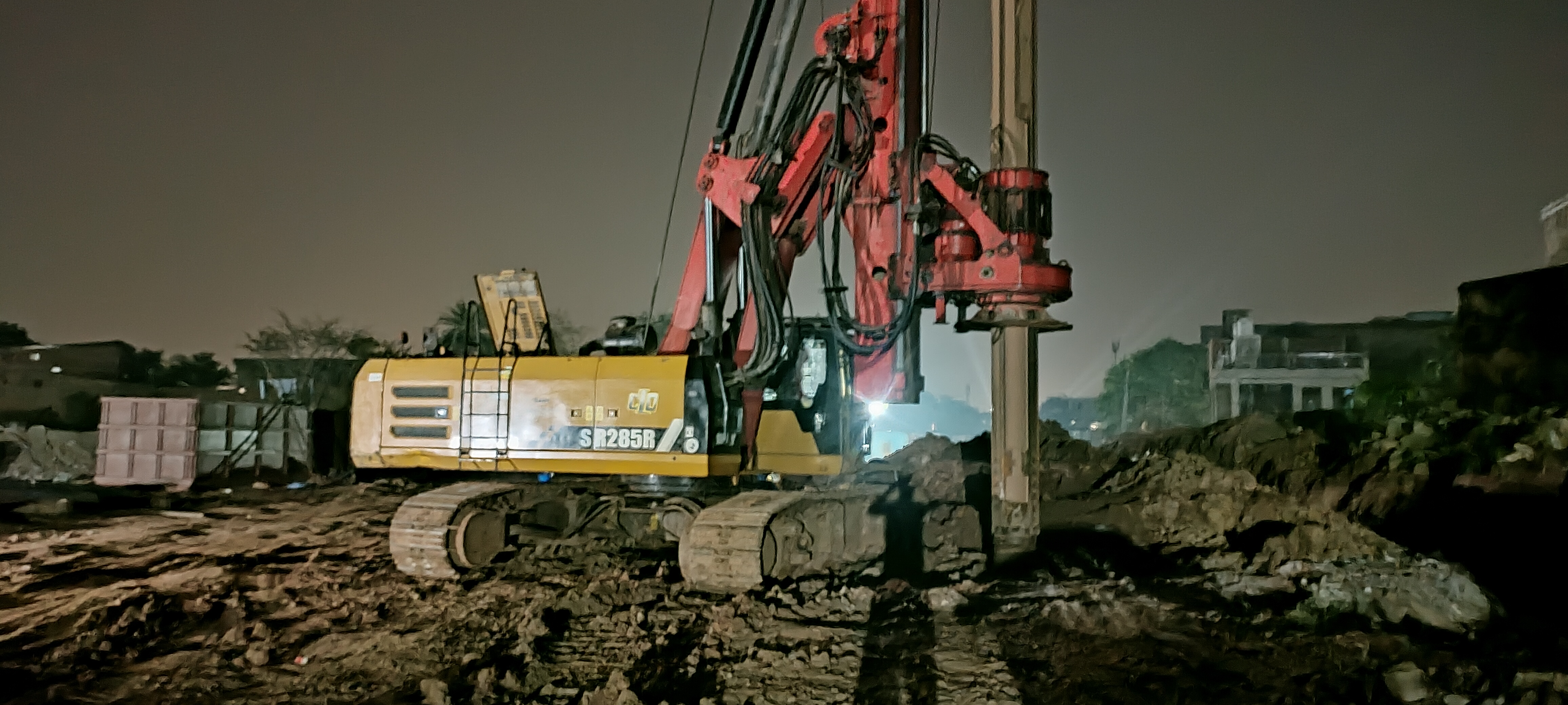

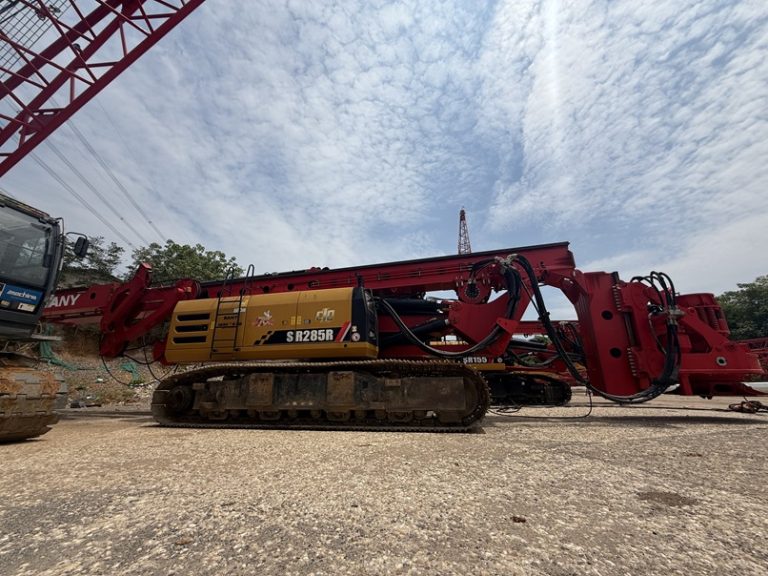

SANY SR285R C10 Rotary Drilling Rig
The SANY SR285R C10 is a rotary drilling rig built for bored pile foundation work in infrastructure, commercial, industrial, and civil construction projects. It supports a maximum drilling diameter of 2,300 mm, drilling depth up to 94 m with friction Kelly or 61 m with interlocking Kelly, 285 kN·m rotary drive torque, 260 kN crowd force, 335 kN crowd line pull, and an ISUZU 6WG1 diesel engine rated at 300 kW @ 1,800 rpm.
Engine Power300 kW
Rotary Torque285 kN·m
Max Depth94 / 61 m
Max Diameter2,300 mm
Operating Weight100 t
Fuel Tank645 L
Key Highlights
Max Drilling Diameter
2,300 mm
Max Drilling Depth
94 m / 61 m
Rotary Torque
285 kN·m
Rotation Speed
5–24 rpm
Engine Model
ISUZU 6WG1
Engine Power
300 kW @ 1,800 rpm
Operating Weight
100,000 kg
Extension Width
4,760 mm
Emission Standard
COM III / R96
Crowd Force
260 kN
Crowd Line Pull
335 kN
Main Winch Speed
72 m/min
Overall Height
25,425 mm
Swing Radius
4,530 mm
Track Shoe Width
800 mm
Specifications
Detailed technical specifications for SANY SR285R C10 Rotary Drilling Rig
DRILLING PERFORMANCE
- Maximum Drilling Diameter2,300 mm
- Maximum Drilling Depth94 m / 61 m
- Friction Kelly Depth94 m
- Interlocking Kelly Depth61 m
ROTARY DRIVE & CROWD SYSTEM
- Rated Output Torque285 kN·m
- Rotation Speed5–24 rpm
- Crowd Force260 kN
- Crowd Line Pull335 kN
- Crowd Stroke6,000 mm
WINCH SYSTEM
- Main Winch Lifting Capacity330 kN
- Main Winch Rope DiameterØ36 mm
- Main Winch Max Line Speed72 m/min
- Auxiliary Winch Lifting Capacity90 kN
- Auxiliary Winch Rope / SpeedØ20 mm / 70 m/min
ENGINE
- Base EngineISUZU 6WG1
- Engine Power300 kW @ 1,800 rpm
- Emission StandardCOM III / R96
- Engine Displacement15.68 L
- Fuel TypeDiesel
- Fuel Tank Capacity645 L
UNDERCARRIAGE
- Extension Width4,760 mm
- Chassis Length7,475 mm
- Track Shoe Width800 mm
- Swing Radius4,530 mm
- Operating Weight100 t
KELLY BAR OPTIONS
- Interlocking Kelly Φ508×3×1540 m / 13,900 kg
- Interlocking Kelly Φ508×4×1657 m / 13,100 kg
- Interlocking Kelly Φ508×4×1761 m / 13,700 kg — Standard
- Friction Kelly Φ508×6×1688 m / 15,300 kg
- Friction Kelly Φ508×6×1794 m / 15,900 kg
DIMENSIONS
- Overall Height25,425 mm
- Transport Length18,125 mm
- Transport Width3,490 mm
- Transport Height3,690 mm
- Mast InclinationForward/Backward 5°/90°, Lateral ±4°
FEATURES
- ApplicationMunicipal and civil infrastructure construction
- Construction EfficiencyFast dumping, high power utilization, smooth compound action
- Control10-inch HD touch screen and EVI smartphone app
- MaintenanceExternal rotary-drive key and masthead lubrication hoses
SANY SR285R C10 Maintenance Checklist
Daily pre-start checks, hourmeter-based service schedule, and warning-alert actions for the SANY SR285R hydraulic rotary drilling rig. This section is based on the SR285R maintenance reference: ISUZU 6WG1X engine, 300 kW @ 1,800 rpm, 285 kN·m rotary torque, 2,300 mm max pile diameter, 94 / 61 m max pile depth, Ø36 mm main winch rope, Ø20 mm auxiliary winch rope, and 100 t operating weight. Verify all intervals, fluid grades, fluid volumes, torque values and alarm set-points with the official SANY SR285R O&M manual before service.
Daily / Every Shift Checklist
Complete before every shift, approx. 15–20 minutes. Do not operate if any check fails or cannot be confirmed.
1
Engine Oil
Check dipstick with engine cold on level ground. Top up if below MIN. Typical reference grade: API CI-4 or better, SAE 15W-40.
Act if: Below MIN mark or oil is milky / black-discoloured — do not start engine.
2
Engine Coolant
Check expansion tank level. Top up with correct coolant mix.
Act if: Level below MIN, coolant is brown/rusty, or any external leak is visible.
3
Fuel Level
Check fuel gauge, fill with clean diesel, and drain water from the fuel pre-filter bowl.
Act if: Fuel below 25% capacity or water / contamination is found in the bowl.
4
Hydraulic Oil
Check sight glass on hydraulic tank. Top up if below lower mark.
Act if: Below lower mark, milky oil, or any leak at hose connections.
5
Air Filter
Check restriction indicator lamp on the instrument panel.
Act if: Restriction lamp is illuminated — do not start; replace filter first.
6
Battery
Check terminal tightness and corrosion. Check electrolyte level if accessible.
Act if: Loose terminals, severe corrosion, or electrolyte below MIN mark.
7
Central Lubrication
Check grease reservoir level and confirm auto-lube pump cycles on startup.
Act if: Reservoir empty or pump fails to cycle — manually grease all points.
8
Walk-Around Inspection
Visually inspect hoses, cables, structural connections, fasteners, and ground under the machine.
Act if: Fluid leak, damaged hose, cracked weld, or loose fastener is found.
9
Wire Rope — Main Winch
Inspect Ø36 mm rope full length for kinks, bird-caging, broken wires and corrosion.
Act if: 3 or more broken wires in one lay — remove rope from service immediately.
10
Wire Rope — Auxiliary Winch
Inspect Ø20 mm auxiliary rope with the same criteria as main winch.
Act if: Any similar defect — report to site supervisor before starting shift.
11
Kelly Bar and Guide
Check guide sliding strips for wear and confirm locking pin engages fully.
Act if: Locking pin fails to engage or guide strip is cracked / missing.
12
Safety Systems
Test SANY-ADMS panel, depth meter, overload alarm, E-stop and all cameras.
Act if: Any safety system is non-functional — do not operate until repaired.
Critical note: this is a derived maintenance reference. Confirm all service intervals, fluid grades, quantities, torque values, rope retirement limits and alert set-points with the official SANY SR285R Operation & Maintenance Manual before performing any service.
Service Schedule by Hourmeter
Use hourmeter reading for service timing. Lower-interval items must be done at every higher-interval service.
50-hour / weekly service — includes all daily checks.
Lubrication
Slewing ring
Grease via all nipples on gear face, inner and outer race; EP2 lithium-complex grease.
Mast and crowd cylinder
Grease mast pivot pins, upper/lower guide brackets, crowd arm pins and crowd cylinder pin bearings.
Track chain and winch drums
Grease track pin joints full length and main/aux winch drum bearing shafts.
Gearboxes & Reducers
Travel reducers ×2
Check gear oil level; top up if below MIN.
Swing reducer
Check gear oil level; top up if below MIN.
Rotary drive gearbox
Check gearbox oil level; top up if below MIN.
Rope, Structure & Fuel
Main and auxiliary winch ropes
Apply full-length wire rope lubricant to Ø36 mm main and Ø20 mm auxiliary ropes.
Structural bolts
Inspect and tighten accessible structural bolts: slewing ring, mast foot and chassis. Torque to OEM spec.
Mast guide strips and fuel pre-filter bowl
Inspect guide strips for wear/deformation; drain water and sediment from fuel pre-filter bowl.
250-hour service — includes all 50h items.
Engine & Fuel
Engine oil and oil filter
Change engine oil and replace oil filter. Typical reference: API CI-4, SAE 15W-40.
Fuel pre-filter
Replace water/oil separator element with SANY / ISUZU genuine part.
Drive belt and fuel tank strainer
Check belt tension/condition; clean fuel tank strainer and inspect for sediment.
Hydraulic & Greasing
Hydraulic oil condition
Check condition; replace if milky or contaminated. Typical reference: ISO VG 46 or 68 AW.
Hydraulic return filter indicator
Check indicator; replace element if indicator shows red.
Full lubrication circuit
Grease all nipples: mast, crowd, slewing ring and travel. Record in logbook.
Mast, Kelly & Structure
Wire rope sheaves
Inspect groove wear and free rotation; replace sheave if groove wear exceeds limit.
Kelly bar wear segments
Check locking pin and spring; replace worn segments as per OEM specification.
Mast guide rails
Inspect for cracks, wear or deformation; perform NDT if crack suspected.
500-hour service — includes all 250h items. Key focus: reducer oil changes, hydraulic filters and hose inspection.
Engine
Oil and filters
Change engine oil. Replace oil filter, fuel pre-filter and fuel main filter with genuine parts.
Engine V-belt
Check condition; replace if cracked, glazed or frayed. Mandatory replacement at 1,000h.
Hydraulic System
Return filter
Replace hydraulic return line filter element; record part number and hours.
Hydraulic hoses
Inspect all hoses; replace cracked, abraded or bulging hoses, especially high-flex connections.
Crowd cylinder
Inspect rod seals; re-seal cylinder if leakage is observed at rod.
Reducers & Structure
Travel, swing, main winch and aux winch reducers
Change gear oil / reducer oil with full drain and refill.
Kelly guide strips
Inspect and replace if clearance is excessive.
Structural pins
Inspect mast foot, crowd and chassis pivot pins; replace worn pins/bushings if play exceeds OEM tolerance.
1,000-hour / annual service — includes all 500h items. Key focus: hydraulic oil, all filters, valve clearance and NDT.
Engine
Oil and fuel filters
Change engine oil. Replace oil filter, fuel pre-filter and fuel main filter.
Primary air filter
Replace primary air filter element; do not clean. Safety element due every 2,000h or after 3 primary changes.
Drive belt and valve clearance
Replace drive belt; check valve clearances by ISUZU-authorised or SANY-certified technician.
Hydraulic & Rotary Drive
Hydraulic oil
Change complete hydraulic system oil: drain tank, clean and refill. Typical reference: ISO VG 46 or 68 AW.
All hydraulic filters
Replace suction strainer, pilot and return filters with genuine parts.
Main hydraulic pump and rotary drive
Measure pump flow/pressure output; change rotary drive gearbox oil.
Structure, Rope & Safety
Slewing ring and structure NDT
Inspect gear mesh and mounting bolt torque; NDT mast welds, crowd arm and chassis high-stress joints.
Wire rope assessment
Assess main Ø36 mm and auxiliary Ø20 mm ropes for retirement; retire if breakage exceeds OEM limit or rope is kinked.
Safety systems
Full functional test: overload alarm, SANY-ADMS, depth meter and E-stop; recalibrate depth meter.
2,000-hour major overhaul — includes all 1,000h items. Key focus: coolant change, hose replacement, injector test, full NDT and rope retirement.
Engine
Coolant
Change complete engine coolant with full flush and refill.
Air filters
Replace both primary and safety inner air filter elements; mandatory at 2,000h regardless of condition.
Injectors
Inspect and test fuel injector spray pattern; recalibrate or replace by ISUZU-authorised workshop.
Hydraulic & Reducers
Hydraulic cylinders
Inspect rods for scratches, corrosion or pitting; re-seal all cylinders if seepage or rod damage is present.
Hydraulic hoses
Replace all hydraulic hoses at the 2,000h service life limit, including return, drain and pilot hoses.
Travel and swing reducers
Change travel reducer oil and swing reducer oil as full major service.
Structure, Kelly & Rope
Slewing ring
Inspect bearing for roughness; measure ring play and bolt torques. Replace if play exceeds OEM specification.
Kelly bar and structural NDT
Full kelly bar inspection for cracks, straightness and locking pin wear; full NDT of mast, crowd arm, mast foot and chassis.
Wire rope retirement
Mandatory retirement at 2,000h or 4 years, whichever comes first; replace main and auxiliary ropes regardless of visible condition.
Warning Alerts & Immediate Actions
RED = stop drilling and engine immediately. AMBER = take corrective action before continuing work.
RED
Engine Low Oil Pressure
Engine oil critically low or oil pump failure.
Immediate action: Stop drilling and engine immediately. Do not restart. Check oil level and pump lines.
Risk if ignored: Seized crankshaft and catastrophic engine failure.
RED
Engine High Coolant Temp
Coolant low, radiator blocked or thermostat failure.
Immediate action: Stop drilling, idle engine, allow to cool, then check coolant level and radiator.
Risk if ignored: Blown head gasket, warped head or engine seizure.
RED
Hydraulic Overpressure
Pressure relief valve sticking or load relief failure.
Immediate action: Retract all functions, stop engine immediately and do not operate.
Risk if ignored: Hose burst, cylinder seal failure and structural damage.
RED
Hydraulic Overtemperature
Oil above safe limit because cooler is blocked or oil level is low.
Immediate action: Stop all hydraulic functions. Idle engine for 5 minutes. Check oil and cooler.
Risk if ignored: Seal failure, oil degradation, pump and motor damage.
RED
Rotary Drive Overload
Torque limit exceeded due to ground resistance above machine capacity.
Immediate action: Stop rotation, retract kelly, do not force through obstruction and assess ground.
Risk if ignored: Rotary gearbox damage and kelly bar buckling.
AMBER
Air Filter Restriction
Air filter element blocked; restriction indicator lamp illuminated.
Immediate action: Stop at next safe opportunity and replace primary filter element.
Risk if ignored: Power loss, excessive smoke and premature engine wear.
AMBER
Low Fuel Level
Fuel below minimum threshold with risk of air in the fuel system.
Immediate action: Refuel at next opportunity. Do not run the tank dry.
Risk if ignored: Air lock, fuel injector damage and difficult restart.
AMBER
Low Hydraulic Oil Level
Oil below lower mark, possible leak present.
Immediate action: Stop work, inspect for leaks, and top up with correct grade before resuming.
Risk if ignored: Pump cavitation, component wear and hydraulic failure.
AMBER
Battery / Charging Fault
Alternator output low or battery weak.
Immediate action: Check alternator belt and terminals. Charge or replace battery.
Risk if ignored: SANY-ADMS shutdown and complete electrical failure.
AMBER
Central Lubrication Fault
Auto-lube reservoir empty or pump fault.
Immediate action: Top up reservoir and manually grease all pivot points before continuing.
Risk if ignored: Premature wear of pins, slewing ring and mast guide.
Critical note: verify all intervals, fluid grades, quantities and alert set-points with the official SANY SR285R Operation & Maintenance Manual before performing service.
Frequently Asked Questions
Everything you need to know about the SANY SR285R C10 Rotary Drilling Rig
The SR285R C10 has a maximum drilling diameter of 2,300 mm.
Maximum drilling depth is 94 m with friction Kelly and 61 m with interlocking Kelly. The standard interlocking Kelly bar is Φ508×4×17 with 61 m depth.
The rotary drive provides 285 kN·m rated output torque with 5–24 rpm rotation speed.
The rig uses an ISUZU 6WG1 diesel engine rated at 300 kW @ 1,800 rpm, with 15.68 L displacement and COM III / R96 emission standard.
The operating weight is 100 t. Transport dimensions are 18,125 mm length, 3,490 mm width and 3,690 mm height.
