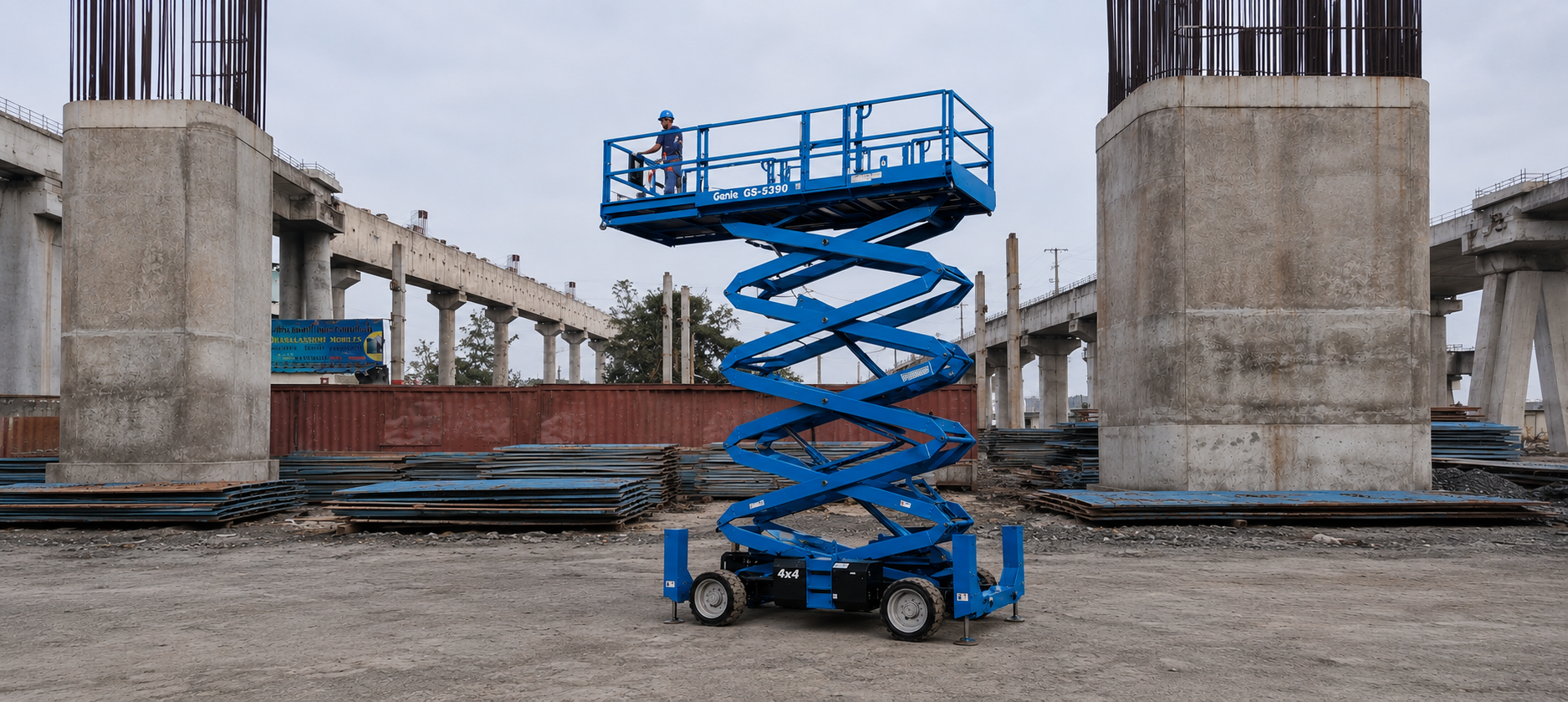

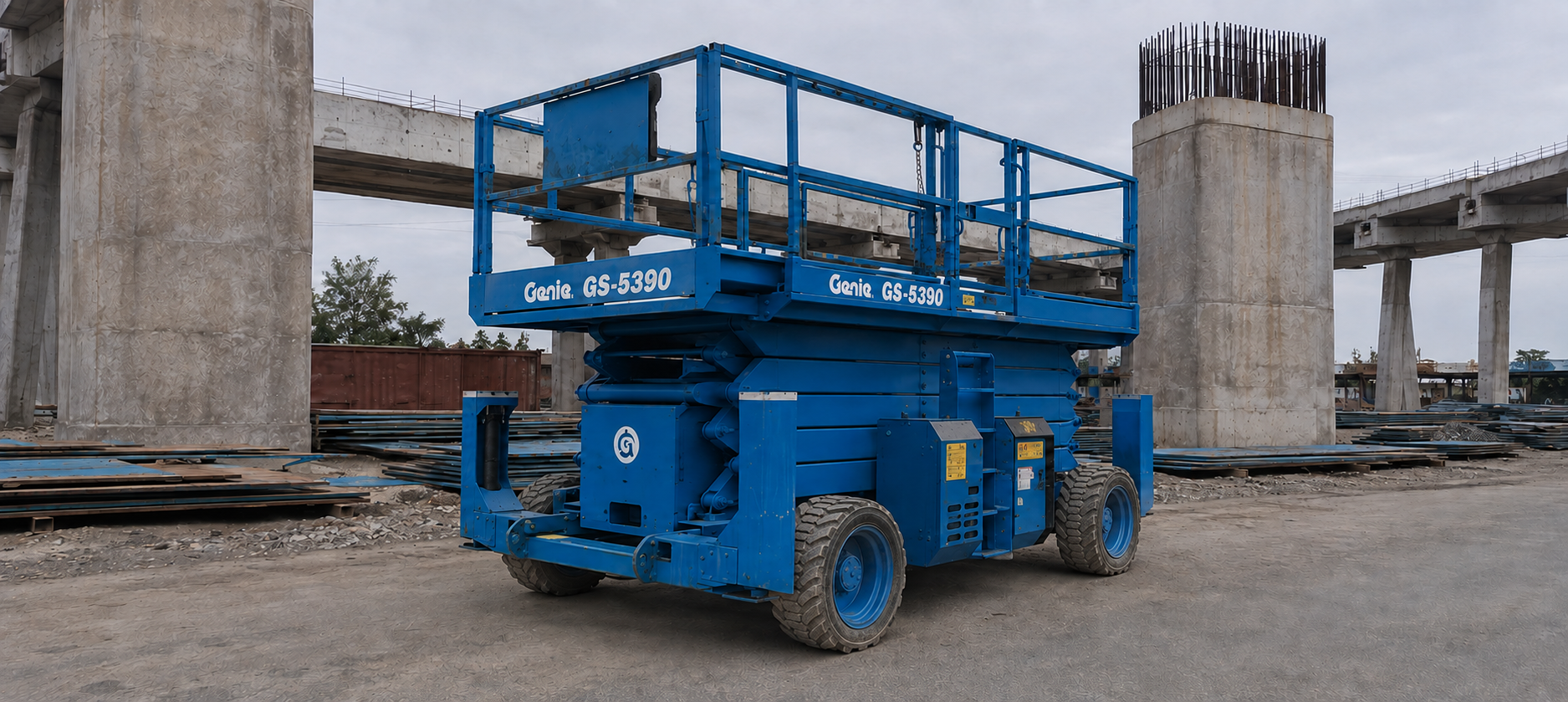

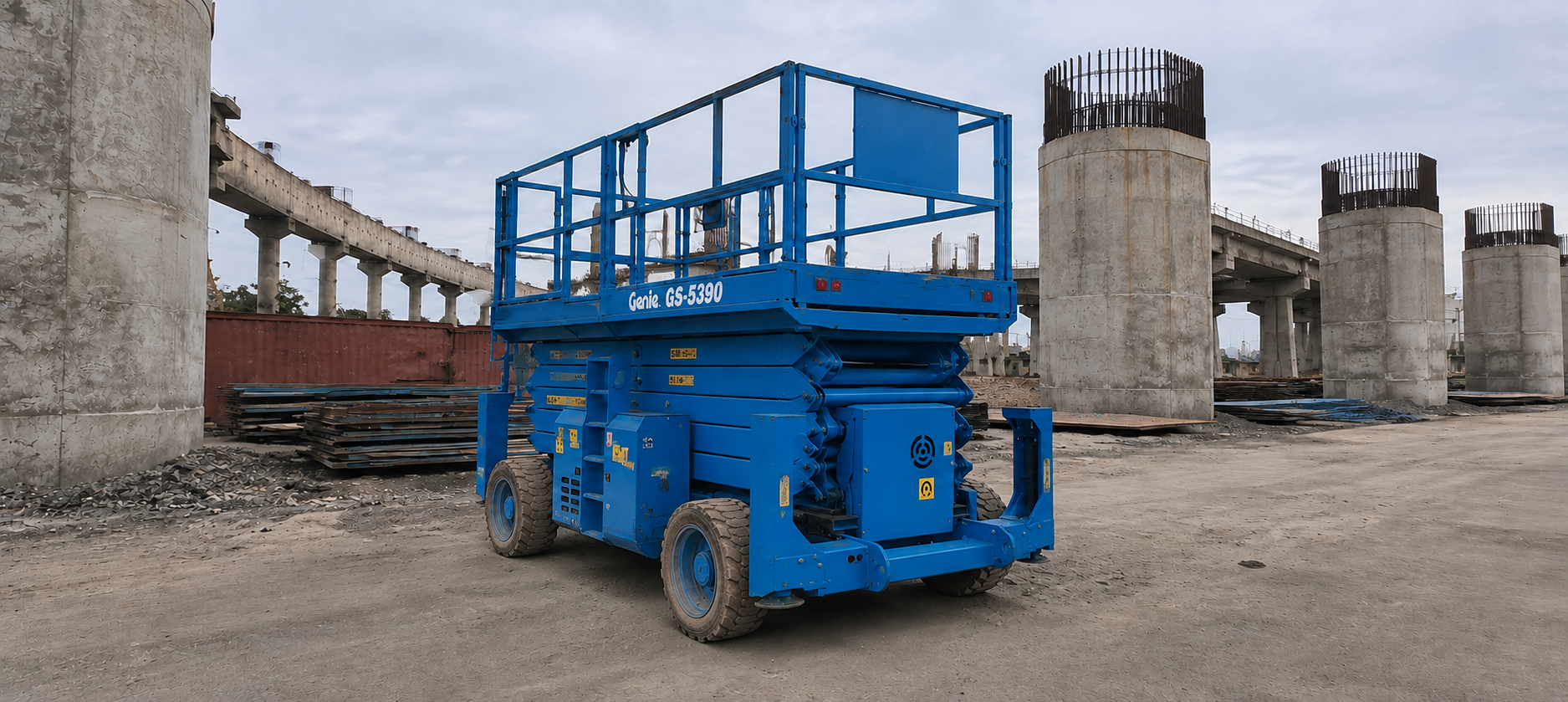

The Genie GS-5390 RT is a diesel rough-terrain scissor lift with 17.95 m working height, 15.95 m platform height, 680 kg lift capacity, four-wheel drive, standard auto-levelling outriggers and a Deutz D2011L03i 36 kW air-cooled engine.
17.95 m / 58 ft 10 in
15.95 m / 52 ft 3 in
680 kg / 1,500 lb
227 kg / 500 lb
Deutz D2011L03i
36 kW / 49 hp
8.0 / 1.1 km/h
40% stowed
Standard auto-levelling
130 L
113.6 L / 30 gal
30 x 84 cm / 12 x 33 in
2.29 m / 7 ft 6 in
7,639 kg / 16,840 lb
Track & Trace option
Product specifications for Genie GS-5390 RT Rough Terrain Scissor Lift
Daily inspections, serial-dependent function tests, service intervals, warning actions and fluid/service data for the GS-5390 rough terrain scissor lift.
Complete before every shift. Tag and remove any damaged, malfunctioning or nonconforming machine from service.
Confirm manuals are present in the platform container and decals / serial labels are legible.
Act if: manuals or labels are missing; replace before use and select the correct serial-range manual.
With platform stowed and engine off, inspect sight gauge plus hoses, fittings, cylinders, manifolds and drive motors.
Act if: level changes, oil is outside range, or any leak is visible.
Check the dipstick with engine off and inspect the tray for oil leakage.
Act if: level is incorrect, oil grade is wrong or a leak is present.
Inspect and drain the D2011 fuel filter / water separator when required by the schedule.
Act if: water or leakage is found; drain or repair before operation.
Inspect 12 V battery, cables, terminals, hold-down, wiring, switches, sensors, alarms and horn.
Act if: terminals are loose/corroded or wiring is burnt, chafed, pinched or modified.
Inspect foam-filled RT tyres, wheels, lug fasteners, drive hubs and brake-release caps.
Act if: tyre/wheel damage, missing fasteners, hub leak or disengaged cap is found.
Check scissor arms, wear pads, slider blocks, pins, retainers, welds and safety arm.
Act if: a critical pin, retainer, pad or structural component is damaged or missing.
Inspect all four outrigger housings, cylinders, hoses, pins and footpads.
Act if: leaks, damage or interlock/indicator failure is found.
Inspect main deck, extension decks, guardrails, pins/bolts, entry gate and anchorage points.
Act if: gate, rails, extensions or anchorage points are damaged or unsecured.
Test ground/platform Emergency Stop, raise/lower enable and descent alarm.
Act if: engine/functions do not stop or lift operates without enable.
Drive slowly both directions, return handle to neutral, test slope holding, steering response and horn.
Act if: direction, stopping response, brake holding or steering is incorrect.
Verify raised drive speed, deployment-height limits, tilt cutouts and drive disable conditions by serial.
Act if: any serial-matched limit, alarm, lift stop or drive cutout fails.
Auto-level on firm ground; all feet must contact firmly and indicators must turn green.
Act if: leveling, contact indication, interlocks or full-height lift availability is incorrect.
Raise about 0.6 m, stop engine with Emergency Stop and use auxiliary power to lower.
Act if: the platform does not lower using auxiliary power.
If the red error indicator illuminates, cycle the red Emergency Stop as directed.
Act if: the light remains red; tag and remove from service.
Park on a firm, level, hazard-free area; stow the platform, isolate power when required, chock safely if needed, and use the exact serial-range Genie manual before parts ordering or scheduled engine work.
Select an interval to view the work due. Complete all shorter-interval tasks that are also due.
Engine oil level
Check / top up with D2011-compatible oil.
Hydraulic oil level
Check sight gauge with platform stowed.
Hydraulic leaks
Inspect hoses, fittings, cylinders, manifolds and pump area.
Emergency stops
Ground and platform E-stop must stop the engine and all functions.
Horn, descent alarm and beacons
Confirm required warning devices respond.
Tires, wheels and hubs
Inspect tires, wheels, fasteners, hubs and brake-release caps.
Drive, steering and brakes
Verify direction, neutral stop, slope holding and steering response.
Scissor structure and platform
Inspect wear pads, pins, safety arm, decks, rails and gate.
Outriggers and cutouts
Test auto-level, interlocks, tilt cutout, auxiliary lowering and raised speed.
Fuel-separator element
Replace Deutz fuel-filter / water-separator element.
Engine RPM and tyre torque
Check / adjust engine RPM and inspect / torque tires and wheels.
Hydraulic filters
Replace hydraulic filters for later-serial first service or as specified.
Drive-hub oil
Replace drive-hub oil on later manuals or inspect / re-tension D2011 V-belt where required.
Drive-hub oil
PN 84793 machines: replace oil in all four drive hubs.
Hydraulic oil / filters
Later manuals: visually inspect hydraulic oil and inspect hydraulic filters.
Service documentation
Record the serial, hour meter, findings, repairs and retest results.
Air filter and exhaust
Inspect air filter element and exhaust system.
Fuel pre-cleaner
Drain water and clean according to the serial-matched plan.
Hydraulic oil condition
Analyse / visually inspect oil condition as applicable.
Drive hubs
Check oil level and torque hub fasteners where due.
Tires and wheels
Inspect and torque lug / castle nuts.
Outrigger / lift limits
Test GS-5390 up-limit, drive cutout and outrigger interlocks.
Wiring and key switch
Inspect wiring and test key switch, E-stops, horn, brakes and drive speed.
Engine oil and filter
Replace engine oil and oil-filter cartridge.
Fuel filter / separator
Replace the fuel-filter / water-separator element when due.
Belts, valve clearance and mounts
Inspect / adjust V-belt and valve clearance; inspect engine mounts.
Hydraulic filters
Replace return / pressure filters as specified by the fitted filter assembly.
Scissor wear pads
Measure / inspect scissor-arm wear pads and slider blocks.
Platform overload / descent delay
Test systems if equipped.
Function test
Complete full function tests after service and record findings.
Repeat due 500 h work
Engine oil/filter, fuel filters and D2011 inspections as applicable.
Injection valve
Inspect according to Deutz / serial-specific schedule.
Drive-hub free-wheel configuration
Check caps and configuration.
Oscillating axle
Complete full oscillating-axle test where equipped.
Wear pads / slider blocks
Inspect scissor-arm wear pads and replace when out of tolerance.
Programmed inspection
Complete annual inspection report and repair / re-inspect findings.
Hydraulic oil
Test / replace oil as required by the serial-matched manual and condition.
Drive-hub oil
Replace drive-hub oil after first-service cycle as scheduled.
Fuel hoses and V-belt
Replace fuel leakage lines / hoses and V-belt where due.
Air-filter safety element
Replace inner / safety air-filter element if due.
Programmed work
Complete every item due by hour meter, calendar and serial-family matrix.
Service record
Record fluid changes, repairs, test results and return-to-service approval.
PN 84793 machines
Platform must stop at maximum platform-deck height of 9.1 m with outriggers raised.
PN 1331899GT machines
Stop height is 10.8 m with outriggers raised; drive must be disabled at the stop height.
Fuel tank capacity
Maintain clean fuel and inspect the tank, cap, lines and fittings for leakage.
Fuel-water separator
Drain collected water and sediment at the scheduled interval.
Tank and system
Hydraulic tank: 113.6 L / 30 gal; complete GS-5390 system including tank: 147 L.
D2011 L03i
Do not add liquid-coolant rows from other Genie engine configurations; keep oil cooler and cooling fins clean.
Confirm serial number, labels and installed equipment before filling or ordering service parts.
Fuel tank
130 L capacity for the GS-5390 RT with Deutz D2011L03i engine.
Fuel type
Use clean low-sulfur diesel suitable for the D2011 configuration.
Hydraulic tank
113.6 L / 30 gal tank; complete GS-5390 hydraulic system including tank is 147 L.
Oil specification
Chevron Rando HD equivalent; service data identifies Rando HD Premium Oil MV, ISO grade 32.
Engine oil
Use Deutz D2011 dipstick and engine manual; machine ships with SAE 15W-40.
Engine cooling
Air-cooled engine; coolant is not applicable to D2011. Keep oil cooler and fins clean.
Drive-hub oil
SAE 90 multipurpose hypoid gear oil, API GL-5.
Capacity
769 cc / 26 fl oz per hub.
Battery
12 V DC Group 31, 1000 CCA, 200 min reserve at 25 A.
Wheel fasteners
169.5 Nm dry / 127.4 Nm lubricated; do not mix torque methods.
GS-90 RT tires
30 x 84 cm / 12 x 33 in foam-filled rough terrain tyres. Match exact tire label and serial configuration.
Red means tag and remove from service. Amber means correct before continuing. Green means planned maintenance is due.
Action: Tag and remove the machine. Record displayed fault information and diagnose with the matching Genie service manual.
Action: Stop by the safest available means and remove from service until both stations stop engine and functions.
Action: Do not raise or occupy the platform. Complete qualified repair and full function tests.
Action: Lower / stow if safe, stop engine and remove from service. Never search for a pressurized leak by hand.
Action: Stop testing and tag out until brake / drive repair and complete OEM test are passed.
Action: Remove from service if outriggers, drive cutout, tilt alarm/cutout, deployment-height limit or auxiliary lowering fails.
Action: Correct with Chevron Rando HD equivalent, do not overfill and inspect for leak or service error.
Action: Stop the engine, correct level / grade and investigate leakage before operation.
Action: Replace required operating information and confirm serial before use.
Action: Repair the device and circuit before continuing normal operation.
Action: Complete the applicable 40/50/150-hour first-service items and record completion.
Action: Complete every component row due in the selected serial-family matrix and repair all findings.
Do not operate, elevate, drive or occupy the platform after any failed function test, active red fault, structural damage, hydraulic leak, failed interlock or failed braking / steering test. Tag the machine out until repaired and retested.
