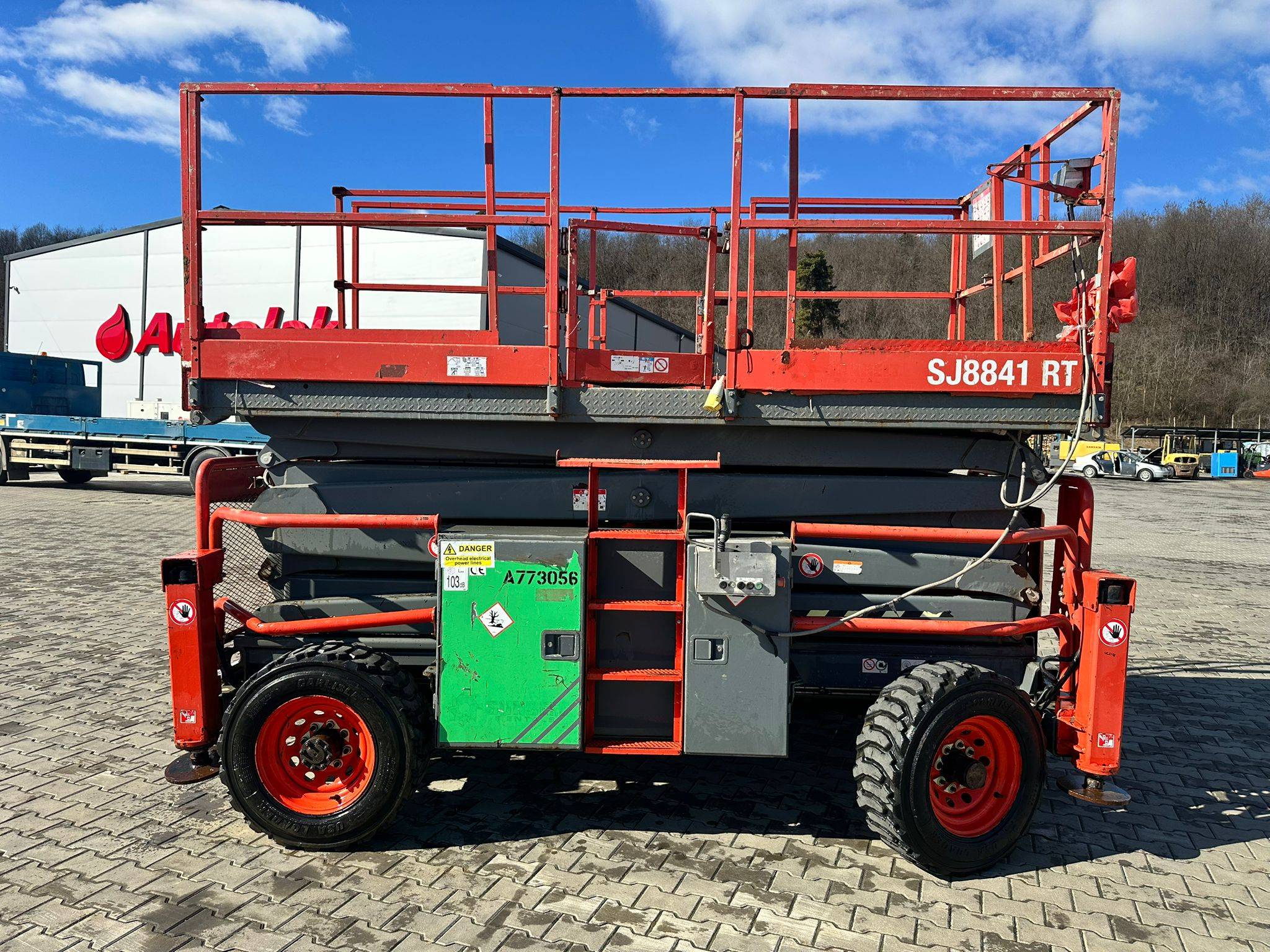

Skyjack SJ8841 RT Rough Terrain Scissor Lift Specs & Features

Key Highlights

Engine

Dual Fuel (Gas/Propane) or Diesel

Gradeability

30%

Lift Capacity

680 kg / 1,500 lbs

Drive

4WD Axle Based

Drive Speed

5.6 km/h (Stowed)

Extension Deck

1.22 m Roll-Out

Max Drive Height

Full Height

Lift Time

56 sec (With Load)

Machine Width

2.21 m

Wheelbase

2.27 m

Tyres

10×16.5 Air-Filled

Ground Clearance

20 cm

Max Persons

Ext. Deck Capacity

227 kg

Rear Differential

Detroit Locker Type

Specifications

Product specification of Skyjack SJ8841 RT Rough Terrain Scissor Lift

PERFORMANCE

Working Height

47 ft / 14.32 m
Platform Height (Raised)

41 ft / 12.50 m
Platform Height (Lowered)

69 in / 1.75 m
Lift Capacity (Overall)

1,500 lbs / 680 kg
Lift Capacity with 1 Extension Deck (Main / Front)

454 kg / 227 kg
Lift Capacity with 2 Extension Decks (Main / Front / Rear)

227 kg / 227 kg / 227 kg
Max. Persons

5
Max Drive Height

Full Height
Drive Speed (Stowed)

3.5 mph / 5.6 km/h
Drive Speed (Raised)

0.6 mph / 1 km/h
Gradeability

30%
Turning Radius (Inside / Outside)

4.01 m / 6.30 m
Lift Time (With Rated Load)

56 sec
Lower Time (With Rated Load)

53 sec

ENGINE

Engine Type

Dual Fuel (Gas / Propane) or Diesel
Drive System

Axle Based 4WD
Differential

Detroit Locker Type Rear + Limited Slip Front

TYRES

Standard

Air-Filled Grip Lug, 10 × 16.5
Option 1

Foam-Filled Grip Lug, 10 × 16.5
Option 2

High Flotation Air-Filled (reduces capacity to 567 kg)
Option 3

Non-Marking Grip Lug Air-Filled, 10 × 16.5
Option 4

Non-Marking Grip Lug Foam-Filled, 10 × 16.5

PLATFORM

Platform Width (Inside)

1.70 m
Platform Length (Inside)

3.40 m
Extension Deck

1.22 m (4 ft) Roll-Out
Optional

Dual Extension Decks (front and rear)

DIMENSIONS & WEIGHT

Operating Weight

10,880 lbs / 4,935 kg
Overall Length

3.53 m
Overall Width

2.21 m
Stowed Height (Rails Up)

2.90 m
Stowed Height (Rails Down)

2.22 m
Wheelbase

2.27 m
Ground Clearance

8 in / 0.20 m

Frequently Asked Questions

Everything you need to know about the Skyjack SJ8841 RT Rough Terrain Scissor Lift

The Skyjack SJ8841 RT delivers a raised platform height of 12.50 m (41 ft) and a working height of 14.32 m (47 ft), making it well-suited for demanding outdoor elevated work applications.

The Skyjack SJ8841 RT has an overall lift capacity of 680 kg (1,500 lbs). When one extension deck is active, capacity reduces to 454 kg on the main deck and 227 kg on the front extension deck, supporting up to 5 persons on the platform.

Yes, the Skyjack SJ8841 RT is driveable at full platform height. Drive speed is 5.6 km/h (3.5 mph) when stowed and 1 km/h (0.6 mph) when raised, allowing precise repositioning at elevation without lowering the platform.

The Skyjack SJ8841 RT is available with a dual fuel engine (gasoline/propane) or a diesel engine. The drive system is axle-based 4WD with a Detroit Locker type rear differential and a limited slip front differential for superior rough terrain traction.

The standard tyre is a 10×16.5 air-filled grip lug. Optional variants include foam-filled grip lug (10×16.5), high-flotation air-filled (which reduces rated capacity to 567 kg), non-marking grip lug air-filled (10×16.5), and non-marking grip lug foam-filled (10×16.5).
