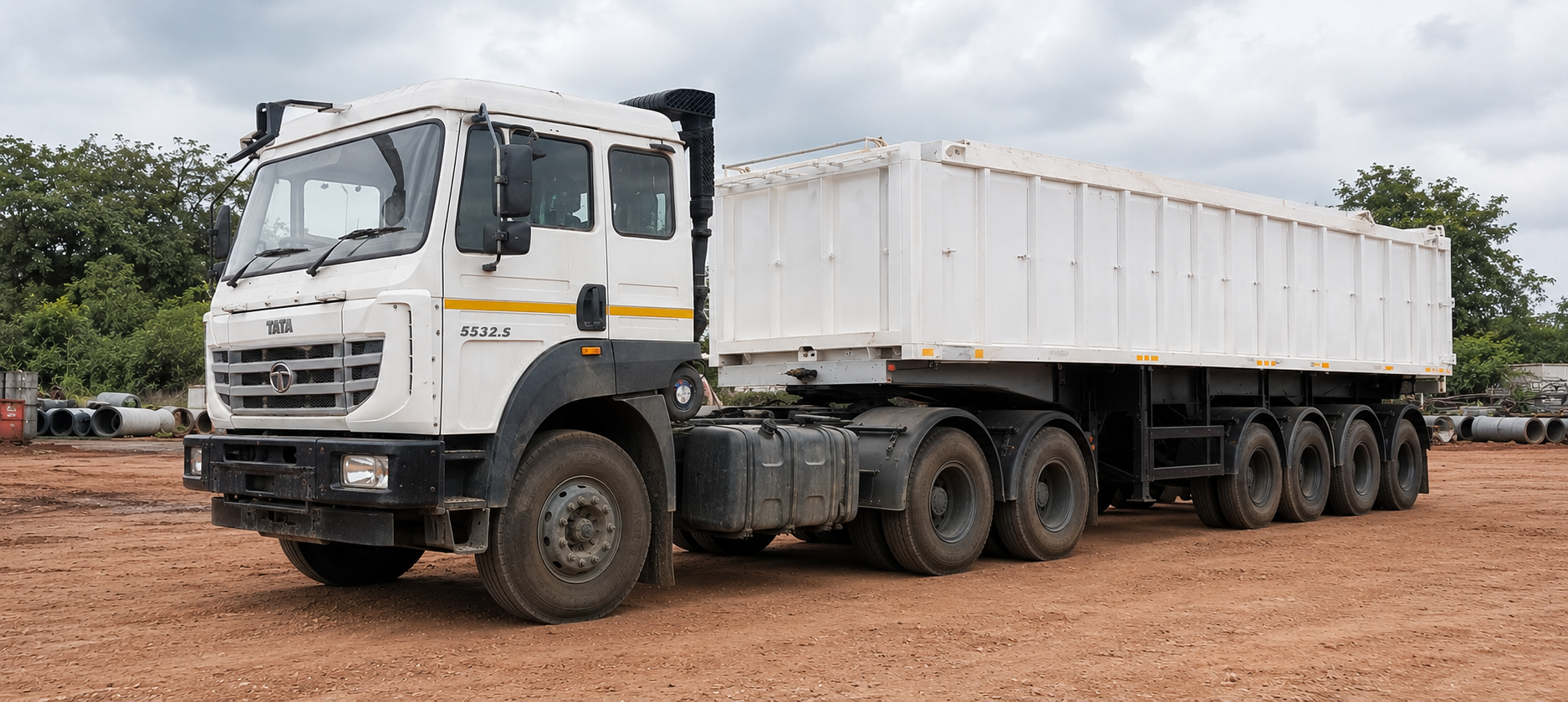

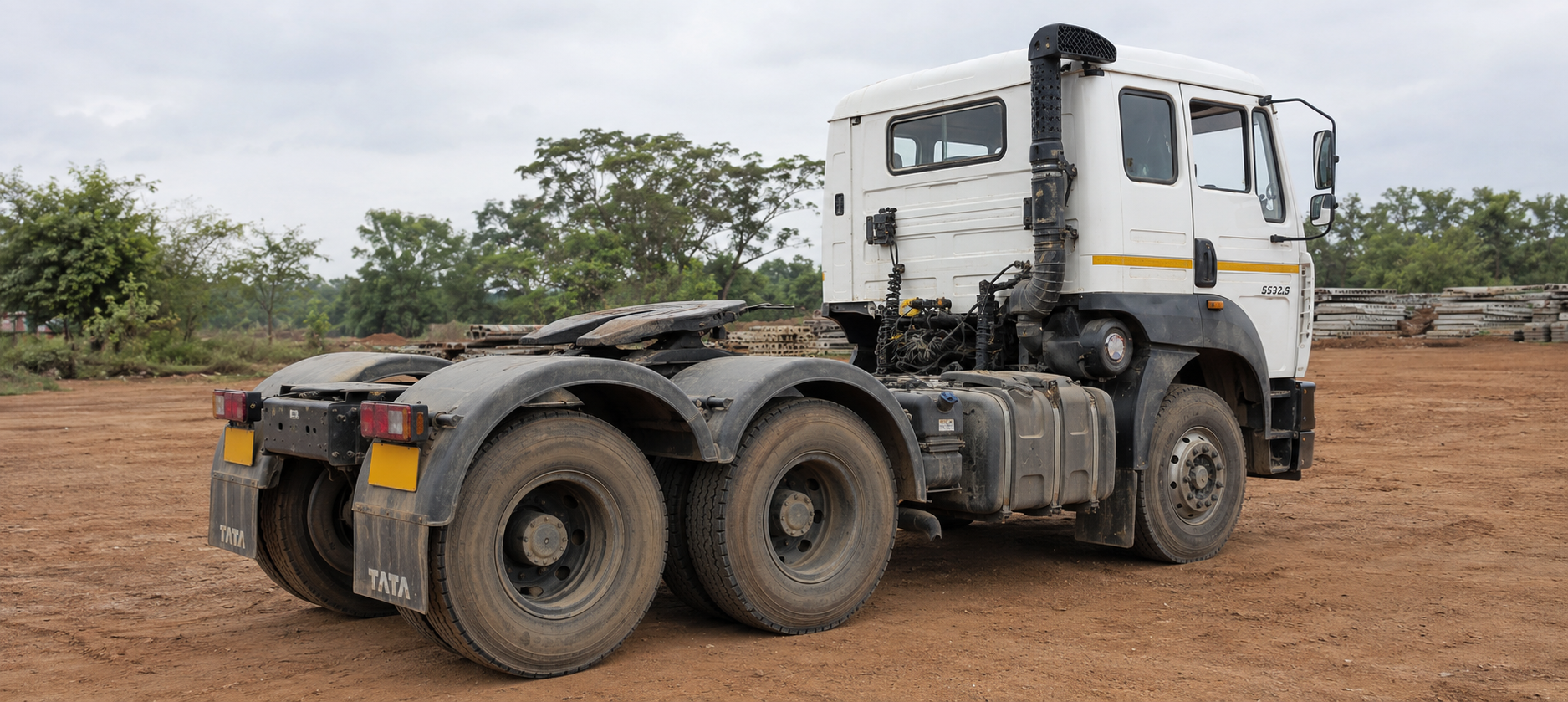

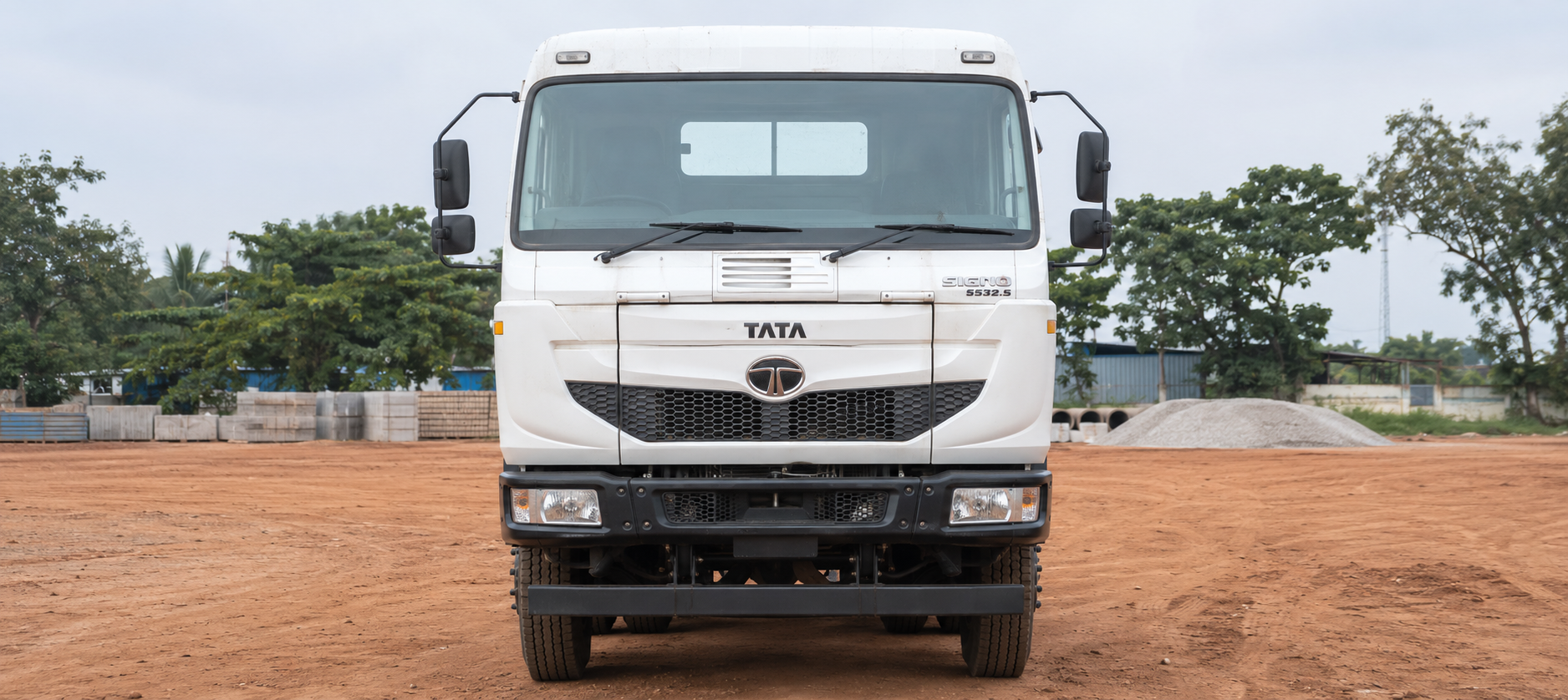

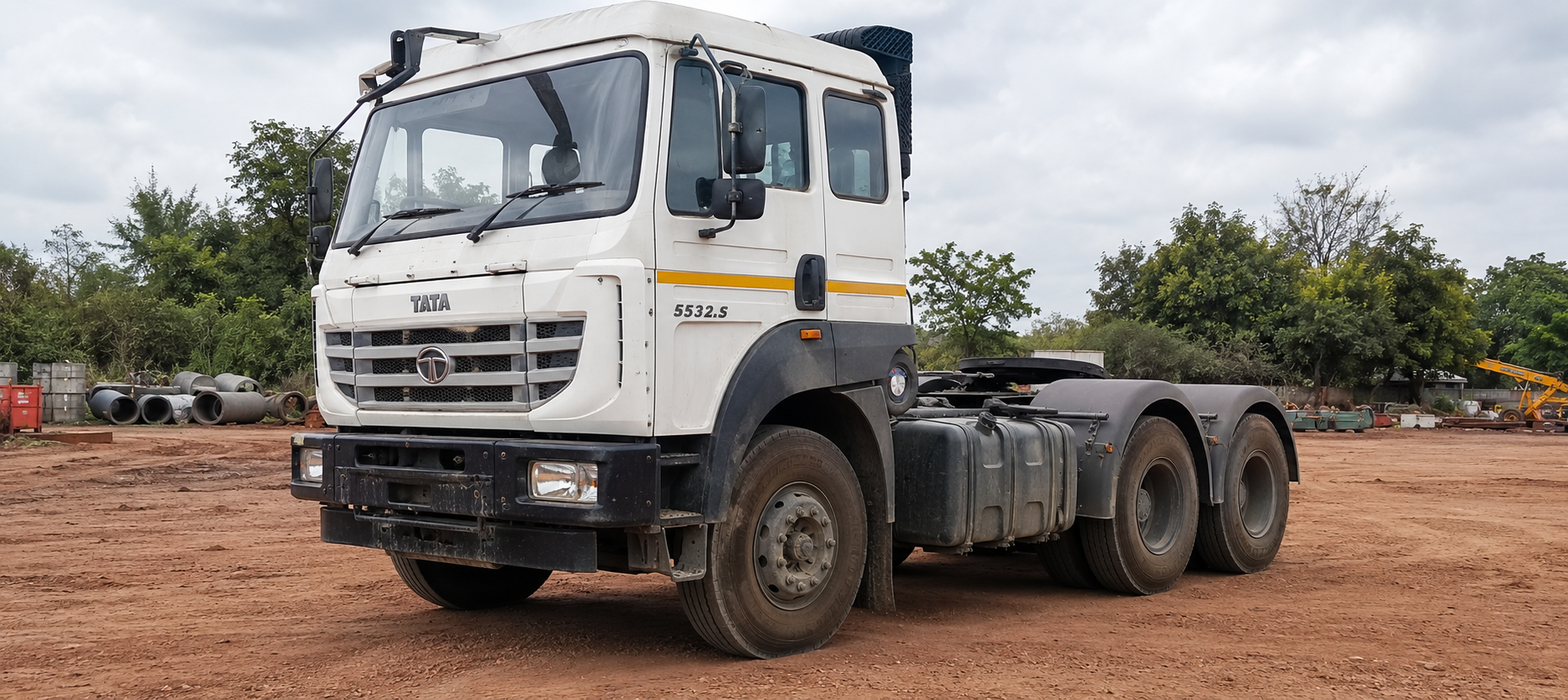

The Tata Signa 5532.S 6x4 is a 55,000 kg GVW heavy-duty truck powered by the Tata Cummins ISBe 6.7 OBD-II engine. It delivers 239 kW / 320 HP at 2,300 r/min and 1,100 Nm torque from 900-1,900 r/min, paired with a Tata G1150 9-speed transmission, 6x4 configuration and 10 tyres.
55,000 kg
Tata Cummins ISBe 6.7 OBD-II
6,702 cc
239 kW / 320 HP @ 2,300 r/min
1,100 Nm @ 900-1,900 r/min
430 mm pull type, single plate dry friction
Tata G1150 9-Speed
Extra heavy-duty forged 7T I-beam
RA 109 SRT
Parabolic leaf spring
Bell crank / bogie option
Signa cabin
295/90R20 LRR radial tube type
380 L
39 WB
230 mm / 217 mm
6x4
10 tyres
Driver assistance feature
Supported feature
Detailed technical specifications for Tata Signa 5532.S 6x4
Daily pre-start checks · kilometre-based service schedule · warning actions · fluids and lubricants.
Complete before the first trip with the engine stopped unless a check requires it to run.
Park level, stop the engine for a few minutes and check the dipstick.
Act if: oil is low, milky, foaming or smells of diesel. Top up correctly or stop and report.
When cold, check the recovery tank or radiator sight glass. Never open a hot cap.
Act if: low, top up with a 60:40 clean-water and ethylene-glycol mixture. Allow a hot system to cool first.
Inspect beneath the engine, hoses, radiator, gearbox, rear axle and steering for fresh drips.
Act if: any active leak is found. Keep the vehicle out of service until repaired.
Switch on the ignition and observe the water-in-fuel indicator.
Act if: the indicator remains on. Drain sediment from the separator before starting.
Check the gauge and refill the 380 L tank with clean diesel at shift end to limit condensation.
Act if: fuel is low. Refuel before the next trip and never run the tank dry.
Check the instrument cluster for the air-filter clogging indicator.
Act if: shown, replace the primary air-filter element. Do not clean the element.
Drain oil-condensate water from every air tank.
Act if: discharge is excessive or oily. Have the air dryer inspected.
Check leaks, switches, gauges and pressure build-up for service, exhaust and parking brakes.
Act if: a leak, slow pressure build-up or malfunction is found. Do not drive.
Inspect all 10 tyres for damage and check cold pressure with a gauge.
Act if: a bulge, cut or embedded object is found. Repair or replace before travel.
Check coupler operation, mounting and slider plates, king pin and bolt tightness before coupling.
Act if: loose, cracked or unable to lock and release correctly. Do not couple a trailer.
Verify all lights, switches, gauges, blinkers and warning lamps at start-up.
Act if: a warning stays on or a light or gauge fails. Resolve it before departure.
Before a long trip, inspect oil, fuel, coolant, exhaust and pneumatic lines throughout the vehicle.
Act if: any leak is present. Keep the vehicle out of service until repaired.
Check the washer tank and top up as required.
Act if: empty, refill before travel in dusty or wet conditions.
After every wash, check ABS wheel sensors and electrical connectors for cleanliness and secure fitment.
Act if: loose or corroded, clean and secure the connection before driving.
Use the kilometre or day limit, whichever occurs first.
Engine and cooling
Change engine oil and filter; check belts, damper bolts, radiator/intercooler, valve clearance, coolant concentration, mounts, leaks and diagnostic errors.
Fuel and aftertreatment
Clean the tank strainer; inspect tank mounts and service due fuel, DEF and ventilation filters.
Brakes, steering and driveline
Inspect brakes, air system, hubs, propeller shaft, steering, suspension, clutch and fifth-wheel coupling; drain air tanks and lubricate specified points.
Electrical, cab and general
Check lights, battery, horn, wiring, cab/body, all fluids, hoses, fasteners and leaks; wash, grease and road-test the vehicle.
Engine oil and filter
Drain hot, clean the drain plug and breather, renew oil and filter.
Air, brake and vehicle systems
Perform the full engine, brake, driveline, steering, suspension, electrical, cab and fifth-wheel inspection.
Fuel, DEF and crankcase filters
Renew fuel-filter elements and O-ring, DEF tank and supply-unit filters, and the crankcase ventilation cartridge.
Hub grease and front hub cap
Dismantle and clean taper-roller hubs, adjust play, renew grease and fill the front hub cap three-quarters if applicable.
Power-steering and cab-tilt oils
Drain and refill both systems and replace the steering filter cartridge.
Spring assemblies
Dismantle, clean and inspect the front, rear and cab-mounting springs; graphite-grease the leaves.
Gearbox and rear-axle oils
Drain hot, clean drain plugs and breathers, then refill with the confirmed grades.
Clutch fluid and hydraulics
Replace and bleed clutch fluid; overhaul the master/slave cylinder or booster.
Air compressor and dryer
Clean and decarbonise the compressor head; renew the dryer desiccant cartridge and filter.
Pneumatic brake aggregates
Complete the extended pressure/leakage check; dismantle, clean, inspect and grease aggregates.
DPF ash cleaning
Clean accumulated ash using the correct service procedure.
Power-steering and cab-tilt oils
Renew both oils and the steering filter cartridge.
Hub cap and spring assemblies
Refill the applicable front hub cap and service spring assemblies and leaves.
Gearbox oil
Drain hot, clean the drain plug and breather, then refill with the confirmed grade.
Clutch fluid and hydraulics
Replace and bleed clutch fluid; overhaul the master/slave cylinder or booster.
Cooling system
Drain, reverse-flush, check the thermostat and refill with a 60:40 coolant mixture.
Air compressor and dryer
Clean and decarbonise the compressor head; renew the dryer cartridge and filter.
Rear-axle oil
Drain hot, clean the drain plug and breather, then refill with the confirmed grade.
Power-steering and cab-tilt oils
Renew both oils and the steering filter cartridge.
Extended pneumatic service
Perform the detailed pressure/leakage check and service pneumatic aggregates.
Hub cap and spring assemblies
Refill the applicable hub cap and dismantle, clean, inspect and grease spring assemblies.
DPF ash cleaning
Clean accumulated ash using the correct service procedure.
Gearbox oil
Drain hot, clean the drain plug and breather, and refill.
Clutch fluid and hydraulics
Replace and bleed clutch fluid; overhaul the master/slave cylinder or booster.
Air compressor and dryer
Clean and decarbonise the compressor head; renew the dryer cartridge and filter.
Stop safely for red alerts; correct amber alerts before extended operation.
Action: stop the engine as soon as it is safe. Check the oil level and inspect for leaks before restarting.
Action: allow the engine to cool; check coolant level, radiator and fan for blockage before restarting.
Action: drain sediment manually from the fuel filter cum water separator before continuing.
Action: stop on firm level ground, chock the wheels if needed and remove the vehicle from service.
Action: replace the primary air-filter element. Do not clean it.
Action: if outlet pressure differential is outside 0.6–1.3 bar, inspect the dryer, desiccant cartridge and filter.
Action: check the belt, alternator wiring and terminals before extended operation.
Action: do not couple or continue towing. Repair the coupler, mounting, slider plate or king pin first.
Use clean filling equipment and verify vehicle-specific grades before filling.
Fuel tank
Use clean diesel; keep the cap, filler and strainer clean.
Engine oil
Use the approved grade for the Cummins ISBe 6.7 OBD-II engine.
Cooling system
Clean water and ethylene glycol in a 60:40 ratio.
Tata G1150 gearbox
Use the vehicle-approved transmission gear oil.
RA 109 SRT rear axle
Use the vehicle-approved axle gear oil.
Front and rear hubs
Use Tata Genuine Synthetic Grease; fill the applicable hub cap three-quarters full.
Clutch actuation
Use the vehicle-approved clutch fluid and bleed the system after renewal.
Power steering
Use the vehicle-approved oil and renew the filter when changing it.
Cab tilt
Use the vehicle-approved hydraulic oil.
Chassis grease points
Lubricate linkages, steering, brake S-cam bushes, suspension pins and propeller-shaft points.
Fifth wheel
Lubricate the plate surface, housing and king pin every 5,000 km.
