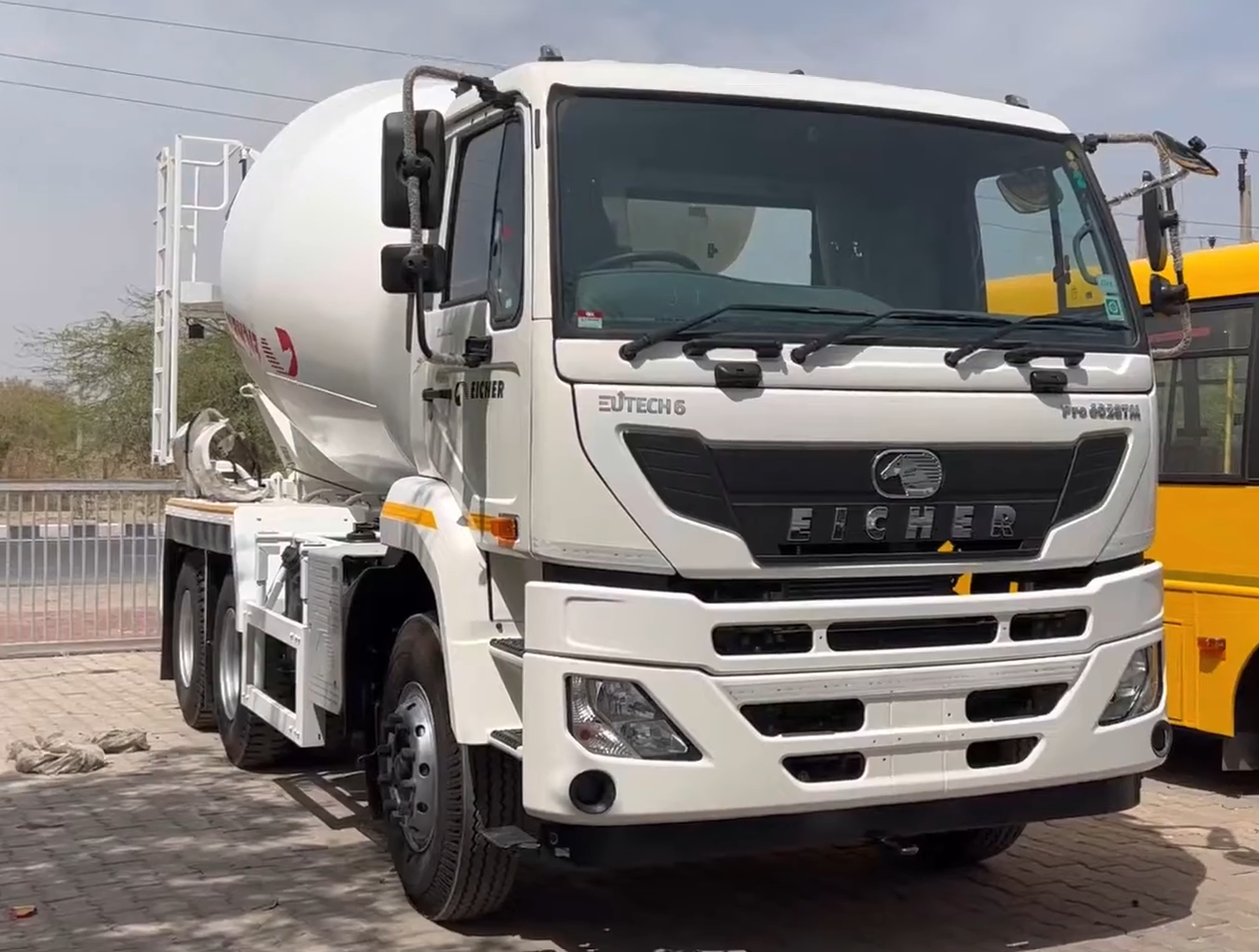

Eicher Transit Mixer

Eicher Pro 6035TM

A heavy-duty RMC Transit Mixer designed for superior fuel efficiency in construction and infrastructure projects.

Engine specification icon
EngineVEDX 260 HP
Drum capacity icon
Drum size9-11 m³
Torque rating icon
Max Torque1000 Nm
Speed icon
Max Speed80 km/h
Fuel tank icon
Fuel Tank220L
Operating weight icon
Gross Vehicle Weight35000 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine make icon
Engine Make

VEDX8 BS-VI

Engine displacement icon
Engine Displacement

7698 cc

Emission standard icon
Emission

BS-VI

Lighting configuration icon
Battery

24V / 120Ah

Fuel tank capacity icon
Fuel Tank

220 L

Gradeability icon
Gradeability

39%

Clutch diameter icon
Clutch Dia

430 mm

Drum drive icon
Drum Drive

Slave Engine

Axle configuration icon
Axle Configuration

6 x 4

Wheelbase configuration icon
No. of Tyres

12

Tyre size icon
Tyres Size

11x20 (Nylon)

Overall length icon
Overall Length

8815 mm

Wheelbase icon
Wheel Base

5285 mm

Air conditioned cabin icon
AC Cabin

Optional

GPS availability icon
GPS

Standard

Specifications

Product specification of Eicher Pro 6035TM

ENGINE

  • Model

    VEDX8 BS-VI

  • Fuel Type

    Diesel

  • Max Power

    260 HP (194 kW) @ 2200 Rpm

  • Max Torque

    1000 Nm @1000-1700 rpm

  • No. of Cylinders

    6 Cylinders

  • Engine Displacement

    7698 cc

  • Battery

    24V / 120Ah

TRANSMISSION & CLUTCH

  • Gear Box Model & Type

    ET140 S9, 8F+1C+1R

  • Clutch Type

    Pull type, Single dry plate

  • Clutch Dia

    430 mm

  • Drum Drive

    Slave Engine

AXLE

  • Front Axle

    Forged reverse-Elliot type, 7 T capacity

  • Rear Axle

    Single reduction tandem axle with interaxle lock & anti-roll bar

  • Rear Axle Ratio

    5.29

CHASSIS FRAME & SUSPENSION

  • Chassis Frame (DxWxT)

    300 x 90 x 7 mm with 5mm full length inner liner

  • Front Suspension

    Parabolic

  • Rear Suspension

    Bogie Suspension

BRAKES

  • Service

    S-Cam dual line with ABS

  • Parking

    Pneumatically operated hand control valve

STEERING

  • Steering Type

    Tilt & telescopic power steering

SERVICE CAPACITIES

  • Fuel Tank

    220 L

  • DEF Tank

    33 L

PERFORMANCE

  • Gradeability

    39%

  • Max Speed

    80 km/h

  • TCD

    NA

  • Mileage

    2.5-3.5 km/l

VEHICLE DIMENSIONS & WEIGHT

  • Gross Vehicle Weight

    35000 kg

  • Wheel Base

    2500 mm

  • Load Body

    9, 10, 11 m³

  • Overall Length

    8815 mm

  • Overall Width

    3010 mm

  • Overall Height

    3010 mm

  • Ground Clearance

    300 mm

  • Axle Configuration

    8 x 4

  • No. of Tyres

    12

  • Tyres Size

    11x20 (Nylon), 7.5x20

COMFORT

  • AC Cabin

    Optional

  • Seat Type

    D+1

  • Telematics

    Yes

Popular Comparisons with Eicher Pro 6035TM

Related Transit Mixers

Frequently Asked Questions

Everything you need to know about the Eicher Pro 6035TM Transit Mixer

The Eicher Pro 6035TM Transit Mixer is priced between ₹50.18 lakh to ₹57.18 lakh (ex-showroom). Prices may vary based on location, dealer, and configuration.

The Gross Vehicle Weight (GVW) of the Eicher Pro 6035TM Transit Mixer is 35,000 kg.

The Eicher Pro 6035TM is equipped with a powerful VEDX8 BS6 diesel engine, delivering a maximum power of 260 HP @ 2200 rpm and a peak torque of 1000 Nm @ 1000-1700 rpm.

The Eicher Pro 6035TM is typically available with 9 m³, 10 m³ & 11 m³ transit mixer drums.

The fuel efficiency of the Eicher Pro 6035TM Transit Mixer ranges between 2.5 to 3.5 km per litre, depending on the load and road conditions.
