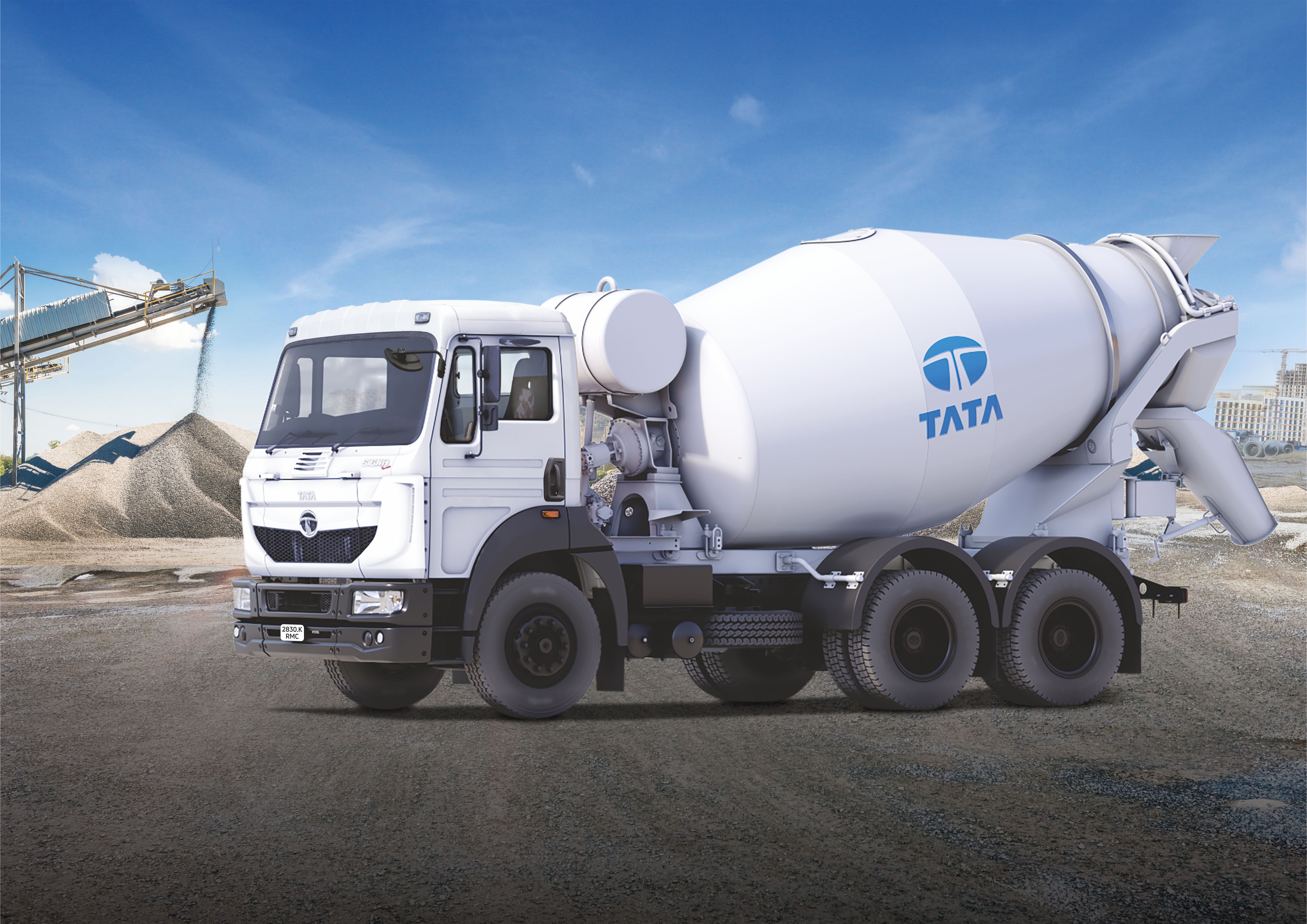

Tata Transit Mixer

Tata Prima-2830-K

A heavy-duty 9m³ RMC Transit Mixer featuring a Cummins ISBe 6.7 OBD-II engine with Prima Non Sleeper Cabin, designed for superior performance in construction and infrastructure projects.

Engine specification icon
EngineCummins ISBe 6.7
Drum capacity icon
Drum size9m³
Torque rating icon
Max Torque1100 Nm
Speed icon
Max Speed80 km/h
Fuel tank icon
Fuel Tank300L
Operating weight icon
Gross Vehicle Weight28000 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine make icon
Engine Make

Cummins ISBe 6.7

Engine displacement icon
Engine Displacement

6692 cc

Emission standard icon
Emission

BS6 OBD II

Lighting configuration icon
Battery

12V/180Ah

Fuel tank capacity icon
Fuel Tank

300 L

Gradeability icon
Gradeability

79%

Clutch diameter icon
Clutch Dia

430 mm

Drum drive icon
Drum Drive

REPTO

Axle configuration icon
Axle Configuration

6 x 4

Wheelbase configuration icon
No. of Tyres

10 Wheels + 1 Wheel

Tyre size icon
Tyres Size

295/90R20 (Nylon Tyres)

Overall length icon
Overall Length

8084 mm

Wheelbase icon
Wheel Base

4550 mm

Air conditioned cabin icon
AC Cabin

Optional

GPS availability icon
GPS

Standard

Specifications

Product specification of Tata Prima 2830 K

ENGINE

  • Model

    Cummins ISBe 6.7 OBD-II

  • Fuel Type

    Diesel

  • Max Power

    300 HP (224 kW) @ 2300 rpm

  • Max Torque

    1100 Nm @ 1100-1700 rpm

  • No. of Cylinders

    6 Cylinders

  • Engine Displacement

    6692 cc

  • Battery

    12 V / 180Ah

TRANSMISSION & CLUTCH

  • Gear Box Model & Type

    G1150 9 Speed Gearbox

  • Clutch Type

    Single Plate Dry Friction with Organic Lining

  • Clutch Dia

    430 mm

  • Drum Drive

    REPTO

AXLE

  • Front Axle

    Heavy duty Forged I beam Reverse Elliot Type

  • Rear Axle

    Single Reduction, Heavy Duty rear axle with differential lock

  • Rear Axle Ratio

    NA

CHASSIS FRAME & SUSPENSION

  • Chassis Frame (DxWxT)

    Heavy Duty Straight Frame

  • Front Suspension

    Parabolic Leaf Spring

  • Rear Suspension

    Bell Crank / TML Bogie Suspension

BRAKES

  • Service

    New iCGT Brakes,Drum Brakes

  • Parking

    Spring-applied, air-released parking brake

STEERING

  • Steering Type

    Power with Tilt & Telescopic

SERVICE CAPACITIES

  • Fuel Tank

    300 L

  • DEF Tank

    60 L

PERFORMANCE

  • Gradeability

    79%

  • Max Speed

    80 km/h

  • TCD

    NA

  • Mileage

    2.25-3.25 km/l

VEHICLE DIMENSIONS & WEIGHT

  • Gross Vehicle Weight

    28000 Kg

  • Wheel Base

    4550 mm

  • Load Body

    9 m³

  • Overall Length

    8084 mm

  • Overall Width

    3010 mm

  • Overall Height

    3010 mm

  • Ground Clearance

    300 mm

  • Axle Configuration

    6 x 4

  • No. of Tyres

    10 Wheels + 1 Wheel

  • Tyres Size

    11 x 20 (Nylon Tyres)

COMFORT

  • Cabin

    Prima Non Sleeper Cabin

  • A/C

    Yes

  • Telematics

    Yes

  • Seat Type

    D+2

Popular Comparisons with tata prima 2830 k

Related Transit Mixers

Frequently Asked Questions

Everything you need to know about the Tata Prima 2830.K Transit Mixer

The price of the Tata Prima 2830.K ranges between ₹48-55 Lakhs (approx). However, the exact price may vary depending on the location, dealer, taxes, and additional features.

The mileage of the Tata Prima 2830.K is approximately 2.5-3.5 kmpl, depending on load, terrain, and driving conditions.

It is powered by a Cummins ISBe 6.7L engine delivering 300 HP (224 kW) @ 2300 RPM and 1100 Nm torque @ 1100-1700 RPM.

The Gross Vehicle Weight (GVW) of the Tata Prima 2830.K is 28,000 Kg.

The Tata Prima 2830.K is ideal for construction, road building, and ready-mix concrete (RMC) transportation.
