Plug & Play Installation
No wiring, no tools, no installation engineer. Plug into the OBD II port under the dashboard and the device is ready within seconds.
GPS Tracker

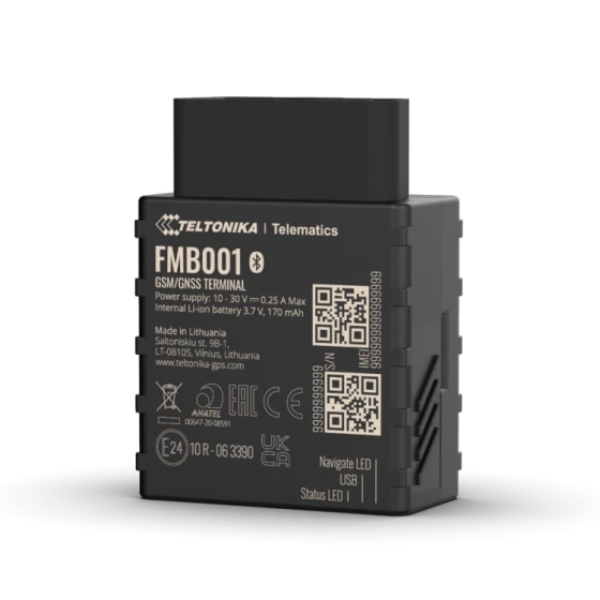

FMB001 OBD II Tracker
A 2G Teltonika plug-and-play tracker that connects directly to your vehicle's OBD II port — no wiring, no installation engineer. Reads up to 32 vehicle parameters and supports Bluetooth sensors for extended telematics.
OBD II Plug & Play
2G GSM
Bluetooth 4.0
32 OBD Params
Connection
OBD II Socket
Memory
128 MB Flash
Connection
OBD II Plug & Play
Backup Battery
170 mAh Li-Ion
Device Size
50.7 × 49.6 × 25 mm
OBD Params
Up to 32 readings
Why it is useful
Plug in and track — no wiring, no installer needed
FMB001 is ideal when you need a fast, low-cost fleet tracking rollout. Just plug into the OBD II port and the device reads live vehicle data, location, and driver behaviour — automatically.
OBD II Vehicle Data
Read up to 32 live parameters from the vehicle's ECU — speed, RPM, fuel level, engine load, coolant temp, and more via 7 OBD protocols.
Driver Behaviour
Detect harsh acceleration, braking, cornering, and speeding via the built-in accelerometer plus OBD speed data for accurate scoring.
Use Cases
Where FMB001
Where FMB001
fits well
Use FMB001 for fast fleet rollouts where plug-and-play simplicity is the priority — no vehicle modifications or specialist installers required.
- Fleet management for light vehicle fleets requiring fast, low-cost deployment with no wiring.
- Car rental and leasing companies needing location, mileage, and vehicle health data per booking.
- Insurance telematics (UBI) programmes tracking driving style, mileage, and trip behaviour.
- Driver logbook applications with automatic trip detection, route history, and idling reports.
- Connected car services reading engine fault codes, fuel efficiency, and service due indicators.
Features and Specifications
Product Specifications
FMB001 captures vehicle location, OBD parameters, and driver behaviour data for Aether's connected operations platform. The details below highlight specs most relevant for deployment planning.
OBD II Interface
| Connection | OBD II Socket (plug-and-play) |
| Parameters | Up to 32 live vehicle parameters |
| Fuel monitoring | Via OBD II readings |
| Ignition detection | OBD, accelerometer, external power voltage, RPM |
| Protocols | ISO 9141-2, ISO 14230-4 KWP, ISO 15765-4 CAN (11/29 bit) |
| CAN speeds | 250 kbaud & 500 kbaud |
Connectivity & GNSS
| Cellular | 2G GSM Quad-band 850/900/1800/1900 MHz |
| Data | GPRS Multi-Slot Class 12 (up to 240 kbps) |
| GNSS | GPS, GLONASS, GALILEO, BEIDOU, SBAS, QZSS, DGPS, AGPS |
| GNSS Sensitivity | -165 dBm, 33 channels |
| Accuracy | <2.5 CEP |
| Bluetooth | 4.0 + LE — temperature/humidity sensor, BLE accessories |
Power Supply
| Input | 10 – 30V DC via OBD II socket (overvoltage protected) |
| Backup battery | 170 mAh Li-Ion, 3.7V (0.63 Wh) |
| Battery purpose | Continuity during power loss, tow/unplug alert |
| Battery charge temp | 0°C to +45°C |
| Battery discharge temp | -20°C to +60°C |
Sleep Modes
| GPS Sleep | GNSS off; GSM active |
| Online Deep Sleep | Low-power; server connection kept |
| Deep Sleep | Periodic wake on schedule |
| Ultra Deep Sleep | Minimum power draw |
| Wake trigger | OBD ignition, movement, timer |
Physical
| Dimensions | 50.7 × 49.6 × 25 mm (L × W × H) |
| Weight | 63 g |
| Protection | IP41 |
| Operating temp | -40°C to +85°C (without battery) |
| Humidity | 5% to 95% non-condensing |
| SIM | Micro-SIM |
| Memory | 128 MB internal flash |
Configuration
| Remote config | FOTA Web, FOTA over-the-air |
| Local config | Teltonika Configurator (USB / Bluetooth) |
| Mobile app | FMBT mobile application |
| SMS config | Configuration, Events, Debug |
| Certifications | CE/RED, E-Mark, EAC, RoHS, REACH, ANATEL |
Aether Integration
Connect hardware data to real operations
Aether connects FMB001 OBD data — location, vehicle parameters, driver behaviour, and trip history — into unified fleet dashboards accessible by your whole operations team.
- Live vehicle location, route history, trip summaries, and utilization insights.
- OBD fuel level and consumption monitoring, engine fault code alerts, and service reminders.
- Driver behaviour scoring for harsh events, speeding, idling, and trip efficiency.
- Installation planning, calibration support, and device configuration for each vehicle category.
FAQ
Common questions about FMB001
FMB001 plugs directly into the OBD II diagnostic port found on most vehicles made after 2001 — typically located under the dashboard on the driver's side. No wiring, drilling, or specialist installer is required.
FMB001 can read up to 32 live vehicle parameters from the ECU including vehicle speed, engine RPM, fuel level, engine load, coolant temperature, engine fault codes (DTC), and more. Supported protocols include ISO 9141-2, ISO 14230-4 KWP, and ISO 15765-4 CAN (11/29 bit at 250/500 kbaud).
Yes. FMB001 uses its built-in accelerometer alongside OBD speed data to detect harsh acceleration, harsh braking, cornering, and over-speeding events — enabling accurate driver behaviour scoring through the Aether platform.
FMB001 is a plug-and-play OBD tracker (2G) requiring no wiring — ideal for fast deployments and light vehicles. FMC125 is a wired 4G tracker with RS232/RS485 interfaces for fuel sensors, serial devices, and advanced telematics. Choose FMB001 for simplicity; FMC125 for deeper data integration.
Yes, though FMB001 is designed for self-installation. Aether can provide remote device configuration, OBD parameter setup, platform onboarding, and driver behaviour scoring configuration for your fleet.
Need help choosing the right tracker?
Share your vehicle type and reporting goals. Aether can recommend whether FMB001 or a wired tracker (FMC125/FMB125) better fits your deployment requirements.
