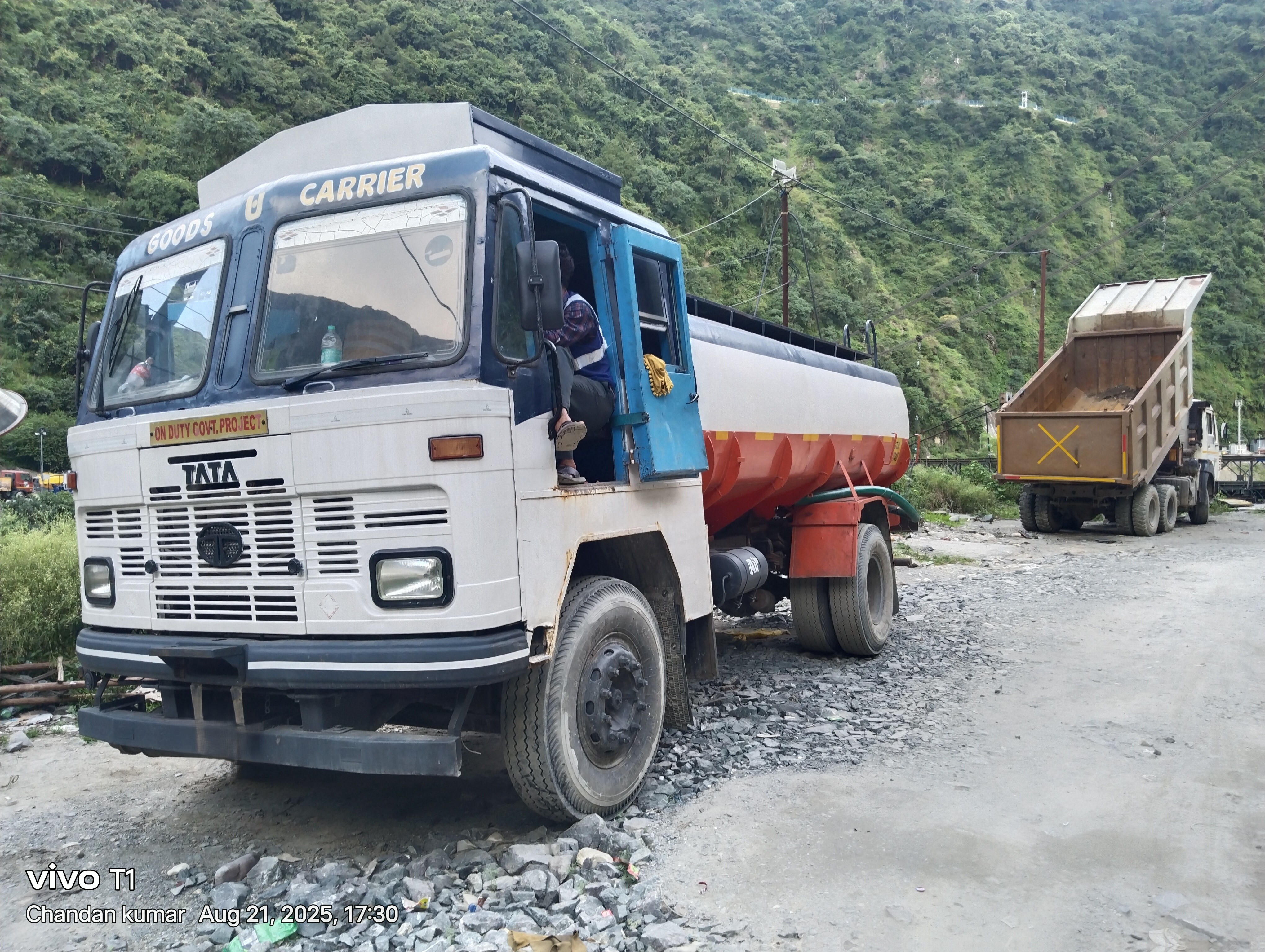

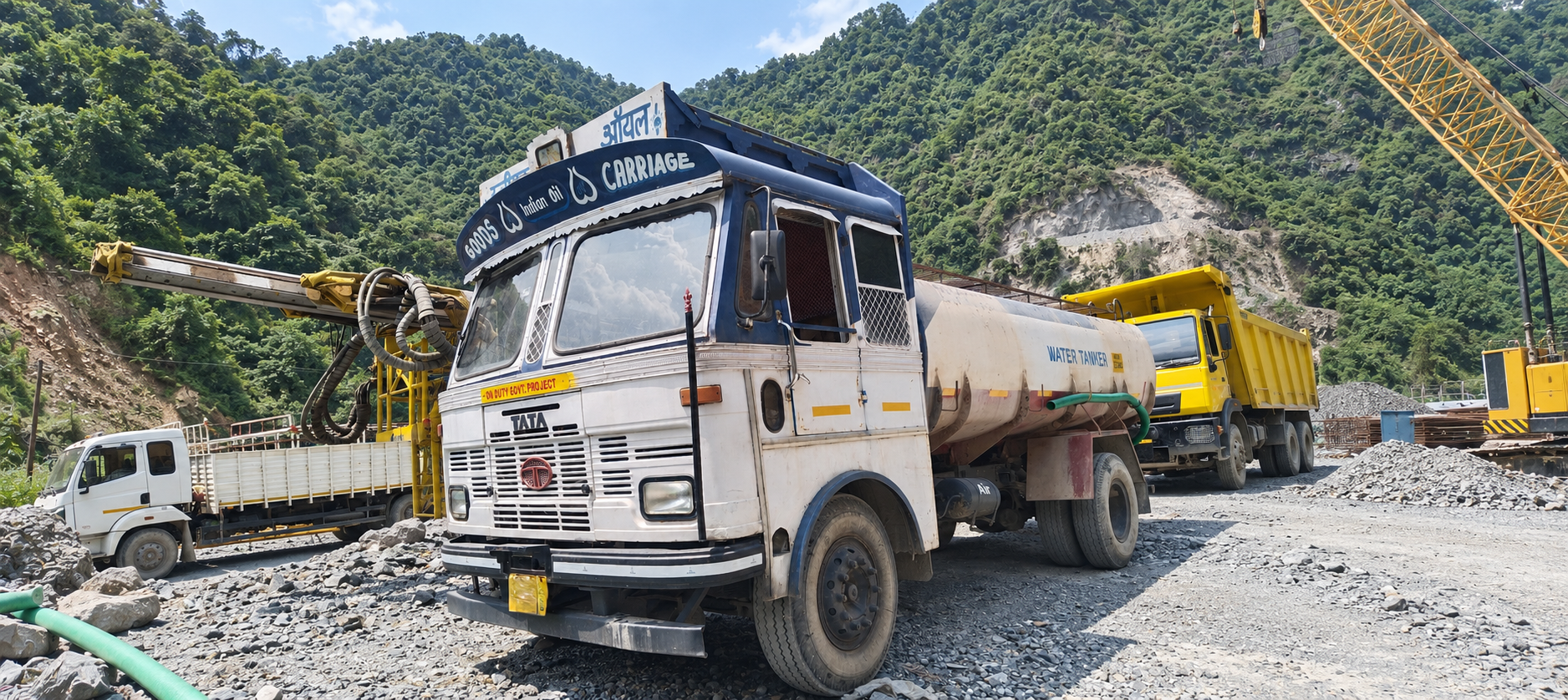

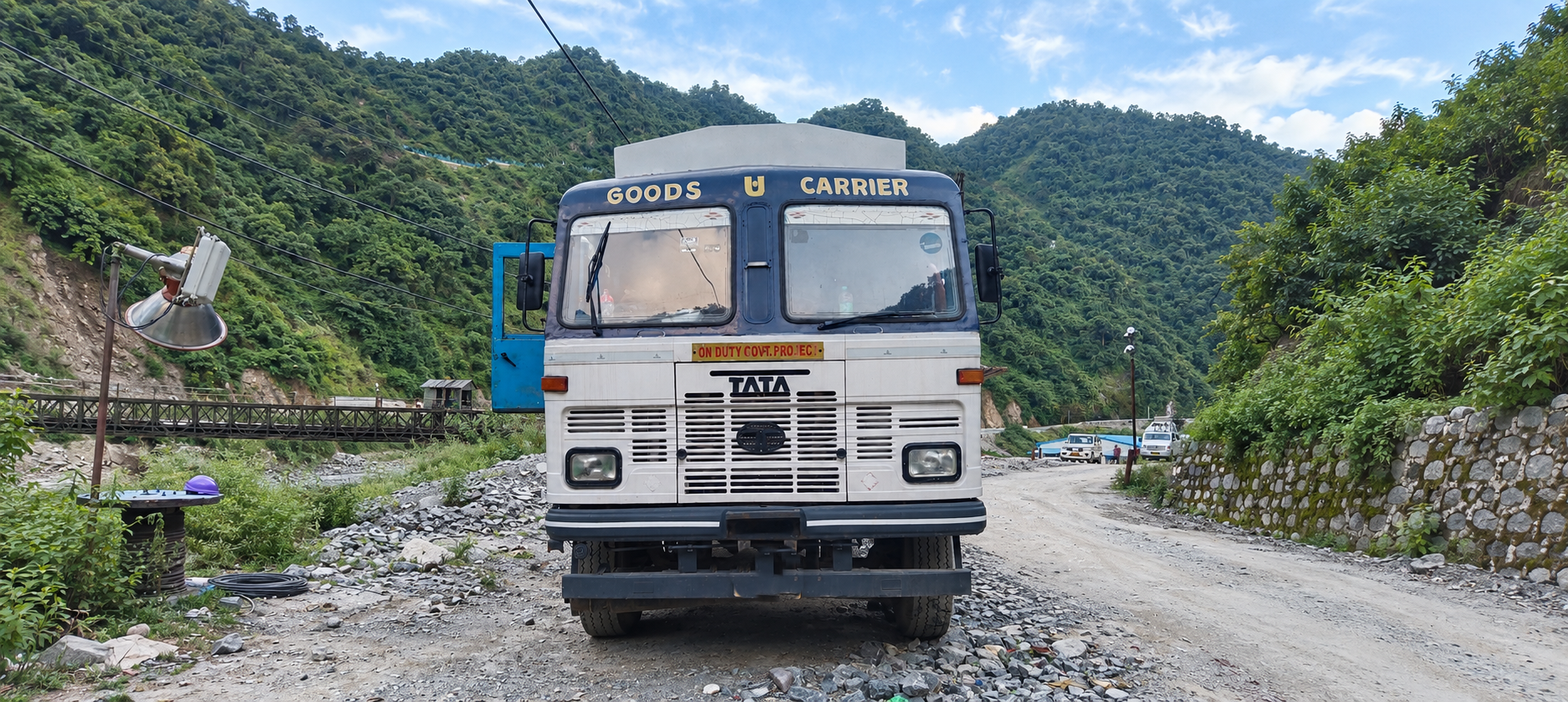

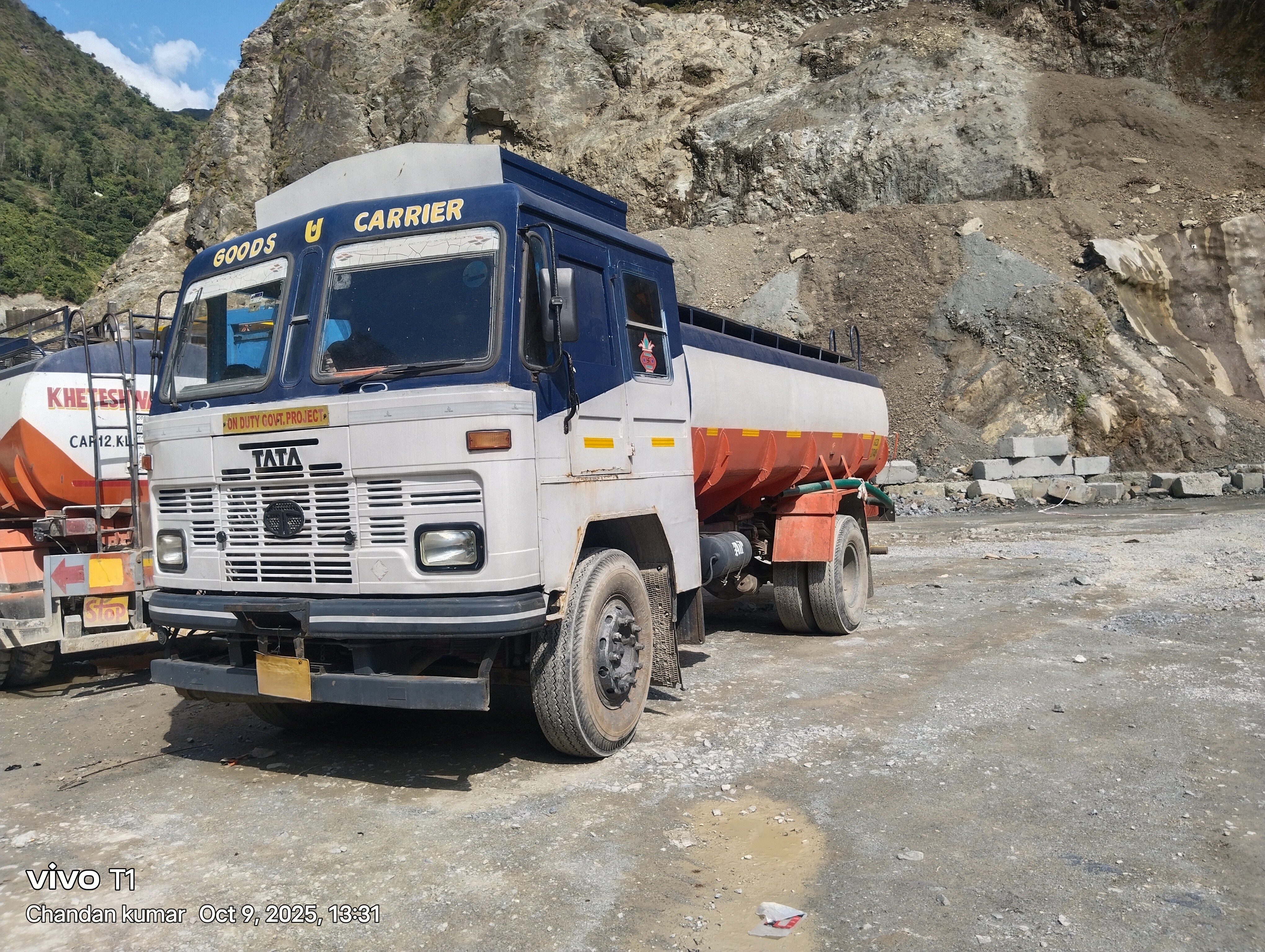

Water Tanker on Tata LPT 1618 5L Turbotronn Chassis
A water-tanker configuration based on the Tata LPT 1618 chassis. The 4,855 mm wheelbase is identified for tanker and water-tanker applications, with a 16,200 kg GVW, 132 kW engine output, 590 Nm torque and G750 six-speed gearbox. Tank-body capacity and construction depend on the selected fabricator and approved payload design.
GVW16,200 kg
Engine Output132 kW
Maximum Torque590 Nm
Wheelbase4,855 mm
Gradeability32.7%
Fuel Tank395 L
Key Highlights
Gross Vehicle Weight
16,200 kg
Engine Output
132 kW @ 2,400 rpm
Maximum Torque
590 Nm @ 1,000-2,000 rpm
Water-Tanker Wheelbase
4,855 mm
Fuel Tank
395 L
Transmission
G750, 6F + 1R
Gradeability
32.7% at rated GVW
Application
Water-tanker body compatible
Displacement
5,005 cc
Turning Circle Dia.
16,700 mm
Tyres
10 R 20, 16 PR radial tube
Optional Tyres
295/80 R22.5 tubeless radial
Rear Axle Ratio
4.11
Clutch
352 mm single-plate dry friction
Fuel Filtration
2-stage with water separator
Specifications
Technical details for the Tata LPT 1618 5L Turbotronn water-tanker chassis configuration
Rear-axle descriptionSingle-reduction hypoid gears with fully floating axle shafts
Rear-axle ratio4.11
CHASSIS, STEERING & BRAKES
Front axle7-tonne extra-heavy-duty forged I-beam, reverse Elliott type
FrameLadder-type heavy-duty frame with HS 800 high-strength long member
Front suspensionParabolic or multi-leaf semi-elliptical
Rear suspensionMulti-leaf semi-elliptical with auxiliary spring
SteeringPower-assisted hydraulic, 23.6:1
BrakesDrum-drum configuration with 180 mm wide brake lining
VentilationForced ventilation blower
PERFORMANCE & TYRES
Wheelbase used for water-tanker application4,855 mm
Other chassis wheelbases4,225 / 5,195 / 6,750 mm
Gradeability32.7% at rated GVW
Minimum turning-circle diameter16,700 mm
Standard tyres10 R 20, 16 PR radial tube
Optional tyres295/80 R22.5 tubeless radial
WATER-TANKER FITMENT
Tanker-body manufacturerNot specified
Water-tank capacityNot specified
Tank material and thicknessTo be confirmed with the body fabricator
Pump, PTO and discharge equipmentTo be confirmed with the body fabricator
Mounting and axle-load distributionMust follow approved body-building and payload requirements
Chassis application compatibility4,855 mm wheelbase listed for tanker and water-tanker applications
Tata LPT 1618 Water Tanker Maintenance & Inspection Checklist
Pre-trip checks · kilometre-based service schedule · fluids and parts control · safe return to service · warning actions.
Daily / Pre-Trip Checklist
Complete these checks before every shift and before operating the water-distribution equipment.
Before every shift
1
Engine oil and leaks
Check level on level ground; inspect sump, filter area and visible lines.
Do not operate if: level is outside marks, oil is contaminated or active leakage is present.
2
Coolant and cooling path
When cool, check level, hoses, radiator face, fan area and leakage.
Do not operate if: coolant is low, a hose/belt/fan is damaged, the core is blocked or coolant loss repeats.
3
Fuel system / water separator
Inspect the cap, visible fuel lines, two-stage filter system and water separator.
Do not operate if: leakage, damaged filter housing or visible contamination is present.
4
Air intake
Check air-cleaner housing, clamps and intake ducts for damage or loose joints.
Do not operate if: a duct is split, a clamp is loose or unfiltered air can enter.
5
Air brakes
Build air pressure and verify pressure indication, service brake and parking brake before travel.
Do not operate if: pressure does not build/hold, low-pressure warning remains active or braking is uneven.
6
Hydraulic steering
Check steering response, abnormal free play and visible leakage before entering traffic.
Do not operate if: steering is hard/jerky, free play is abnormal or fluid is leaking.
7
Tyres and wheels
Inspect all tyres, pressure, cuts, bulges, wheel nuts and rims.
Do not operate if: pressure is low, cord is exposed, bulge/crack is present or a wheel nut is loose/missing.
8
Gearbox, axle and propeller shaft
Inspect the G750 gearbox, MS 13-145 axle and driveline for leakage, looseness and damage.
Do not operate if: active leakage, loose joint, shaft damage or abnormal vibration is found.
9
Suspension and chassis
Inspect springs, U-bolts, hangers, frame and body/subframe mountings.
Do not operate if: a crack, broken spring, shifted axle, loose U-bolt or structural defect is found.
10
Road-safety equipment
Function-check lamps, indicators, horn, mirrors and wipers before road movement.
Do not operate if: a required item is inoperative or visibility is unsafe.
11
Instrument cluster and gear-shift advisor
At key-on/start, check lamps, gauges and gear-shift advisor indication or beep.
Do not operate if: an engine/brake warning stays on, gauge is abnormal or warning cannot be interpreted.
12
Load body / tanker equipment
Inspect body locks, subframe, tank straps, valves, pump, piping and guards.
Do not operate if: a mounting is loose, tank/piping leaks, guard is missing or equipment is unsafe.
Pre-delivery inspection is completed at the time of vehicle delivery.
Delivery milestone
Pre-delivery inspection
Complete the delivery inspection before releasing the vehicle for operation.
SERVICE
Wheel alignment window: 3,000-5,000 km.
Early running check
Wheel alignment
Check and adjust within the printed free-service window.
CHECK
First free service window: 79,500-80,500 km or 12 months. Component rows use the kilometre interval shown here.
Engine / filters
Engine oil
Change at the 80,000 km service interval.
CHANGE
Engine oil filter
Change with engine oil.
CHANGE
Fuel filter(s)
Change the pre-filter/main filter arrangement at 80,000 km.
CHANGE
Air-filter cartridge
Change at 80,000 km or earlier if restriction or damage is found.
CHANGE
First driveline service interval printed for gearbox oil, rear-axle oil and hub greasing.
First driveline service
G750 gearbox oil
Complete the first scheduled oil change.
1ST CHANGE
Rear-axle oil
Complete the first scheduled oil change.
1ST CHANGE
Wheel-hub grease
Complete the first scheduled hub greasing.
1ST GREASE
Second free service window: 159,500-160,500 km or 24 months. Driveline rows are shown as the printed second interval.
Repeat service
Engine oil and oil filter
Change as due at the 80,000 km multiple.
CHANGE
Fuel filters and air-filter cartridge
Change as due at the 80,000 km multiple.
CHANGE
Gearbox oil, rear-axle oil and wheel-hub grease
Second printed driveline interval; confirm interval basis with vehicle-specific service information.
2ND
Third free service window: 239,500-240,500 km or 36 months.
Cooling and engine service
Engine coolant
Change at the 240,000 km service interval.
CHANGE
Engine oil and filters
Change engine oil, oil filter, fuel filters and air-filter cartridge as due at the 80,000 km multiple.
CHANGE
Fluids and capacity control
5L Turbotronn engine oil
Use the Tata specification for this BS4 engine/VIN. Grade and capacity are not listed in the supplied guide.
VERIFY
Engine coolant
Use the approved coolant and dilution for this VIN; do not mix unknown coolant chemistry.
VERIFY
G750 gearbox oil
Use Tata G750 service-book specification. Capacity is vehicle-specific.
VERIFY
Meritor MS 13-145 axle oil
Use the Tata/Meritor specification for the installed axle tag.
VERIFY
Wheel-hub grease
Use the synthetic grease grade specified for the vehicle; exact grade is not listed in the supplied guide.
VERIFY
Service parts ordering control
Engine oil filter
Order using chassis/VIN, engine number and fitted filter marking.
80k km
Fuel-filter element(s)
Order using chassis/VIN, engine number and both fitted filter markings.
80k km
Air-filter cartridge
Order using chassis/VIN and air-cleaner housing/element marking.
80k km
Water-tanker system
Water tank, baffles and piping
Capacity and service procedure are body-specific; confirm from the fitted tank plate and body-builder documents.
BODY-SPECIFIC
PTO, pump and spray-bar
Follow the installed PTO/pump manufacturer procedure for lubricant, belt/coupling and service interval.
VERIFY
Secure vehicle
Park and prevent movement
Park on firm level ground, apply parking brake, select neutral, chock wheels and prevent unintended movement.
SECURE
Isolation
Switch off and isolate
Switch off, remove key and isolate battery or energy sources as the service procedure requires.
ISOLATE
Raised cab/body
Use mechanical support
Use the specified lock/support. Never work under an unsupported tilted cab, body or tanker equipment.
SUPPORT
Hot/pressurised systems
Cool and depressurise
Allow cooling and relieve pressure before opening cooling, fuel, oil, steering or air-system connections.
WAIT
Injection and brake air
Avoid high-pressure injury
Never use hands to find a pressurised fuel or hydraulic leak. Treat injection injury as an emergency.
CAUTION
Brake-air release
Drain or release stored air only by the approved procedure; keep clear of actuators and spring-brake hazards.
CAUTION
Return to service
Final check
Account for tools, refit guards, check fluid levels and leaks, clear personnel and perform a controlled road/function test.
VERIFY
STOP
Oil-pressure warning or low-pressure gauge reading
Stop safely and shut down. Check oil level and leakage; do not restart until the cause is diagnosed.
STOP
Coolant-temperature overheating
Stop safely, remove load, shut down as instructed, allow cooling and never open a hot pressure cap.
STOP
Low brake-air warning
Stop in a safe place, apply parking brake and chock wheels. Do not move until the air/brake fault is repaired.
STOP
Steering failure or sudden heavy steering
Reduce speed, stop safely and inspect steering fluid, leakage and linkage. Recover the vehicle if control is uncertain.
STOP
Fuel leak, smoke or fire
Switch off, isolate ignition sources and evacuate. Use the correct extinguisher only if trained.
ACTION
Gearbox/axle noise or oil leak
Stop loaded operation; inspect level/leakage and arrange authorised diagnosis before continued duty.
ACTION
Tyre damage or wheel looseness
Stop and secure the vehicle; correct pressure or repair/replace before travel.
ADVISORY
Gear-shift advisor indication or beep
This is shift advice, not a fault alert. Select the appropriate gear when road, speed and load conditions permit.
Frequently Asked Questions
Water tanker on Tata LPT 1618 chassis
Yes. The 4,855 mm wheelbase LPT 1618 chassis is identified for tanker and water-tanker applications.
The Tata LPT 1618 has a gross vehicle weight of 16,200 kg.
The 5L Turbotronn engine produces 132 kW at 2,400 rpm and 590 Nm at 1,000-2,000 rpm.
The fuel-tank capacity for this listed configuration is 395 L.
The water-tank body capacity is not specified. It must be confirmed from the selected body fabricator and must comply with approved payload and axle-load limits.
