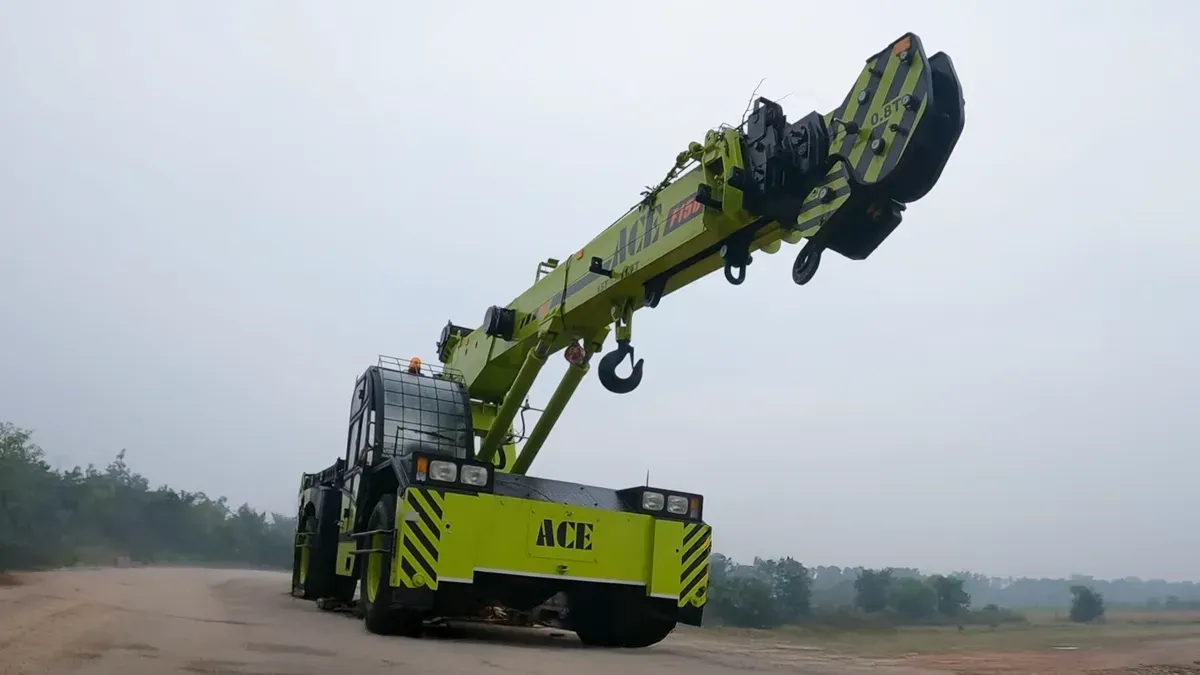

ACE F150 crane front view
ACE Pick & Carry Crane

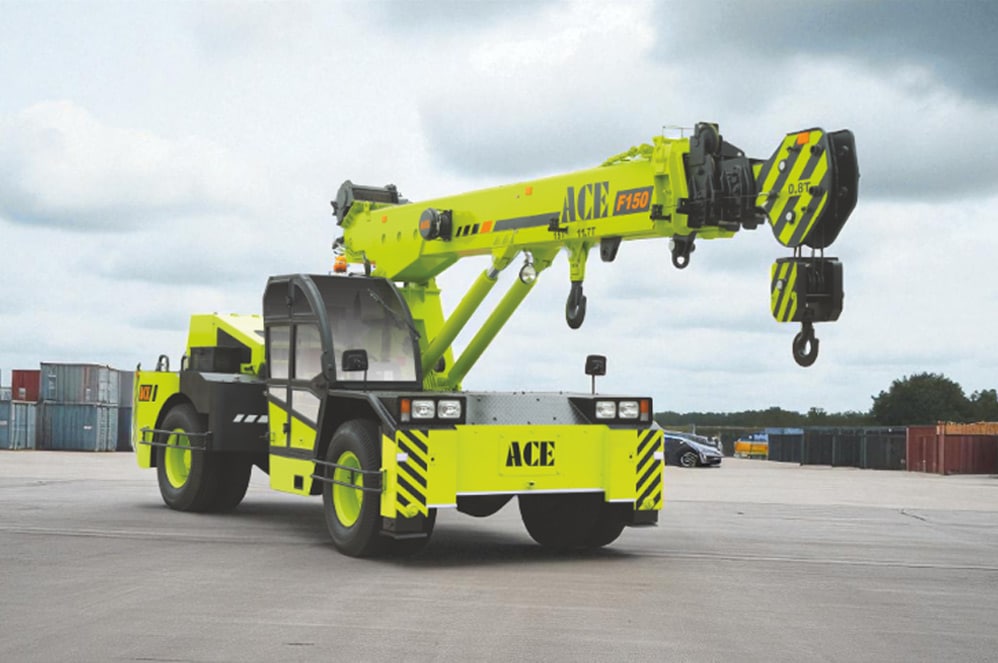

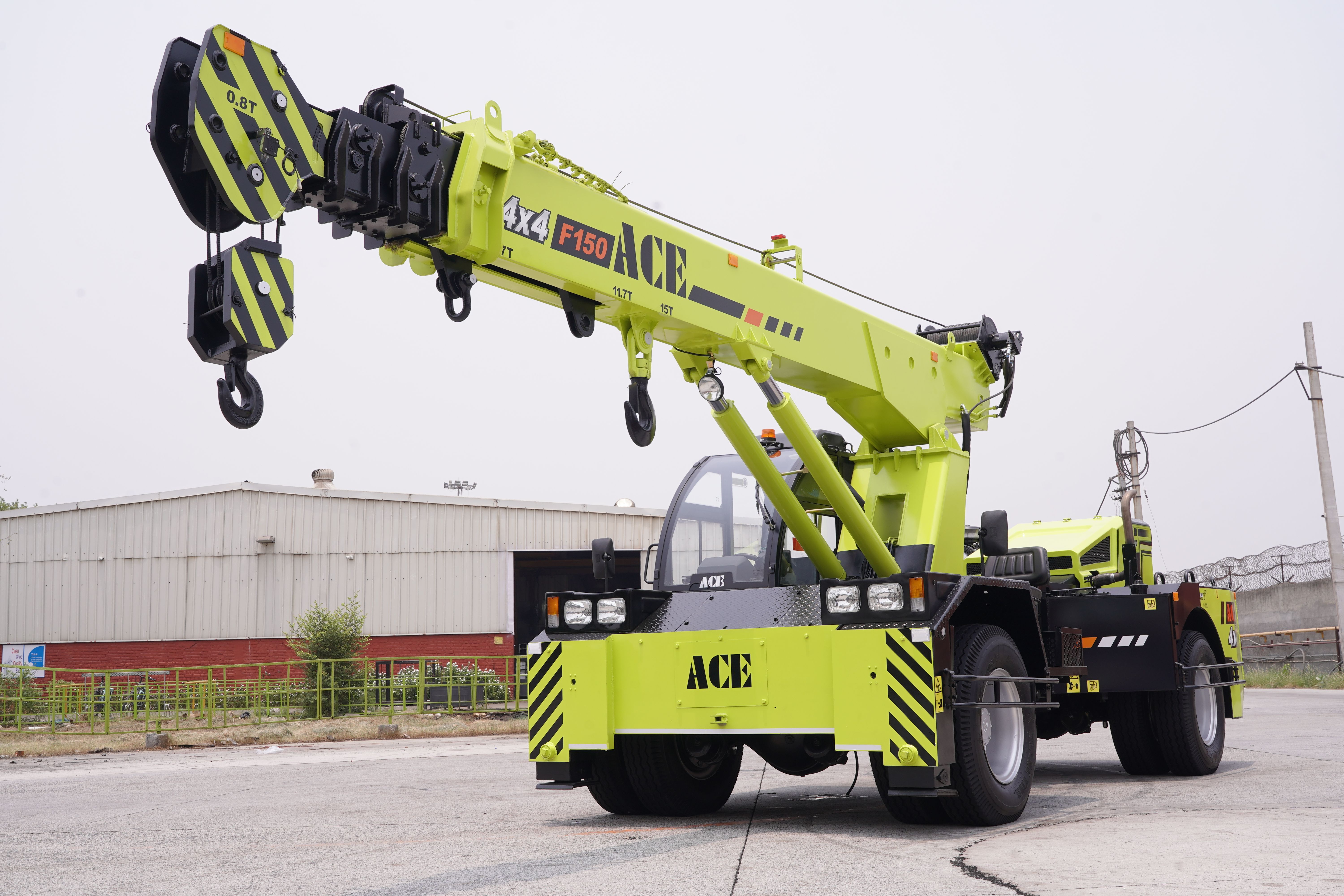

ACE F150 Crane

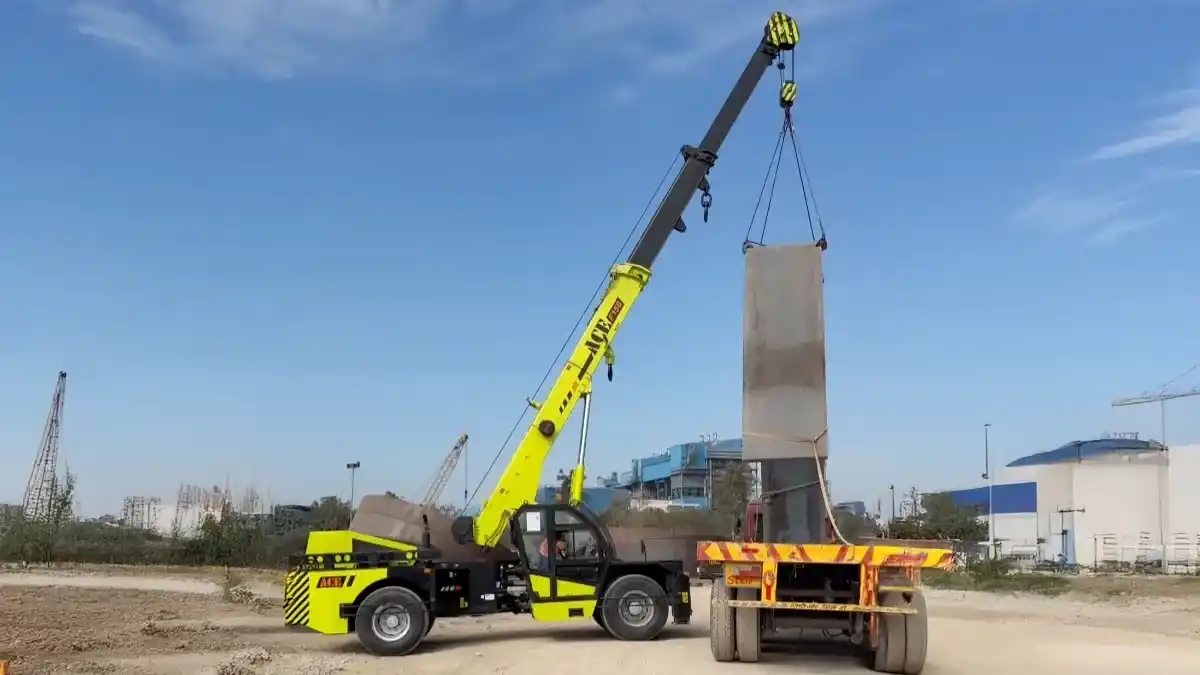

Built for heavy lifting, the ACE F150 Hydra crane handles 15-ton jobs in construction sites, daily shifts, and factory setups.

Crane icon
Lifting Capacity15 Tonnes
Boom height icon
Boom Height18.8 m
Feature icon
EngineTata 74 HP
Feature icon
Weight15,000 kg
Turning Radius icon
Turning Radius7500 mm
Car Steering Wheel icon
Drive Type2/4 Wheel drive
Download Brochure
Enter email to get the brochure

Key Highlights

Engine Displacement icon
Engine Make

Tata Model 497 (CEV Stage V)

Articulation icon
Articulation

40°

Speedometer icon
Max. Speed

36 km/h

Fuel Tank icon
Fuel Tank

NA

Hydraulic Tank icon
Hydraulic Tank

NA

Width icon
Overall Length

NA

Width icon
Overall Width

2400 mm

Axle icon
Wheel Base

3900 mm

Boom Luffing Range icon
Boom Luffing Range

NA

Warranty icon
Warranty

1 Year

Specifications ACE F-150 Crane

Detailed technical specifications for ACE F150 Crane

ENGINE

  • Model

    Tata (CEV V) Diesel Engine Model 497 with ECU

  • Type

    4 Cylinder, Water Cooled, Turbo Charged Diesel Engine

  • Rated Power

    74 HP @ 2200 RPM

  • Electrical

    12v, Negative Earth (110 AH Battery)

LIFTING CAPACITY

  • Max. Lifting Capacity

    15 Tonnes

TRANSMISSION & CLUTCH

  • Type

    Heavy Duty Synchromesh Gearbox

  • Gears

    10 Forward / 2 Reverse

  • Auxiliary Gear Box

    2WD/4WD Selector for High and Low Speeds

  • Drive

    4 Wheel Drive (4×4)

  • Clutch

    Heavy Duty, Single, Dry Friction Type Pneumatic Assisted Hydraulic Clutch

  • Top Speed

    36 KMPH (on even metalled road without load)

STEERING

  • Type

    Fully Hydraulic Articulated type

  • Articulation

    40°

  • Min Turning Radius

    7500 mm

HOIST MECHANISM

  • Drive

    Hydraulic Motor Driven with Rope Tensioner

  • Rope

    4/6 Falls of 13mm dia. Rope

  • Hook Block

    Self Adjusting Hook Block

  • Hoist Speed

    50 Mtrs./Min (Line Speed)

BRAKES

  • Front Wheels

    Pneumatically operated dual circuit drum brakes

  • Rear Wheels

    Drum Brakes, Pneumatically operated

  • Parking Brakes

    Pneumatically operated, fail-safe type

OVERALL DIMENSIONS & WEIGHT

  • Operating Weight

    15,000 Kg

  • Wheel Base

    3900 mm

  • Wheel Track

    1825 mm

  • Tyres (Front)

    11.00×20-18 PR (4 Nos.)

  • Tyres (Rear)

    11.00×20-18 PR (4 Nos.)

BOOM

  • Type

    4 Part Slotted Boom (2 Hydraulically Operated & Synchronized, 4th Part Power Extended)

  • Max Boom Height (4-Part)

    18.8 m

Popular Comparisons with ACE F 150

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the ACE F150 Crane

The ACE F150 has a maximum lifting capacity of 15 Tonnes.

The ACE F150 can run at a maximum speed of 36 km/hr (without load).

It is powered by a Tata (CEV Stage V) Diesel Engine Model 497 with ECU, delivering 74 HP @ 2200 RPM.

ACE F150 comes with fully hydraulic articulated steering (40° articulation) and a minimum turning radius of 7500 mm.

The ACE F150 offers a maximum boom height of 18.8 metres (4-Part boom).

Yes, ACE F150 supports both 2-wheel and 4-wheel drive modes.

The ex-showroom price typically starts around ₹ 34 - 36 Lakhs (may vary by location and configuration).

Operating cost depends on usage, fuel price, operator shifts, and maintenance cycles. It is commonly estimated within a practical range for 15-ton pick-and-carry operations.
