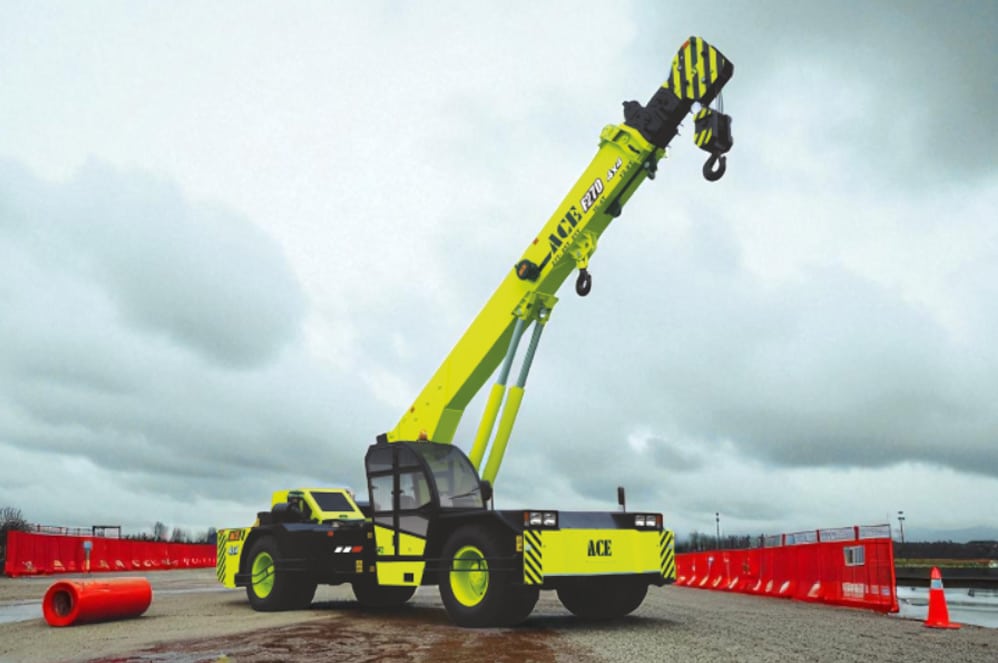

ACE F170 Nextgen Hydraulic Crane front view
ACE Pick & Carry Crane

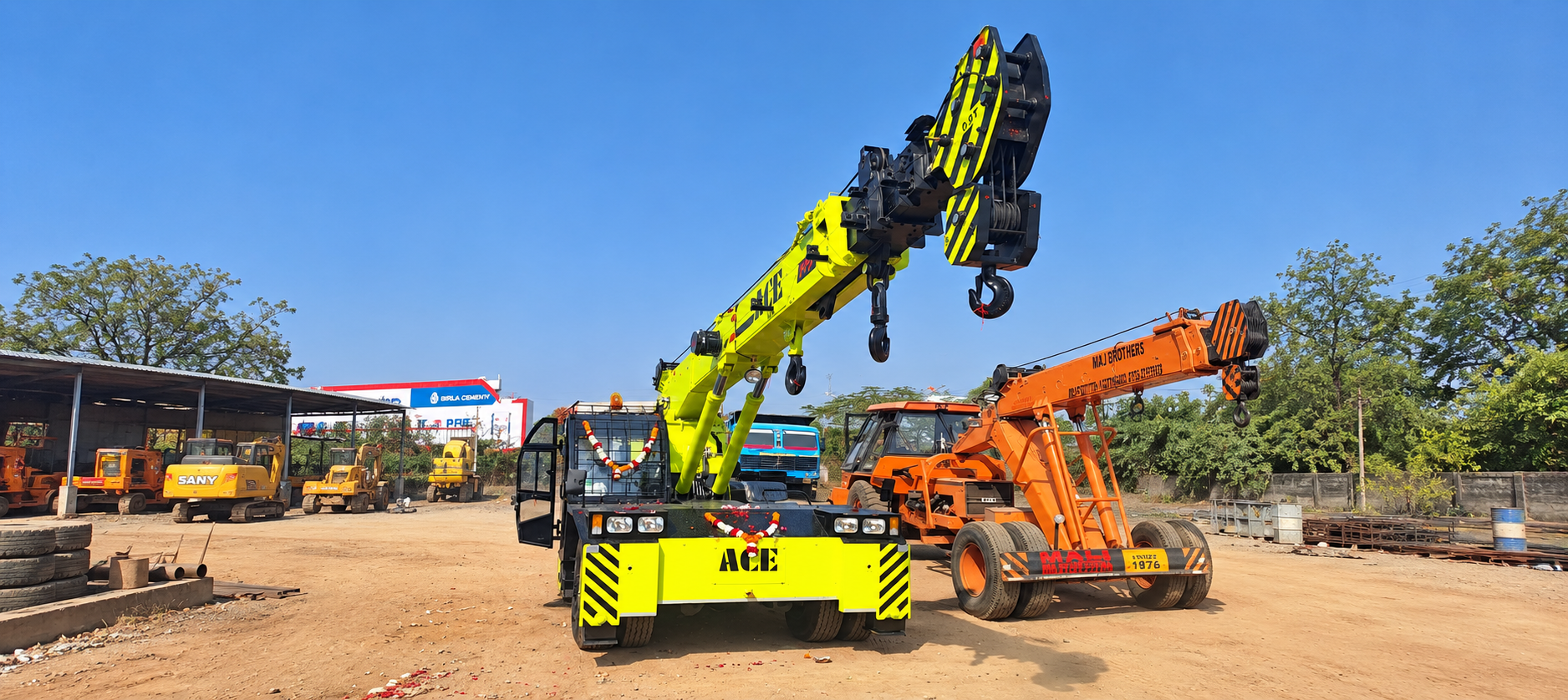

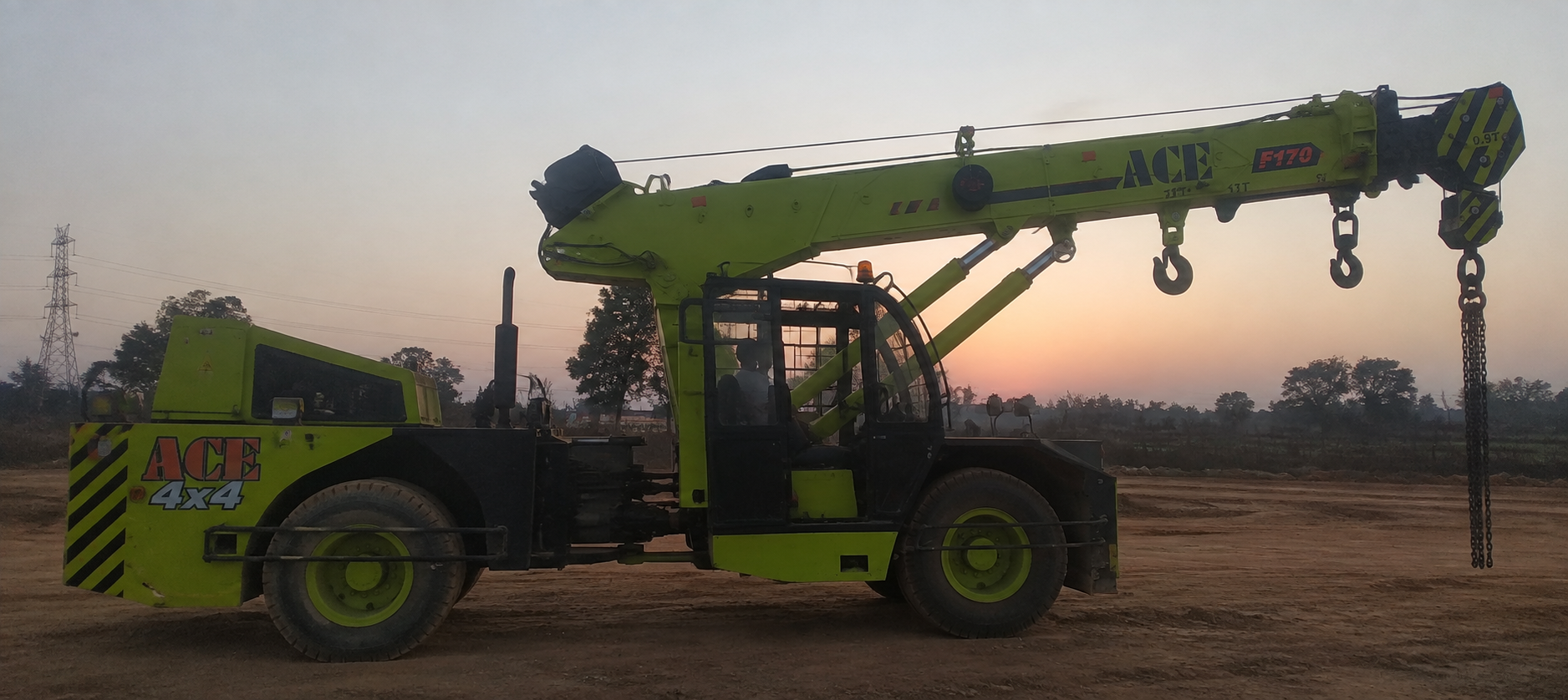

ACE F170 Nextgen Hydraulic Crane

The ACE F170 is a 17-tonne rough-terrain, rugged 4x4 articulated Nextgen pick-and-carry crane powered by a Tata CEV Stage V Model 497 engine, with ULTRA safety features including ACE Live, ALSS, SCOS and RAS.

Engine icon
EngineTata 74 HP
Capacity icon
Capacity17 Tonnes
Lift Height icon
Boom Height18.9 m
Max Speed icon
Max Speed35 km/h
Articulated icon
Articulated40°
Operating weight icon
Oper. Weight17,040 kg

Key Highlights

Lifting capacity icon
Lifting Capacity

17 Tonnes

Engine icon
Engine

Tata Model 497 CEV V

Engine power icon
Rated Power

74 HP / 54 kW @ 2200 rpm

Boom height icon
Boom Height

18.9 m

Flyjib icon
Flyjib Capacity

1.25 T / 2.0 T manual ext.

Speed icon
Top Speed

35 km/h

Creep speed icon
Creep Speed

1.3 km/h

Gradeability icon
Gradeability

40% unladen

Drive icon
Drive

4x4 with 2WD/4WD selector

Turning radius icon
Turning Radius

7.5 m approx.

Operating weight icon
Operating Weight

17,040 kg

Safety and telematics icon
Safety & Telematics

ACE Live, ALSS, SCOS, RAS

Hoist speed icon
Hoist Speed

50 m/min line speed

Tyres icon
Tyres

11.00 x 20 - 16 PR

Electronic cluster icon
Electronic Cluster

Advanced digital display

Specifications ACE F170 Crane

Detailed technical specifications for ACE F170 Nextgen Hydraulic Crane

ENGINE

  • Engine modelTata CEV Stage V Diesel Engine, Model 497 with ECU
  • Engine type4-cylinder, water-cooled, turbo-charged diesel
  • Max rating74 HP / 54 kW @ 2200 rpm
  • Optional engineTata 101 HP engine
  • Electrical system12 V, negative earth, 110 Ah battery

LIFTING CAPACITY

  • Maximum lifting capacity17 tonnes
  • Flyjib maximum capacity1.25 tonnes
  • Manual extension maximum capacity2.0 tonnes
  • Load chart noteSWL based on 85% stability and strength; rated loads are for firm, level surface

TRANSMISSION

  • GearboxHeavy duty synchromesh gearbox
  • Speeds10 forward / 2 reverse
  • Auxiliary gearbox2WD/4WD selector for high and low speeds
  • AxlesFront axle rigidly mounted; rear axle with 2 nos. leaf springs
  • Drive4 wheel drive (4x4)
  • ClutchHeavy duty, single dry friction type hydraulic clutch
  • Top speed35 km/h on even metalled road without load
  • Creep speed / gradeability1.3 km/h / 40% unladen

STEERING & BRAKES

  • Steering typeHydraulically operated steering wheel
  • Articulation40° either side
  • Turning radius7.5 m approx. on outer rear wheels
  • Service brakesPneumatically operated dual circuit brakes on front and rear wheels
  • Parking brakePneumatically operated spring actuated fail-safe type

HYDRAULIC SYSTEM

  • Main pumpGear / intra-vane type main pump
  • Control valveFive-spool control valve with built-in relief valve
  • Filtration100 mesh suction strainer; 25 micron return line filter
  • CylindersTwo double-acting lift cylinders, one extension cylinder and two steering cylinders

BOOM & HOIST

  • Boom type4-part slotted boom; 2 parts hydraulically operated and synchronized; 4th part power extended
  • Maximum boom height18.9 m
  • Flyjib chart heightUp to about 21.3 m
  • Hoist driveHydraulic motor driven winch with rope tensioner
  • Hoist rope / hook block4/6 falls of 13 mm dia. rope with self-adjusting hook block
  • Hoist speed50 m/min line speed

DIMENSIONS & WEIGHT

  • Operating weight17,040 kg
  • Wheelbase4150 mm
  • Wheel track1825 mm
  • Tyres11.00 x 20 - 16 PR, 8 nos.

SAFETY SYSTEM

  • Protection systemsHose failure protection; audio over-hoisting indication
  • Hoist safetySafety brakes on hoist; self-adjusting hook block
  • Vehicle safetyFront and rear wheel guards; front outriggers; rear view camera; beacon rotating light
  • ULTRA safety featuresALSS, SCOS and RAS for safe crane operations

EQUIPMENT & TELEMATICS

  • Standard equipmentFront work lights, reflectors and rear-view mirror, tool kit, cabin fan, wiper motor
  • Digital cluster indicationsFuel, low fuel, engine oil pressure, air pressure, parking brake, coolant temperature, RPM, hour recorder, speedometer, odometer, urea level, water in fuel, battery charging, 2WD/4WD drive, regeneration and P-code faults
  • Optional equipmentSLI, AC cabin, 101 HP engine, over-hoist hydraulic cutoff, fire extinguisher, cabin front glass protector, drag winch, helper/slinger seat, man basket and proximity sensors
  • Connected systemsACE Live telematics, ACE Live SLI, IoT controlled SLI and IoT controlled AC
  • Cabin and operator featuresAC cabin option, electronic cluster, ergonomically placed steering wheel and controls

Frequently Asked Questions

Everything you need to know about the ACE F170 Nextgen Hydraulic Crane

The ACE F170 has a maximum lifting capacity of 17 tonnes.

It uses a Tata CEV Stage V diesel engine, Model 497, with ECU. The engine is 4-cylinder, water-cooled and turbo-charged, rated at 74 HP / 54 kW @ 2200 rpm.

The ACE F170 has a 4-part slotted boom with 18.9 m maximum height. With flyjib, the chart shows height up to about 21.3 m. Flyjib maximum capacity is 1.25 tonnes and manual extension maximum capacity is 2.0 tonnes.

The ACE F170 has 35 km/h top speed on even metalled road without load, 1.3 km/h creep speed and 40% unladen gradeability.

The F170 includes hose failure protection, audio over-hoisting indication, safety brakes on hoist, self-adjusting hook block and wheel guards. ULTRA features include ACE Live telematics, IoT controlled SLI, ALSS, SCOS and RAS.

The ACE F170 operating weight is 17,040 kg.
