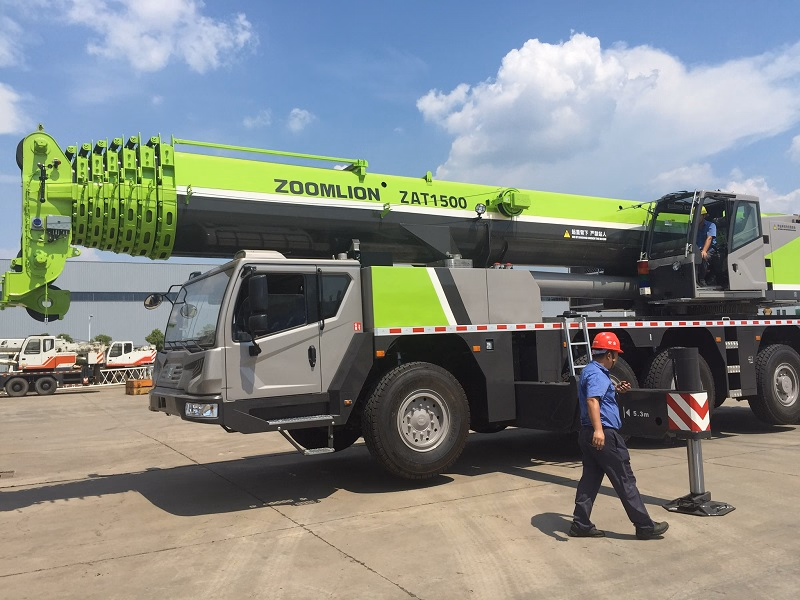

Zoomlion ZAT1500 All-Terrain Crane front view
ZOOMLION All-Terrain Crane

Zoomlion ZAT1500 All-Terrain Crane

A 150-tonne, 5-axle all-terrain crane with a 13.5–72 m boom, 26.6 m jib, and 4,704 kN·m maximum load moment. Reaching 87 m with jib and 75 km/h on road, the ZAT1500 features full all-wheel steering (≤20 m turning diameter), 40% gradeability, 8.43 m outrigger span, and a kerb mass of 59,805 kg — engineered for both highway travel and demanding site conditions.

Capacity icon
Capacity150 Tonnes
Max Boom icon
Max Boom72 m
Load Moment icon
Load Moment4,704 kN·m
Max Height (Jib) icon
Max Height (Jib)87 m
Max Speed icon
Max Speed75 km/h
Kerb Mass icon
Kerb Mass59,805 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Capacity icon
Lifting Capacity

150,000 kg (150 T) @ 3 m

Moment icon
Max Load Moment

4,704 kN·m (basic boom)

Boom icon
Main Boom Length

13.5 – 72 m

Height icon
Max Lifting Height

87 m (95 m with extension)

Jib icon
Jib Length

11 m / 18.6 m (26.6 m max)

Speed icon
Max Driving Speed

75 km/h

Weight icon
Complete Kerb Mass

59,805 kg

Outrigger icon
Outrigger Span

8.43 m × 7.8 m (fully extended)

Gradeability icon
Gradeability

40%

Emission icon
Emission Standard

National Stage IV

Specifications

Detailed technical specifications for Zoomlion ZAT1500 All-Terrain Crane

LIFTING CAPACITY

  • Max. Rated Lifting Capacity150,000 kg (150 T) at 3 m radius
  • Max. Load Moment (Basic Boom)4,704 kN·m at 6 m radius
  • Max. Load Moment (Full Extension)1,505 kN·m at 32 m radius
  • Max. Lifting Height (with Jib + Extension)95 m

BOOM & JIB

  • Main Boom Length13.5 – 72 m
  • Boom Angle (Luffing Range)-0.5° to 82°
  • Jib Length11 m or 18.6 m
  • Jib + Extension (Max)26 m (26.6 m total)
  • Jib Offset Angles0° and 30°
  • Max. Lifting Height (Main Boom)72 m
  • Max. Lifting Height (with Jib)87 m
  • Max. Lifting Height (Jib + Extension)95 m

HOIST & SLEWING

  • Main Winch Hoist Speed114 m/min (4th rope layer)
  • Auxiliary Winch Hoist Speed74 m/min (3rd rope layer)
  • Max. Slewing Speed1.4 r/min
  • Boom Derrick-Up Time94 seconds
  • Boom Extension Time860 seconds

DRIVING & STEERING

  • Max. Driving Speed75 km/h
  • Max. Gradeability40%
  • Min. Turning Diameter≤ 20 m
  • Axle Configuration5 Axles (3 Driven, All Steered)
  • Min. Ground Clearance305 mm
  • Approach Angle17°
  • Fuel Consumption76 L / 100 km

DIMENSIONS & WEIGHT

  • Complete Vehicle Kerb Mass59,805 kg
  • Deadweight (Driving Condition)60,000 kg
  • Overall Dimensions (L×W×H)15,390 × 3,000 × 4,000 mm
  • Axle Load (per axle)12,000 kg (all 5 axles)
  • Emission StandardNational Stage IV (GB3847-2005 / GB17691-2005)

OUTRIGGER

  • Outrigger Span — Length8.43 m
  • Outrigger Span — Fully Extended Width7.8 m
  • Outrigger Span — Intermediate Width5.3 m

Popular Comparisons with ZAT1500

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the Zoomlion ZAT1500 All-Terrain Crane

The Zoomlion ZAT1500 has a maximum rated lifting capacity of 150 Tonnes (150,000 kg) at a 3 m radius. The maximum load moment on the basic boom is 4,704 kN·m at 6 m radius, reducing to 1,505 kN·m at full boom extension (32 m radius).

The ZAT1500 features a main boom extending from 13.5 m to 72 m with a luffing angle range of -0.5° to 82°. An optional jib of 11 m or 18.6 m (with 0° and 30° offset angles) extends the maximum lifting height to 87 m. Adding a jib extension brings the total maximum height to 95 m (total jib length up to 26.6 m).

The ZAT1500 has a maximum driving speed of 75 km/h and a gradeability of 40%. Its 5-axle all-wheel steering chassis (3 driven, all steered) achieves a minimum turning diameter of ≤ 20 m, making it highly manoeuvrable. Ground clearance is 305 mm with a 17° approach angle. Fuel consumption is 76 L/100 km.

The ZAT1500 has a complete vehicle kerb mass of 59,805 kg and a deadweight (driving condition) of 60,000 kg. Overall dimensions are 15,390 × 3,000 × 4,000 mm (L×W×H). Each of its 5 axles carries 12,000 kg. The fully extended outrigger span is 8.43 m (length) × 7.8 m (width), with an intermediate option of 5.3 m.

The ZAT1500 main winch achieves a maximum hoist speed of 114 m/min (4th rope layer) and the auxiliary winch reaches 74 m/min (3rd rope layer). The maximum slewing speed is 1.4 r/min. Boom derrick-up takes 94 seconds and full boom extension takes 860 seconds.
