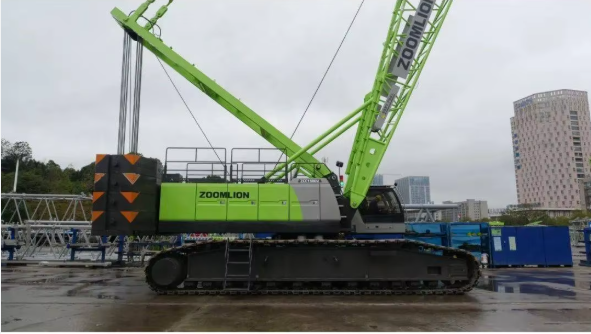

Zoomlion ZCC1500V Crawler Crane front view
ZOOMLION Crawler Crane

Zoomlion ZCC1500V Crawler Crane

A high-capacity 150-tonne lattice boom crawler crane with a 76 m main boom, 31 m jib, and a maximum load moment of 906.5 t·m. Powered by the Weichai WP10G336E344 diesel engine (247 kW) with dual slewing reducers, a 700 L fuel tank, and a modular design that allows full assembly within 6 hours — built for demanding heavy civil and infrastructure lifting operations.

Capacity icon
Capacity150 Tonnes
Max Boom icon
Max Boom76 m
Load Moment icon
Load Moment906.5 t·m
Engine Power icon
Engine Power247 kW
Fuel Tank icon
Fuel Tank700 L
Track Gauge icon
Track Gauge6 m
Download Brochure
Enter email to get the brochure

Key Highlights

Lifting capacity icon
Lifting Capacity

150,000 kg (150 T)

Load moment icon
Max Load Moment

906.5 t·m

Boom icon
Max Boom Length

76 m

Jib icon
Jib Length

31 m

Engine icon
Engine Model

Weichai WP10G336E344

Fuel tank icon
Fuel Tank

700 L

Track icon
Track Gauge

6 m

Counterweight icon
Counterweight

51.4 t + 16 t ballast

Slewing icon
Slewing System

Dual Slewing Reducers

Assembly icon
Operating Weight

141,000 kg (Deadweight)

Speed icon
Travel Speed

1.1 km/h

Assembly icon
Assembly Time

Within 6 Hours

Specifications

Detailed technical specifications for Zoomlion ZCC1500V Crawler Crane

ENGINE

  • Engine ModelWeichai WP10G336E344 Diesel Engine
  • Rated Power247 kW @ 1,900 rpm
  • Fuel Tank Capacity700 L (Large-volume for reduced refuelling downtime)
  • Electrical System24-Volt DC

LIFTING CAPACITY

  • Max. Rated Lifting Capacity150,000 kg (150 T)
  • Max. Load Moment906.5 t·m
  • Main Hook Block150 T / 80 T
  • Auxiliary Hook Block32 T / 13.5 T

BOOM & JIB

  • Boom TypeLattice Boom (High-Strength Steel)
  • Max. Main Boom Length76 m
  • Jib Length31 m
  • ConfigurationsMain Boom, Luffing Jib, Fixed Jib, Superlift

HOIST & SLEWING

  • Slewing SystemDual Slewing Reducers — Stable and Powerful Slewing
  • Load Moment LimiterDual-Tension Sensor LMI System
  • Hoist DriveHydraulic Motor with Planetary Gear Reducer

COUNTERWEIGHT

  • Rear Counterweight51.4 t
  • Central Ballast16 t
  • Single Counterweight Plate4.8 t

TRANSPORT & DIMENSIONS

  • Track Gauge6 m
  • Operating Weight (Deadweight)141,000 kg
  • Basic Machine Transport Weight34.2 t
  • Transport Width3.0 m
  • Overall Dimensions (L×W×H)12,460 × 3,000 × 3,270 mm
  • Travel Speed1.1 km/h
  • Slewing Speed1.0 rpm
  • Gradeability30%
  • Operator's Cab Width1,250 mm (Ultra-wide with AC)
  • Assembly TimeWithin 6 Hours (Whole Crane)

SAFETY & CONTROL

  • Load Moment LimiterDual-Tension Sensor LMI — Prevents overloading
  • Slewing SafetyDual slewing reducers for stable, controlled rotation
  • Operator's CabUltra-wide 1,250 mm cab with AC, broad field of vision

Popular Comparisons with ZCC1500V

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the Zoomlion ZCC1500V Crawler Crane

The Zoomlion ZCC1500V has a maximum rated lifting capacity of 150 Tonnes (150,000 kg) with a maximum load moment of 906.5 t·m. Hook block options include 150 T, 80 T, 32 T, and 13.5 T to support a wide range of lifting configurations.

The ZCC1500V features a high-strength steel lattice boom extending up to 76 m, with a 31 m jib attachment. It supports multiple configurations including standard main boom, luffing jib, fixed jib, and superlift — providing versatility for diverse heavy-lift requirements.

The ZCC1500V is powered by the Weichai WP10G336E344 diesel engine rated at 247 kW at 1,900 rpm, known for strong power output, timely service support, and low maintenance costs. The crane is equipped with a large 700 L fuel tank to minimize refuelling interruptions during extended operations.

The ZCC1500V has an operating (dead) weight of 141,000 kg. It uses a rear counterweight of 51.4 t combined with a 16 t central ballast. Individual counterweight plates weigh 4.8 t each, allowing flexible configuration based on the job requirement. The track gauge is 6 m for a stable operating base.

The entire Zoomlion ZCC1500V crane can be assembled within 6 hours on site. The basic machine transport weight is 34.2 t with a transport width of 3.0 m, making logistics straightforward. The ultra-wide 1,250 mm operator's cab with AC provides a comfortable working environment throughout operations.
