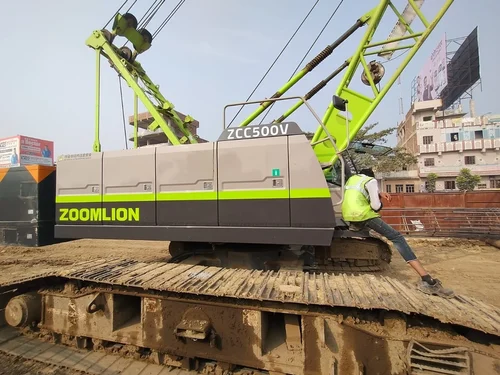

Zoomlion ZCC500V Crawler Crane front view
ZOOMLION Crawler Crane

Zoomlion ZCC500V Crawler Crane

A robust 50-tonne crawler crane with a 13–46 m main boom and 169.6 t·m maximum load moment. Designed for medium-duty lifting on construction, infrastructure, and industrial projects — featuring anti-sway technology, real-time diagnostics, and a modular transport design for rapid deployment across challenging job sites.

Capacity icon
Capacity50 Tonnes
Main Boom icon
Main Boom13 – 46 m
Engine Power icon
Engine Power160 – 200 kW
Load Moment icon
Load Moment169.6 t·m
Max Slewing icon
Max Slewing2.6 r/min
Crawling Speed icon
Crawling Speed2.9 km/h
Download Brochure
Enter email to get the brochure

Key Highlights

Lifting capacity icon
Lifting Capacity

50,000 kg (50 T)

Load moment icon
Max Load Moment

169.6 t·m

Boom icon
Main Boom Length

13 – 46 m (max height 53 m with jib)

Engine icon
Engine Brand

Weichai / Cummins

Power icon
Rated Power

160 – 200 kW

Slewing icon
Max Slewing Speed

2.6 r/min

Crawling icon
Max Crawling Speed

2.9 km/h

Gradeability icon
Gradeability

Up to 30%

Jib icon
Luffing Jib

Optional (max total height 53 m)

Emission icon
Emission Standard

Non-road Compliant

Specifications

Detailed technical specifications for Zoomlion ZCC500V Crawler Crane

ENGINE

  • Engine BrandWeichai or Cummins Diesel Engine (varies by region)
  • Rated Power160 – 200 kW
  • Output TorqueHigh torque at moderate RPM for smooth performance
  • Emission StandardNon-road Emission Standards Compliant

LIFTING CAPACITY

  • Max. Rated Lifting Capacity50,000 kg (50 T)
  • Max. Load Moment169.6 t·m

BOOM & JIB

  • Main Boom Length13 – 46 m (total lifting height up to 53 m with jib)
  • SL BoomAvailable in Standard and Superlift Configurations
  • Luffing JibOptional – for increased reach in confined spaces
  • Boom ConfigurationsAdjustable boom and jib lengths for versatile operations

WINCH & HOIST

  • Hoisting WinchOptimized for efficient load lifting and lowering
  • Derricking WinchSmooth, precise boom and jib adjustments
  • Superlift WinchAdditional support for heavy-duty lifting configurations

OPERATIONAL CAPABILITIES

  • Max. Slewing Speed0 – 2.6 r/min
  • Max. Crawling Speed0 – 2.9 km/h
  • GradeabilityUp to 30%
  • Ground PressureBalanced for safe operation on soft and uneven terrain
  • Crawler Track SystemStable performance on uneven and challenging terrain

SAFETY & CONTROL

  • Load Moment LimiterPrevents overloading by monitoring and enforcing load limits
  • Anti-Sway SystemReduces load sway for improved control and operator safety
  • Automatic Fault DetectionReal-time diagnostics to alert operators of maintenance needs
  • Emergency StopImmediate halt function for enhanced on-site safety

TRANSPORT & ASSEMBLY

  • DesignModular design for simplified transport and assembly
  • BenefitReduced downtime during site-to-site mobilization

Popular Comparisons with ZCC500V

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the Zoomlion ZCC500V Crawler Crane

The Zoomlion ZCC500V has a maximum rated lifting capacity of 50 tonnes (50,000 kg) with a maximum load moment of 169.6 t·m. It is designed for medium-duty lifting applications across construction, infrastructure, and industrial projects.

The ZCC500V features a main boom ranging from 13 to 46 metres, available in standard and superlift (SL) configurations for enhanced stability during heavy lifts. An optional luffing jib attachment provides increased reach and versatility for operations in confined spaces.

The ZCC500V is powered by either a Weichai or Cummins diesel engine depending on the regional variant, delivering a rated power of 160–200 kW. Both options comply with non-road emission standards and provide high torque at moderate RPM for smooth, reliable crane performance.

The ZCC500V has a maximum slewing speed of 2.6 r/min for accurate load placement and a maximum crawling speed of 2.9 km/h for steady movement across job sites. It can handle gradeability of up to 20%, making it suitable for slopes and uneven terrain.

The ZCC500V is equipped with a load moment limiter (LMI) to prevent overloading, an anti-sway system to reduce load movement, automatic fault detection with real-time diagnostics, and an emergency stop function for immediate halting. These systems together ensure safe, controlled operation on all job sites.
