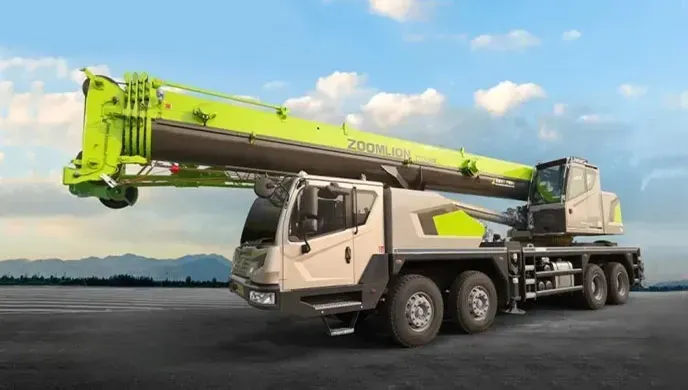

Zoomlion ZTC600R542 Truck Crane front view
ZOOMLION Truck Crane

Zoomlion ZTC600R542 Truck Crane

A 60-tonne, 5-axle truck crane with an 11.1–45 m 5-section telescopic boom. Powered by a Weichai CEV TREM5 diesel engine with FAST 10-speed gearbox, electronic hydraulic proportional control, and automatic load moment limiter for safe heavy lifting on construction and industrial sites.

Engine icon
EngineWeichai 247 kW
Capacity icon
Capacity60 Tonnes
Boom Length icon
Boom Length45 m
Max Speed icon
Max Speed75 km/h
Outrigger Span icon
Outrigger Span7.2 m
Total Weight icon
Total Weight46,000 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine icon
Engine Make

Weichai WP9H336E62

Power icon
Rated Power

247 kW (331 HP)

Speed icon
Max Speed

75 km/hr

Hydraulics icon
Hydraulic Tank

840 L

Boom icon
Max Boom Length

45 m

Lifting capacity icon
Lifting Capacity

60,000 kg

Load moment icon
Max Load Moment

2,033 kN·m

Outrigger icon
Outrigger Span

7.2 m (fully extended)

Fuel icon
Fuel Efficiency

< 43 L / 100 km

Emission icon
Emission Norm

BS V / CEV TREM5

Specifications

Detailed technical specifications for Zoomlion ZTC600R542 Truck Crane

ENGINE

  • ModelWeichai WP9H336E62 Diesel Engine
  • Rated Power247 kW (331 HP)
  • Max. Output Torque1,600 N·m
  • GearboxFAST 10-Speed Mechanical (10F + 2R)
  • Emission NormBS V / CEV TREM5
  • Fuel Efficiency< 43 L / 100 km
  • Electrical System24-Volt DC, Double-wired System

LIFTING CAPACITY

  • Max. Rated Lifting Capacity60,000 kg (60 T)
  • Max. Load Moment2,033 kN·m
  • Max. Lifting Height (with Jib)61.5 m

BOOM

  • TypeBox Boom + 5 Telescopic Sections (High-Tensile Steel, U-shaped)
  • Main Boom Length11.1 – 45 m
  • Boom Angle (Luffing Range)-1° to +78°
  • Jib2-Section Foldable Jib, Bottom-opening Design
  • Jib Length9.2 – 15.7 m
  • Jib Offset Angles5°, 25°, 45°

HOIST MECHANISM

  • DriveHydraulic Variable Motor with Built-in Planetary Gear Reducer
  • Main Hoist Speed0 – 120 m/min
  • Rope DiameterØ 16 mm

HYDRAULIC SYSTEM

  • Control SystemElectronic Hydraulic Proportional Control with Intelligent Multi-power Energy-saving System
  • Hydraulic Tank840 L
  • SlewingHydraulic Motor + Planetary Reducer, Free Slewing Function
  • Slewing Speed0 – 2.0 r/min

STEERING & DRIVING

  • Max. Driving Speed75 km/h
  • Max. Gradeability40%
  • Min. Turning Diameter22 m
  • Axle Configuration5 Axles (5-Axle Truck Crane)
  • Chassis FrameZoomlion High-Tensile Steel Plate

SUPERSTRUCTURE

  • Slewing PlatformHigh-Strength Steel, Ribbed Plate Structure
  • Operator's CabSpacious, Man-Machine Friendly Layout with AC and Heater
  • Safety DevicesAutomatic Load Moment Limiter, Warning Light, Digital LCD Limit Switch, Relief Valve

DIMENSIONS & WEIGHT

  • Complete Vehicle Kerb Mass46,000 kg
  • Outrigger Spread (Fully Extended)7.2 m
  • Max. Lifting Height (with Jib)61.5 m

Popular Comparisons with ZTC600R542

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the Zoomlion ZTC600R542 Truck Crane

The Zoomlion ZTC600R542 has a maximum rated lifting capacity of 60 Tonnes (60,000 kg) with a maximum load moment of 2,033 kN·m. The maximum lifting height with jib is 61.5 m.

It is powered by a Weichai WP9H336E62 diesel engine rated at 247 kW (331 HP) with a maximum output torque of 1,600 N·m. It meets BS V / CEV TREM5 emission standards and is paired with a FAST 10-speed mechanical gearbox (10F + 2R), achieving fuel efficiency below 43 L/100 km.

The ZTC600R542 features an 11.1–45 m main boom (box boom + 5 telescopic U-shaped sections, high-tensile steel) with a luffing range of -1° to +78°. A 2-section foldable jib (9.2–15.7 m) with 5°, 25°, and 45° offset angles is available for extended reach operations.

The ZTC600R542 uses an electronic hydraulic proportional control system with an intelligent multi-power energy-saving system. The hydraulic tank capacity is 840 L. The slewing system uses a hydraulic motor with planetary reducer, offering 0–2.0 r/min slewing speed with free slewing function.

The complete vehicle kerb mass is approximately 46,000 kg. On road, it achieves a maximum speed of 75 km/h with 40% gradeability and a minimum turning diameter of 22 m. It is a 5-axle truck crane with outrigger spread of 7.2 m when fully extended.
