SANY SY220C-9 Crawler Hydraulic Excavator

A 22-tonne class C9-series crawler hydraulic excavator powered by a SANY Mitsubishi D06S2 engine, built for high-productivity earthmoving, quarrying and general construction with proven hydraulic components and a heavy-duty undercarriage.

Feature icon
Rated Engine Power153 HP @ 2050 RPM
Feature icon
Bucket Capacity1.0 m³ GP
Shovel icon
Operating Weight21,900 Kg
Digging depth icon
Max Digging Depth6,037 mm
Max cutting height icon
Max Cutting Height9,113 mm
Feature icon
Max Digging Reach9,312 mm

Key Highlights

Engine icon
Engine Model

SANY Mitsubishi D06S2

Fuel Tank icon
Fuel Tank

364 L

Torque icon
Max Torque

590 Nm @ 1400 RPM

Travel Speed icon
Travel Speed

5.4 / 3.3 km/h

Hydraulics icon
Hydraulic Flow

2 × 220 L/min

Max Cutting Height icon
Max Cutting Height

9,113 mm

Bucket Digging Force icon
Bucket Digging Force

152 kN

Arm Digging Force icon
Arm Digging Force

137 kN

Overall Length icon
Overall Length

9,650 mm

Track Shoe icon
Track Shoe Width

600 mm

Tractive Force icon
Max Tracking Force

209 kN

Ground Pressure icon
Ground Pressure

47 kPa

Remote Monitoring icon
Remote Monitoring

GPRS / GPS / GIS

Working Modes icon
Working Modes

H / S / L / B

Air Conditioner icon
Cab

Air Conditioner (Standard)

Specifications

Product specification of SANY SY220C-9 Crawler Hydraulic Excavator

ENGINE

  • Model

    SANY Mitsubishi D06S2

  • Type

    6 Cylinder, Inline, Water Cooled

  • Rated Engine Power

    153 HP (114 kW) @ 2050 RPM

  • Max Torque

    590 Nm @ 1400 RPM

  • Displacement

    5.86 L

  • Batteries

    2 × 12 V

CONTROL SYSTEM

  • Control System: DOMCS Intelligent Controller
  • Control Hydraulic System: Positive Flow
  • Working Modes: H, S, L, B
  • Remote Monitoring System: GPRS, GPS, GIS

HYDRAULIC SYSTEM

  • Main Pumps: 2 Variable Displacement Axial Piston Pumps
  • Max Flow: 2 × 220 L/min
  • Pilot Pump: 1 Gear Pump
  • Travel Motor: 2 Axial Piston Motor with Parking Brake
  • Swing Motor: 1 Axial Piston Motor with Swing Holding Brake

RELIEF VALVE SETTINGS

  • Implement Circuit: 34.3 MPa
  • Swing Circuit: 28 MPa
  • Travel Circuit: 34.3 MPa
  • Pilot Circuit: 3.9 MPa

UNDERCARRIAGE & WORKING DEVICE

  • Track Shoes (Each Side): 47
  • Upper Rollers: 2
  • Lower Rollers: 8
  • Track Guard (Each Side): 1
  • Std. Track: 600 mm
  • Std. Boom: 5,700 mm
  • Std. Arm: 2,400 mm
  • Std. Bucket: 1.0 m³ GP

PERFORMANCE

  • Max Travel Speed (High/Low): 5.4 / 3.3 km/h
  • Swing Speed: 11 RPM
  • Grade Ability: 70% / 35°
  • Ground Pressure: 47 kPa
  • Max Tracking Force: 209 kN
  • Bucket Digging Force: 152 kN
  • Arm Digging Force: 137 kN
  • Operating Weight: 21,900 Kg

WORKING RANGE

  • Std. Boom: 5,700 mm  |  Std. Arm: 2,400 mm
  • Max Cutting Height: 9,113 mm
  • Max Dumping Height: 6,240 mm
  • Max Digging Depth: 6,037 mm
  • Max Digging Reach: 9,312 mm
  • Min Swing Radius: 3,730 mm
  • Max Height at Min Swing Radius: 7,680 mm
  • With Optional 2,900 mm Arm
  • Max Cutting Height: 9,600 mm
  • Max Dumping Height: 6,730 mm
  • Max Digging Depth: 6,600 mm
  • Max Digging Reach: 10,280 mm
  • Min Swing Radius: 3,730 mm
  • Max Height at Min Swing Radius: 7,680 mm

DIMENSIONS

  • Values shown as Std. 2,400 mm Arm / Optional 2,900 mm Arm
  • Overall Length: 9,650 mm / 9,680 mm
  • Overall Width: 2,980 mm
  • Overall Height: 3,440 mm
  • Overall Height of Cab: 2,990 mm
  • Upper Width: 2,875 mm
  • Track Gauge: 2,380 mm
  • Std. Track Shoe Width: 600 mm
  • Min Ground Clearance: 440 mm
  • Rear-End Swing Radius: 2,890 mm
  • Distance Between Tumblers: 3,445 mm
  • Undercarriage Length: 4,250 mm

BUCKET

  • 1.0 m³ GP (Standard): 1,378 mm width, 782 kg, 5 teeth — fits 2.4 m & 2.9 m arm
  • 0.9 m³ HD (Optional): 1,176 mm width, 870 kg, 4 teeth — fits 2.4 m & 2.9 m arm

SERVICE REFILL CAPACITIES

  • Hydraulic Tank: 239 L (180 L Refill)
  • Fuel Tank: 364 L
  • Engine Oil: 22 L
  • Radiator: 29 L
  • Swing Device: 4 L
  • Travel Device: 2 × 5.5 L

SANY SY220C-9 Maintenance Checklist

Daily pre-start checks · Service schedule by hours · Warning alert actions — for general earthmoving, quarry and construction duty

Daily Pre-Start Checklist

Complete these checks before every shift. They take about 10–15 minutes and help prevent damage, downtime and safety incidents.

Every Shift
1

Engine Oil Level

Dipstick — wipe clean, reinsert, then pull again to read.

Act if: below MIN — top up SAE 15W-40. White foam in oil — stop machine immediately.

2

Engine Coolant Level

Check the overflow reservoir on the engine side.

Act if: below MIN — top up coolant mix. Brown/dirty coolant — plan a flush.

3

Hydraulic Oil Level

Retract boom/arm fully with the bucket flat on the ground, then check the sight glass.

Act if: below visible range — top up. Milky white colour — water contamination, stop machine.

4

Fuel Level

Check the fuel gauge. Drain water from the sediment bowl.

Act if: below ¼ tank — refuel before the shift. Never run dry.

5

Air Filter Indicator

Check the red indicator lamp on the dashboard / the indicator on the filter housing.

Act if: red zone or indicator popped — clean or replace the primary element before starting.

6

Walk-Around Leak Check

Walk a full circle — check the ground under the machine and all hoses/joints.

Act if: any active oil drip or puddle — find the source and repair before starting.

7

Track Tension

Check sag in the track upper run — target 10–30 mm sag.

Act if: sag exceeds 50 mm — adjust tension. Very tight / no sag — loosen to prevent damage.

8

Bucket Teeth & Cutting Edge

Push/pull the bucket and inspect teeth and the cutting edge for wear.

Act if: worn teeth or a broken adapter — replace before work.

9

Horn & Backup Alarm

Press the horn button; test the backup alarm.

Act if: any failure — fix before the shift. Backup alarm not working — do not operate.

10

Seatbelt & Cab Safety

Pull the belt out fully and latch firmly. Check lockout lever operation.

Act if: belt frayed or faulty — replace before operating. The lockout lever must click into park.

11

Grease All Pin Points

Grease gun on boom, arm, bucket, linkage and swing-bearing nipples.

Every 8–10 hours minimum. If no old grease comes out, keep applying until it exits the joint.

Service Schedule by Hourmeter

Use the hourmeter reading for service timing — do not delay if a service is due. CHANGE / REPLACE = fluid or filter renewal   CHECK / INSPECT = verify condition.

Engine oil service — every 50–100 operating hours per SANY Group guidelines.
Engine

Engine oil & filter

Change engine oil — 22 L, API CI-4/CJ-4 (SAE 15W-40); replace the genuine SANY oil filter

CHANGE
Fuel & Air

Water separator

Drain any water

DRAIN

Air filter pre-cleaner

Tap and clean the pre-cleaner

CLEAN
Cooling

Radiator fins

Clean dirt & debris

CLEAN
Undercarriage & Swing

Final drive oil

Check level

CHECK

Swing gearbox oil

Check level — 4 L SAE 90 GL-4

CHECK

Swing bearing

Full grease 360°

GREASE
Electrical

Battery & terminals

Clean corrosion; check charge

CHECK
Greasing — All Pivot Points

Boom / arm / bucket pins

Complete grease of all joints & pins

GREASE

Bucket linkage pins

Grease all linkage pins

GREASE
Minor service — every 500 operating hours. Includes engine oil plus the primary filter renewals.
Engine

Engine oil & filter

Change oil (22 L) and replace the genuine SANY oil filter

CHANGE

Drive / fan belt

Inspect tension; replace if cracked

INSPECT
Hydraulics

Hydraulic return filter

Replace — genuine SANY filter

REPLACE

Hoses & cylinders

Inspect for cracks, bulges and leaks

INSPECT
Fuel & Air

Water separator

Drain / inspect

DRAIN

Fuel filter

Replace — genuine SANY filter

REPLACE

Air filter pre-cleaner

Clean / inspect

CLEAN

Air filter primary element

Replace regardless of appearance

REPLACE
Cooling

Radiator fins

Full clean & flush

CLEAN

Cooling hoses

Inspect for cracks, hardness, weeping

INSPECT
Undercarriage & Swing

Track, rollers, idler & sprocket

Inspect and adjust track tension

INSPECT

Final drive oil

Check level

CHECK

Swing gearbox oil

Check level

CHECK

Swing bearing

Full grease & inspect ring gear

GREASE
Brakes & Electrical

Travel brake

Inspect & test stopping function

INSPECT

Battery & terminals

Inspect / test

INSPECT
Greasing — All Pivot Points

Boom / arm / bucket pins

Full grease of all pivot points

GREASE

Bucket linkage pins

Grease all linkage pins

GREASE
Major service — every 1,000 operating hours. Coolant flush, breather, air-filter safety element and valve clearances.
Engine

Engine oil & filter

Change oil (22 L) and replace the oil filter

CHANGE

Engine coolant

Full flush & refill — 29 L

CHANGE

Drive / fan belt

Inspect / replace

INSPECT

Valve clearances

Check & adjust to SANY spec

CHECK
Hydraulics

Hydraulic return filter

Replace

REPLACE

Hydraulic breather

Replace

REPLACE

Hoses & cylinders

Inspect

INSPECT
Fuel & Air

Water separator

Drain / inspect

DRAIN

Fuel filter

Replace

REPLACE

Air filter pre-cleaner

Clean / inspect

CLEAN

Air filter primary element

Replace

REPLACE

Air filter safety element

Replace — never clean or reuse

REPLACE
Cooling

Radiator

Full flush, check for corrosion

CLEAN

Cooling hoses

Inspect

INSPECT
Undercarriage & Swing

Track & undercarriage

Inspect rollers, idler, sprocket

INSPECT

Final drive oil

Change — genuine SANY oil

CHANGE

Swing gearbox oil

Change — 4 L SAE 90 GL-4

CHANGE

Swing bearing

Full greasing

GREASE
Brakes & Electrical

Travel brake

Inspect

INSPECT

Battery & terminals

Inspect / test

INSPECT
Greasing — All Pivot Points

Boom / arm / bucket pins

Full greasing

GREASE

Bucket linkage pins

Grease all linkage pins

GREASE
Overhaul service — every 2,000 operating hours (or annually). Full hydraulic oil change plus all 1,000 h tasks.
Engine

Engine oil & filter

Change oil (22 L) and replace the oil filter

CHANGE

Engine coolant

Full flush & refill — 29 L

CHANGE

Drive / fan belt

Inspect / replace

INSPECT

Valve clearances

Re-check & adjust

CHECK
Hydraulics

Hydraulic oil — full change

Change — 180 L refill, ISO VG 46 HM

CHANGE

Hydraulic return filter

Replace

REPLACE

Hydraulic breather

Replace

REPLACE

Hoses & cylinders

Inspect

INSPECT
Fuel & Air

Water separator

Drain / inspect

DRAIN

Fuel filter

Replace

REPLACE

Air filter pre-cleaner

Clean / inspect

CLEAN

Air filter primary element

Replace

REPLACE

Air filter safety element

Replace

REPLACE
Cooling

Radiator

Full flush, check for corrosion

CLEAN

Cooling hoses

Inspect / replace

INSPECT
Undercarriage & Swing

Track & undercarriage

Inspect rollers, idler, sprocket

INSPECT

Final drive oil

Change

CHANGE

Swing gearbox oil

Change — 4 L SAE 90 GL-4

CHANGE

Swing bearing

Full greasing

GREASE
Brakes & Electrical

Travel brake

Inspect

INSPECT

Battery & terminals

Inspect / test

INSPECT
Greasing — All Pivot Points

Boom / arm / bucket pins

Full greasing

GREASE

Bucket linkage pins

Grease all linkage pins

GREASE

Warning Alerts & Immediate Actions

Indicators appear on the DOMCS instrument panel. RED = stop the engine immediately. AMBER = take action before continuing work.

Red — Stop engine now Amber — Act before continuing
RED

Engine Oil Pressure

Oil pressure has dropped — the engine is running without lubrication.

Immediate action: STOP ENGINE IMMEDIATELY. Do not wait. Find the cause before restarting.

Risk if ignored: complete engine seizure — irreversible. Contact your SANY dealer.

RED

Engine Overheating

Engine overheating — coolant failing, radiator blocked, or fan failure.

Immediate action: stop work. Idle 2 minutes then shut down. Check coolant and radiator.

Risk if ignored: warped cylinder head, blown head gasket, seized engine.

RED

Battery / No Charge

Alternator not charging the battery — electrical system failing.

Immediate action: check the drive belt and alternator terminal connections immediately.

Risk if ignored: machine will not restart — battery dies mid-shift.

AMBER

Hydraulic Oil Temperature

Hydraulic oil overheating — system overloaded or the oil cooler is blocked.

Immediate action: stop work. Idle 10–15 minutes with no hydraulic movement to cool the system.

Risk if ignored: pump seal failure, cylinder damage, control valve damage.

AMBER

Air Filter Restriction

Air filter blocked — the engine is not getting enough clean air.

Immediate action: stop work. Remove and inspect the outer air filter. Clean or replace.

Risk if ignored: power loss, black smoke, overheating, injector and turbo damage.

AMBER

Hydraulic Leak / Pressure Drop

Hydraulic pressure drop — a hose, joint or seal has failed.

Immediate action: stop all work. Do not operate. Locate and repair the leak before restarting.

Risk if ignored: total hydraulic failure, uncontrolled attachment movement, fire risk.

AMBER

Low Fuel

Fuel level near empty — approximately 10–15% remaining.

Immediate action: refuel as soon as possible. Do not run dry.

Risk if ignored: running dry pulls tank sediment into the injectors — expensive repair.

AMBER

Travel Motor Temperature

Final drive / travel motor oil has overheated.

Immediate action: stop machine travel. Check the final drive oil level and cooler.

Risk if ignored: final drive failure — major undercarriage repair required.

Popular Comparisons with SANY SY220C-9

Products

Related Excavators

Frequently Asked Questions

Everything you need to know about the SANY SY220C-9 Crawler Excavator

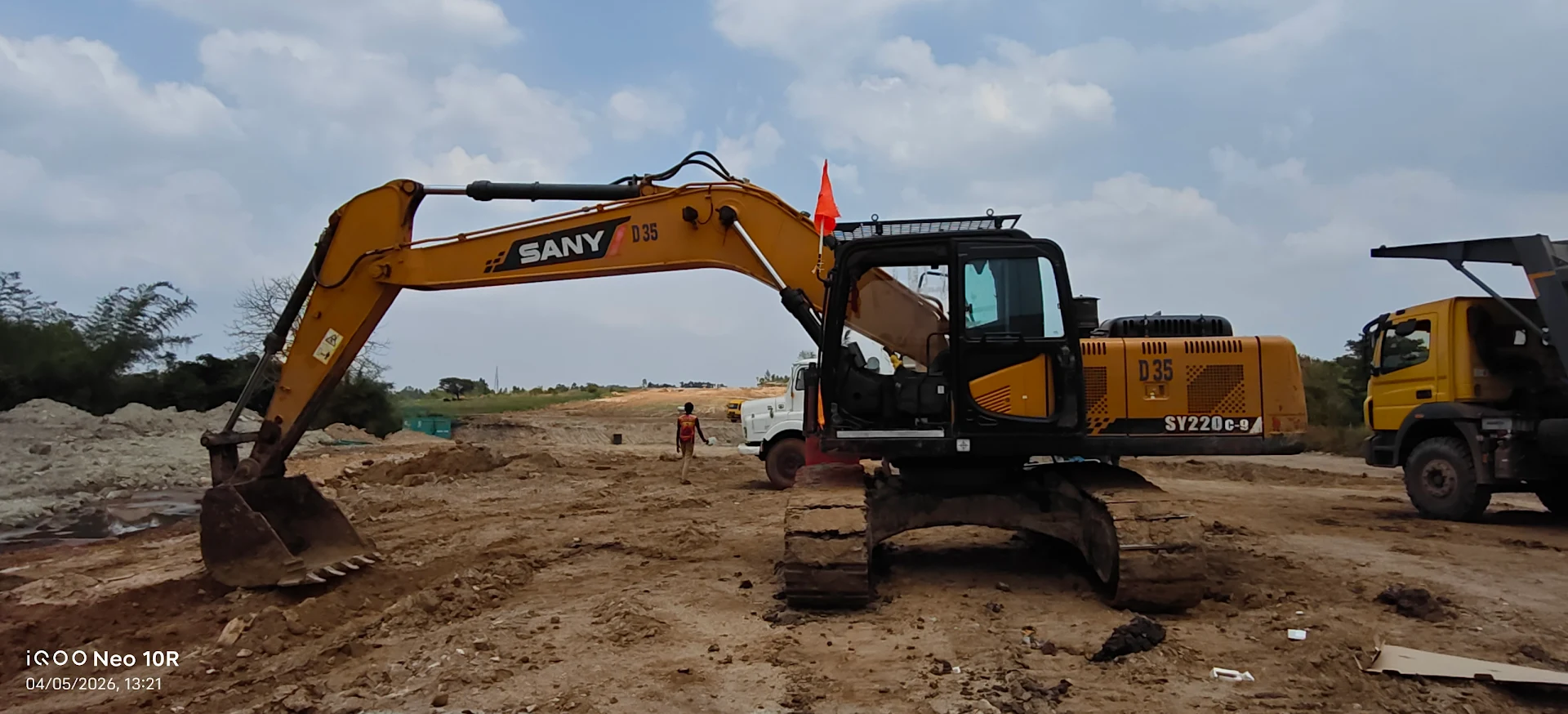

The SANY SY220C-9 is a 22-tonne class crawler hydraulic excavator from the C9 series, built for general construction, earthmoving, quarrying, road building, and infrastructure projects. With a 1.0 m³ bucket and strong digging forces, it suits bulk excavation, loading and trenching duties.

The SANY SY220C-9 has an operating weight of 21,900 kg with a ground pressure of 47 kPa, giving stable, productive performance for heavy-duty earthmoving.

The SY220C-9 is powered by a SANY Mitsubishi D06S2 — 6 cylinder, inline, water-cooled diesel engine producing 153 HP (114 kW) @ 2050 RPM with a max torque of 590 Nm @ 1400 RPM and 5.86 L displacement.

With the standard 5,700 mm boom and 2,400 mm arm, the SY220C-9 offers a max cutting height of 9,113 mm, max digging depth of 6,037 mm, and max digging reach of 9,312 mm. With the optional 2,900 mm arm, max digging depth increases to 6,600 mm and max digging reach to 10,280 mm.

Key features include the DOMCS Intelligent Controller, 4 working modes (H/S/L/B), a positive-flow hydraulic system with 2×220 L/min flow, two variable displacement axial piston main pumps, a heavy-duty undercarriage with 600 mm track shoes, GPRS/GPS/GIS remote monitoring, and an air-conditioned cab (cabin guard optional).

The SANY SY220C-9 has a 364 L fuel tank and a 239 L hydraulic tank (180 L refill), supporting extended operation between refuelling for shift-based construction and quarry work.
