BOBCAT Backhoe Loader

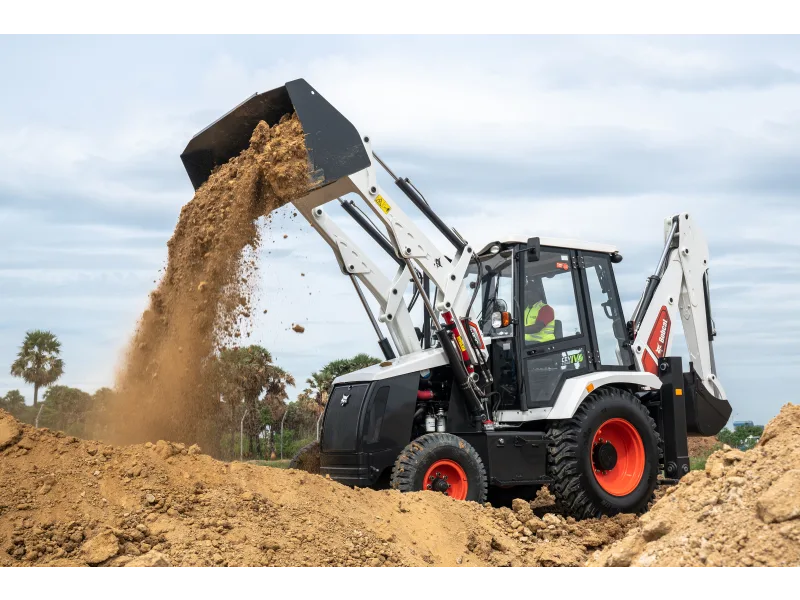

BOBCAT B900 Backhoe Loader

A robust and versatile backhoe loader designed for earthmoving, trenching, loading, and material handling in demanding construction and infrastructure applications.

Feature icon
Engine74 HP @ 2200 rpm
Feature icon
Bucket0.27 m³
Shovel icon
Shovel1.1 m³
Digging depth icon
Digging Depth4966 mm
Dumping height icon
Dump Height3515
Feature icon
Weight7990 kg
Download Brochure
Enter email to get the brochure

Key Highlights

Car icon
Engine Make

Ashok Leyland H4C47422

Fuel Tank icon
Fuel Tank

140L

Torque Icon
Max Torque

336 Nm @ 1400 RPM

Download Speed icon
Max Speed

40 km/hr

Hydraulics icon
Hydraulic System

119 L/min @ 2200 RPM

Maximum Working Height Icon
Max Working Height

5970 mm

Max Lift Capacity Icon
Excavator Max Lift Capacity

1685 kg

Load Over Height Icon
Loader Load Over Height

3514 mm

Width icon
Overall Length

6144 mm

All Wheel Drive icon
Wheel Base

2170 mm

Bucket Digging Force Icon
Bucket Digging Force

6121 kgf

Pressure icon
Shovel Break Out Force

6115 kgf

Feature icon
Warranty

1 Yr. / 2000 hr.

Air Conditioner icon
AC Cabin

Optional

GPS Tracking icon
GPS

Standard

Specifications

Product specification of BOBCAT B900 Backhoe Loader

ENGINE

  • Model

    Ashok Leyland H4C47422

  • Type

    4-cylinder, water-cooled, turbocharged

  • Gross Power

    74 HP @ 2200 RPM

  • Max Torque

    336 Nm @ 1400 RPM

  • Displacement

    3839 cc

  • Battery

    12 V / 130 Ah

  • Alternator

    90 A

TRANSMISSION

  • Type

    Carraro / Synchro Shuttle

STEERING

  • Type

    Front Wheel Steering with dedicated steering pump

  • Steering Pump

    Gear Pump - 16 cc (33 L/min @ 2200 RPM)

STEERING TURNING CIRCLE

  • With brake - Outside Front Wheels: 6300 mm
  • With brake - Outside Widest Loader Bucket: 9200 mm
  • Without brake - Outside Front Wheels: 8500 mm
  • Without brake - Outside Widest Loader Bucket: 11700 mm

BRAKES

  • Service Brakes: Hydraulic wet multi-disc, dual pedal braking
  • Parking Brake: Mechanical control on rear axle

TYRES

  • Standard Front: 9x16 (Industrial)
  • Standard Rear: 16.9x28 (Industrial)
  • Optional Rear: 14x25 (Heavy Duty)

SPEED

  • Forward:
  •   - 1st: 5.7 km/h
  •   - 2nd: 9.1 km/h
  •   - 3rd: 20.5 km/h
  •   - 4th: 40.0 km/h
  • Reverse:
  •   - 1st: 5.7 km/h
  •   - 2nd: 9.1 km/h
  •   - 3rd / 4th: Not recommended

HYDRAULICS

  • Type: Open Center Hydraulics
  • Pump Type: Variable Displacement Axial Piston Pump
  • Max Pump Capacity: 54 cc (119 L/min @ 2200 RPM)
  • System Pressure: 220 Bar

AXLES

  • Front Axle: Steer axle, centrally pivoted, with oscillation angle of 16°
  • Rear Axle: Rigidly mounted rear axle with outbound planetary drives

Popular Comparisons with BOBCAT B900

Products

Related Backhoe Loader

Frequently Asked Questions

Everything you need to know about the JCB 3DX Backhoe Loader

The B900 backhoe loader is competitively priced for its robust performance and advanced features. For the most accurate and up-to-date pricing-including on-road cost, taxes, and regional variations-please request a quote through our platform or contact an authorized dealer.

You can purchase the B900 backhoe loader through authorized dealers across India. We connect you with verified partners near your location to ensure genuine equipment, warranty support, and after-sales service.

Yes, the B900 backhoe loader is available with flexible financing plans and comprehensive insurance coverage through partnered financial institutions and authorized dealers.

The B900 is equipped with a fuel-efficient Ashok Leyland 74 HP turbocharged engine (CEV Stage IV compliant). While exact km/L figures depend on operating conditions, the machine is engineered for low fuel consumption in typical earthmoving and loading applications. Official fuel consumption data should be confirmed with the manufacturer or dealer.

The B900 is powered by an Ashok Leyland H4C47422 engine, delivering a gross power of 74 HP @ 2200 RPM and a maximum torque of 336 Nm @ 1400 +/-100 RPM. It meets CEV Stage IV emission standards.
