What is the engine power of the Escorts Digmax Super?

The Digmax Super uses an Escorts E4.346CRS4 water-cooled, turbocharged diesel engine producing 55 kW (74.5 HP) at 2,000 rpm and 340 Nm of gross torque at 1,400 ± 50 rpm. It complies with CEV-IV emission norms.

What is the operating weight of the Escorts Digmax Super?

The Digmax Super weighs 8,190 kg in 2WD configuration and 8,350 kg in 4WD configuration.

What are the bucket capacities and digging depth of the Digmax Super?

The Digmax Super has a 1.2 m³ loader bucket and a 0.26 m³ excavator bucket. Its maximum digging depth is 4.80 m.

What are the main loader performance figures of the Digmax Super?

Loader performance includes a 3.00 m dump height, 3.51 m load-over height, 6,425 kgf bucket breakout force, 5,777 kgf loader-arm breakout force and 1,980 kg payload.

What are the fuel tank and hydraulic system specifications of the Digmax Super?

The Digmax Super has a 134 L fuel tank. Its tandem gear-pump hydraulic system delivers a maximum combined flow of 116 L/min at 2,000 rpm with 225 bar maximum relief pressure.

Escorts Digmax Super Backhoe Loader Specs & Features

Key Highlights

Engine Make

Escorts E4.346CRS4 Water-cooled Turbocharged Diesel, CEV-IV

Fuel Tank

134 L

Max Torque

340 Nm @ 1,400 ± 50 RPM

Max Speed

36 km/h

Hydraulic System

116 L/min @ 2,000 RPM

Excavator Max Working Height

6,300 mm

Excavator Max Lift Capacity

1,554 kg

Loader Load Over Height

3,510 mm

Overall Length (Travel Mode)

7,850 mm

Wheel Base

2,140 mm

Excavator Bucket Tear-out Force

6,018 kgf

Loader Bucket Breakout Force

6,425 kgf

Operating Weight

8,190 kg 2WD / 8,350 kg 4WD

Loader Bucket Capacity

1.2 m³

Equipment Monitoring

GPS + GSM — Standard

Specifications

Product specification of Escorts Digmax Super Backhoe Loader

ENGINE

Model

Escorts E4.346CRS4
Type

4-cylinder, water-cooled, turbocharged diesel
Gross Power

74.5 HP (55 kW) @ 2000 RPM
Max Torque

340 Nm @ 1,400 ± 50 RPM
Emission Standard

CEV-IV
Battery

12 V / 150 Ah
Alternator

90 A

TRANSMISSION

Type

Four-speed (4F / 4R) synchro-shift reversing shuttle transmission
Features

Neutral-start provision and transmission-disconnect switch on the gear lever

STEERING

Type

Hydrostatic Power Steering (Front Wheel)
Steering Pump

Priority valve from main pump (Working pressure: 120 bar)

WEIGHTS

2WD: 8,190 kg
4WD: 8,350 kg

BRAKES

Service Brakes: Hydraulically actuated dual-line, self-adjusting, oil-immersed multi-disc brakes on the rear axle
Parking Brake: Hand-operated caliper disc brake

TYRES

2WD Front: 9.00 × 16 — 16 PR
4WD Front: 12.5 × 80 — 12 PR
Rear: 16.9 × 28 — 12 PR IDT

SPEED

Forward:
- 1st Gear: 5.3 km/h
- 2nd Gear: 8.5 km/h
- 3rd Gear: 18.2 km/h
- 4th Gear: 36.0 km/h
Reverse:
- 1st Gear: 4.6 km/h
- 2nd Gear: 7.0 km/h
- 3rd Gear: Not recommended
- 4th Gear: Not recommended

HYDRAULICS

Type:Fixed flow, open centre, two-pump unloading
Pump Type:Tandem Gear Pump
Max Pump Capacity:116 L/min @ 2000 RPM
System Pressure:225 bar

AXLES

2WD Front Axle

Front steer axle with 16° oscillation
4WD Front Axle

Front drive & steer axle with 12° oscillation
Rear Axle

Rigidly mounted drive axle

SERVICE REFILL CAPACITIES

Hydraulic System Oil: 80 L
Fuel Tank: 134 L
Engine Coolant: 15 L
Engine Oil: 11.5 L
Transmission Oil: 16.5 L
Rear Axle Oil: 17.1 L
Brake Reservoir Oil: 1.0 L

ELECTRICAL

12 V electrical system with 150 Ah maintenance-free battery, 90 A alternator and safety-controller starter motor
Outrigger engagement warning for operator safety
FM radio and music system

EQUIPMENT MONITORING SYSTEM

GPS + GSM-based equipment monitoring is standard fitment and provides SMS alerts for effective equipment management while acting as a diagnostic tool.

WARNING MESSAGES — SMS, MAIL & ONLINE

Engine Oil Pressure
Battery Charging Status
Engine Coolant Temperature
Hydraulic Oil Temperature
Transmission Oil Temperature
Machine Idle Information
Fuel Level Information

LOADER PERFORMANCE

Dump Height (Cutting Edge)	3.00 m
Load Over Height (Cutting Edge)	3.51 m
Pin Height (Cutting Edge)	3.70 m
Pin Forward Reach	0.43 m
Reach at Ground	1.57 m
Maximum Reach at Full Height	1.22 m
Reach at Full Height, Bucket Dumped	0.85 m
Below Ground Level Digging Depth	0.13 m
Rollback at Ground	45°
Dump Angle	45°
Bucket Breakout Force	6,425 kgf
Loader Arm Breakout Force	5,777 kgf
Payload	1,980 kg
Return to Dig	Available
Self Levelling	Available
Loader Bucket Capacity	1.2 m³

EXCAVATOR PERFORMANCE

Maximum Digging Depth	4.80 m
Reach at Ground from Rear-wheel Centre	6.97 m
Reach at Ground from Slew Centre	5.65 m
Reach at Full Height from Slew Centre	2.23 m
Side Reach to Machine Centre Line	6.00 m
Maximum Working Height, Stabilisers Fully Out	6.30 m
Maximum Load-over Height	4.39 m
King Post Travel	1.00 m
Bucket Rotation	167°
Bucket Tear-out Force	6,018 kgf
Dipper Tear-out Force	3,250 kgf
Lift Capacity at Full Reach (SAE J31)	1,554 kg
Excavator Bucket Capacity	0.26 m³

STATIC DIMENSIONS

Overall Length (Transport Mode)	6.28 m
Overall Length (Travel Mode)	7.85 m
Wheelbase	2.14 m
Rear Wheel to Slew Centre	1.38 m
Minimum Ground Clearance	0.35 m
Slew Ground Clearance	0.59 m
Height to Top of Cab	2.88 m
Overall Height	3.78 m
Track Width — Rear	1.75 m
Track Width — Front	1.87 m
Width over Bucket	2.38 m
Width (Transport Mode)	2.56 m

OPTIONAL ATTACHMENTS

Heavy-duty rear tyres: 14 × 25 — 20 PR
Rock breaker
Trenching buckets: 0.09 m³, 0.12 m³ and 0.18 m³
Special-purpose bucket: 0.30 m³
Coal bucket: 1.5 m³
Multipurpose 6-in-1 bucket
300 mm trench bucket for optical-fibre cable laying

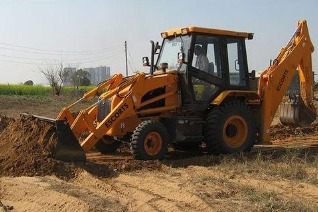

Digmax Super Backhoe Loader
