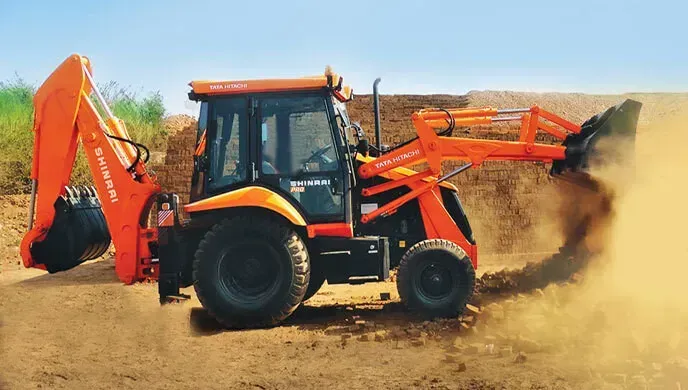

Tata hitachi Backhoe Loader

Shinrai Pro

A modern, reliable backhoe loader suited for earthmoving, loading, trenching and material handling at construction and infrastructure sites.

Engine47 HP
Bucket0.26 cu.m
Shovel1.1 cu.m
Digging Depth4700 mm
Dump Height2690 mm
Weight7940 Kg
Download Brochure
Enter email to get the brochure

Key Highlights

Engine Make

44B3.3T-35.1-C

Fuel Tank

100 L

Max Torque

215 Nm @ 1320 RPM

Max Speed

28 km/hr

Hydraulic System

105 L/min @ 1950 RPM

Max Working Height

6050 mm

Excavator Max Lift Capacity

1998 kg

Loader Load Over Height

3550 mm

Overall Length

6040 mm

Wheel Base

2130 mm

Bucket Digging Force

6026 kgf

Shovel Breakout Force

5722 kgf

Warranty

1 Yr. / 2000 hr.

AC Cabin

Optional

GPS

Standard

Specifications

Product specification of Tata hitachi shinrai prime Backhoe Loader

ENGINE

  • Model

    44B3.3T-35.1-C

  • Type

    Turbocharged intercool direct injection

  • Gross Power

    47 HP (35.1 kW) @ 2200 RPM

  • Max Torque

    215 Nm @ 1320 RPM

  • Displacement

    3.261 L

  • Battery

    12 V, 130 Ah

  • Alternator

    120A

TRANSMISSION

  • Type

    Synchro shuttle transmission with 4 forward and 4 reverse gears, mechanical gear shift, and integral torque converter for smooth directional changes and efficient power transfer.

  • Torque Converter

    Single-stage, three-element, 2.52:1 stall ratio

  • Gear Selection

    4 Forward and 4 Reverse gears

  • Clutch

    Single plate, dry type, foot-operated clutch

STEERING

  • Type

    Hydrostatic power-assisted steering with priority valve for smooth control and reduced operator fatigue.

  • Pump Type

    Dedicated steering pump

  • System Pressure

    160 bar

STEERING TURNING CIRCLE

  • Turning Radius (Outside Loader Bucket): 11,730 mm
  • Turning Radius (Outside Wheels): 8,600 mm
  • Steering Type: Hydraulic actuation for smooth control

BRAKES

  • Service: shinrai prime brakes, hydraulically actuated, dual line, self adjusting (compensated), oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc. requiring no maintenance.
  • Parking: Hand operated, disc brakes on rear axle input disc.

TYRES

  • Service: Oil-immersed wet disc brakes, hydraulically actuated with independent pedals for precise control in confined spaces.
  • Parking: Hand-operated disc brake on the rear axle.

SPEED

  • Forward 1st Gear: 5 km/h
  • Forward 2nd Gear: 7 km/h
  • Forward 3rd Gear: 16 km/h
  • Forward 4th Gear: 28 km/h
  • Reverse 1st Gear: 5 km/h
  • Reverse 2nd Gear: 7 km/h
  • Max Travel Speed: 28 km/h

HYDRAULICS

  • Type: Intelligent Optimum Hydraulic system with variable displacement pump, electric displacement control, and load-sensing for fuel efficiency
  • Maximum Pump Flow: 105 L/min @ 1950 RPM
  • System Pressure: 265 bar

AXLES

  • Rear axle: Heavy-duty, non-powered Carraro axle
  • Front axle: Floats up to +/-8 degrees to handle uneven terrain

Popular Comparisons with shinrai pro

Products

Related Backhoe Loader

Frequently Asked Questions

Everything you need to know about the Tata Hitachi Shinrai Pro Backhoe Loader

The Tata Hitachi Shinrai Pro backhoe loader price in India typically ranges between ₹32-35 lakhs (ex-showroom). Prices may vary depending on configuration, dealer location, applicable taxes, and optional attachments.

You can purchase the Tata Hitachi Shinrai Pro from authorized Tata Hitachi dealerships across India. Our platform helps connect you with verified dealers near your project site, ensuring reliable delivery and support.

Yes. Tata Hitachi offers easy financing and insurance options for the Shinrai Pro through partner banks and NBFCs to help customers own the equipment with flexible EMI plans.

The Tata Hitachi Shinrai Pro offers an excellent fuel efficiency of around 5-6 km/l under standard working conditions. Actual fuel consumption depends on the type of work, terrain, and operator skill.

The Shinrai Pro is powered by a reliable Kirloskar 44B3.3T-35.1-C diesel engine producing 47 HP (35.1 kW) @ 2200 RPM and a maximum torque of 215 Nm @ 1320 RPM, ensuring robust performance with optimized fuel efficiency.

Key highlights of the Shinrai Pro include:
  • Powerful and fuel-efficient Kirloskar CEV BS-IV compliant engine (47 HP)
  • High hydraulic flow of 105 L/min @ 1950 RPM
  • Maximum travel speed of 28 km/h
  • Loader bucket capacity of 1.1 m³ and backhoe bucket of 0.26 m³ (standard)
  • Maximum digging depth of 4700 mm and dump height of 4200 mm
