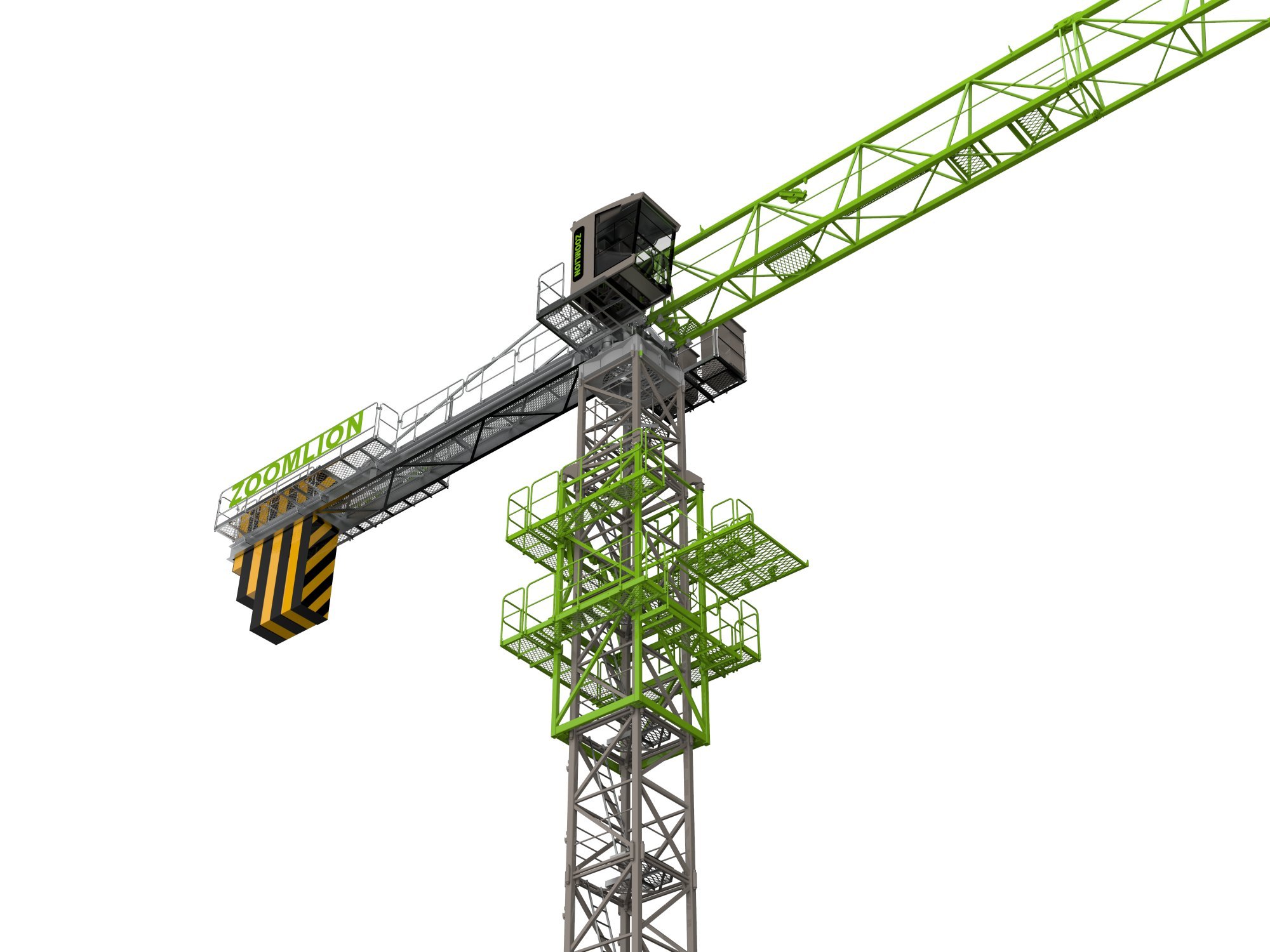

Zoomlion WA6515 Flat-top Tower Crane front view
ZOOMLION Flat-top Tower Crane

Zoomlion WA6515 Flat-top Tower Crane

A medium-tonnage flat-top tower crane available in 8T and 10T variants, featuring a 65 m maximum jib, 1.5 T tip load, and 186.4 t·m rated lifting moment. With a 60 m free-standing height, 100 m/min hoist speed, frequency-controlled drives, EN-compliant ultra-simplified structure, and ergonomic integrated cabin — built for high-rise construction and multi-crane urban projects with 30+ year service life design.

Max Capacity icon
Max Capacity8 T / 10 T
Max Jib Length icon
Max Jib Length65 m
Lifting Moment icon
Lifting Moment186.4 t·m
Free-standing Ht. icon
Free-standing Ht.60 m
Max Hoist Speed icon
Max Hoist Speed100 m/min
Tip Load icon
Tip Load1.5 T @ 65 m
Download Brochure
Enter email to get the brochure

Key Highlights

Capacity icon
Max Hoisting Capacity

8 T (WA6515-8) / 10 T (WA6515-10)

Moment icon
Max Lifting Moment

186.4 t·m (8T) / 160 t·m (10T)

Jib icon
Max Jib Length

65 m

Height icon
Free-standing Height

60 m

Tip load icon
Tip Load (at 65 m)

1.5 T

Hoist speed icon
Max Hoist Speed

100 m/min

Slewing icon
Slewing Speed

0 – 0.8 r/min

Trolley icon
Trolley Speed

0 – 75 m/min

Rope icon
Rope Capacity

440 m

Design life icon
Design Life

30+ Years (EN Standard)

Specifications

Detailed technical specifications for Zoomlion WA6515 Flat-top Tower Crane

LIFTING CAPACITY

  • Max. Hoisting Capacity8 T (WA6515-8) / 10 T (WA6515-10)
  • Max. Lifting Moment (8T variant)186.4 t·m
  • Max. Lifting Moment (10T variant)160 t·m
  • Max. Working Range & Load (8T)8 T @ 17.2 m radius
  • Tip Load (at 65 m)1.5 T

JIB & HEIGHT

  • Max. Jib Length (Operating Range)65 m
  • Max. Free-standing Height60 m
  • Rope Capacity440 m
  • Crane TypeFlat-top Tower Crane — Medium Tonnage WA Series

HOIST & SPEEDS

  • Max. Hoisting Speed (8T)100 m/min
  • Max. Hoisting Speed (10T)95 m/min
  • Trolley (Luffing) Speed0 – 75 m/min
  • Slewing Speed0 – 0.8 r/min
  • Drive SystemFrequency-controlled Hoist, Trolley & Slewing for smooth operation

STRUCTURAL & FEATURES

  • Design StandardEN Standards Compliant
  • Service Life Design30+ Years
  • StructureUltra-simplified flat-top design — no peak above tower head
  • Operator's CabErgonomic integrated cabin with user-friendly controls
  • ApplicationHigh-rise construction, tight urban sites, multi-crane projects

MODEL VARIANTS

  • WA6515-8 / WA6515-8E / WA6515-8F8T max capacity — Lifting moment: 186.4 t·m — Hoist: 100 m/min
  • WA6515-10 / WA6515-10E / WA6515-10F10T max capacity — Lifting moment: 160 t·m — Hoist: 95 m/min
  • Common Specs (All Variants)65 m jib · 60 m free-standing · 1.5 T tip load · 440 m rope

Popular Comparisons with WA6515

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the Zoomlion WA6515 Flat-top Tower Crane

The Zoomlion WA6515 is available in two variants: the WA6515-8 with a maximum hoisting capacity of 8 Tonnes and a lifting moment of 186.4 t·m, and the WA6515-10 with a maximum capacity of 10 Tonnes and a lifting moment of 160 t·m. Both variants have a tip load of 1.5 T at the maximum 65 m jib.

The WA6515 has a maximum jib length of 65 m and a maximum free-standing height of 60 m. Its rope capacity is 440 m, allowing operation across a wide vertical range. The flat-top design removes the peak above the tower head, enabling multiple cranes to operate at overlapping heights on dense urban sites.

The WA6515-8 achieves a maximum hoisting speed of 100 m/min, while the WA6515-10 reaches 95 m/min. The trolley (luffing) speed is 0–75 m/min and the slewing speed is 0–0.8 r/min. All drives are frequency-controlled for smooth, precise load placement.

The WA6515 is available in multiple sub-variants: WA6515-8, WA6515-8E, WA6515-8F (8T capacity) and WA6515-10, WA6515-10E, WA6515-10F (10T capacity). All variants share the same 65 m jib, 60 m free-standing height, 1.5 T tip load, and 440 m rope capacity. The E and F suffixes indicate regional configuration or electrical specification differences.

The Zoomlion WA6515 complies with EN (European) standards and is designed for a 30+ year service life. It features an ultra-simplified flat-top structure, an ergonomic operator cabin with user-friendly controls, and frequency-controlled drives for the hoist, trolley, and slewing systems — making it a reliable choice for high-rise and urban construction projects.
