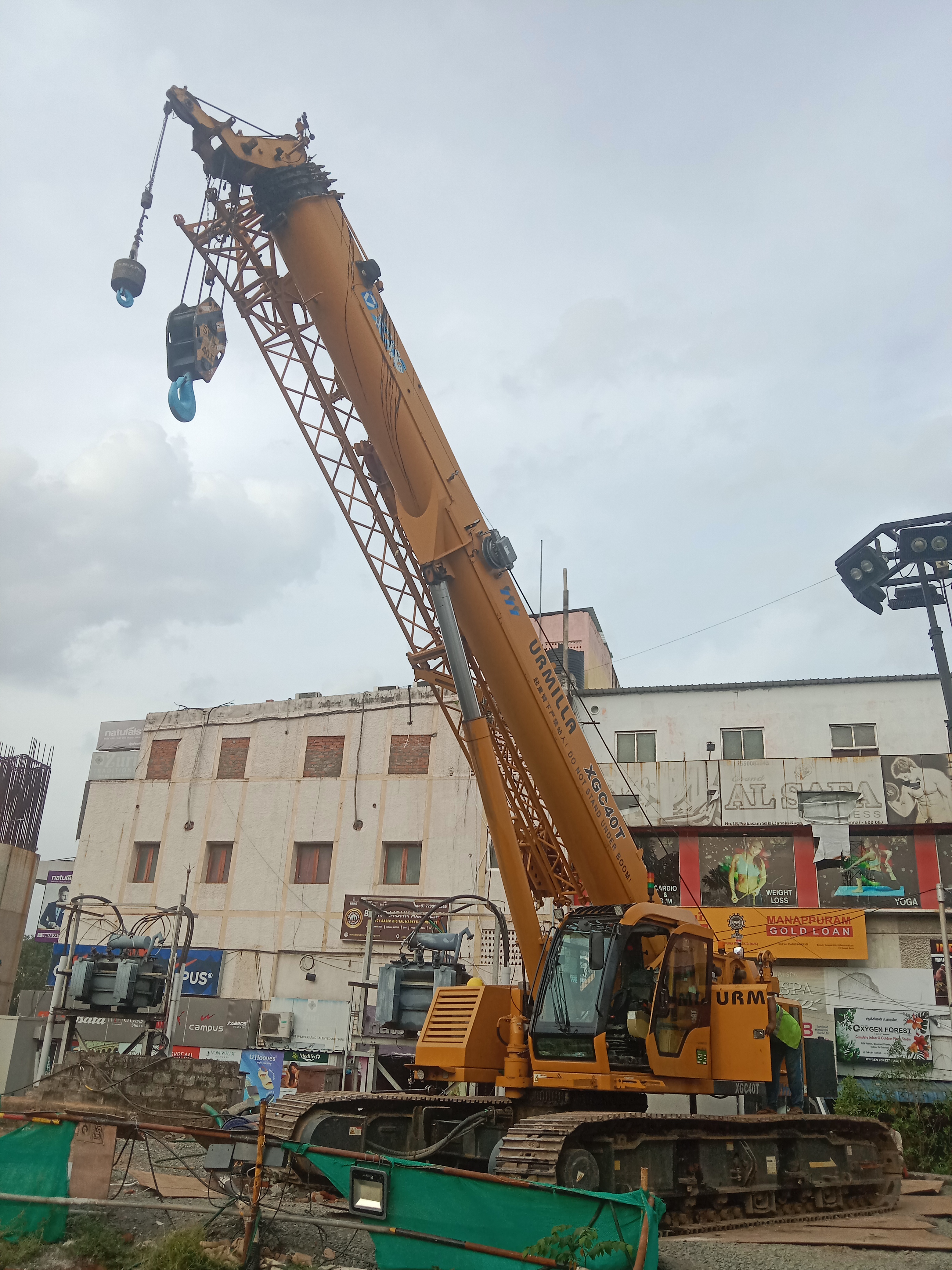

XCMG XGC40T Telescopic Crawler Crane front view
XCMG Crawler Crane

XCMG XGC40T Telescopic Crawler Crane

A 40-tonne 5-section telescopic crawler crane with 1,423 kN·m maximum lifting moment. Powered by a Shanghai SC7H220.1G3 162 kW diesel engine (Non-Road Stage III), ECU+PLC CAN-bus control system, 42 m telescopic boom, and extendable crawler tracks for superior site mobility.

Capacity icon
Capacity40T
Main Boom icon
Max Boom42m
Lift Moment icon
Lift Moment1423 kN·m
Fixed Jib icon
Fixed Jib16m
Engine icon
Engine162 kW
Gradeability icon
Gradeability45%
Download Brochure
Enter email to get the brochure

Key Highlights

Lift Capacity icon
Lift Capacity

40 T

Lift Moment icon
Lift Moment

150 t·m (1,471 kN·m)

Main Boom icon
Main Boom

10.9 – 42 m

Fixed Jib icon
Fixed Jib

9.2 / 16 m

Max Boom + Jib icon
Max Boom + Jib

31 m + 15.25 m

Engine icon
Engine

162 kW / 2,000 rpm

Swing Speed icon
Swing Speed

0 – 2.1 rpm

Travel Speed icon
Travel Speed

0 – 3 km/h

Oper. Weight icon
Oper. Weight

48,000 kg

Counterweight icon
Counterweight

12T

Specifications

Detailed technical specifications for XCMG XGC40T 40T Telescopic Crawler Crane

ENGINE

  • Engine ModelShanghai SC7H220.1G3 Diesel
  • Engine Type4-Stroke, Water-Cooled, Turbocharged Diesel
  • Displacement—
  • Rated Power162 kW @ 2,000 rpm
  • Emission StandardNon-Road Stage III
  • Fuel Tank Capacity540 L
  • Hydraulic Oil Tank950 L
  • Control SystemECU + PLC, CAN-bus, DC 24V, Load Moment Limiter
  • Slewing Speed0 – 2.1 r/min
  • Noise Level80 dB(A)

LIFTING CAPACITY

  • Max. Rated Lifting Capacity40 T
  • Max. Lifting Moment1,423 kN·m
  • Min. Rated Radius3 m
  • Hoisting Speed (no load, 4th layer)140 m/min
  • Wire Rope – Main WinchØ18 mm × 180 m
  • Wire Rope – Aux. WinchØ18 mm × 125 m
  • Main Hook40T hook (400 kg)
  • Aux. Hook4.5T single pulley hook (93 kg)
  • Counterweight12T
  • Total Machine Weight48,000 kg

BOOM & JIB

  • Boom Type5-Section Telescopic, High-Strength Steel
  • Basic Boom Length10.9 m
  • Boom Length Range10.9 m – 42.0 m
  • Boom Full Extension Time80 s
  • Boom Raising Time≤ 40 s
  • Jib Length9.2 m / 16 m
  • Max. Boom + Jib Length58.5 m (42m boom + 16m jib)
  • Jib Offset Angles0°, 15°, 30°
  • Luffing MechanismSingle Cylinder Front Luffing

HOIST & SWING

  • Main Hoist Drum DiameterØ449 mm
  • Main Hoist Wire RopeØ16 mm × 180 m
  • Hoisting Speed (no load, 4th layer)140 m/min
  • Aux. Hoist Drum DiameterØ406 mm
  • Aux. Hoist Wire RopeØ16 mm × 120 m
  • Wire Rope – Main WinchØ18 mm × 180 m
  • Boom Hoist Drum DiameterØ355 mm
  • Boom Hoist Wire RopeØ16 mm × 100 m
  • Boom Hoist Speed0 – 60 m/min
  • Swing Speed0 – 2.5 rpm
  • Swing Range360°

CRAWLER & TRAVEL

  • Max. Travel Speed3 km/h
  • Max. Gradeability45%
  • Track Shoe Width700 mm
  • Min. Ground Clearance395 mm
  • Track Gauge (Extended / Retracted)4,600 mm / 2,980 mm
  • Drive Roller to Driven Roller Distance4,882 mm
  • Ground Pressure0.069 MPa

DIMENSIONS & TRANSPORT

  • Transport Dimensions (L × W × H)13,439 × 3,000 × 3,110 mm
  • Transport Weight — Basic Machine23.5 T
  • Overall Length13,439 mm
  • Overall Height3,112 mm

Popular Comparisons with XGC40T

Products

Related Cranes

Frequently Asked Questions

Everything you need to know about the XCMG XGC40T Telescopic Crawler Crane

The XCMG XGC40T has a maximum rated lifting capacity of 40 Tonnes with a maximum lifting moment of 1,423 kN·m, suitable for construction sites, industrial lifts, and projects requiring telescopic crawler mobility.

The XGC40T features a main boom of up to 40 m and a fixed jib of 15.25 m. In the maximum boom and jib configuration, the combination reaches 31 m boom plus 15.25 m jib for extended vertical reach.

The SANY XGC40T is powered by a 129 kW diesel engine, providing the power needed to handle 45-tonne lifts and operate on challenging terrain conditions typically encountered on construction and industrial sites.

The SANY XGC40T can handle up to 40% gradeability on its crawler track system, allowing it to manoeuvre on steep slopes and uneven ground at construction sites where wheeled cranes cannot operate safely.

The crawler track system of the XGC40T distributes its weight over a large footprint, enabling operation on soft ground without the need for outrigger mats. The 40% gradeability and self-propelled mobility mean it can travel across site terrain without requiring a separate carrier vehicle.
